Hammond 1590Z150PL 207 x 106 mm Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits both 1590Z150 and 1590Z155 enclosures, all finishes
- 16 gauge galvanized steel per drawing
- 207 x 106 x 2 mm (8.14 x 4.17 x 0.06 in)
- Matches the 206.71 x 105.82 mm max board size
- Extra panel screws: SCGM6-20 (M6 - 1.0 X 10mm)
- RoHS and REACH compliant

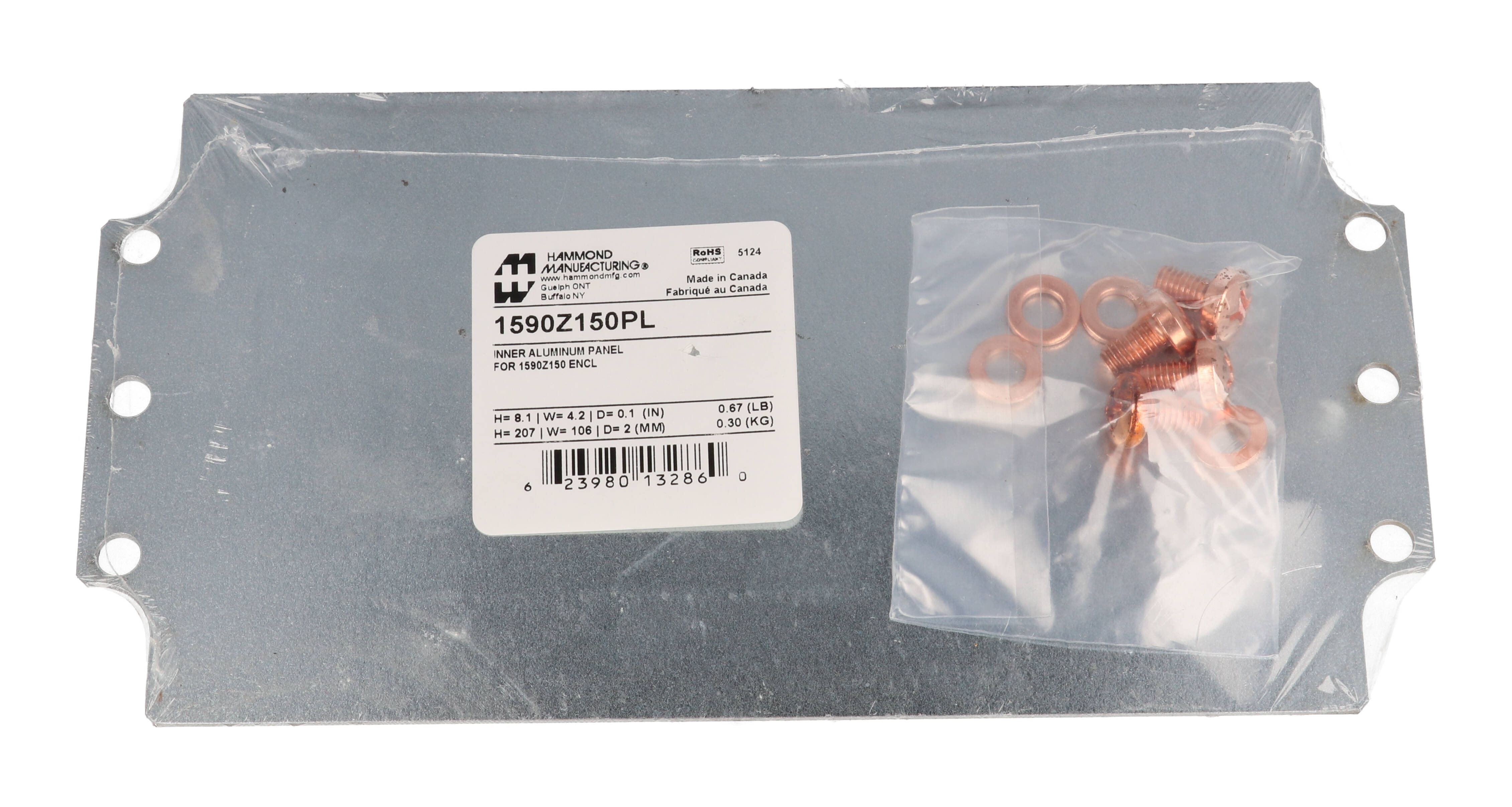

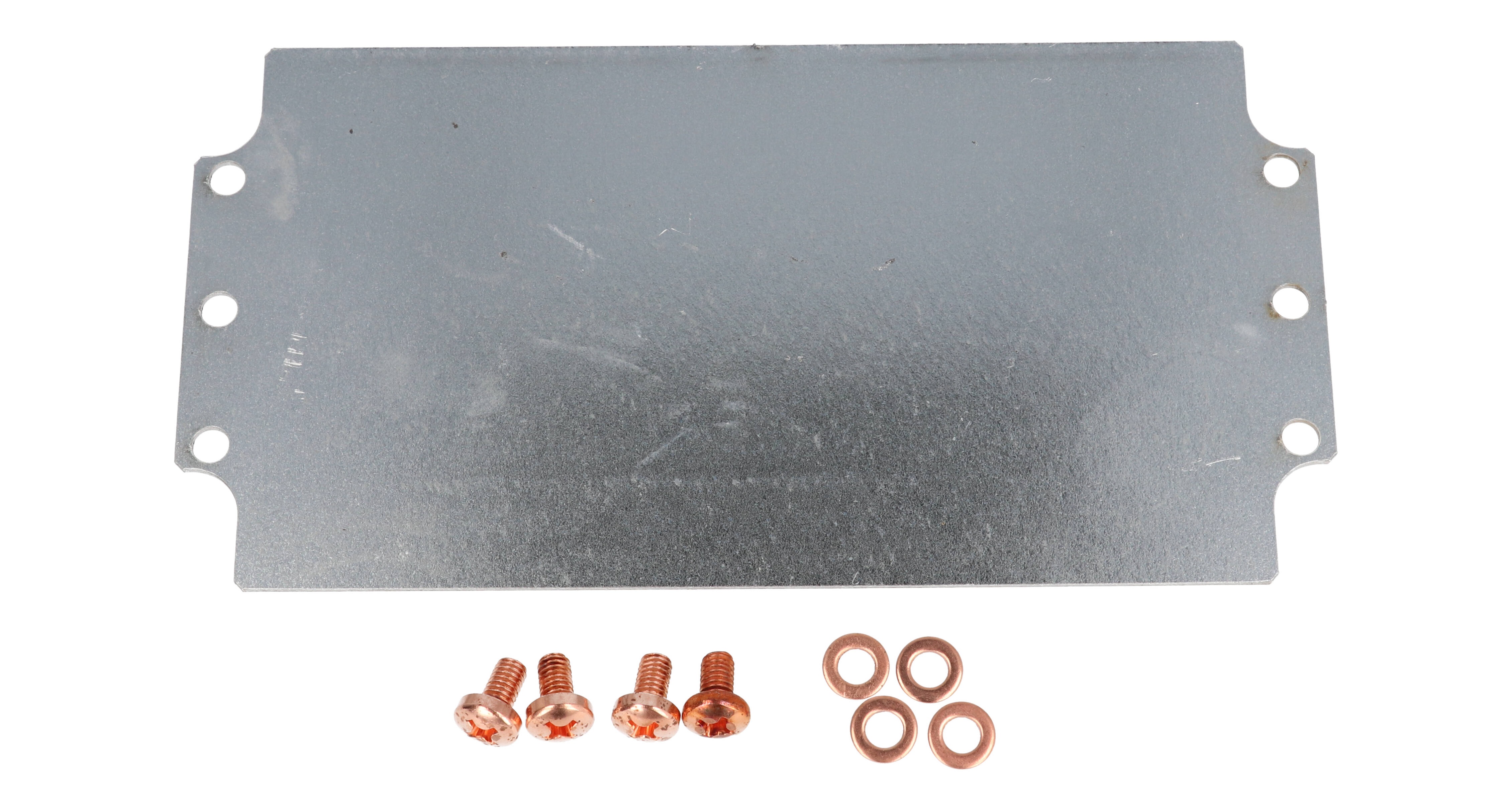

The 1590Z150PL is a shared inner mounting panel for two 1590Z enclosure families: the 1590Z150 and the deeper 1590Z155, both 221 x 121 mm in footprint. It gives installers a removable plate for boards, terminals and components that sits on the enclosure's internal mounting shelf.
The drawing specifies 16 gauge galvanized steel, and the panel measures 207 mm x 106 mm x 2 mm (8.14 x 4.17 x 0.06 in), dimensioned on the drawing as 206.71 mm [8.14 in] by 105.82 mm [4.17 in]. Those dimensions match the 206.71 x 105.82 mm maximum P.C. board size listed for the 1590Z150 and 1590Z155. Shipping weight is 0.67 lbs (0.30 kg), packed in shrink wrap.
- 1590Z150, 1590Z150BK, 1590Z150GY (81 mm total depth)
- 1590Z155, 1590Z155BK, 1590Z155GY (90 mm total depth)
Extra panel screws for these enclosures are SCGM6-20, copper ground hardware (20 pack) sized M6 - 1.0 X 10mm with M6 washer. The 1590Z150PL is RoHS and REACH compliant, and solid models are available in STEP or IGES for layout planning. The panel is sold separately from the enclosures, which ship with the box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers.
Ideal For
- Mounting PCBs inside 1590Z150 and 1590Z155 enclosures
- Removable component and terminal plate
- Pre-assembled electronics sub-plates for sealed housings
Overview
| Type | Inner Panel |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| CAD Models | Solid models available in STEP or IGES |
| Product Type | Inner mounting panel |
| Fits Enclosures | 1590Z150, 1590Z150BK, 1590Z150GY, 1590Z155, 1590Z155BK, 1590Z155GY |
| Short Description | 1590Z150/155 INNER PANEL |
| Mating Enclosure Sizes | 221 mm (8.70 in) x 121 mm (4.76 in); 81 mm (3.19 in) total depth for 1590Z150, 90 mm (3.54 in) for 1590Z155; internal mounting shelf: YES |
| Manufacturer Description | inner mounting panel for 1590Z150, 1590Z155 |
Dimensions
| Size (L X W X H) | 8.14 in x 4.17 in x 0.06 in (207 mm x 106 mm x 2 mm) |
| Panel Length X Width (Drawing) | 206.71 mm [8.14 in] x 105.82 mm [4.17 in] |
Identifiers
| UPC | 623980132860 |
| UNSPSC | 39121301 |
| Part Number | 1590Z150PL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.67 lbs (0.30 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Drawing) | 16 gauge galvanized steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1590Z150PL fit the 1590Z155?▾
Yes. It is the inner mounting panel for both the 1590Z150 and 1590Z155, including the BK and GY painted versions.
What material is it?▾
The drawing specifies 16 gauge galvanized steel.
What are the panel dimensions?▾
207 mm x 106 mm x 2 mm (8.14 in x 4.17 in x 0.06 in); the drawing gives 206.71 mm x 105.82 mm.
Which screws secure the panel?▾
Extra panel screws are SCGM6-20, copper ground hardware (20 pack), M6 - 1.0 X 10mm / M6 washer.
How much does it weigh?▾
0.67 lbs (0.30 kg).
