Hammond 1590WN1 121mm Long IP65 Watertight Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 121 x 66 x 40 mm (4.77 x 2.58 x 1.57 in) rectangular body
- Watertight version designed to meet IP65
- Inside 115.91 x 60.21 x 35.30 mm
- Natural, unpainted vibra finish with no sharp edges
- Diecast aluminum alloy box and lid, easy to machine
- Silicone gasket supplied loose; four 6-32 UNC screws included
- Replacement gasket kit: 1590NGASKET

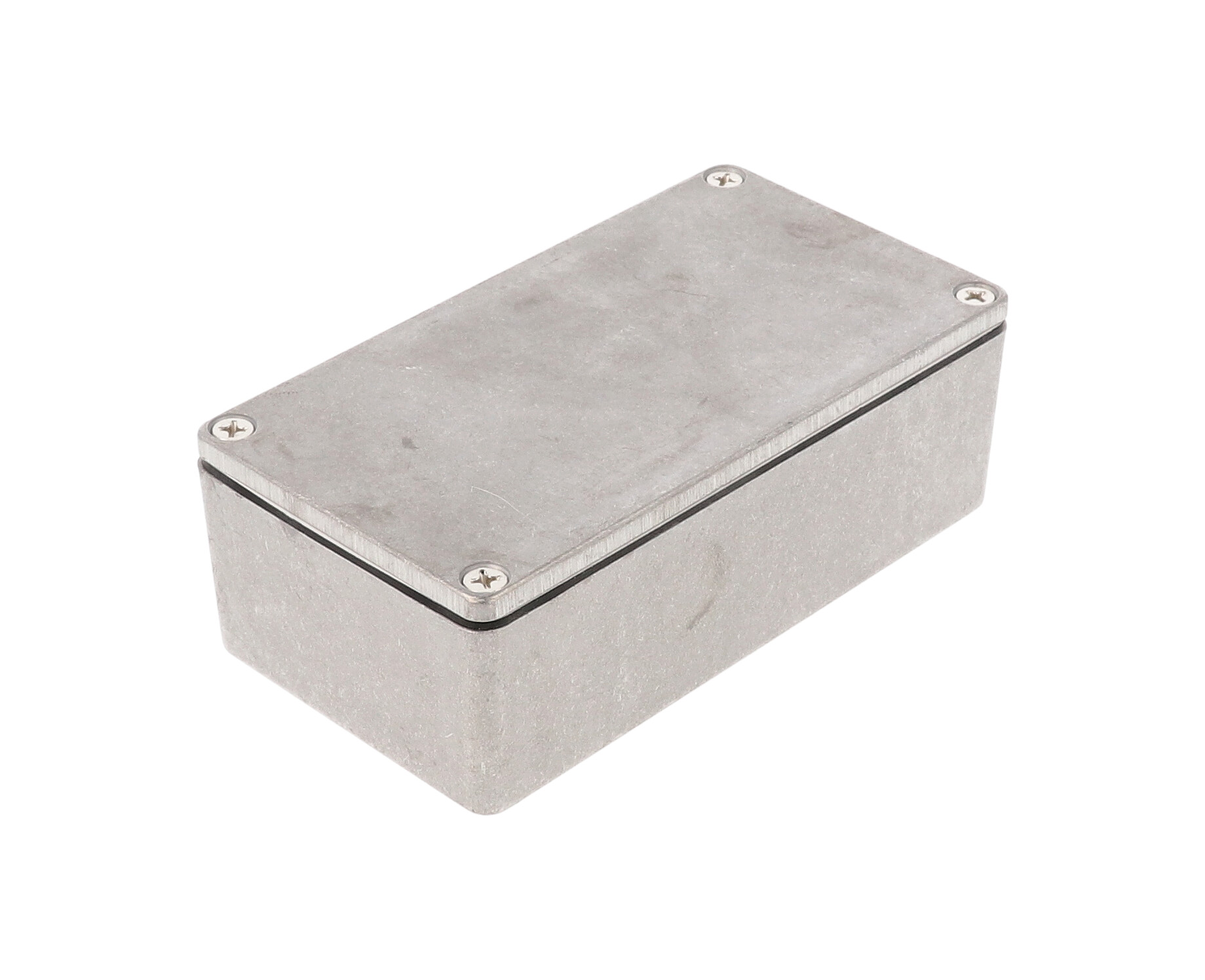

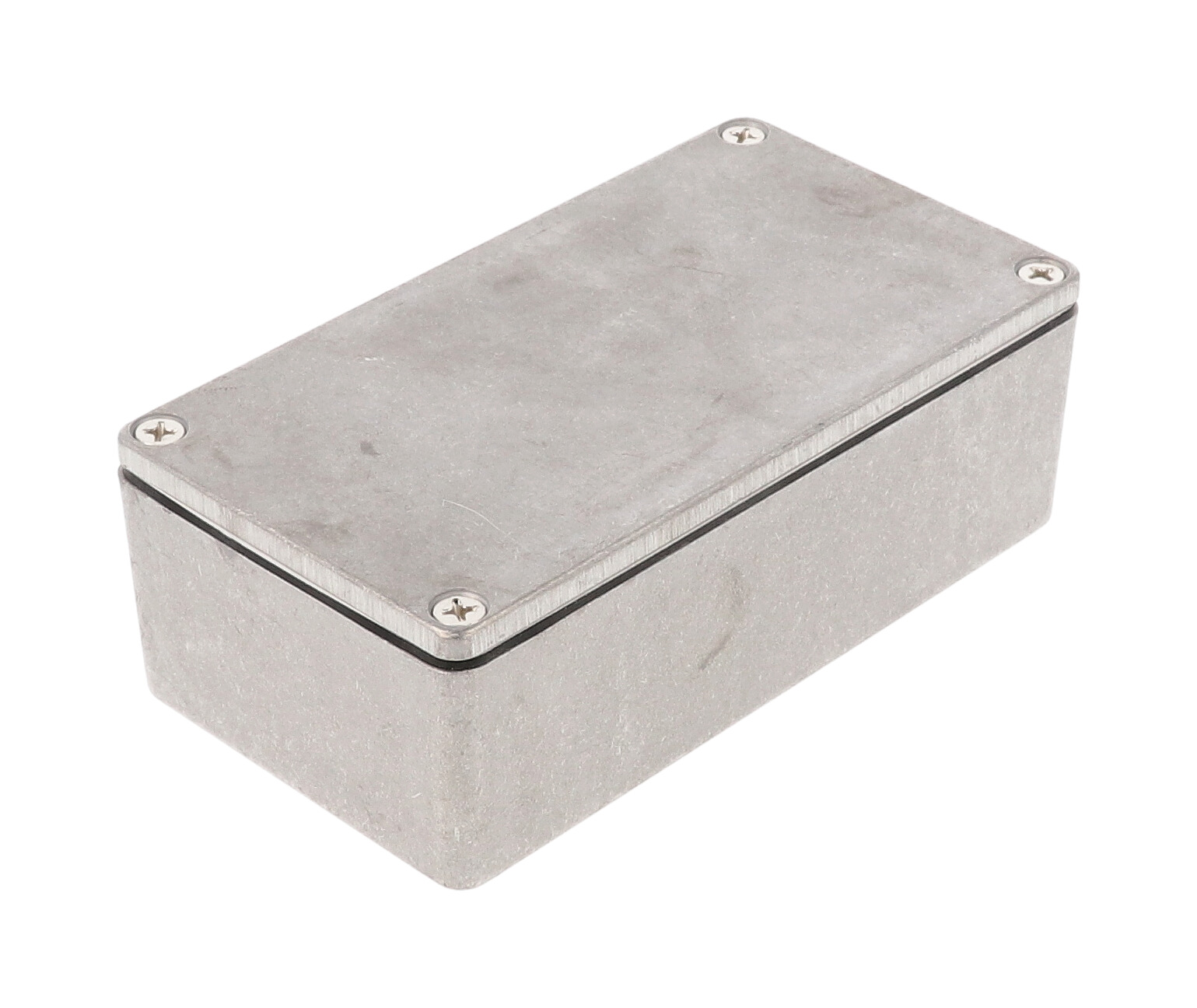

The 1590WN1 is the natural-finish watertight version of the 1590N1 diecast aluminum enclosure, measuring 4.77 x 2.58 x 1.57 in (121 x 66 x 40 mm) with no mounting flanges. Its rectangular shape suits handheld-size electronics, control modules and interface boards for designers, integrators and OEM builders.
Per the drawing, the outside measures 121.20 x 65.50 x 39.80 mm, and the inside is 115.91 mm long, 60.21 mm wide and 35.30 mm (1.390 in) high. The part page lists PC board limits of 60.21 mm and 115.91 mm. Side walls have a draft angle of 2° or less, and the lid height is 0.16 in (4 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine for switches, displays and cable entries. The unpainted version is vibra finished for a smooth surface with no sharp edges, and lap joint construction where lid and box meet guards against dust and splashing water.

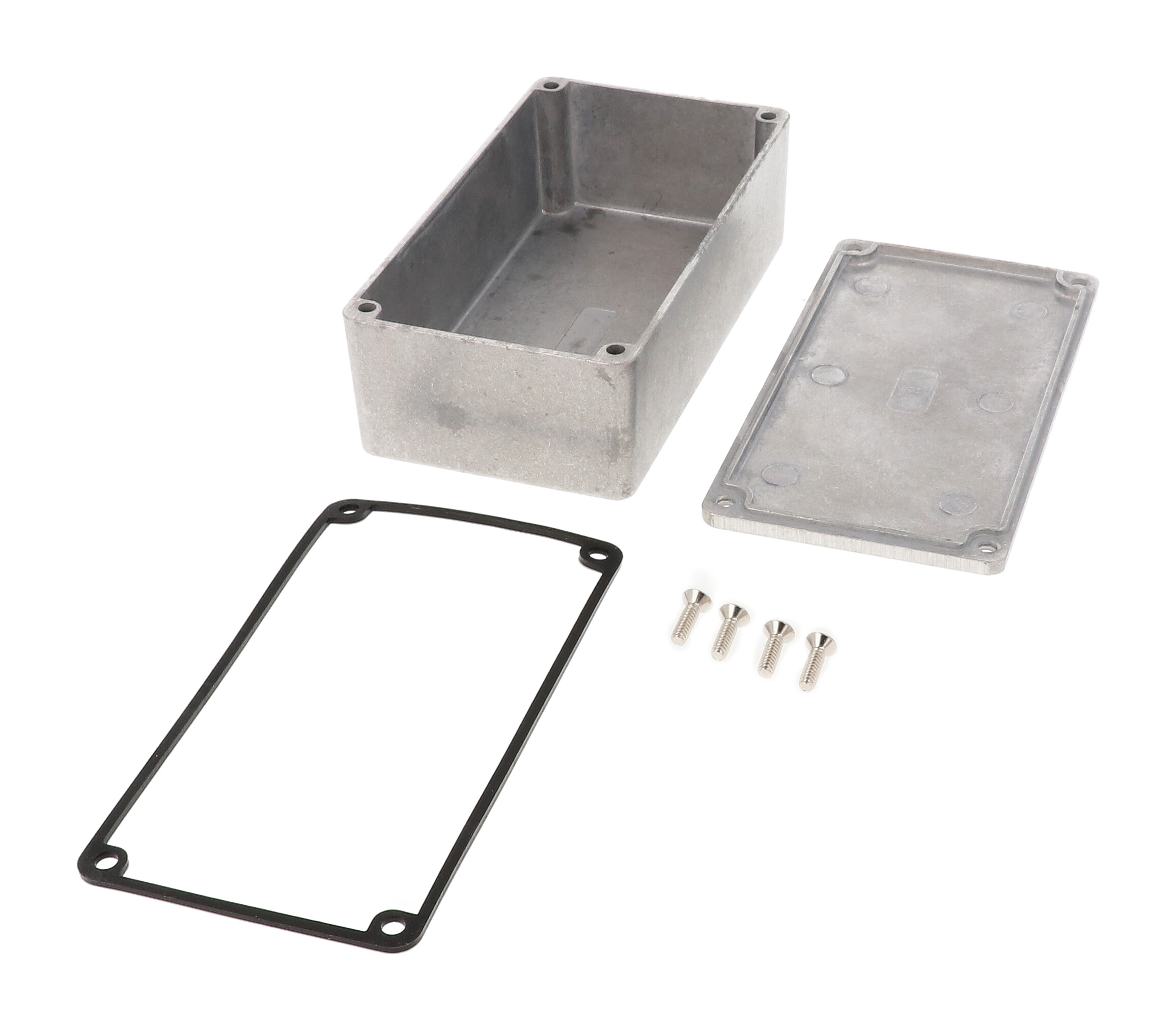

Designed to meet IP65, it includes a silicone gasket supplied loose inside the enclosure, the box, lid and four 6-32 UNC cover screws. Recommended torque is 50-55 cN.m, or 25-30 cN.m with the gasket; 1590NGASKET is the replacement gasket kit. RoHS and REACH compliant; ships shrink wrapped at 0.38 lbs (0.17 kg).
Ideal For
- Sealed control and interface electronics
- Rectangular PCB housings
- Dust- and splash-exposed equipment
- Custom-machined instrument cases
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590NGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WN1 |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - watertight diecast |
| Short Description | 1590N1 WATERPROOF |
| Standard (IP54) Equivalent | 1590N1 |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.30 mm [1.390 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size L X W X H | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Max. P.C. Board Width | 115.91 mm |
| Max. P.C. Board Length | 60.21 mm |
| Overall Width (Drawing) | 65.50 mm [2.579 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 121.20 mm [4.772 in] |
| Nominal Width (Ordering Table) | 2.60 in (66 mm) |
| Nominal Height (Ordering Table) | 1.57 in (40 mm) |
| Nominal Length (Ordering Table) | 4.76 in (121 mm) |
Identifiers
| UPC | 623980539782 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Joint | Lap joint where lid and box meet |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590WN1?▾
The drawing gives 115.91 mm inside length, 60.21 mm inside width and 35.30 mm inside height.
Does it have mounting flanges?▾

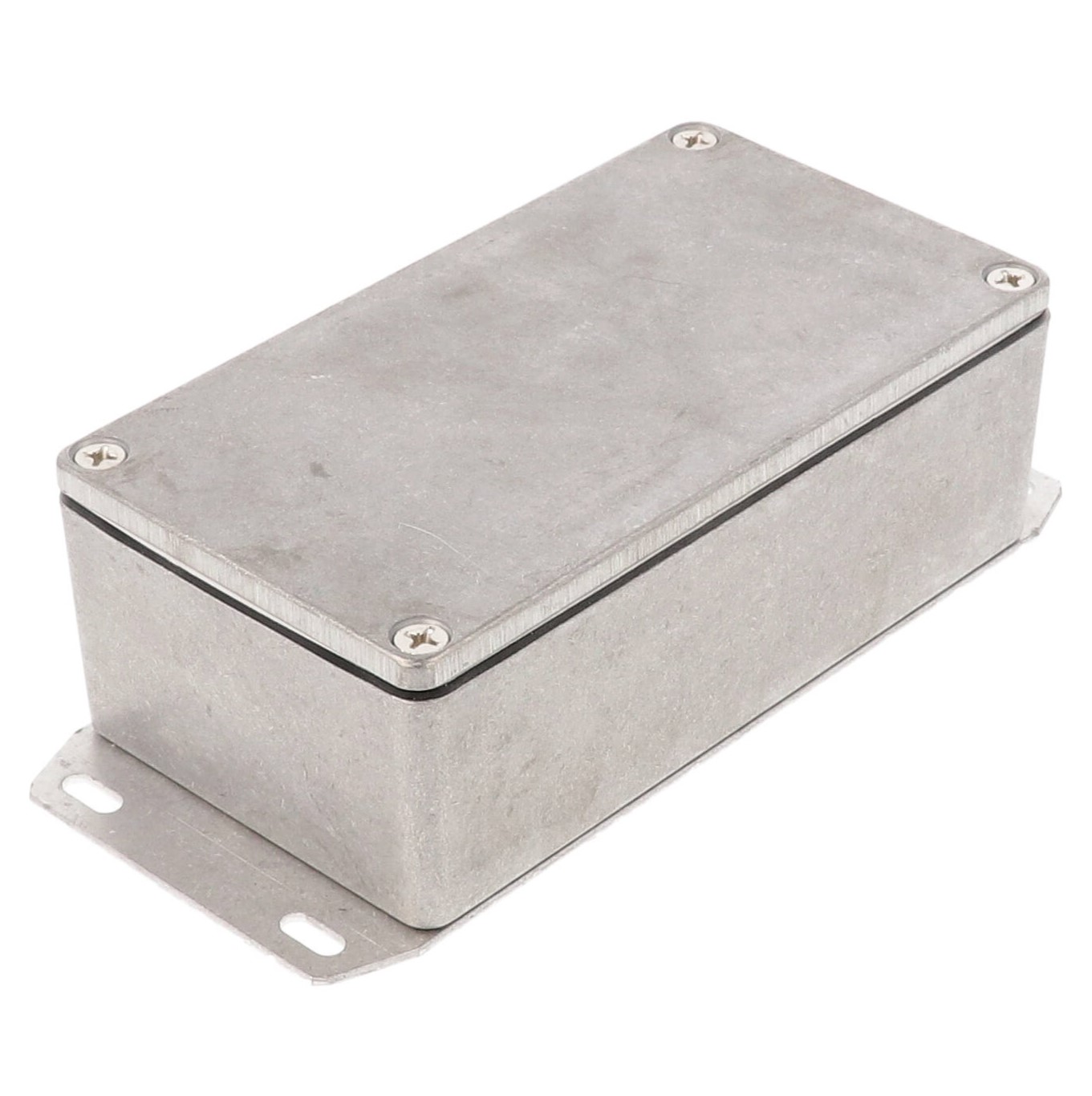

No, this is the no-flange version. Flanged versions of the same size are listed as 1590WN1FL (flanged lid) and 1590WN1F (flanged bottom plate).
Is it waterproof?▾
It is the water-tight version, designed to meet IP65. The silicone gasket is supplied loose and applied to the lid; torque the lid screws to 25-30 cN.m with the gasket.
What is included?▾
The box, lid, four cover screws and the silicone gasket.
Is there a black version?▾

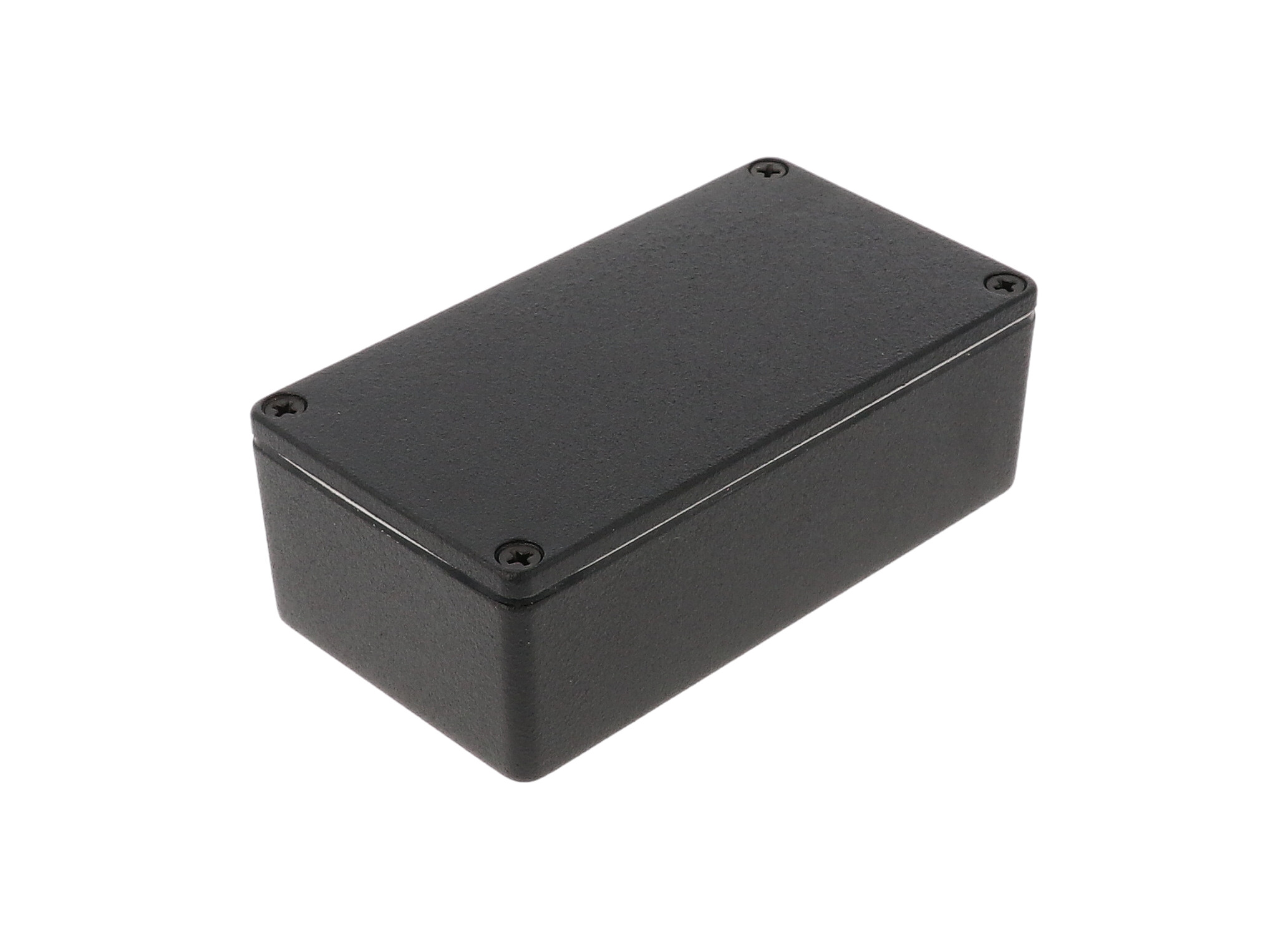

Yes, the black watertight version is 1590WN1BK.
