Hammond 1590WC IP65 Watertight Diecast Aluminum Box, 120x94x57 mm

The 1590WC is the water-tight version of the 1590C size in the 1590 Series of diecast aluminum enclosures: a deep, near-square IP65 box with no mounting flanges. It is supplied in natural aluminum and suits electronics builders, integrators and OEM engineers who need room for a larger PC board and components in a sealed metal case.

Box and lid are diecast aluminum alloy, tough yet easy to machine. Lap joint construction where lid and box meet protects against dust and splashing water, and the side wall draft angle of 2° or less aids PC board mounting. The natural version is left unpainted and vibra finished, giving a smooth surface with no sharp edges that is ready to machine or paint.

The listed size is 4.7 x 3.7 x 2.22 in (119 x 94 x 56 mm); the ordering table's nominal size is 4.72 x 3.70 x 2.24 in (120 x 94 x 57 mm). The drawing shows a 119.50 x 94.00 mm body with inside dimensions of 111.27 mm long, 85.77 mm wide and 52.25 mm high. Maximum PC board size is 109.27 x 83.77 mm, and the lid is 0.16 in (4 mm) high.

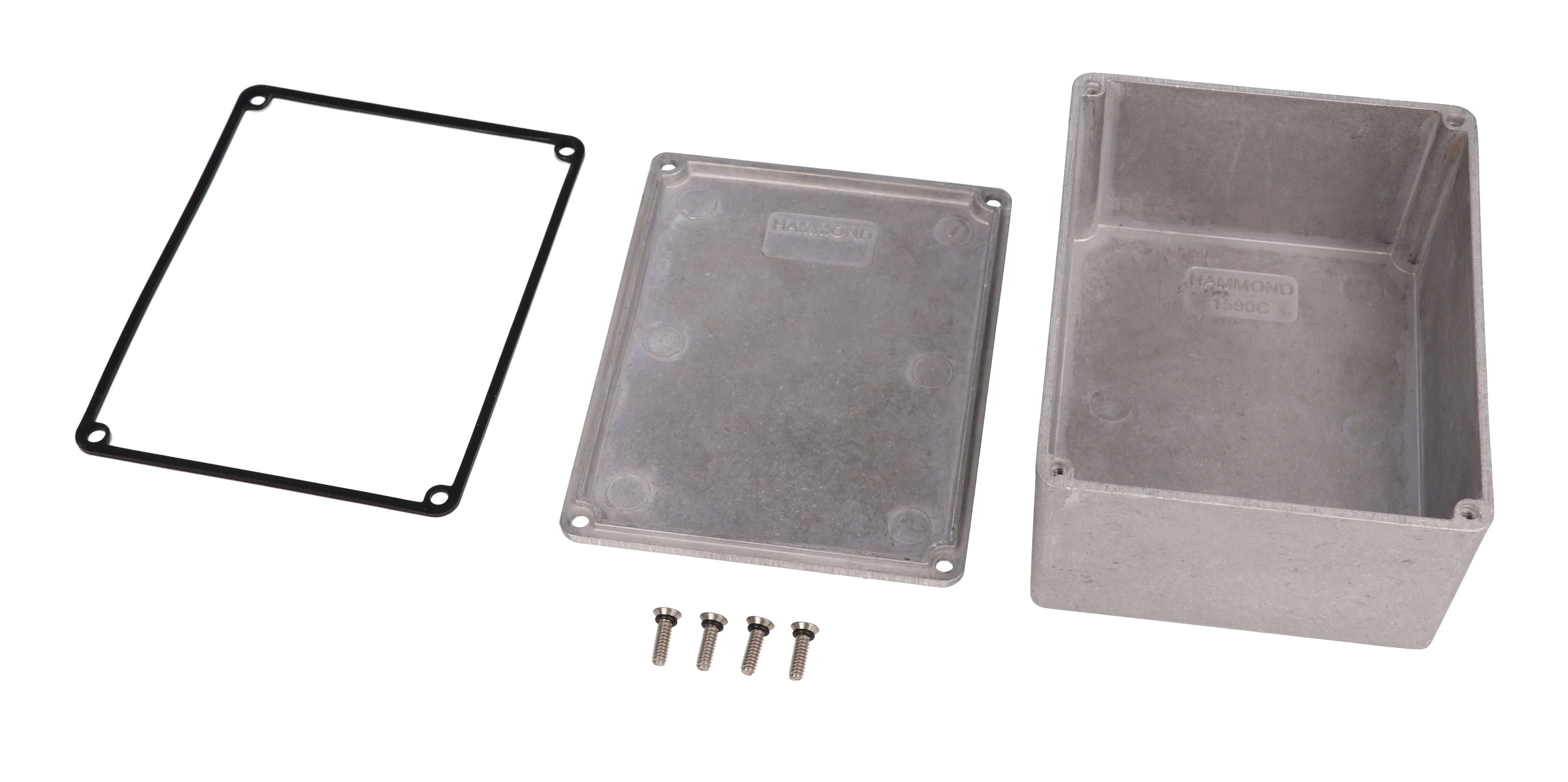

Included are the box, lid, four 6-32 UNC cover screws and a silicone gasket supplied loose inside the enclosure. Torque the screws to 25-30 cN.m with the gasket (50-55 cN.m without). The listed replacement gasket kit for this size is 1590BBGASKET. RoHS and REACH compliant, shrink wrapped, shipping weight 0.62 lbs (0.28 kg).
