Hammond 1590WBBBK 120x94x34mm IP65 Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket included, supplied loose inside
- Black textured polyester powder paint with matching black screws
- Nominal 120 x 94 x 34 mm (4.72 x 3.70 x 1.34 in), no mounting flanges
- Inside 112.66 x 87.16 x 29.75 mm; max PC board 85.16 x 110.66 mm
- Diecast aluminum alloy box and lid, easy to machine
- 4 cover screws included for factory-tapped 6-32 UNC holes
- RoHS and REACH compliant; replacement gasket kit 1590BBGASKET

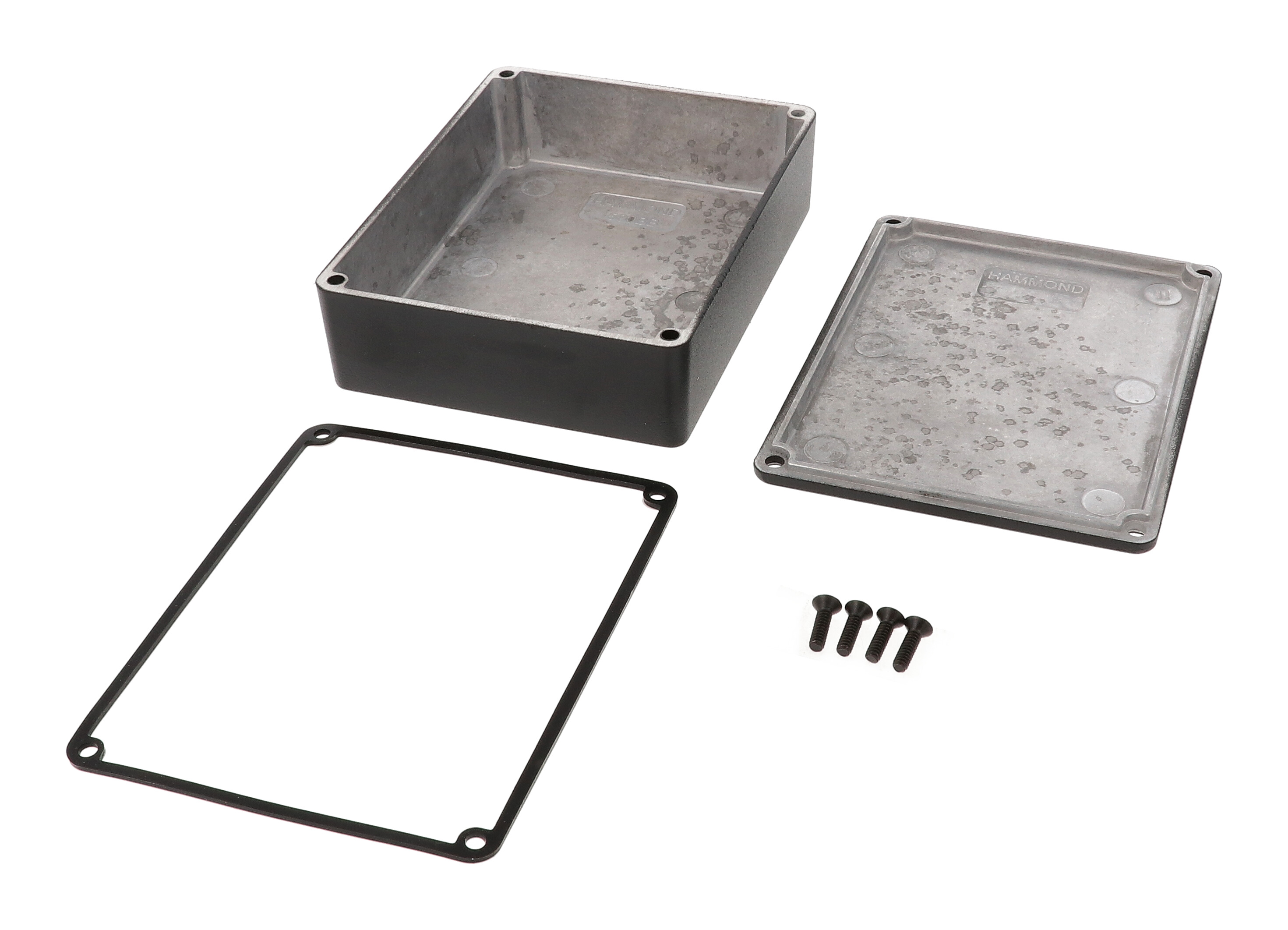

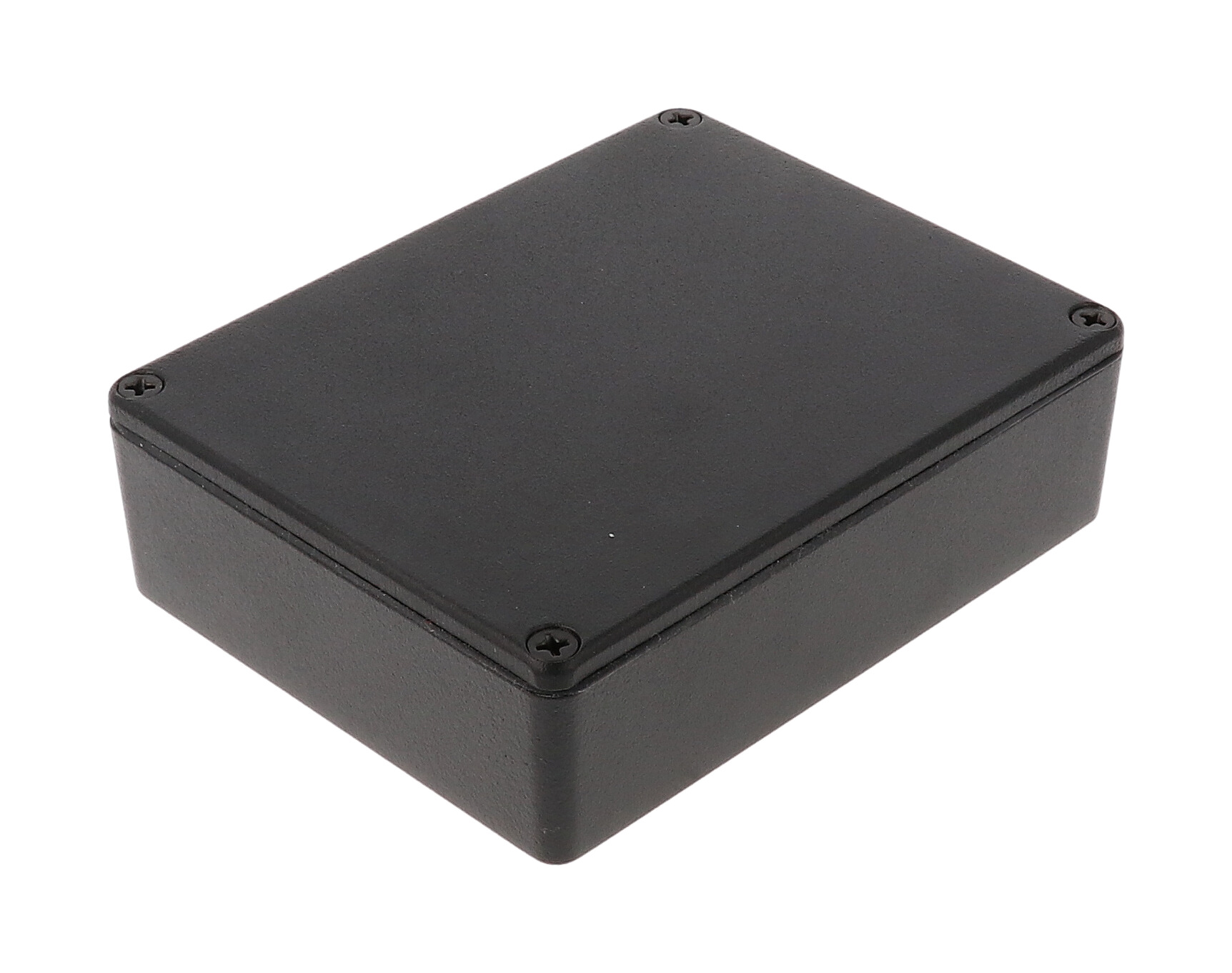

The 1590WBBBK is the black textured, water-tight version of the 1590BB diecast aluminum enclosure, supplied without mounting flanges. It is aimed at electronics builders, instrument makers and OEM teams who need a compact, rugged metal box that is designed to meet IP65.

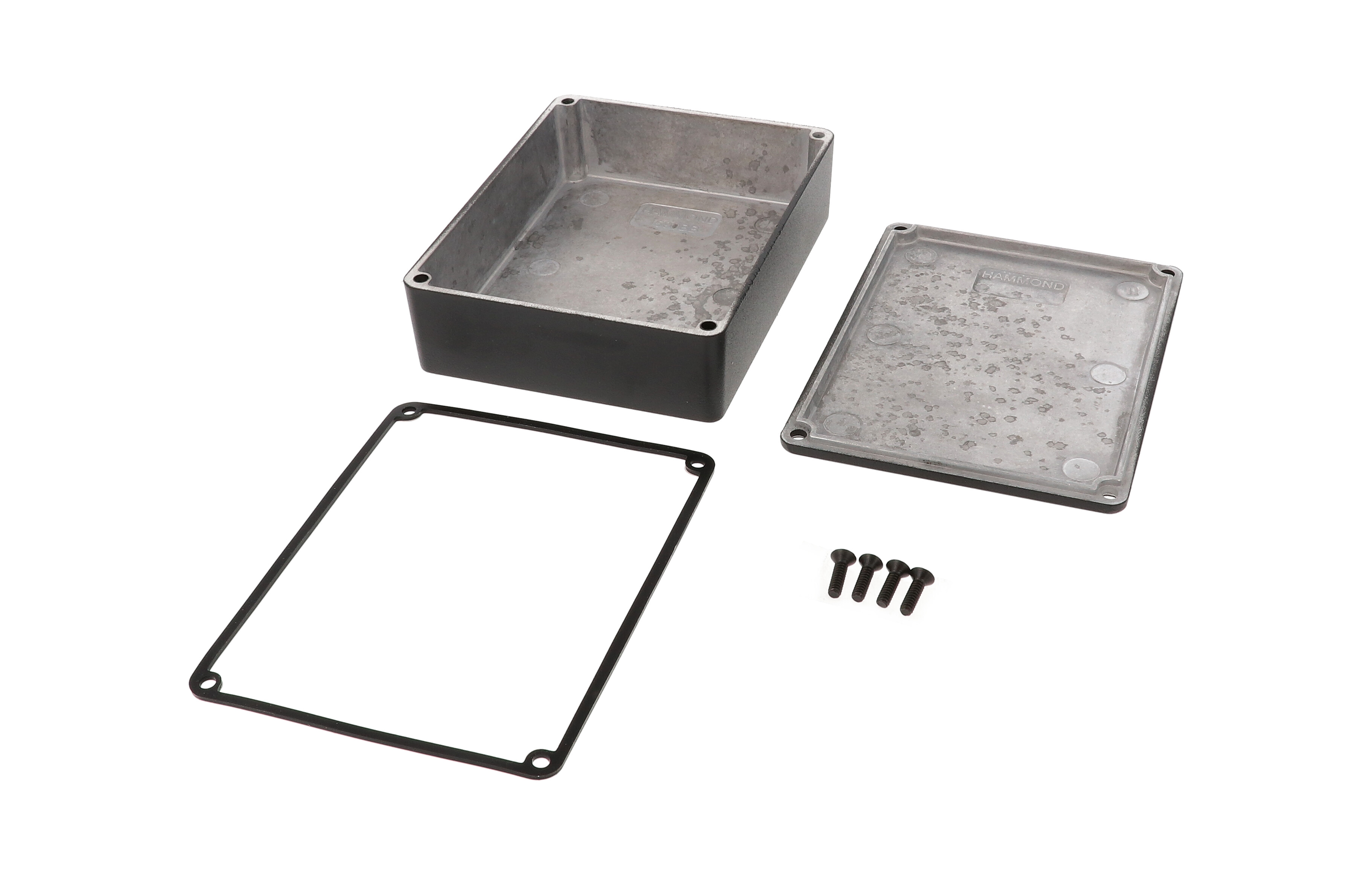

Both box and lid are diecast aluminum alloy, a material that is tough yet easy to machine for switches, jacks and displays. The black finish is a tough polyester powder paint that keeps a lasting finish even after machining, with matching black screws included. A lap joint where lid and box meet adds protection against dust and splashing water, and the silicone gasket is supplied loose inside the enclosure rather than pre-installed.
The nominal size is 4.72 x 3.70 x 1.34 in (120 x 94 x 34 mm). The drawing shows an outside length of 119.50 mm [4.705 in], width of 94.00 mm [3.701 in] and height of 34.00 mm [1.339 in]. Inside, the box offers 112.66 mm [4.435 in] of length, 87.16 mm [3.432 in] of width and 29.75 mm [1.171 in] of height, and the maximum PC board is listed at 85.16 x 110.66 mm. Side walls have a draft angle of 2 degrees or less for easy board mounting.
The purchased assembly includes box, lid and 4 cover screws in factory-tapped 6-32 UNC holes. Recommended torque is 50-55 cN.m [71-78 ozf.in], dropping to 25-30 cN.m [36-43 ozf.in] with the gasket. It ships shrink wrapped at 0.51 lbs (0.23 kg) and is RoHS and REACH compliant.
Ideal For
- Handheld and benchtop electronic instruments
- Electronics exposed to dust and splashing water
- Custom-machined device housings
- Black-finish OEM product enclosures
Other
| CAD Models | Solid models available in STEP or IGES |
| Drawing Reference | 1590BB |
| Factory Modification | Milling, drilling, printing etc. available from the factory on a quote basis |
Mounting
| Cover Screw Thread | 6-32 UNC (4 factory-tapped holes) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WBBBK |
| Mounting Style | No mounting flanges |
| Short Description | 1590BB WATERPROOF PAINTED BLAC |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.16 mm [3.432 in] |
| Inside Height | 29.75 mm [1.171 in] |
| Inside Length | 112.66 mm [4.435 in] |
| Overall Width | 94.00 mm [3.701 in] |
| Overall Height | 34.00 mm [1.339 in] |
| Overall Length | 119.50 mm [4.705 in] |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm) |
| Max. P.C. Board Width | 110.66 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 85.16 mm |
| Nominal Size (L X W X H) | 4.72 in (120 mm) x 3.70 in (94 mm) x 1.34 in (34 mm) |
Accessories
| Standard Cover Screws | 1590MS100 plated / 1590MS100BK black, 6-32 x 1/2" (Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel, 6-32 x 1/2" with O-ring (Pkg 100) |
| Optional Replacement Gasket Kit | 1590BBGASKET (two pre-formed silicone gaskets with adhesive backing) |
Identifiers
| UPC | 623980057774 |
| UNSPSC | 39121301 |
Related Versions
| Standard Version (No Flanges) | 1590BBBK |
| Standard Version (Flanged Lid) | 1590BBFLBK |
| Water-Tight Version (No Flanges) | 1590WBBBK |
| Water-Tight Version (Flanged Lid) | 1590WBBFLBK |
| Standard Version (Flanged Bottom Plate) | 1590BBFBK |
| Water-Tight Version (Flanged Bottom Plate) | 1590WBBFBK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws; silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.51 lbs (0.23 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1590WBBBK have mounting flanges?▾
No. It is the no-mounting-flange version. Flanged options in the same size are 1590WBBFLBK (flanged lid) and 1590WBBFBK (flanged bottom plate).
Is the gasket already installed?▾
No. The silicone gasket is included but supplied loose inside the enclosure, so the box can be machined and/or painted first and gasketed later.
How much internal space is there?▾
Inside dimensions are 112.66 mm [4.435 in] long, 87.16 mm [3.432 in] wide and 29.75 mm [1.171 in] high. Maximum PC board size is 85.16 x 110.66 mm.
What torque should the lid screws be tightened to?▾
50-55 cN.m [71-78 ozf.in] without a gasket, and 25-30 cN.m [36-43 ozf.in] with the gasket installed.
Which replacement screws fit?▾
The drawing lists 6-32 x 1/2 in cover screws in packs of 100: 1590WMS100BK black stainless steel with o-ring, 1590WMS100 stainless steel with o-ring, and 1590MS100 / 1590MS100BK standard screws.
