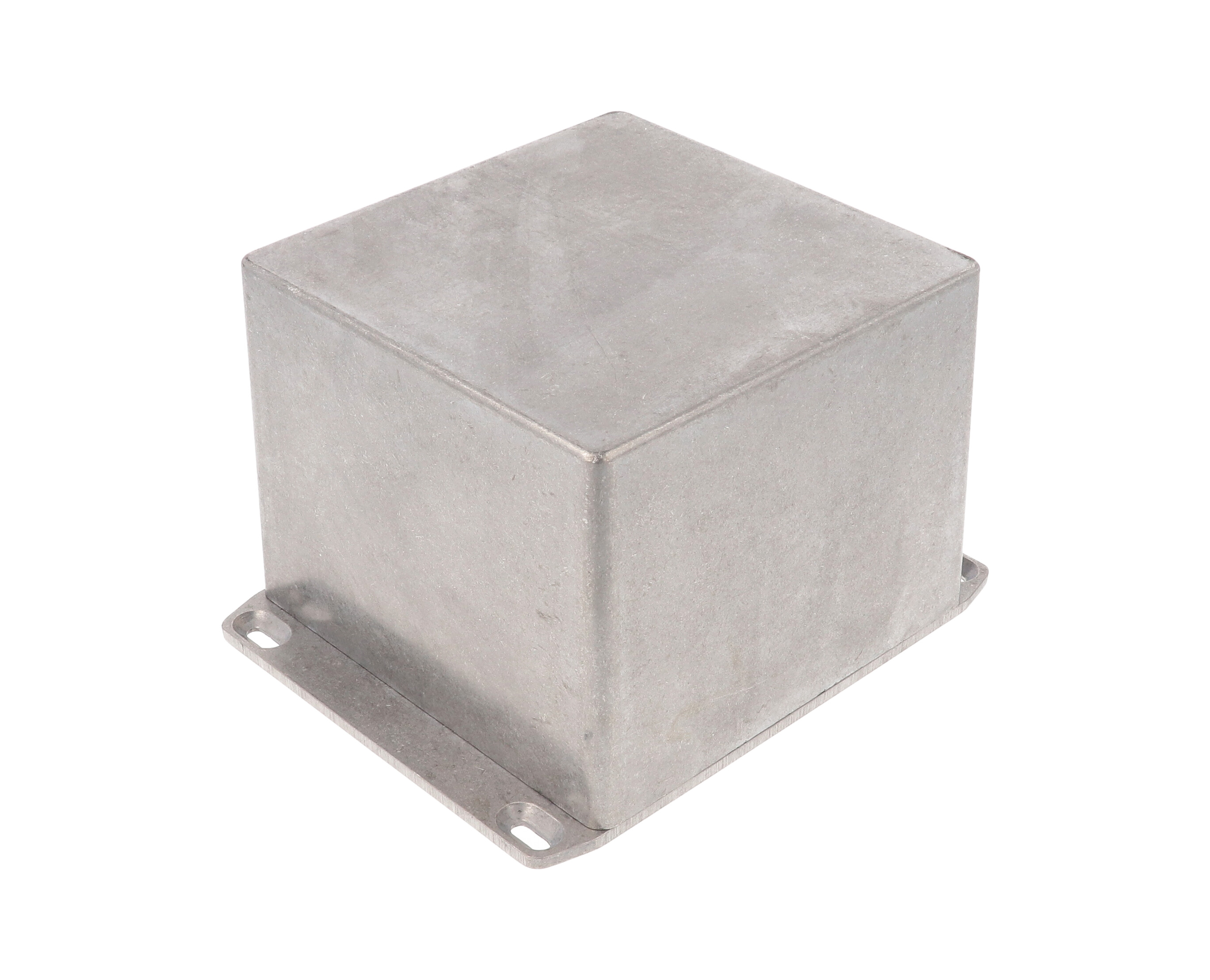

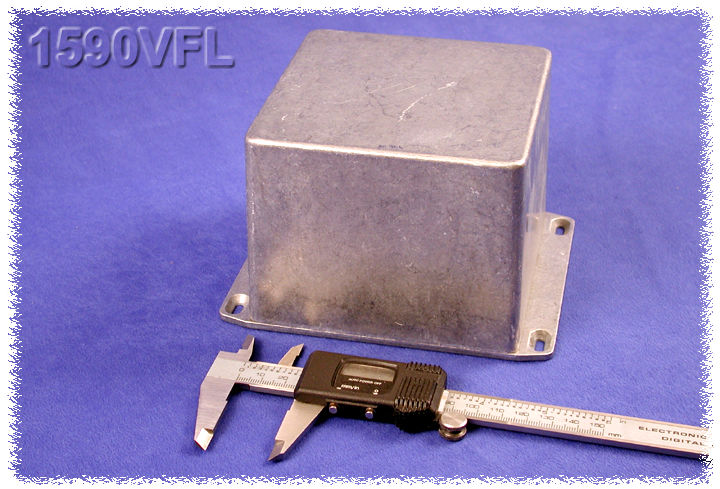

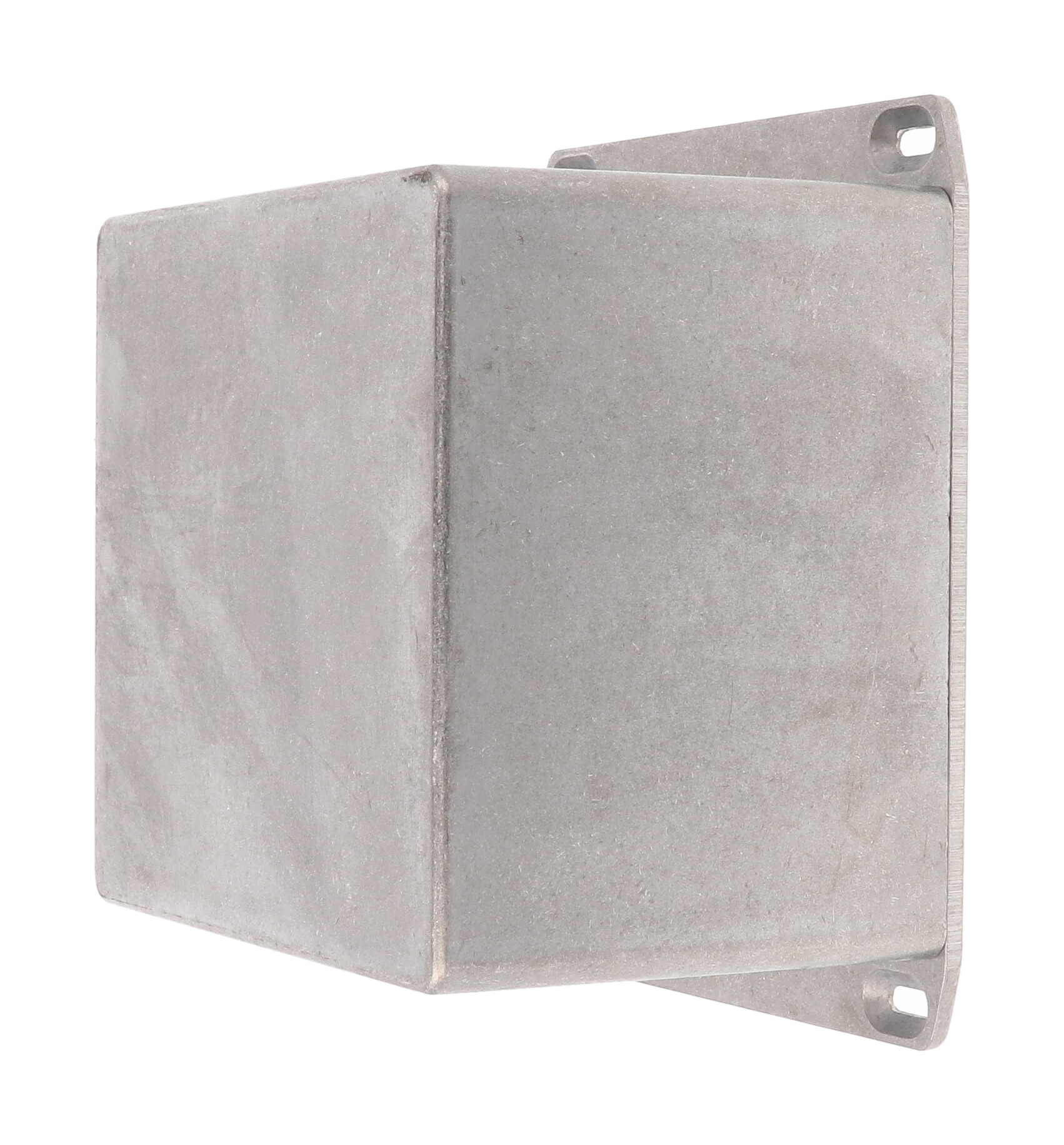

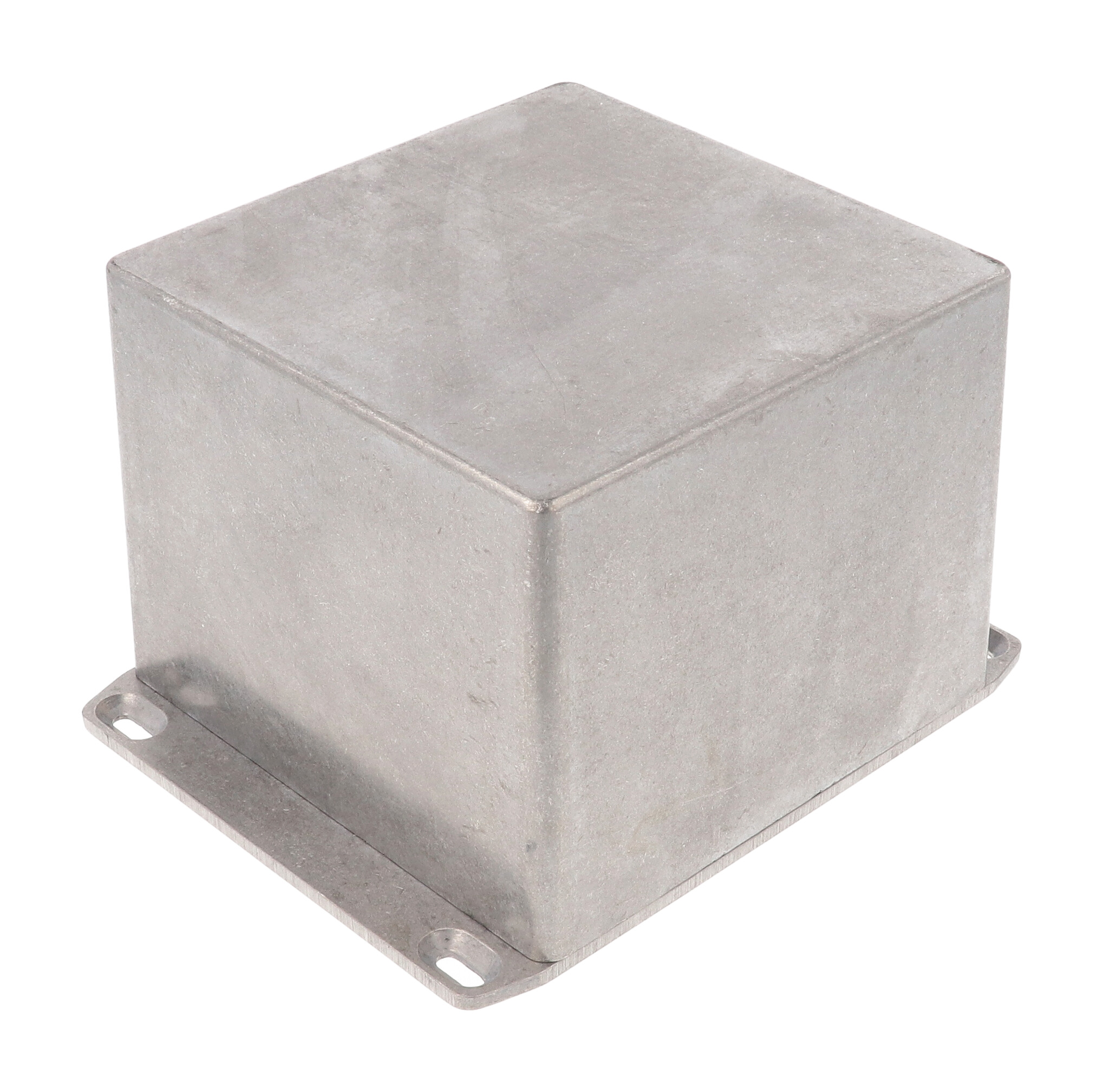

Hammond 1590VFL 119x120x94 mm Natural Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Deep box: 88.70 mm inside height, 93.80 mm overall height
- Size 119 x 120 x 94 mm; 150.00 mm across the flanged lid
- PC boards up to 110.21 x 110.21 mm; inside 110.56 mm square
- Designed to meet IP54 with lap joint lid construction
- Natural aluminum, vibra finished with no sharp edges
- 4 cover screws included for 6-32 UNC tapped holes

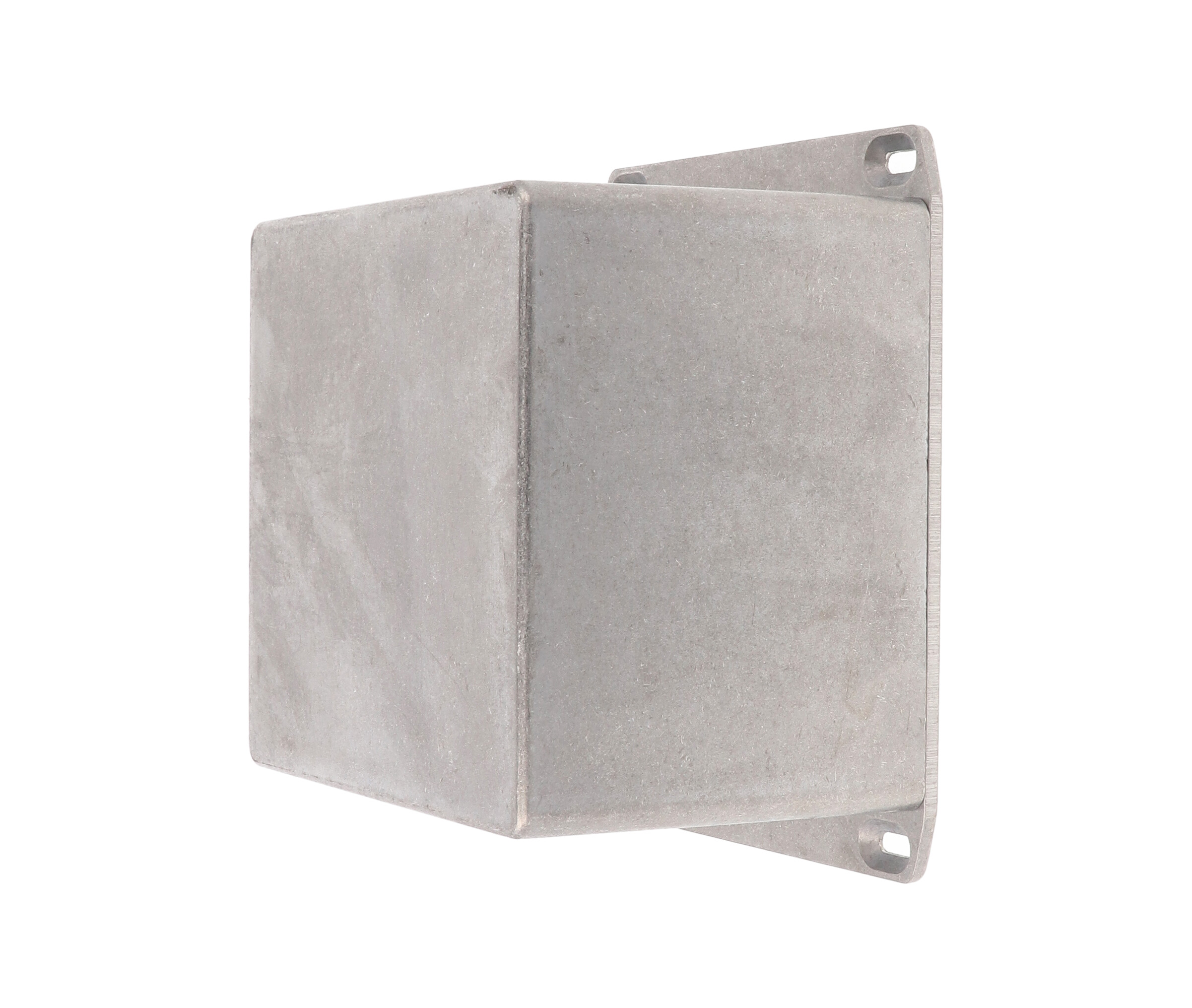

The 1590VFL is the deep 1590V diecast aluminum enclosure in natural aluminum with the wall-mounting flange integrated into the lid. Mount the lid flat to a wall or panel and close the box onto it, a layout that suits installers and OEM engineers housing taller electronics on a vertical surface.
The box and lid are diecast aluminum alloy, tough yet easy to machine. The unpainted natural aluminum version is vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.
- Listed size: 4.7 in x 4.72 in x 3.69 in (119 mm x 120 mm x 94 mm); nominal 4.72 in x 4.72 in x 3.70 in (120 x 120 x 94 mm)
- Overall length across the flanged lid: 150.00 mm [5.906 in]; overall height 93.80 mm [3.693 in]
- Inside box: 110.56 mm x 110.56 mm x 88.70 mm
- Maximum PC board: 110.21 mm x 110.21 mm
Four cover screws thread into factory-tapped 6-32 UNC holes, torqued to 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket fitted. The water-tight 1590WVFL and the 1590QGASKET kit are listed for IP65 builds. The 1590VFL is RoHS and REACH compliant; shipping weight 1.09 lbs (0.49 kg).
Ideal For
- Wall-mounted deep electronics enclosures
- Panel-mounted housings for tall components
- Control and interface boxes on vertical surfaces
- Custom machined instrument cases
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590V WITH FLANGED LID |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 110.56 mm [4.353 in] |
| Inside Height | 88.70 mm [3.492 in] |
| Inside Length | 110.56 mm [4.353 in] |
| Size L X W X H | 4.7 in x 4.72 in x 3.69 in (119 mm x 120 mm x 94 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 93.80 mm [3.693 in] |
| Max. P.C. Board Width (Mm) | 110.21 |
| Max. P.C. Board Length (Mm) | 110.21 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 3.70 in (94 mm) |
| Overall Length Including Flange (Drawing) | 150.00 mm [5.906 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980676135 |
| UNSPSC | 39121301 |
| Part Number | 1590VFL |
Related Parts
| Standard Version, No Flanges | 1590V |
| Standard Version, Flanged Lid | 1590VFL |
| Optional Replacement Gasket Kit | 1590QGASKET |
| Water-Tight Version, No Flanges | 1590WV |
| Water-Tight Version, Flanged Lid | 1590WVFL |
| Standard Version, Flanged Bottom Plate | 1590VF |
| Water-Tight Version, Flanged Bottom Plate | 1590WVF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.09 lbs (0.49 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |

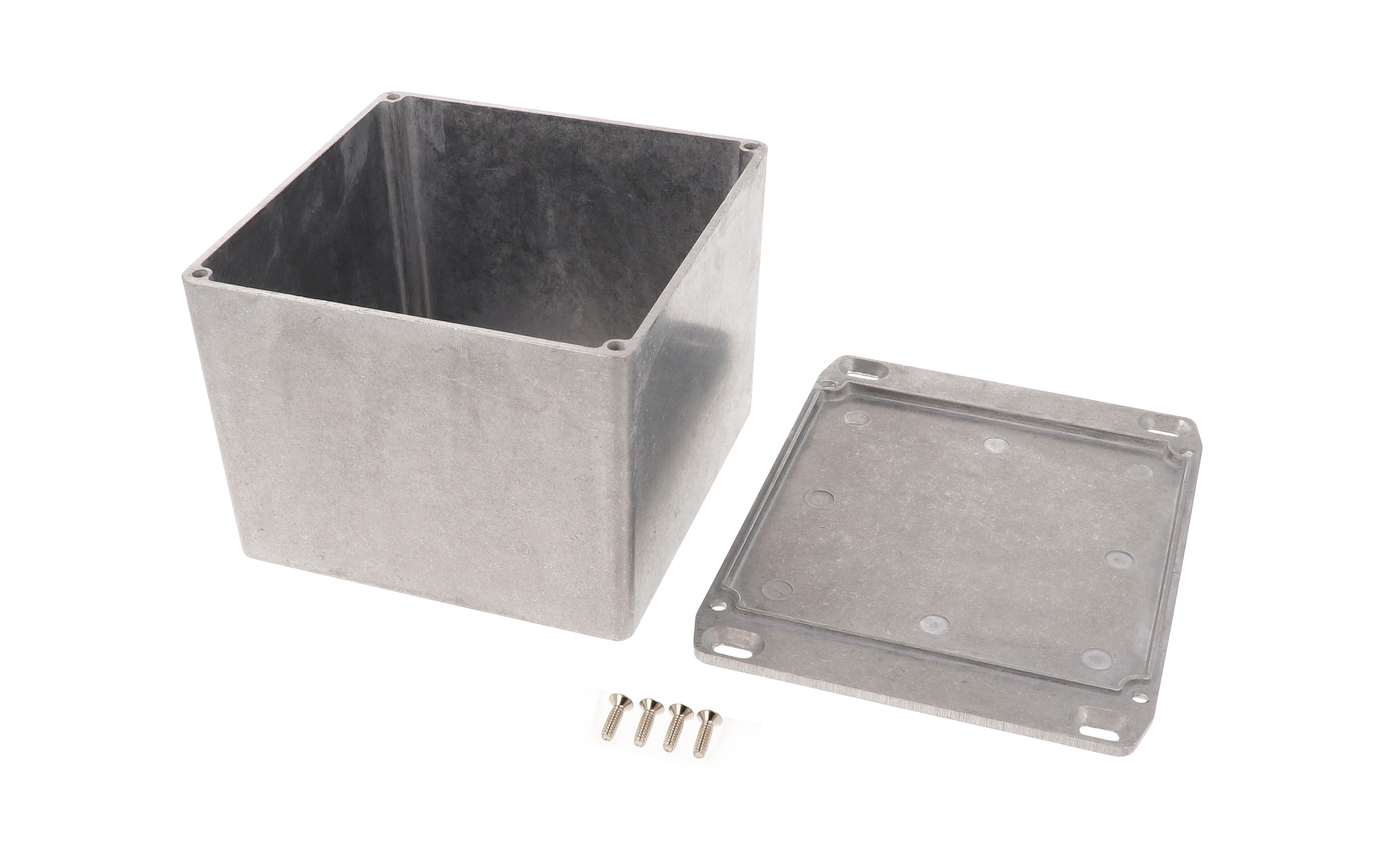

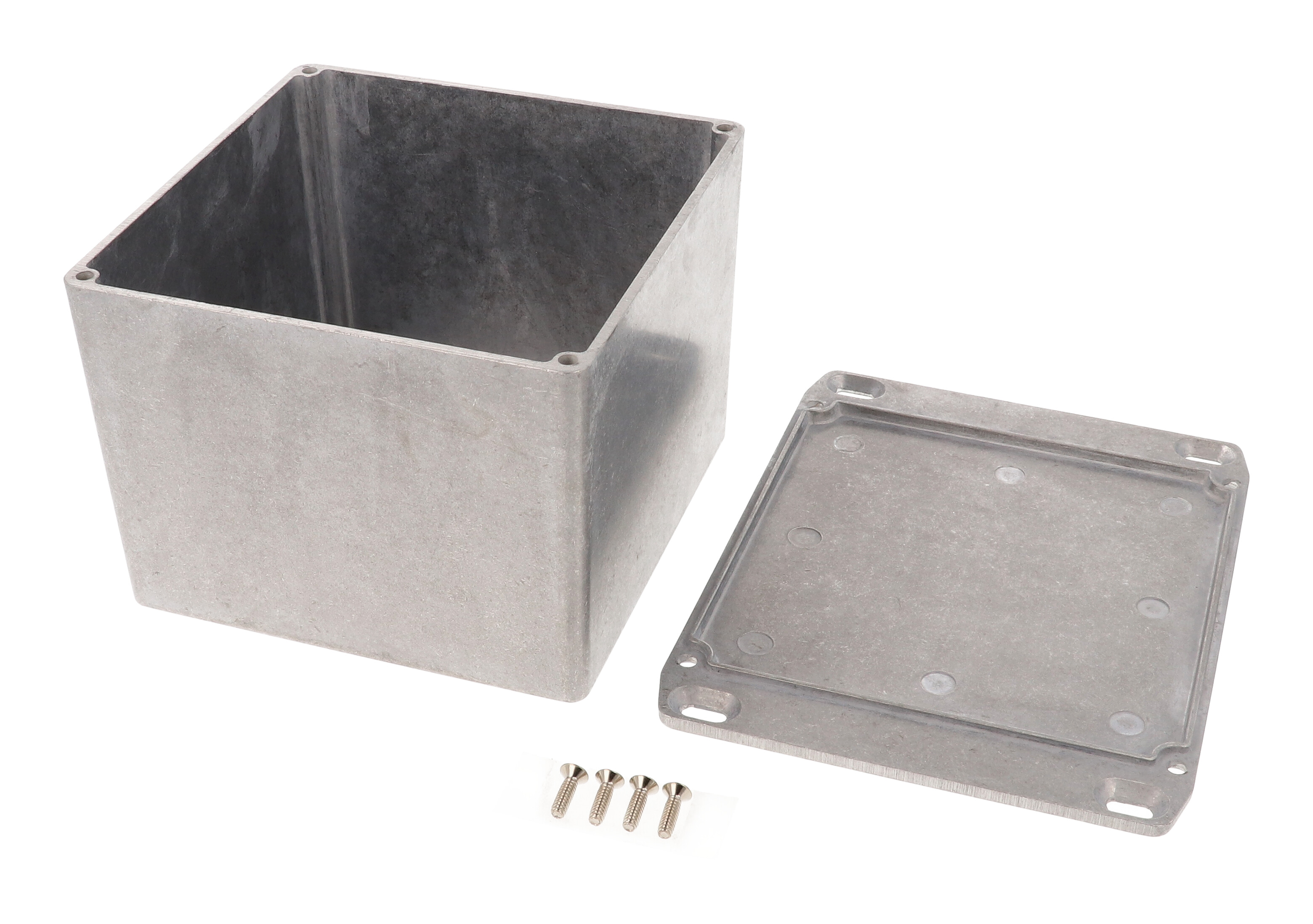

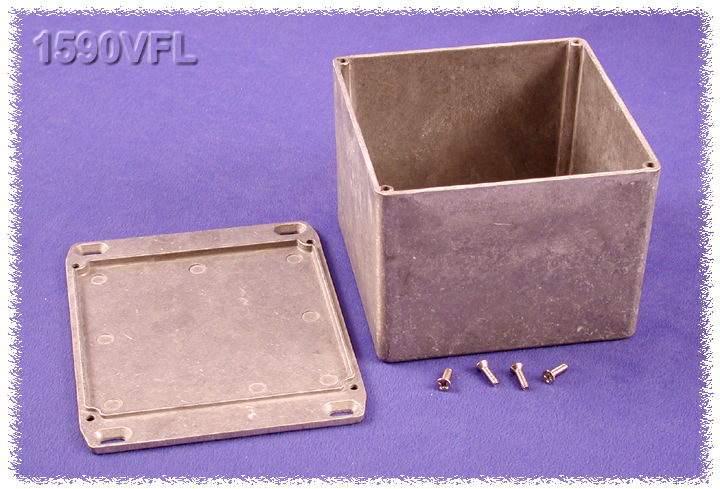

| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590VFL?▾
The flange is integrated into the lid, giving 150.00 mm [5.906 in] overall length across the lid.
What are the inside dimensions of the 1590VFL?▾
Inside it measures 110.56 mm x 110.56 mm x 88.70 mm [4.353 x 4.353 x 3.492 in]. Maximum PC board size is 110.21 mm x 110.21 mm.
How well is it protected against dust and water?▾
The standard 1590VFL is designed to meet IP54 (dust and splashing water). The water-tight 1590WVFL is designed to meet IP65.
What is included?▾
The box, lid and 4 cover screws. Recommended torque is 50-55 cN.m [71-78 ozf.in].
Can I get CAD models?▾
Yes, the drawing notes solid models of this enclosure are available in STEP or IGES.
Related Products

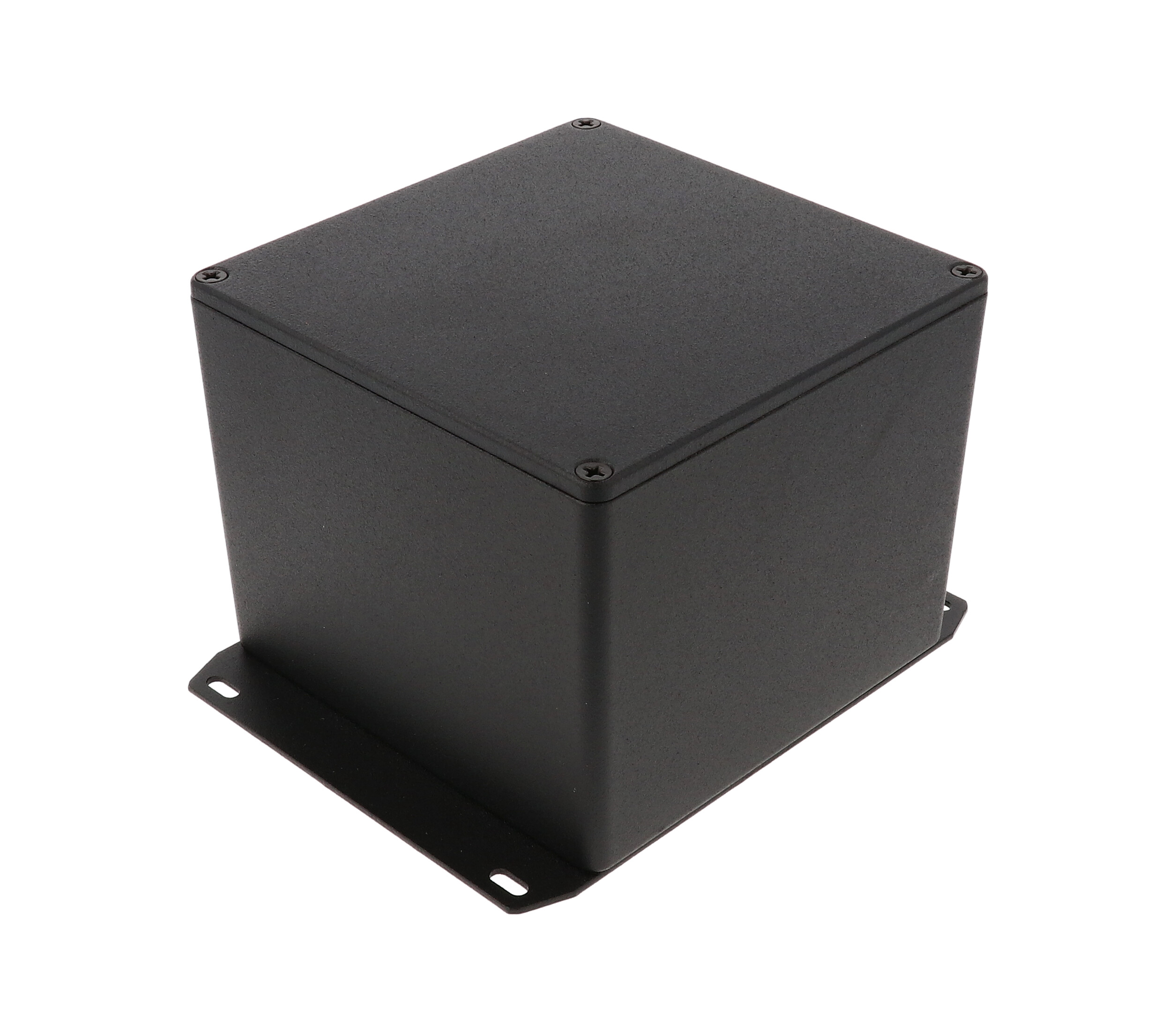

Save 52%1590VFBK — enclosure - diecast
Hammond Manufacturing · 1590VFBK

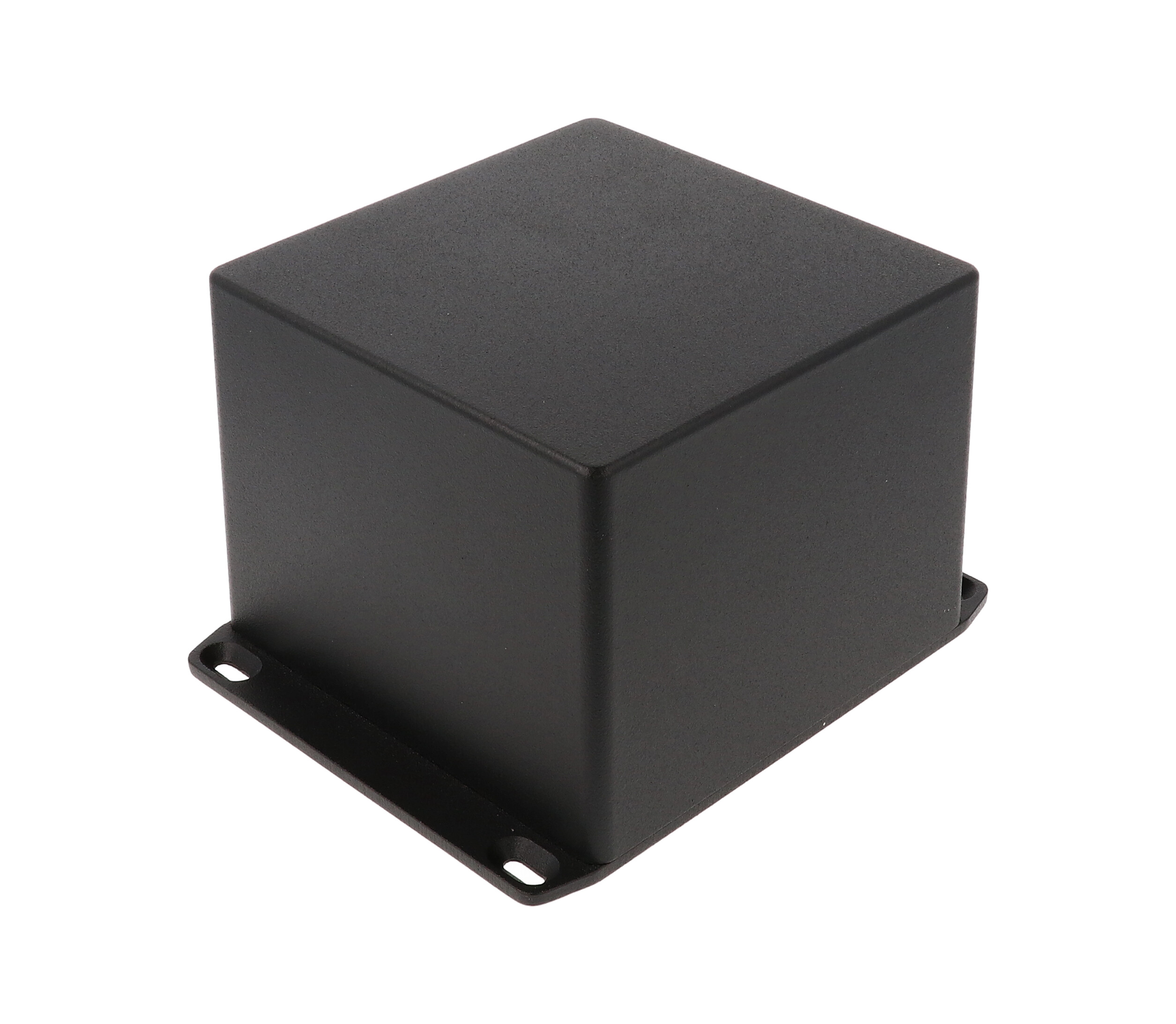

Save 52%1590VFLBK — enclosure - diecast
Hammond Manufacturing · 1590VFLBK

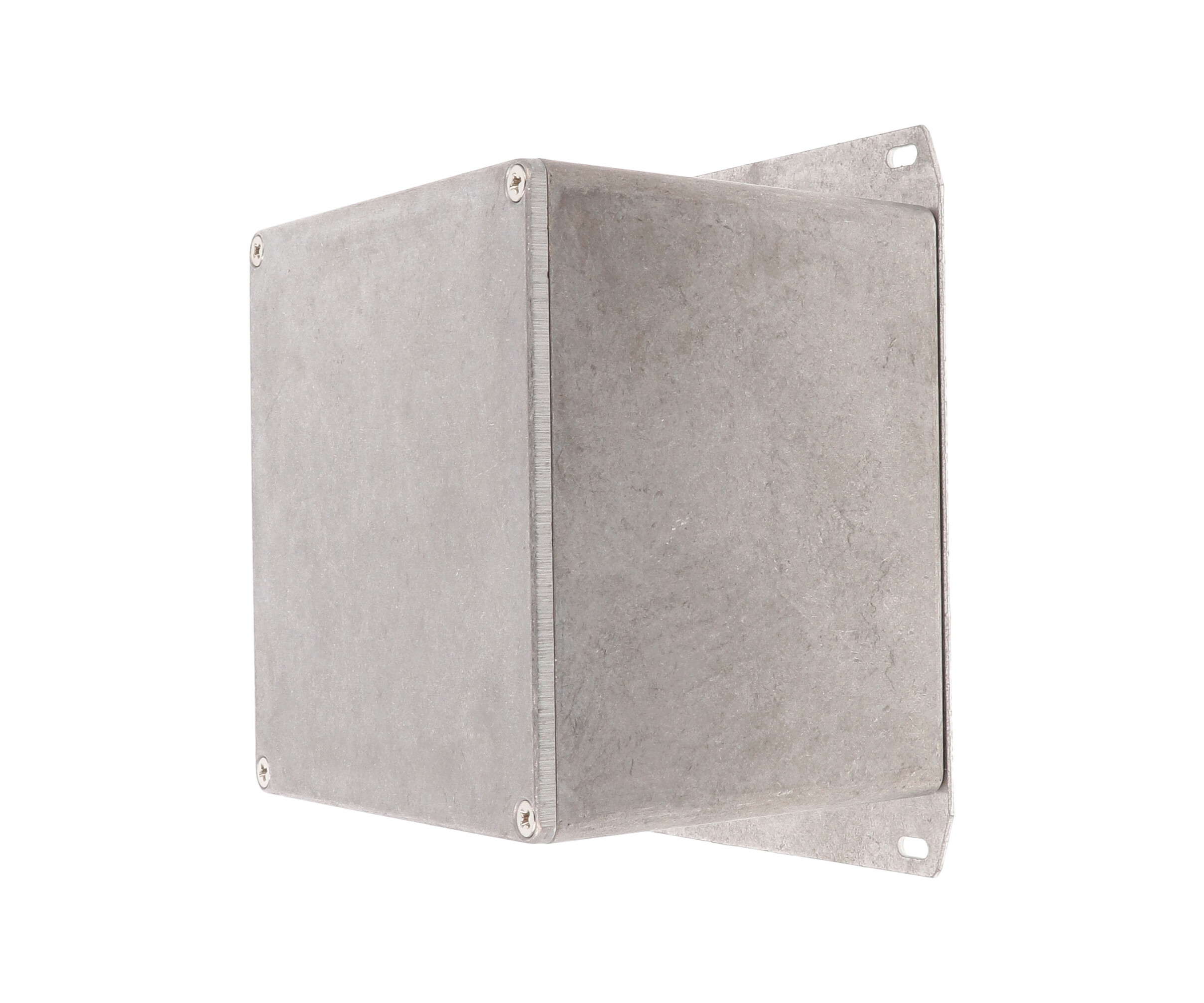

Save 52%1590VF — enclosure - diecast
Hammond Manufacturing · 1590VF
Save 52%1590WA — enclosure - watertight diecast
Hammond Manufacturing · 1590WA

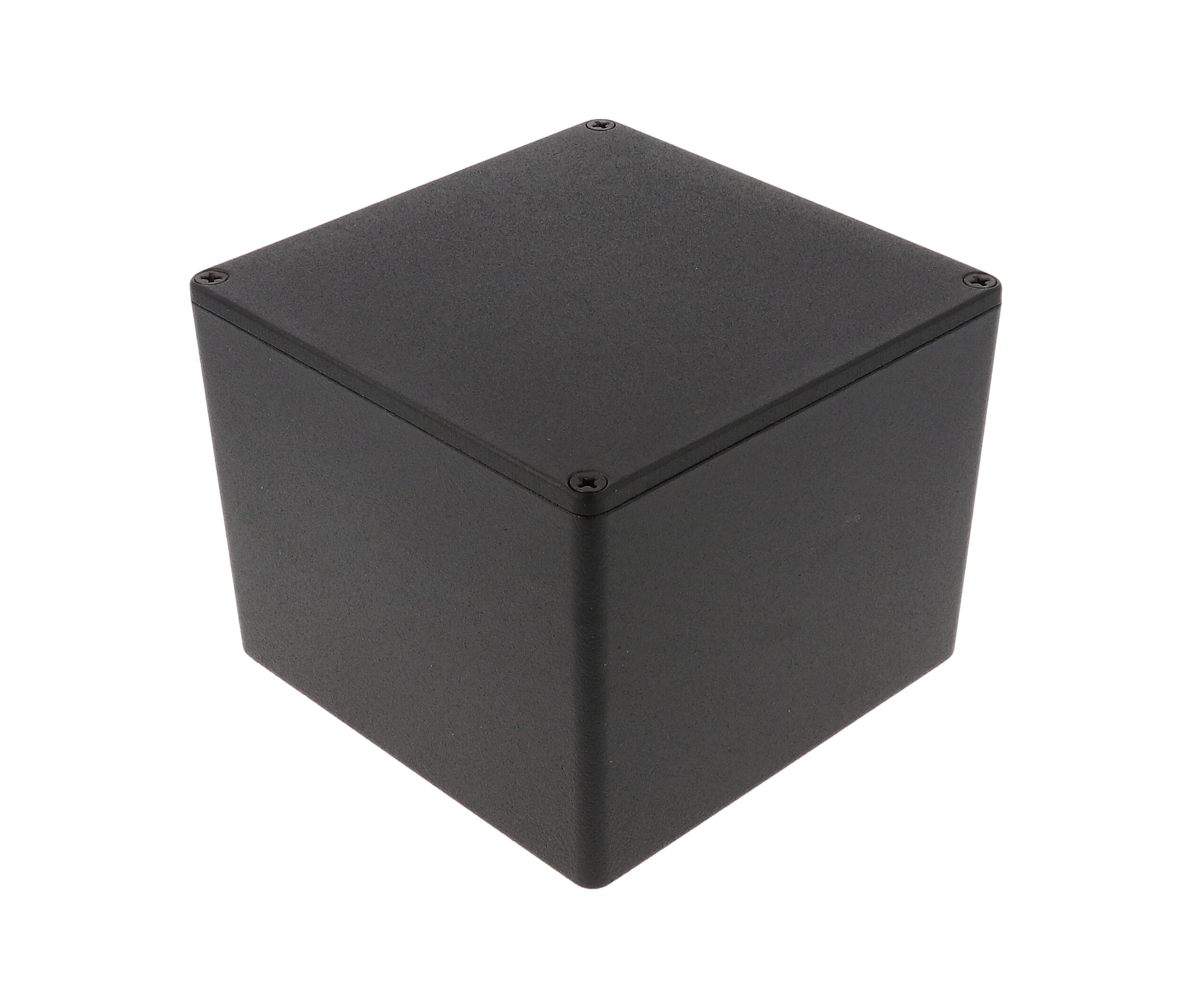

Save 52%1590VBK — enclosure - diecast
