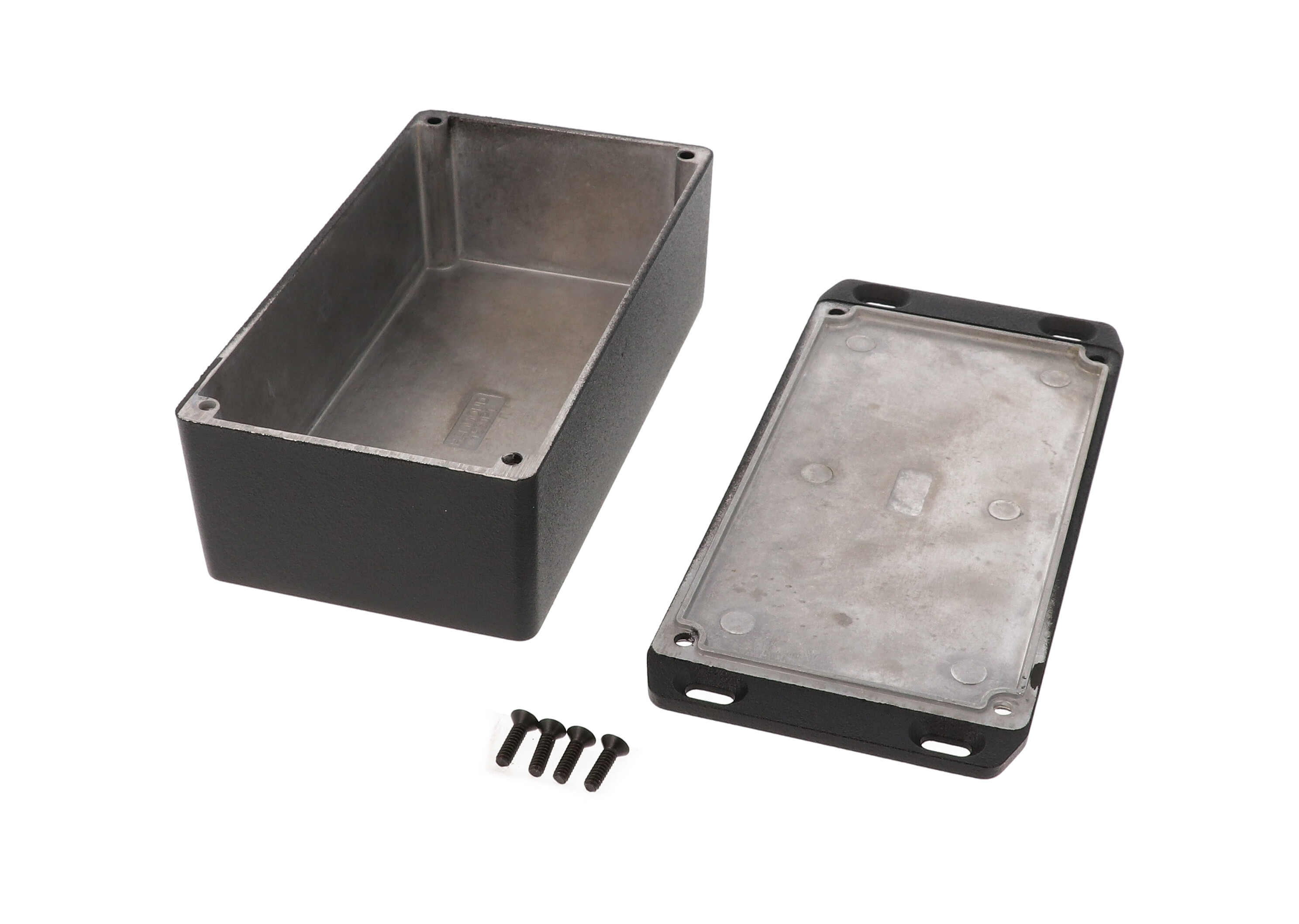

Hammond 1590P1FLBK 153x83x50mm Black Diecast Box, Wall-Mount Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid-integrated wall-mounting flange, black textured finish
- 153 x 83 x 50 mm nominal; 178.50 mm overall length
- Polyester powder paint with black screws included
- Inside 145.69 x 75.79 x 45.40 mm
- Designed to meet IP54; water-tight version 1590WP1FLBK
- Diecast aluminum alloy, machinable

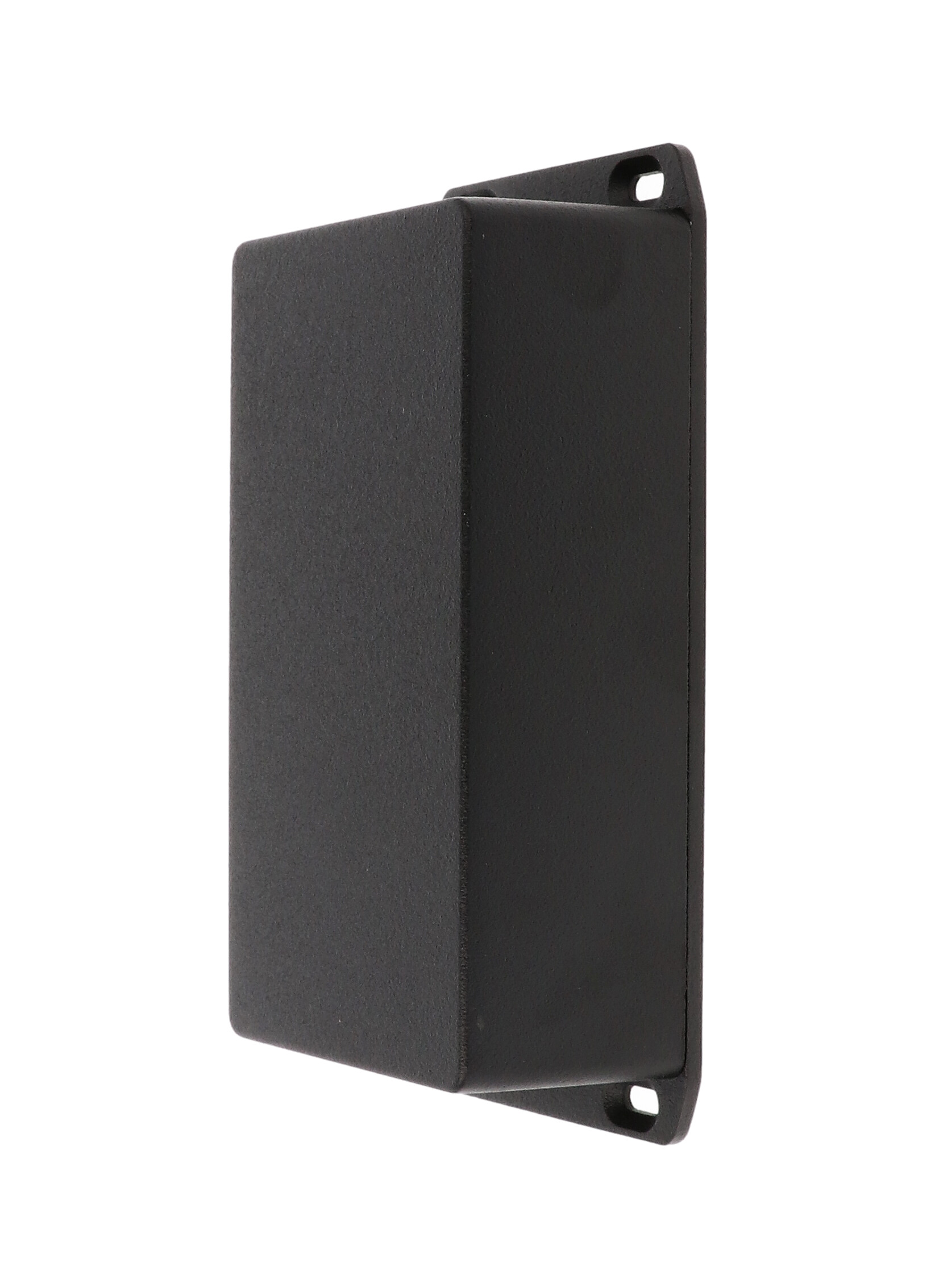

The 1590P1FLBK is the black textured, flanged-lid version of the 153 x 83 x 50 mm 1590P1 enclosure. The wall-mounting flange is integrated into the lid, and the black finish gives a clean appearance for visible wall-mounted controls, indicators and equipment housings.
The box and lid are diecast aluminum alloy, coated with tough polyester powder paint that stays durable even after machining. Black screws are included to enhance appearance. Lap joint construction where lid and box meet helps keep out dust and splashing water, and this version is designed to meet IP54.
Per the drawing, the enclosure is 178.50 mm [7.028 in] long overall with the flanged lid, 83.10 mm wide and 50.40 mm high. Inside space is 145.69 x 75.79 mm with 45.40 mm of inside height, and maximum PC board dimensions are listed as 145.35 and 75.45 mm. Side walls have a draft angle of 2° or less.
Included are the box, lid and 4 cover screws for factory-tapped 6-32 UNC holes. The water-tight black version is 1590WP1FLBK, and 1590PGASKET is the listed gasket kit. Shipping weight is 0.82 lbs (0.37 kg), packed in shrink wrap; RoHS and REACH compliant.
Ideal For
- Wall-mounted black control enclosure
- Indicator or sensor housing
- Panel-mounted electronics box
- Finished OEM instrument case
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590P1FLBK |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast |
| Short Description | 1590P1 FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.79 mm [2.984 in] |
| Inside Height | 45.40 mm [1.787 in] |
| Inside Length | 145.69 mm [5.736 in] |
| Size (L X W X H) | 6.02 in x 3.27 in x 1.98 in (153 mm x 83 mm x 50 mm) |
| Box Width (Drawing) | 83.10 mm [3.272 in] |
| Nominal Size (Width) | 3.27 in (83 mm) |
| Nominal Size (Height) | 1.97 in (50 mm) |
| Nominal Size (Length) | 6.02 in (153 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 50.40 mm [1.984 in] |
| Max. P.C. Board Width (Mm) | 145.35 |
| Max. P.C. Board Length (Mm) | 75.45 |
| Overall Length Incl. Flange (Drawing) | 178.50 mm [7.028 in] |
Identifiers
| UPC | 623980676258 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
| Mounting Flange | Wall-mounting flange integrated into lid |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WP1FLBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590PGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590P1FLBK?▾
A black textured 153 x 83 x 50 mm diecast aluminum enclosure with a wall-mounting flange integrated into the lid.
What is the overall length?▾
178.50 mm [7.028 in] including the lid flange, per the drawing.
What is included?▾
Box, lid and 4 cover screws; black screws are included with the black version.
What gasket fits it?▾
1590PGASKET is the optional replacement gasket kit for this size.
What does it weigh?▾
0.82 lbs (0.37 kg) shipping weight.
