Hammond 1590LLBFLBK 51x51x25mm Black Diecast Aluminum Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Lid-integrated wall-mounting flange, 77.00 mm overall length
- Black textured polyester powder paint, black screws included
- 51 x 51 x 25 mm nominal footprint (1.99 x 1.99 x 0.98 in)
- Diecast aluminum alloy, tough yet easy to machine
- IP54 lap joint lid construction
- Inside 45.63 x 40.50 x 21.00 mm; max board 44.83 x 44.83 mm

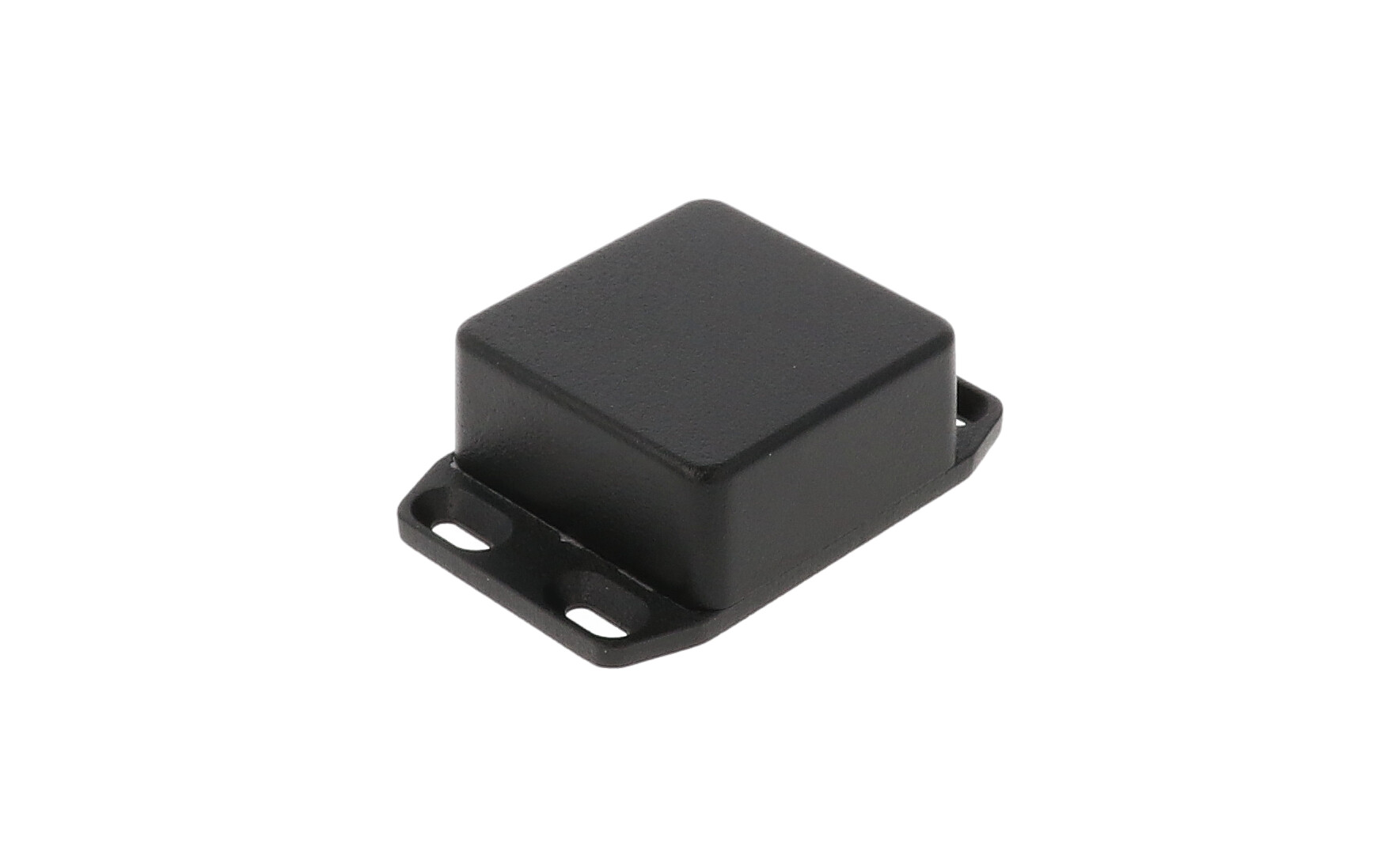

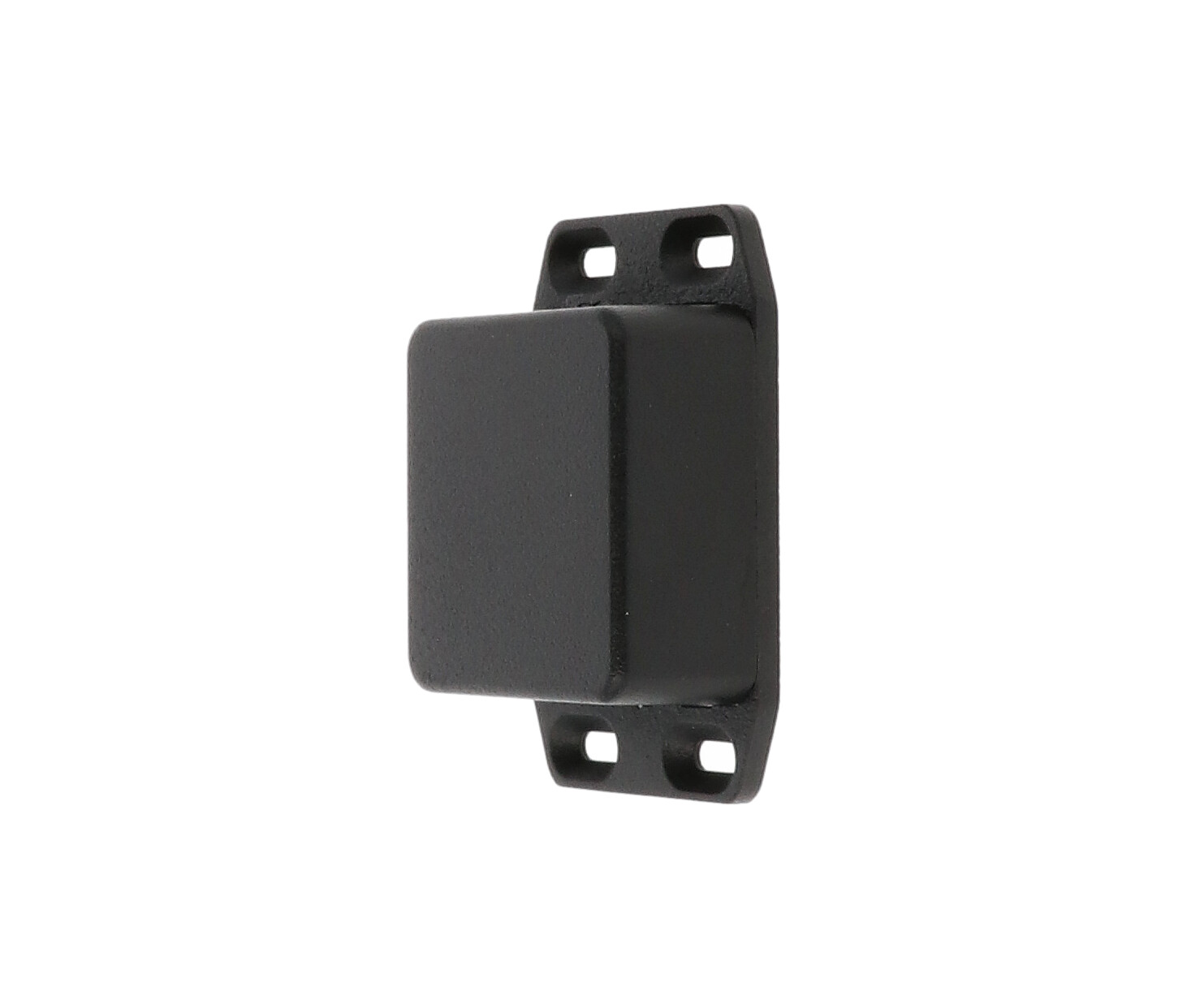

The 1590LLBFLBK is the black textured version of the 51 x 51 x 25 mm flanged-lid box in the 1590 series. The mounting flange is part of the lid, so the enclosure fastens to a wall or panel through the lid. It is aimed at builders of compact instruments and control modules who want a small, finished-looking metal housing.
The box and lid are diecast aluminum alloy. Its black coating is a tough polyester powder paint intended to give a lasting finish even after machining, and black screws are included to enhance appearance. Where lid and box meet, lap joint construction helps keep out dust and splashing water; this standard version is designed to meet IP54.
On the drawing, overall length across the flanged lid is 77.00 mm [3.031 in], the box is 50.40 mm [1.984 in] wide and 25.00 mm [.984 in] high, and the inside measures 45.63 x 40.50 x 21.00 mm. Maximum PC board length and width are both 44.83 mm.
Included are the box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m, or 25-30 cN.m with a gasket. The water-tight black equivalent is 1590WLLBFLBK and the replacement gasket kit is 1590LBGASKET. Shipping weight is 0.16 lbs (0.07 kg), and the part is RoHS and REACH compliant.
Ideal For
- Wall-mounted control or indicator housing
- Compact black instrument enclosure
- Small PCB and sensor housing
- Machined OEM electronics box
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590LLBFLBK |
| Mounting Style | w/ Flanged Lid |
| Long Description | enclosure - diecast; flanged lid; black; 1.97"x1.97"x.83" |
| Short Description | DIECAST BOX W/FLANGE LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 40.50 mm [1.594 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size (L X W X H) | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Box Width (Drawing) | 50.40 mm [1.984 in] |
| Nominal Size (Width) | 2.01 in (51 mm) |
| Nominal Size (Height) | 0.98 in (25 mm) |
| Nominal Size (Length) | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 25.00 mm [.984 in] |
| Max. P.C. Board Width (Mm) | 44.83 |
| Max. P.C. Board Length (Mm) | 44.83 |
| Overall Length Incl. Flange (Drawing) | 77.00 mm [3.031 in] |
Identifiers
| UPC | 623980401263 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Lid/Box Joint | Lap joint construction |

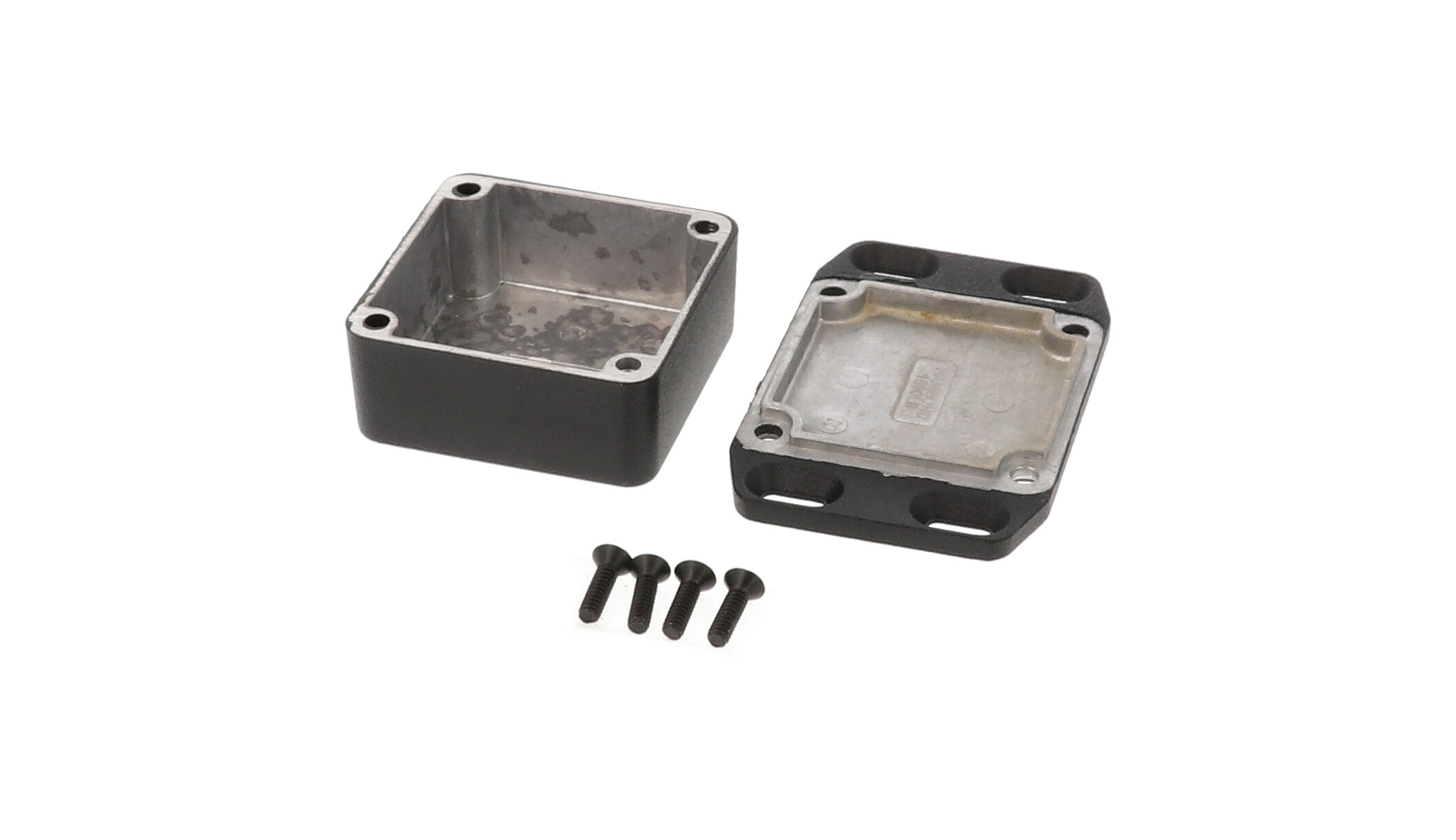

| Included Items | Box, lid and 4 cover screws |
| Mounting Flange | Wall-mounting flange integrated into lid |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WLLBFLBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between the 1590LLBFLBK and 1590LLBFL?▾
Both have the flange integrated into the lid and the same dimensions; the 1590LLBFLBK is black textured powder paint with black screws, while the 1590LLBFL is natural aluminum.
What are the inside dimensions?▾
The drawing shows 45.63 mm inside length, 40.50 mm inside width and 21.00 mm inside height.
Is a water-tight version available?▾
Yes, 1590WLLBFLBK is the water-tight black version, designed to meet IP65 with a silicone gasket supplied loose.
What does it weigh?▾
Shipping weight is 0.16 lbs (0.07 kg).
What is included?▾
The purchased assembly includes the box, lid and 4 cover screws.
