Hammond 1590LLBFBK 51x51x25mm Black Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 51 x 51 x 25 mm nominal size (1.99 x 1.99 x 0.98 in)
- Welded bottom flange for surface or panel mounting; 78.99 mm overall length
- Black textured polyester powder paint with matching black screws
- Diecast aluminum alloy box and lid, easy to machine
- Lap joint lid designed to meet IP54
- Inside 45.63 x 40.50 x 21.00 mm; max PC board 44.83 x 44.83 mm
- Includes 4 cover screws in factory-tapped 6-32 UNC holes

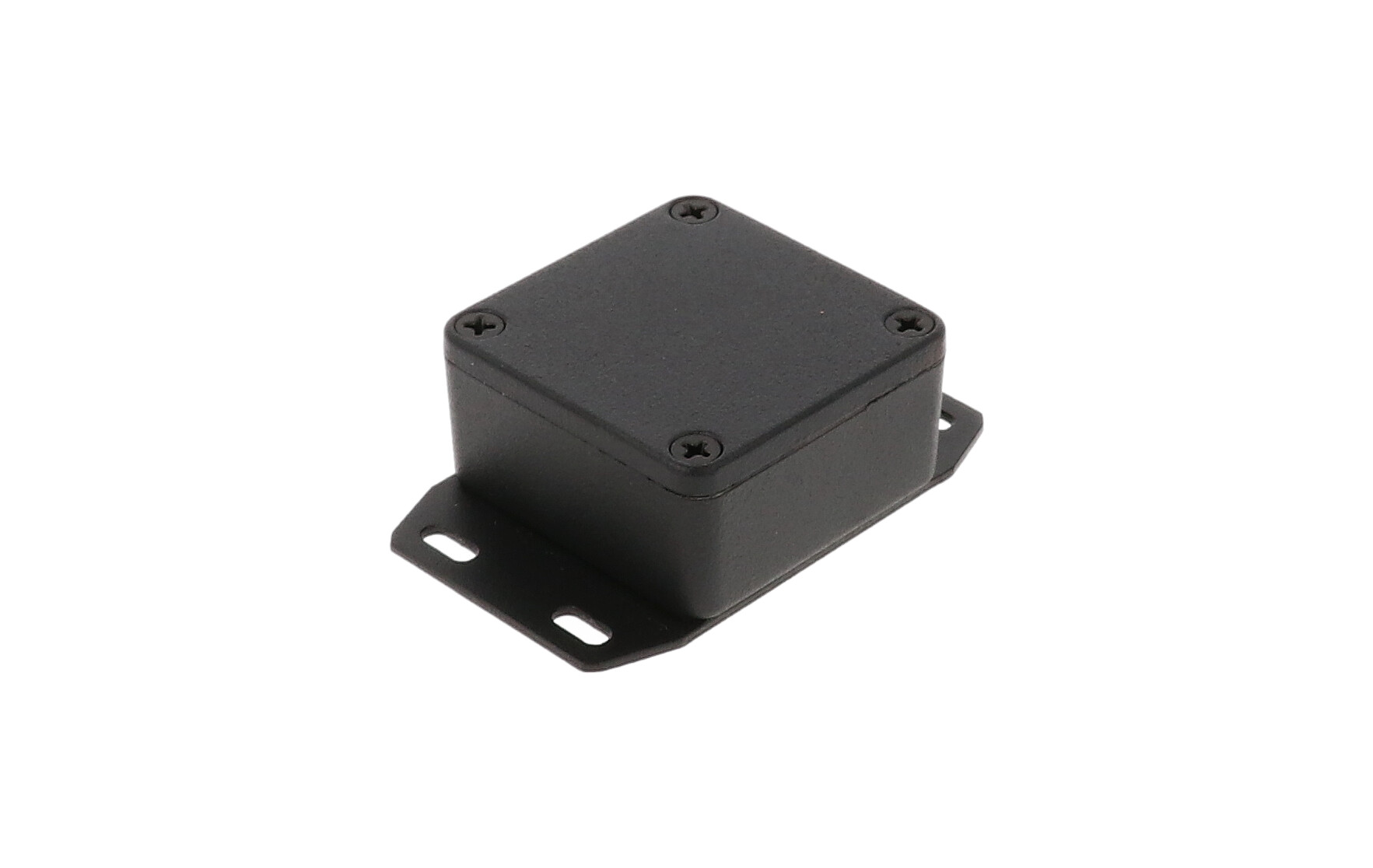

The 1590LLBFBK is one of the smallest boxes in the 1590 series: a 51 x 51 x 25 mm diecast aluminum enclosure with a flanged bottom plate and a black textured finish. It suits OEM engineers and technicians who need a compact, rugged housing for a small circuit board, sensor interface or signal module that must be bolted down to a panel or surface.

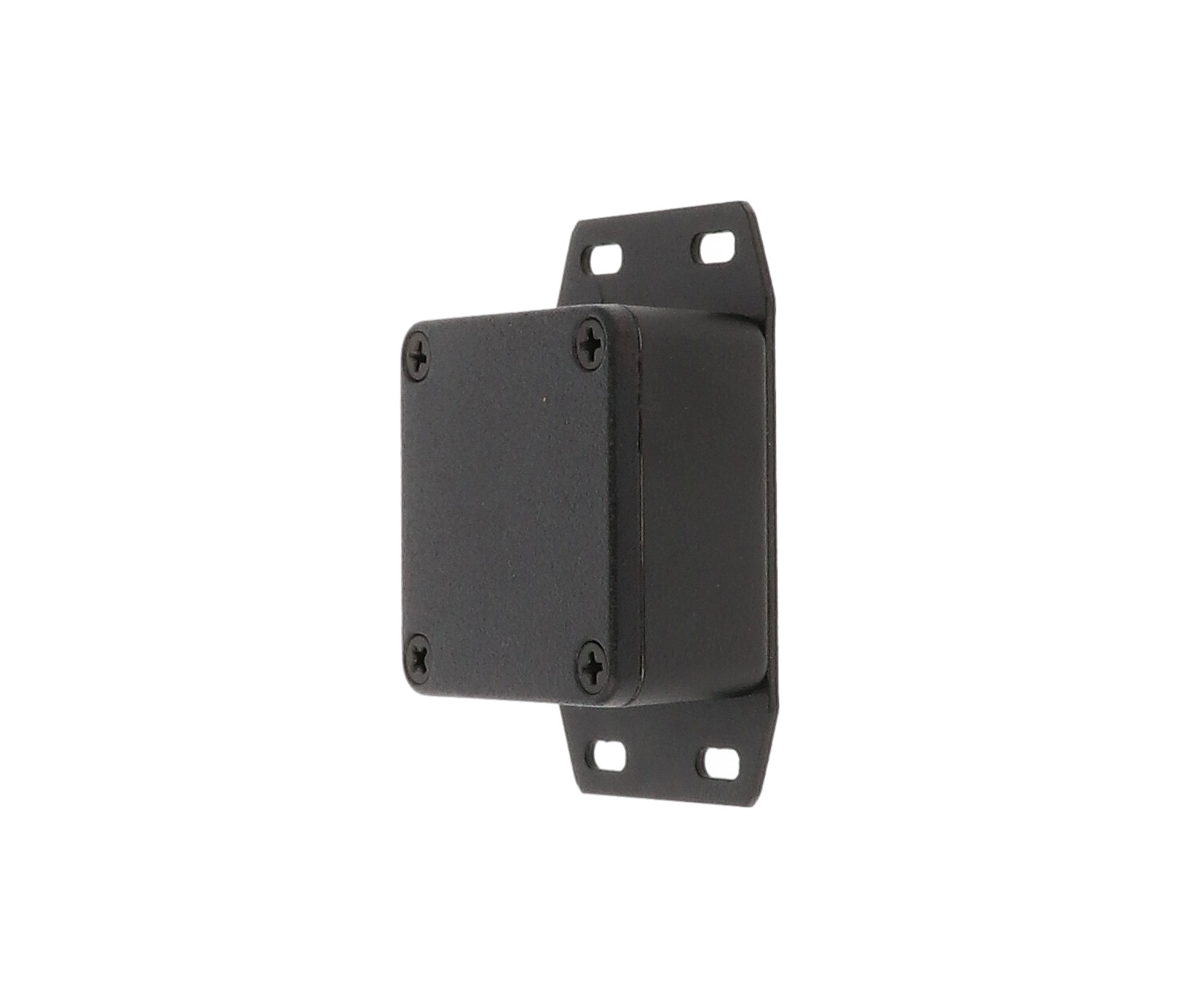

Box and lid are made from diecast aluminum alloy, a material that is tough yet easy to machine. The black version is coated with polyester powder paint for a lasting finish, even after machining, and black screws are included to match. The bottom flange is welded to the box, and the lid and box meet in a lap joint that protects against dust and splashing water; the standard version is designed to meet IP54.
Per the drawing, the box measures 50.50 mm [1.988 in] square and 25.00 mm [.984 in] high, with an overall length of 78.99 mm [3.110 in] across the flange. Inside space is 45.63 x 40.50 x 21.00 mm, and the listed maximum PC board size is 44.83 x 44.83 mm. A low side wall draft angle of 2° or less makes board mounting easier.

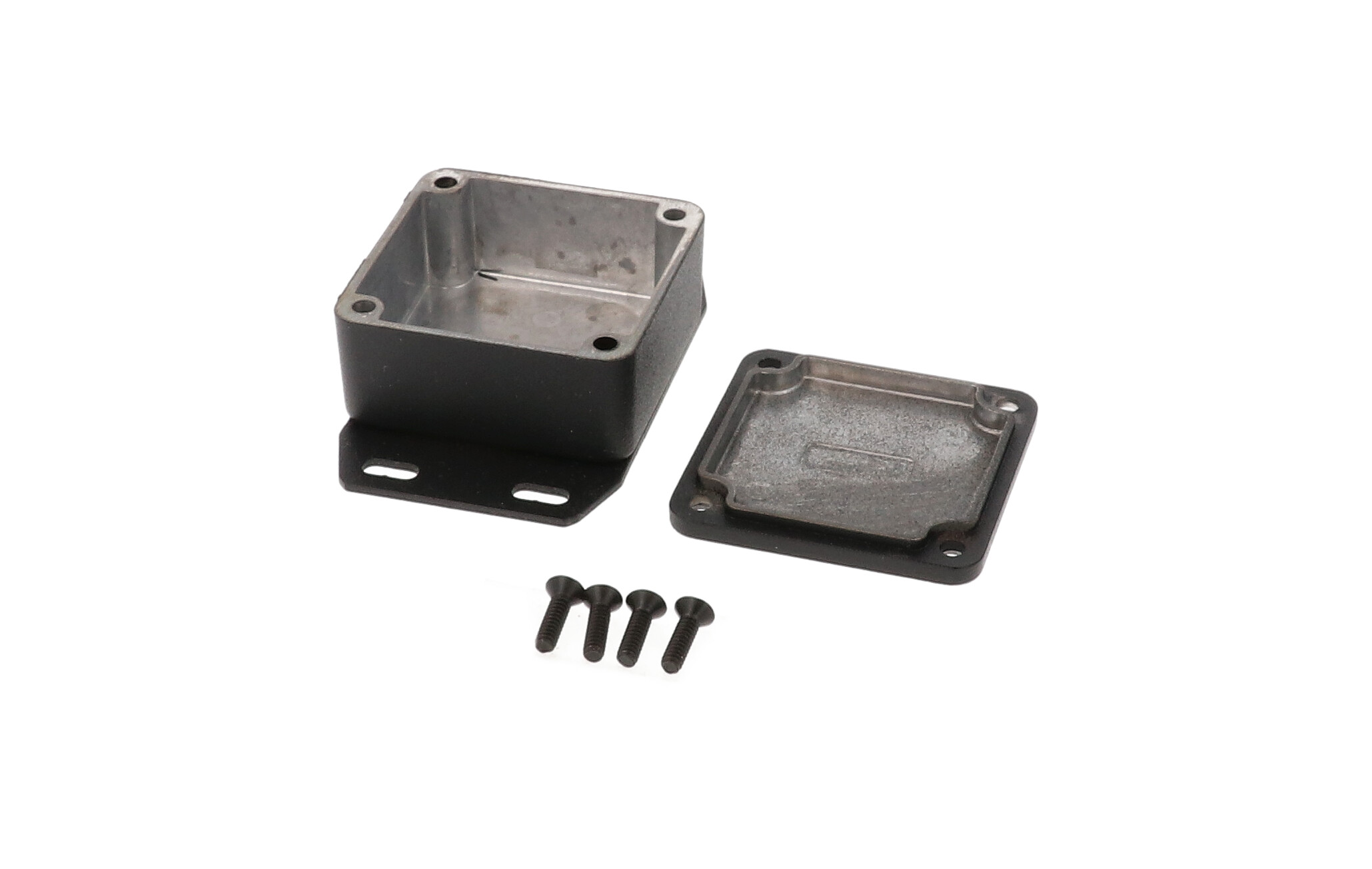

The assembly ships with box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m. For a sealed build, the water-tight equivalent is 1590WLLBFBK, and 1590LBGASKET is listed as the replacement gasket kit for this size. It is RoHS and REACH compliant.
Ideal For
- Compact electronic instrument housing
- Small PCB and sensor module enclosure
- Surface-mounted control or interface box
- Machined OEM electronics housing
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590LLBFBK |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
| Short Description | 50 X 50 X 25MM FLANGED BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 40.50 mm [1.594 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size (L X W X H) | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Box Width (Drawing) | 50.50 mm [1.988 in] |
| Box Length (Drawing) | 50.50 mm [1.988 in] |
| Nominal Size (Width) | 2.01 in (51 mm) |
| Nominal Size (Height) | 0.98 in (25 mm) |
| Nominal Size (Length) | 2.01 in (51 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 25.00 mm [.984 in] |
| Max. P.C. Board Width (Mm) | 44.83 |
| Max. P.C. Board Length (Mm) | 44.83 |
| Overall Length Incl. Flange (Drawing) | 78.99 mm [3.110 in] |
Identifiers
| UPC | 623980808857 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Bottom Flange | Welded |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WLLBFBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590LBGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1590LLBFBK?▾
The listed size is 1.99 x 1.99 x 0.98 in (51 x 51 x 25 mm). The drawing shows a 50.50 mm square box, 25.00 mm high, 78.99 mm long including the bottom flange, with 45.63 x 40.50 x 21.00 mm of inside space.
How is this enclosure mounted?▾
It has a flanged bottom plate; the bottom flange is welded to the box so the enclosure can be fastened to a surface.
Is the 1590LLBFBK waterproof?▾
The standard version is designed to meet IP54. The water-tight version, 1590WLLBFBK, is designed to meet IP65 and includes a silicone gasket supplied loose.
What screws come with it?▾
The assembly includes box, lid and 4 cover screws. Black screws are included with the black version, and the lid holes are 6-32 UNC. Recommended torque is 50-55 cN.m [71-78 ozf.in].
What size PC board fits?▾
The maximum PC board length and width are both listed as 44.83 mm.
Can it be modified?▾
Yes. The drawing states the enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
