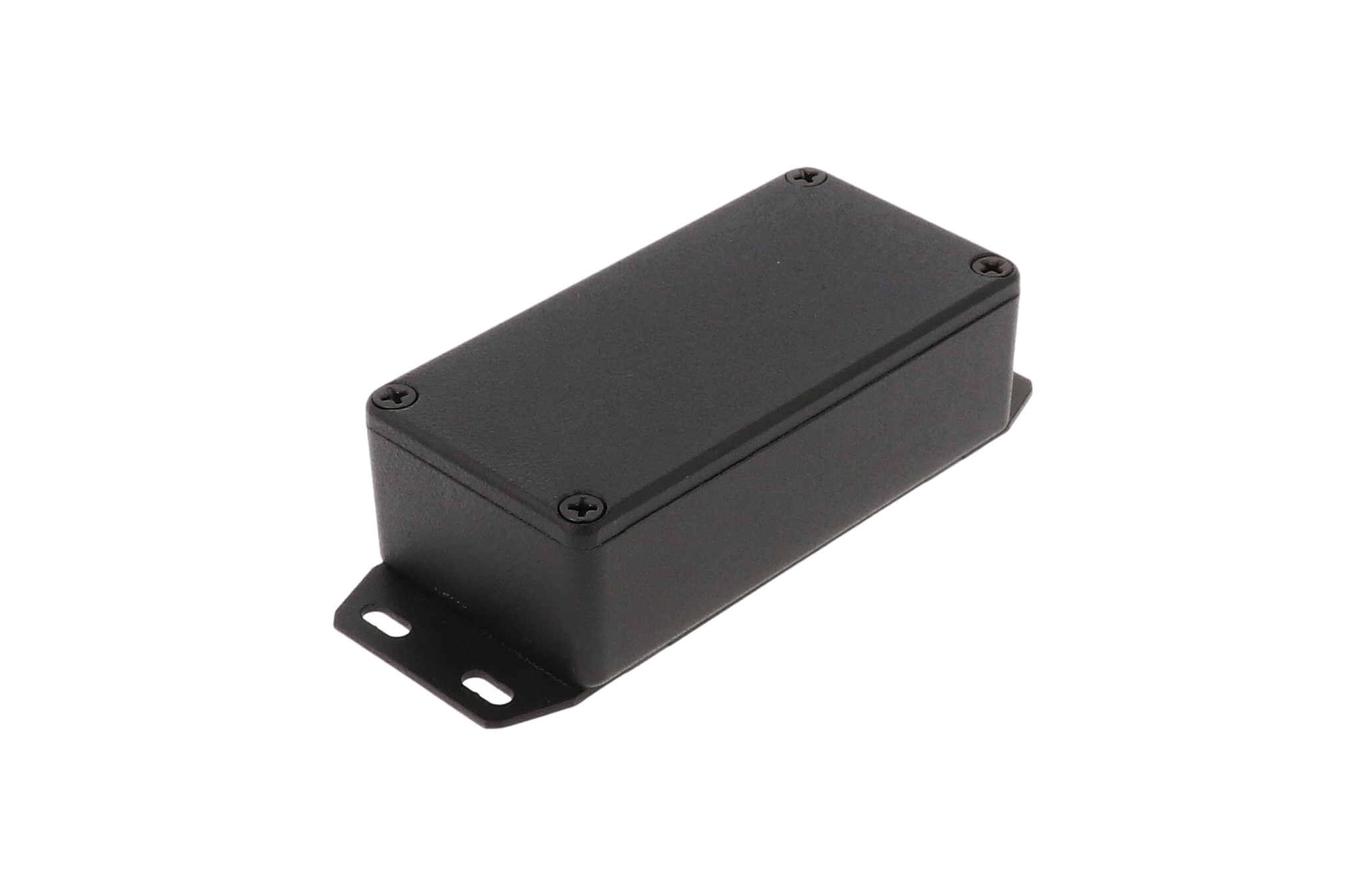

Hammond 1590G2FBK 100x50x31mm Black Diecast Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom flange; 124.46 mm [4.900 in] overall length
- 3.96 mm mounting holes on 113.18 mm [4.456 in] centres
- Textured black powder paint with black screws included
- Nominal 100 x 50 x 31 mm; 27.00 mm [1.063 in] inside height
- Max. P.C. board 93.82 x 43.82 mm
- IP54 design; IP65 via 1590WG2FBK or 1590GGASKET kit
- RoHS and REACH compliant
For a compact housing that bolts down and still looks finished, the 1590G2FBK combines the 1590G2 size of 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) with a welded bottom flange and a textured black finish. It serves OEM engineers, installers and system integrators mounting small electronics to walls, panels or chassis.

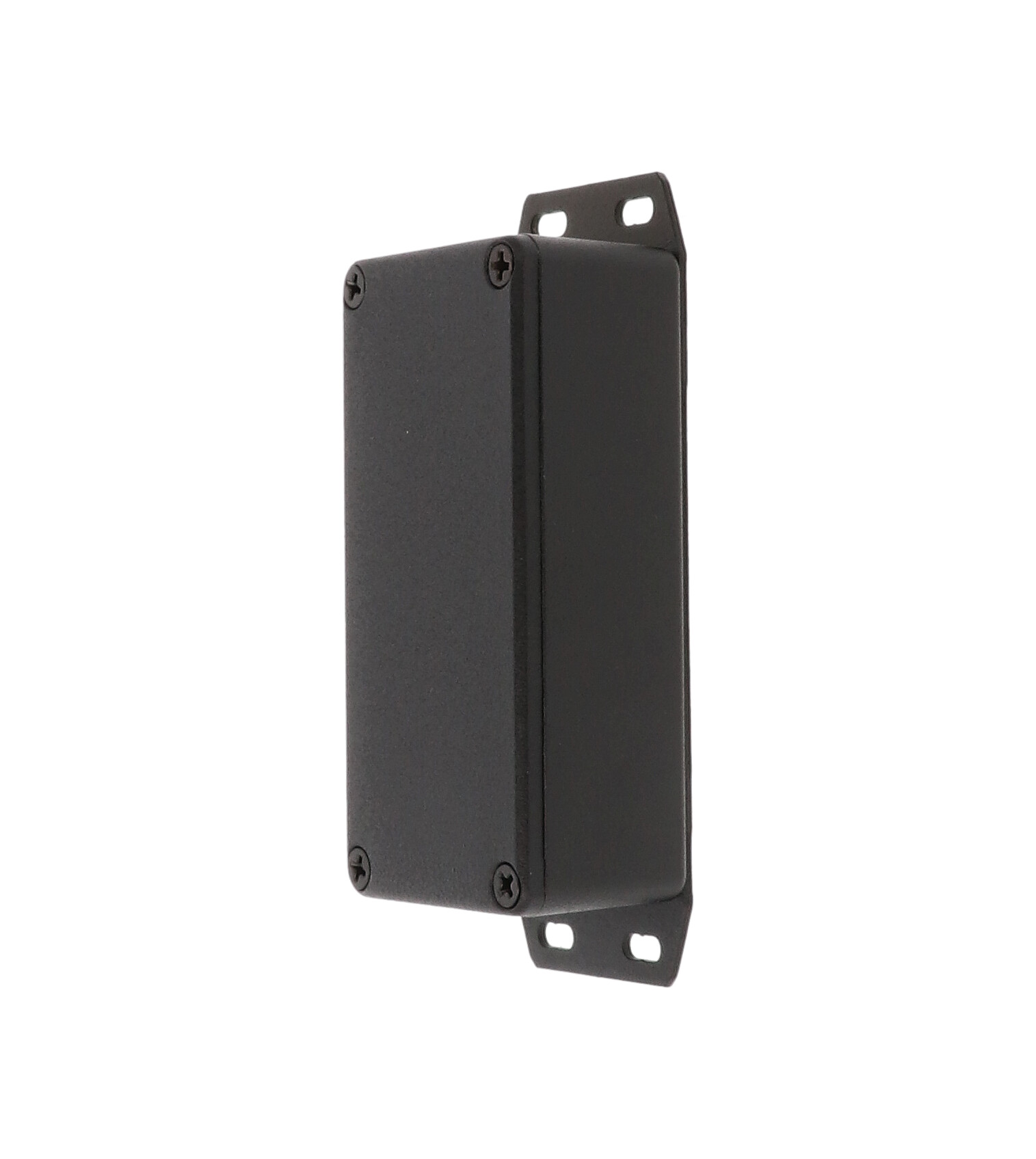

On the manufacturer drawing the flange extends the overall length to 124.46 mm [4.900 in], with 3.96 mm [.156 in] holes on 113.18 mm [4.456 in] centres, and overall height with the flange is 32.50 mm [1.280 in]. The interior is 94.92 mm [3.737 in] x 44.92 mm [1.768 in] x 27.00 mm [1.063 in], and the maximum P.C. board is 93.82 x 43.82 mm.
The diecast aluminum alloy box and lid carry a tough textured black polyester powder paint that keeps a lasting finish even after machining; black screws come with it. Lap joint construction protects against dust and splashing water, the enclosure is designed to meet IP54, and a 2°-or-less side wall draft simplifies board mounting.

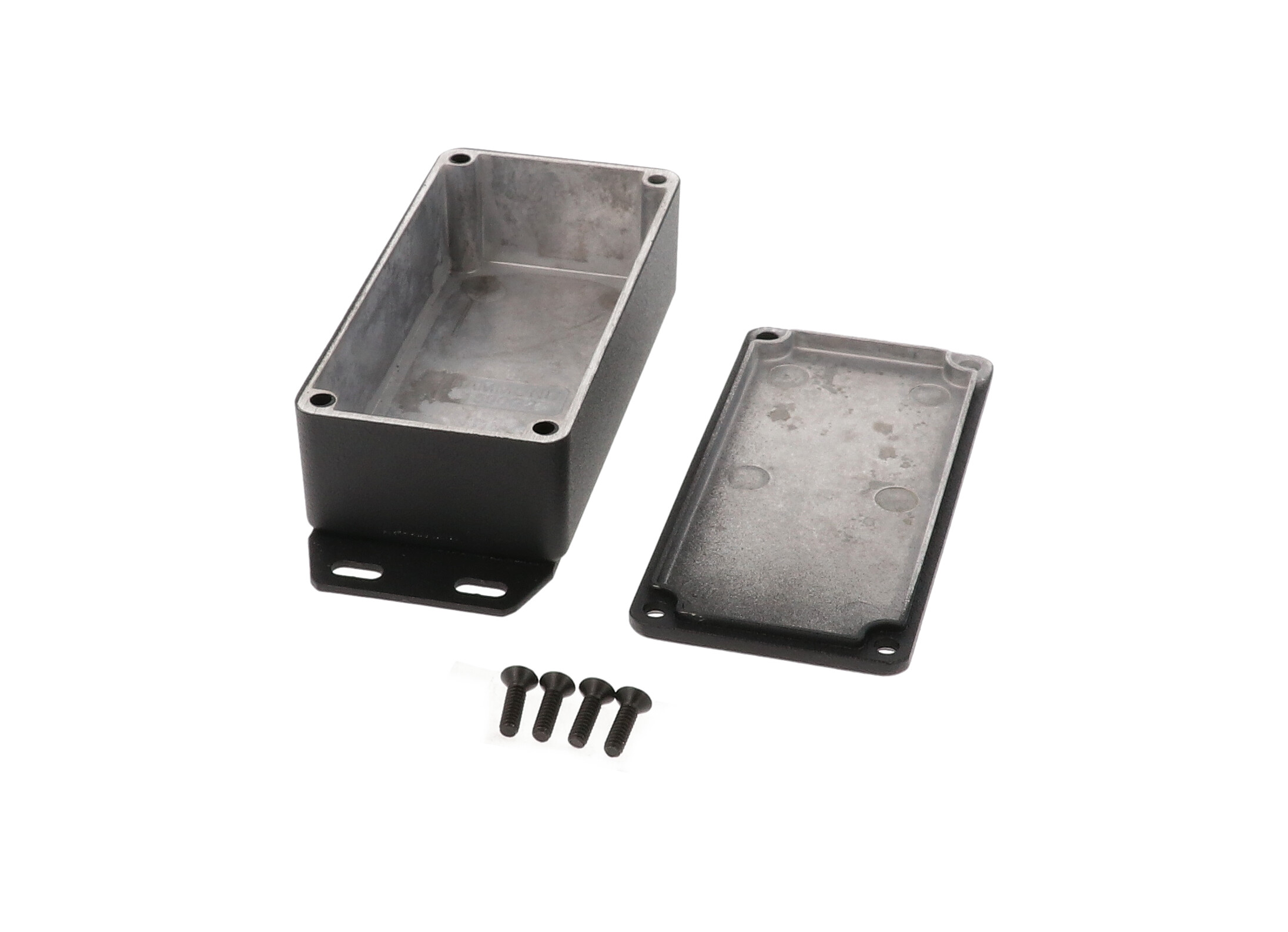

The 1590G2FBK ships shrink wrapped with box, lid and four 6-32 UNC cover screws (50-55 cN.m [71-78 ozf.in] recommended). The water-tight black version is 1590WG2FBK; alternatively the 1590GGASKET kit upgrades to IP65. RoHS and REACH compliant, 0.26 lbs (0.12 kg).
Ideal For
- Wall- or chassis-mounted instrument housings
- Black-finish bolt-down enclosures
- P.C. board housings needing extra height
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Welded bottom flange |
| Flange Mounting Hole Spacing (Drawing) | 113.18 mm [4.456 in] |
| Flange Mounting Hole Diameter (Drawing) | 3.96 mm [.156 in] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 31MM FLGD BOX BLACK |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 93.82 mm |
| Inside Width (Drawing) | 44.92 mm [1.768 in] |
| Max. P.C. Board Length | 43.82 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.22 in (31 mm) |
| Inside Height (Drawing) | 27.00 mm [1.063 in] |
| Inside Length (Drawing) | 94.92 mm [3.737 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) |
| Overall Height With Bottom Flange (Drawing) | 32.50 mm [1.280 in] |
| Overall Length Including Bottom Flange (Drawing) | 124.46 mm [4.900 in] |
Identifiers
| UPC | 623980810751 |
| UNSPSC | 39121301 |
| Part Number | 1590G2FBK |
Related Versions
| Flanged Lid (Black) | 1590G2FLBK |
| No Mounting Flanges (Black) | 1590G2BK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.26 lbs (0.12 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WG2BK |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the F in 1590G2FBK mean?▾
It is the version with a flanged bottom plate; the drawing notes the bottom flange is welded.
What is the flange hole spacing?▾
113.18 mm [4.456 in] centres, with 3.96 mm [.156 in] holes.
What colour are the screws?▾
Black screws are included with the textured black enclosure.
How can I make it water-tight?▾
Order the 1590WG2FBK water-tight version, or add the 1590GGASKET kit and torque lid screws to 25-30 cN.m (36-43 ozf.in) for IP65.
