Hammond 1590G2BK 100x50x31mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 100 x 50 x 31 mm (3.94 x 1.97 x 1.22 in) black diecast aluminum
- Textured polyester powder paint; black screws included
- Inside 94.92 x 44.92 x 27.00 mm; max. P.C. board 93.82 x 43.82 mm
- Lap joint lid designed to meet IP54
- IP65 option: 1590WG2BK or 1590GGASKET gasket kit
- Four 6-32 UNC screws into factory-tapped holes
- RoHS and REACH compliant

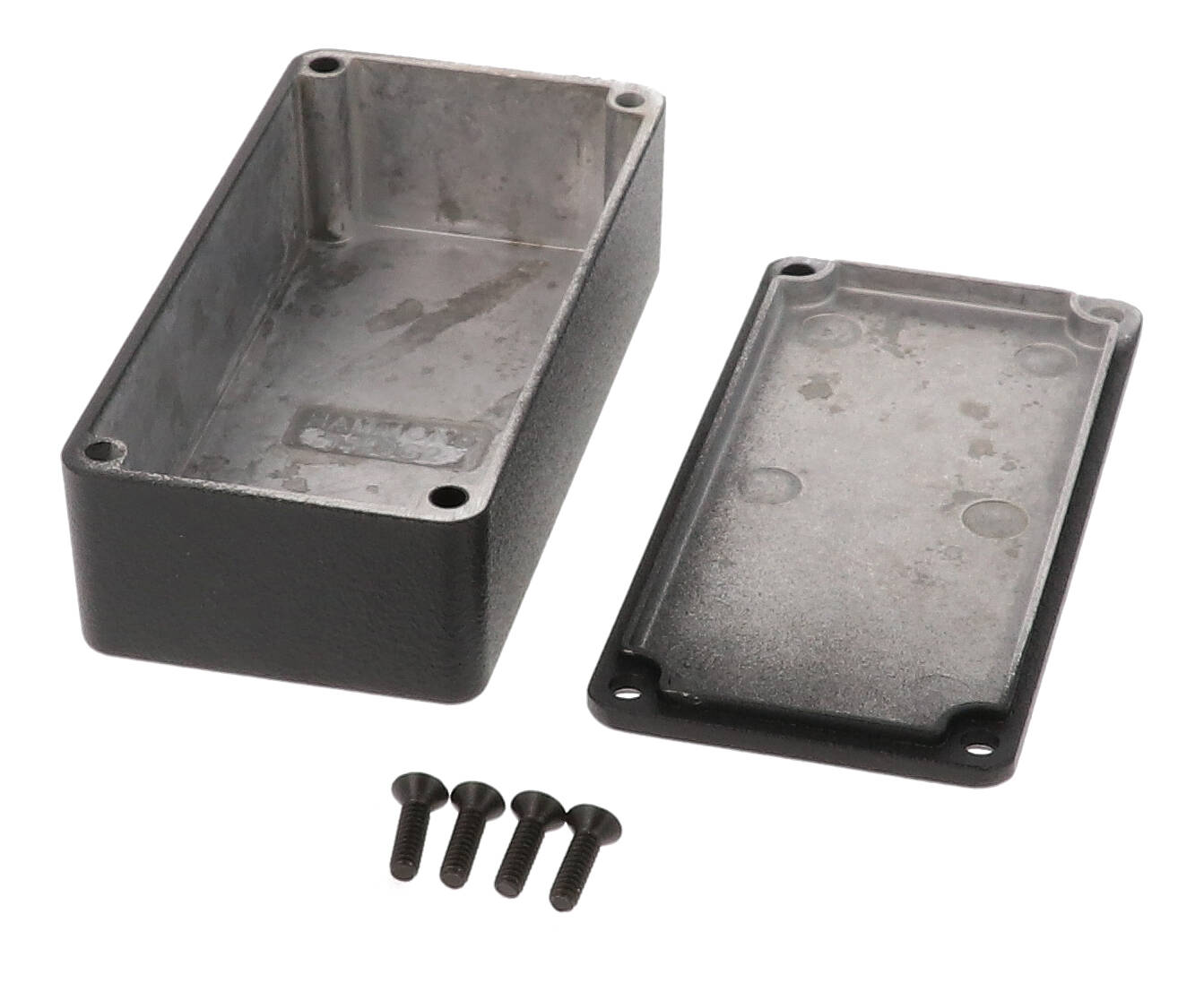

The 1590G2BK is a 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) diecast aluminum enclosure finished in textured black. It gives product designers, OEM engineers and integrators a compact metal housing with enough height for taller components, in a finish that suits front-of-panel or customer-facing equipment.
Cast from aluminum alloy, the box and lid are coated with a tough textured polyester powder paint that holds a lasting finish even after machining, and black screws are included to match. A lap joint where lid and box meet protects against dust and splashing water, and the standard enclosure is designed to meet IP54.
Per the drawing the outside is 100.00 x 50.00 x 31.00 mm [3.937 x 1.969 x 1.220 in], and the inside is 94.92 mm [3.737 in] long, 44.92 mm [1.768 in] wide and 27.00 mm [1.063 in] high. The largest P.C. board listed is 93.82 x 43.82 mm, and the side walls are drafted at 2° or less for easy board mounting.
The 1590G2BK ships shrink wrapped with box, lid and four 6-32 UNC cover screws for factory-tapped holes; tighten to 50-55 cN.m [71-78 ozf.in]. For IP65, choose the 1590WG2BK water-tight version or install the 1590GGASKET kit. RoHS and REACH compliant, 0.25 lbs (0.11 kg).
Ideal For
- Black-finish instrument housings
- Compact P.C. board enclosures
- Machined control and interface boxes
- Dust- and splash-resistant electronics
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Screw Color | Black screws included |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Overview
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 100 X 50 X 31MM ALM ENC. BLACK |
| Product Type | Die-cast box |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 93.82 mm |
| Inside Width (Drawing) | 44.92 mm [1.768 in] |
| Max. P.C. Board Length | 43.82 mm |
| Width (Ordering Table) | 1.97 in (50 mm) |
| Height (Ordering Table) | 1.22 in (31 mm) |
| Inside Height (Drawing) | 27.00 mm [1.063 in] |
| Inside Length (Drawing) | 94.92 mm [3.737 in] |
| Length (Ordering Table) | 3.94 in (100 mm) |
| Nominal Size (L X W X H) | 3.94 in x 1.97 in x 1.22 in (100 mm x 50 mm x 31 mm) |
| Overall Dimensions (Drawing, L X W X H) | 100.00 mm x 50.00 mm x 31.00 mm [3.937 in x 1.969 in x 1.220 in] |
Identifiers
| UPC | 623980810737 |
| UNSPSC | 39121301 |
| Part Number | 1590G2BK |
Related Versions
| Flanged Lid (Black) | 1590G2FLBK |
| Flanged Bottom Plate (Black) | 1590G2FBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WG2BK |
| Optional Replacement Gasket Kit | 1590GGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish is on the 1590G2BK?▾
A tough textured black polyester powder paint, with black screws included.
What is the inside height?▾
27.00 mm [1.063 in], per the manufacturer drawing.
Is there a flanged black version of this size?▾
Yes: 1590G2FLBK with a flanged lid and 1590G2FBK with a flanged bottom plate.
Will it hold up after I drill it?▾
The manufacturer states the powder paint gives a lasting finish even after machining.
What torque should the cover screws have?▾
50-55 cN.m [71-78 ozf.in] normally, or 25-30 cN.m [36-43 ozf.in] with a gasket fitted.
