Hammond 1590FFBK 188x188x67mm Black Aluminum Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black screws
- Welded bottom flange; 216.64 mm overall length
- Square 188 x 188 mm body; PC boards to 174.91 x 174.91 mm
- Eight 6-32 UNC cover screws
- IP54 lap joint lid; 1590FGASKET for IP65
- Inside height 61.51 mm, inside width 178.50 mm
- RoHS and REACH compliant

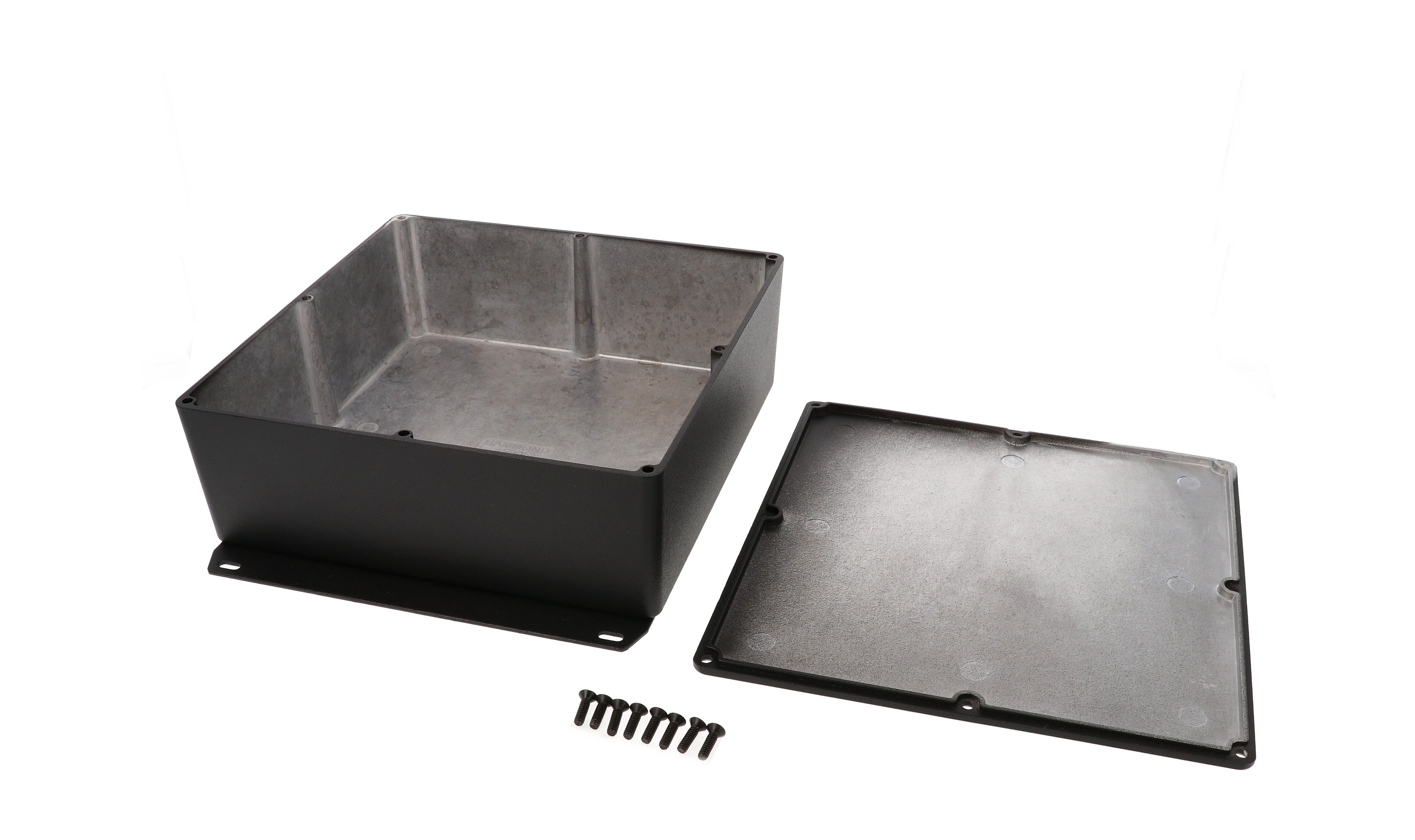

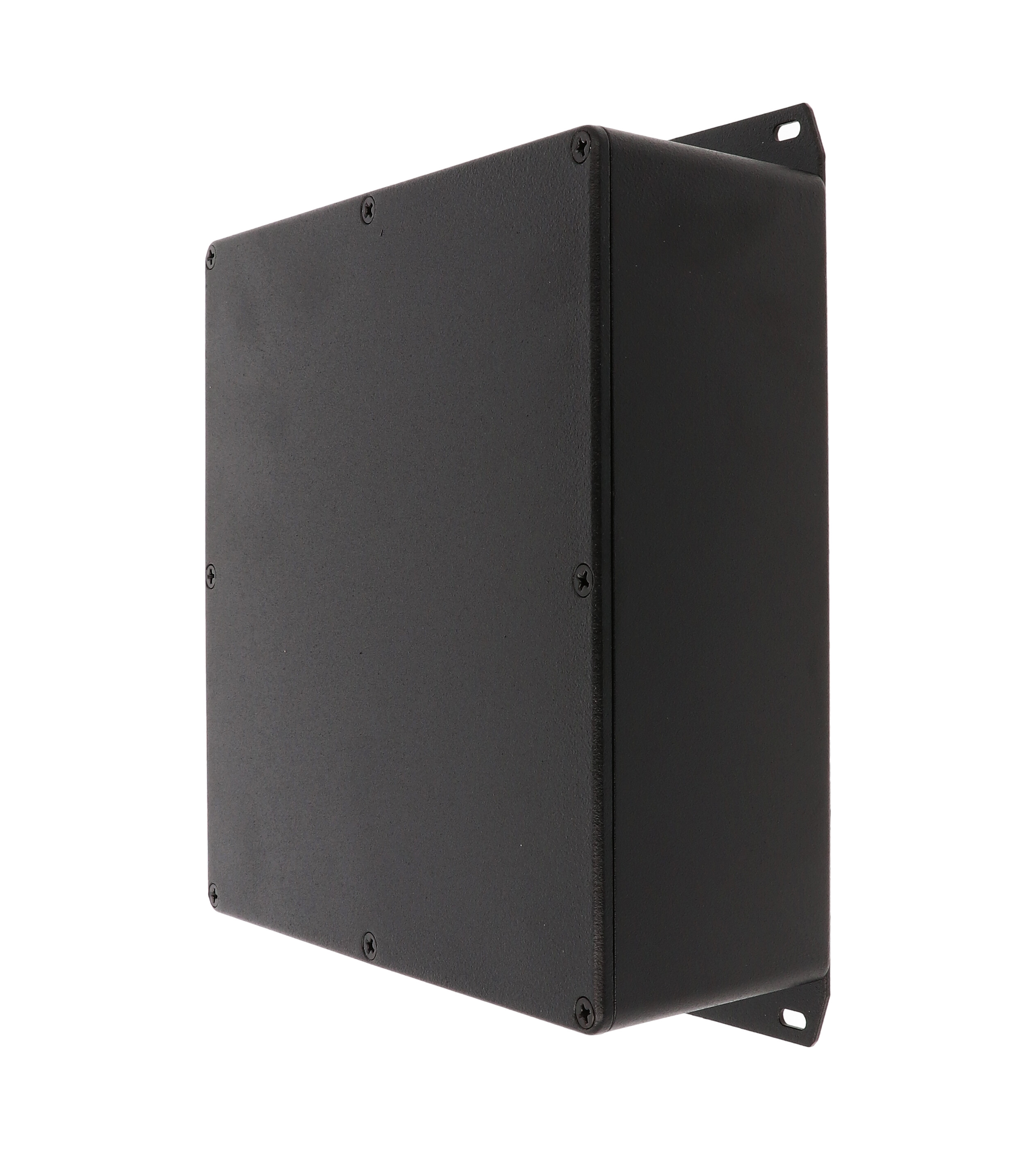

The 1590FFBK is the 1590FF square flanged enclosure painted black. It measures a nominal 188 x 188 x 67 mm (7.4 x 7.4 x 2.64 in) and adds a welded bottom flange plate, so integrators can mount a large, black-finished diecast box directly to equipment, walls or panels.
The diecast aluminum alloy box and lid wear a textured black polyester powder paint that lasts even after machining, and black screws are included. The lap joint where lid and box meet protects against dust and splashing water; the standard enclosure is designed to meet IP54.
- Overall length including bottom flange: 216.64 mm [8.529 in]
- Box: 188.00 x 188.00 mm; height including flange 68.50 mm
- Inside width 178.50 mm; inside height 61.51 mm
- Maximum PC board: 174.91 x 174.91 mm
- Shipping weight: 2.25 lb (1.02 kg)
The 1590FFBK includes eight cover screws for factory-tapped 6-32 UNC holes at 50-55 cN.m. For IP65, the ordering table lists 1590FGASKET, used with 1590WMS100BK black stainless O-ring screws and 25-30 cN.m lid torque. The water-tight version is 1590WFFBK. Side walls are drafted at 2° or less.
RoHS and REACH compliant, shrink wrapped. Factory modification and STEP/IGES solid models are available.
Ideal For
- Surface-mounted black control enclosures
- Large PC board housings on equipment
- Wall- or chassis-mounted instrument boxes
- Dust- and splash-protected installations (IP54)
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590FFBK |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Short Description | 1590FF PAINTED BLACK |
| Water-Tight Equivalent | 1590WFFBK (includes silicone gasket) |
Dimensions
| Box Width | 188.00 mm [7.402 in] |
| Box Length | 188.00 mm [7.402 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 178.50 mm [7.027 in] |
| Inside Height | 61.51 mm [2.422 in] |
| Max. P.C. Board Width | 174.91 mm |
| Max. P.C. Board Length | 174.91 mm |
| Nominal Size (L X W X H) | 7.4 in x 7.4 in x 2.64 in (188 mm x 188 mm x 67 mm) |
| Height Incl. Bottom Flange | 68.50 mm [2.697 in] |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 7.40 in (188 mm) x 2.64 in (67 mm) |
| Overall Length Incl. Bottom Flange | 216.64 mm [8.529 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590FGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980196626 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 2.25 lbs (1.02 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Included Items | Box, lid and 8 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 8X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590FGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590FFBK?▾
The 1590FF square diecast aluminum enclosure with welded bottom flange, painted textured black ("1590FF painted black").
How heavy is it?▾
Shipping weight is 2.25 lb (1.02 kg).
How many screws does it take?▾
Eight cover screws in factory-tapped 6-32 UNC holes, included.
Can it be made IP65?▾
The ordering table lists 1590FGASKET as the replacement gasket kit; series gaskets are designed to meet IP65 with 25-30 cN.m lid torque. The water-tight version is 1590WFFBK.
