Hammond 1590FF 188x188x67mm Natural Aluminum Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded base-mounted flange; 216.64 mm overall length
- Square 188 x 188 x 67 mm nominal body
- Fits PC boards up to 174.91 x 174.91 mm
- Eight 6-32 UNC cover screws included
- IP54 lap joint lid; 1590FGASKET for IP65
- Natural diecast aluminum, vibra finished
- RoHS and REACH compliant

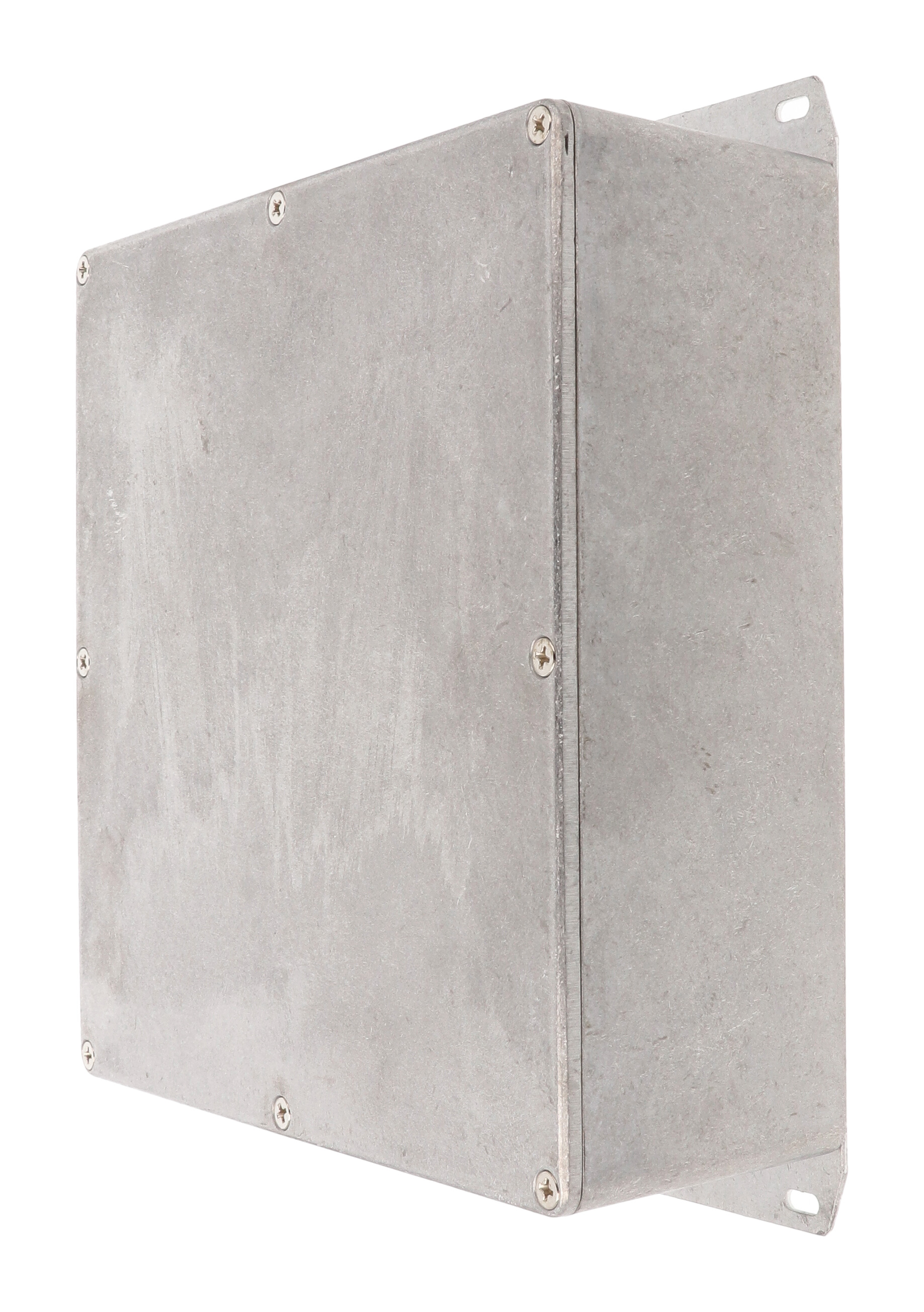

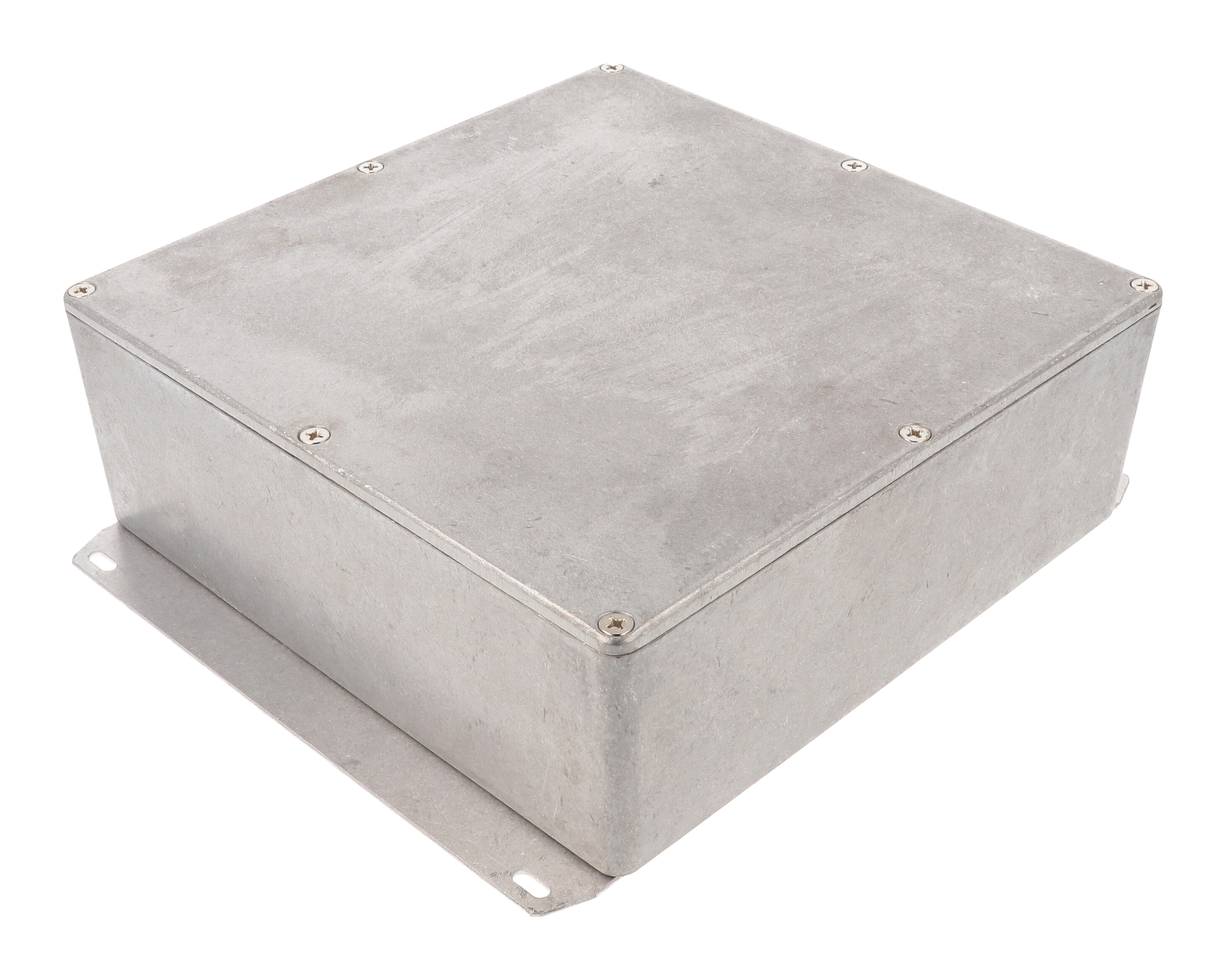

The 1590FF is the square 1590F diecast aluminum enclosure supplied with a base-mounted flange (listed as "1590F c/w base mtd flange"). With a nominal size of 188 x 188 x 67 mm (7.4 x 7.4 x 2.64 in) and a welded bottom flange plate, it lets installers and equipment builders screw a large-footprint enclosure straight to a surface.
The natural diecast aluminum alloy box and lid are vibra finished for a smooth surface with no sharp edges. The lid meets the box in a lap joint that protects against dust and splashing water, and the standard 1590FF is designed to meet IP54. Low side wall draft (2° or less) makes board mounting easy.
On the drawing, the box is 188.00 x 188.00 mm, the overall length including the bottom flange is 216.64 mm [8.529 in], and the height including the flange is 68.50 mm. Inside width is 178.50 mm and inside height 61.51 mm, with PC boards up to 174.91 x 174.91 mm. Shipping weight is 2.24 lb (1.02 kg).
Eight cover screws are included for the factory-tapped 6-32 UNC holes, recommended at 50-55 cN.m. The 1590FGASKET kit, 1590WMS100 O-ring screws and 25-30 cN.m lid torque give an IP65 upgrade path, and 1590WFF is the gasketed version. RoHS and REACH compliant, shrink wrapped, with factory modification and STEP/IGES models available.
Ideal For
- Surface-mounted large-board enclosures
- Chassis- or wall-mounted control housings
- Square flange-mounted instrument boxes
- Dust- and splash-protected installations (IP54)
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590FF |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Short Description | 1590F C/W BASE MTD FLANGE |
| Water-Tight Equivalent | 1590WFF (includes silicone gasket) |
Dimensions
| Box Width | 188.00 mm [7.402 in] |
| Box Length | 188.00 mm [7.402 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 178.50 mm [7.027 in] |
| Inside Height | 61.51 mm [2.422 in] |
| Max. P.C. Board Width | 174.91 mm |
| Max. P.C. Board Length | 174.91 mm |
| Nominal Size (L X W X H) | 7.4 in x 7.4 in x 2.64 in (188 mm x 188 mm x 67 mm) |
| Height Incl. Bottom Flange | 68.50 mm [2.697 in] |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 7.40 in (188 mm) x 2.64 in (67 mm) |
| Overall Length Incl. Bottom Flange | 216.64 mm [8.529 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590FGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980538327 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 2.24 lbs (1.02 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Included Items | Box, lid and 8 cover screws |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 8X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590FGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590FF mount?▾
It has a flanged bottom plate; the drawing notes the bottom flange is welded. Overall length including the flange is 216.64 mm.
What are the inside dimensions?▾
The drawing gives an inside width of 178.50 mm and inside height of 61.51 mm; maximum PC board is 174.91 x 174.91 mm.
How many screws hold the lid?▾
Eight cover screws in factory-tapped 6-32 UNC holes.
Is there a water-tight version?▾
Yes, 1590WFF includes a silicone gasket. The ordering table lists 1590FGASKET as the replacement gasket kit.
