Hammond 1590FBK 188x188x67mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint; black screws included
- Square 188 x 188 x 67 mm; PC boards to 174.91 x 174.91 mm
- Eight 6-32 UNC cover screws in factory-tapped holes
- IP54 lap joint lid; gasket kit 1590FGASKET for IP65
- Inside width 178.50 mm, inside height 62.00 mm
- Side wall draft 2° or less
- RoHS and REACH compliant

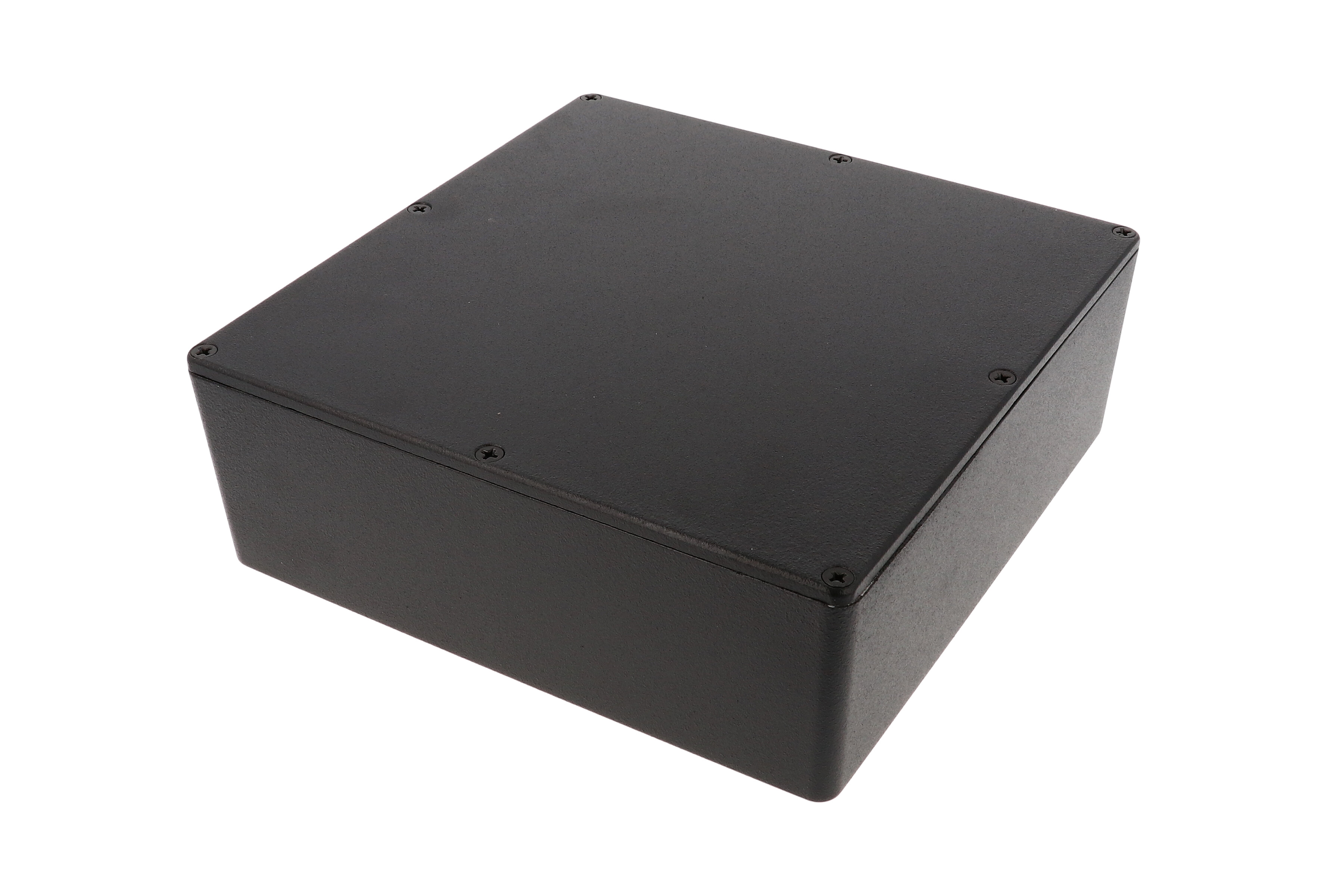

The 1590FBK is the textured black version of the square 188 x 188 x 67 mm (7.4 x 7.4 x 2.64 in) 1590F diecast aluminum enclosure. It gives OEM designers and integrators a finished metal case with room for PC boards up to 174.91 x 174.91 mm.
Box and lid are diecast aluminum alloy coated with tough polyester powder paint, a finish that lasts even after machining. Black screws are included to match. A lap joint where the lid meets the box protects against dust and splashing water, and this standard version is designed to meet IP54.
- Overall (drawing): 188.00 x 188.00 x 67.00 mm [7.402 x 7.402 x 2.638 in]
- Inside width 178.50 mm; inside height 62.00 mm
- Maximum PC board: 174.91 x 174.91 mm
- Lid height 4 mm (0.16 in); side wall draft 2° or less
- Shipping weight: 1.81 lb (0.82 kg)
The 1590FBK comes with eight cover screws for factory-tapped 6-32 UNC holes, torqued to 50-55 cN.m. The ordering table lists 1590FGASKET as the replacement gasket kit for an IP65 upgrade (25-30 cN.m lid torque), and black stainless O-ring screws are available as 1590WMS100BK. The water-tight black version is 1590WFBK; flanged options are 1590FFBK and 1590FFLBK.
RoHS and REACH compliant and shrink wrapped. Factory machining and printing are available, and solid models can be had in STEP or IGES.
Ideal For
- Black-finished square instrument enclosures
- Large PC board housings
- Machined OEM control cases
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590FBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST 7.3X7.3X2.6 PAINTED |
| Water-Tight Equivalent | 1590WFBK (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 178.50 mm [7.027 in] |
| Inside Height | 62.00 mm [2.441 in] |
| Overall Width | 188.00 mm [7.402 in] |
| Overall Height | 67.00 mm [2.638 in] |
| Overall Length | 188.00 mm [7.402 in] |
| Max. P.C. Board Width | 174.91 mm |
| Max. P.C. Board Length | 174.91 mm |
| Nominal Size (L X W X H) | 7.4 in x 7.4 in x 2.64 in (188 mm x 188 mm x 67 mm) |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 7.40 in (188 mm) x 2.64 in (67 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590FGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980542201 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.81 lbs (0.82 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 8 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 8X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590FGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590FBK finished?▾
With textured black polyester powder paint, described as lasting even after machining. Black screws are included.
How many lid screws are there?▾
Eight, in factory-tapped 6-32 UNC holes.
What board size fits?▾
PC boards up to 174.91 x 174.91 mm.
Is a water-tight black version available?▾
Yes, 1590WFBK. The standard 1590FBK can also take the 1590FGASKET replacement kit.
