Hammond 1590EFBK 188x120x82mm Black Aluminum Box, Welded Base Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black screws included
- Welded bottom flange; 216.64 mm overall length
- Inside 177.67 x 109.67 x 77.00 mm
- Designed to meet IP54; IP65 with 1590EGASKET
- Six 6-32 UNC factory-tapped screw holes
- PC boards up to 175.67 x 107.67 mm
- RoHS and REACH compliant

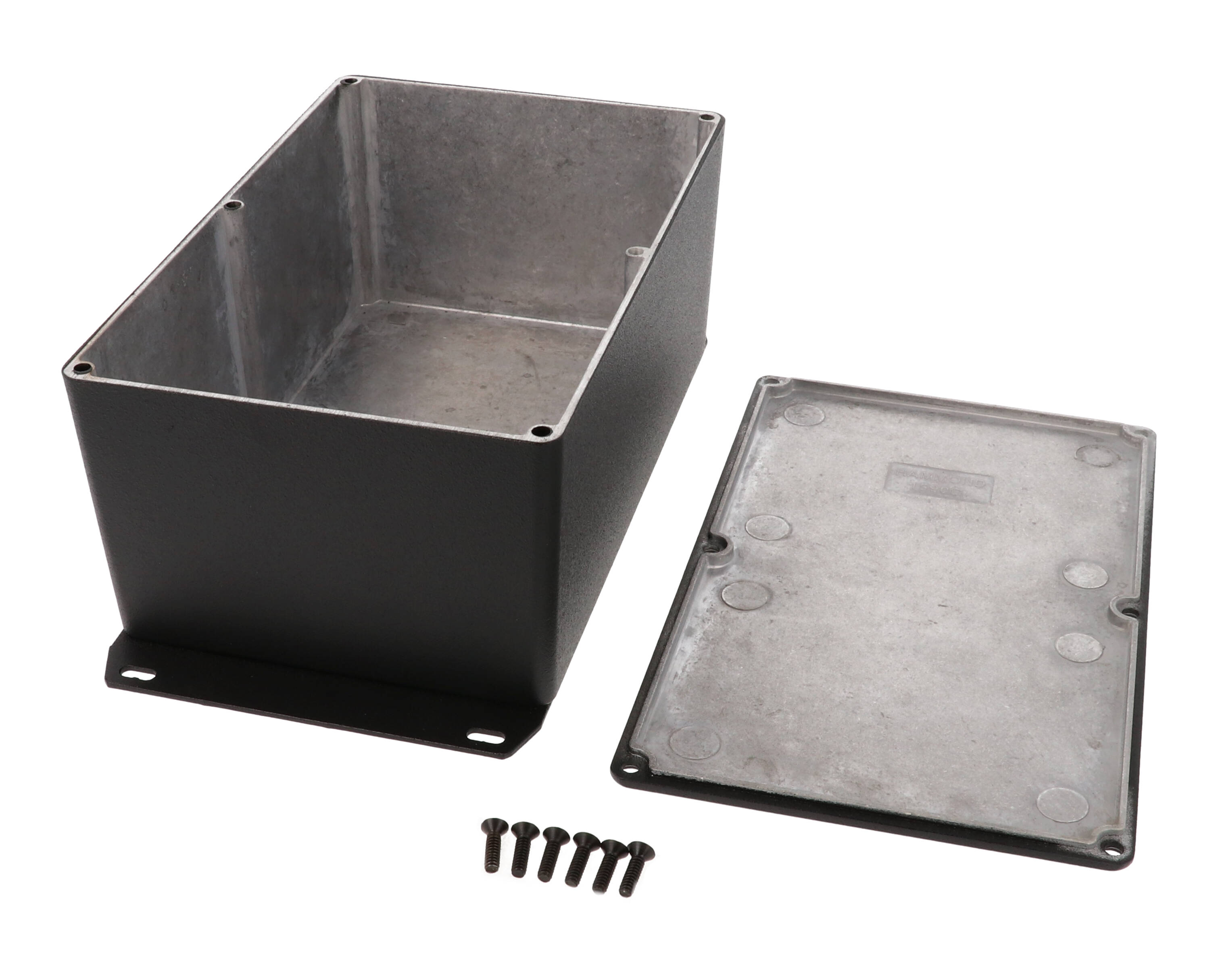

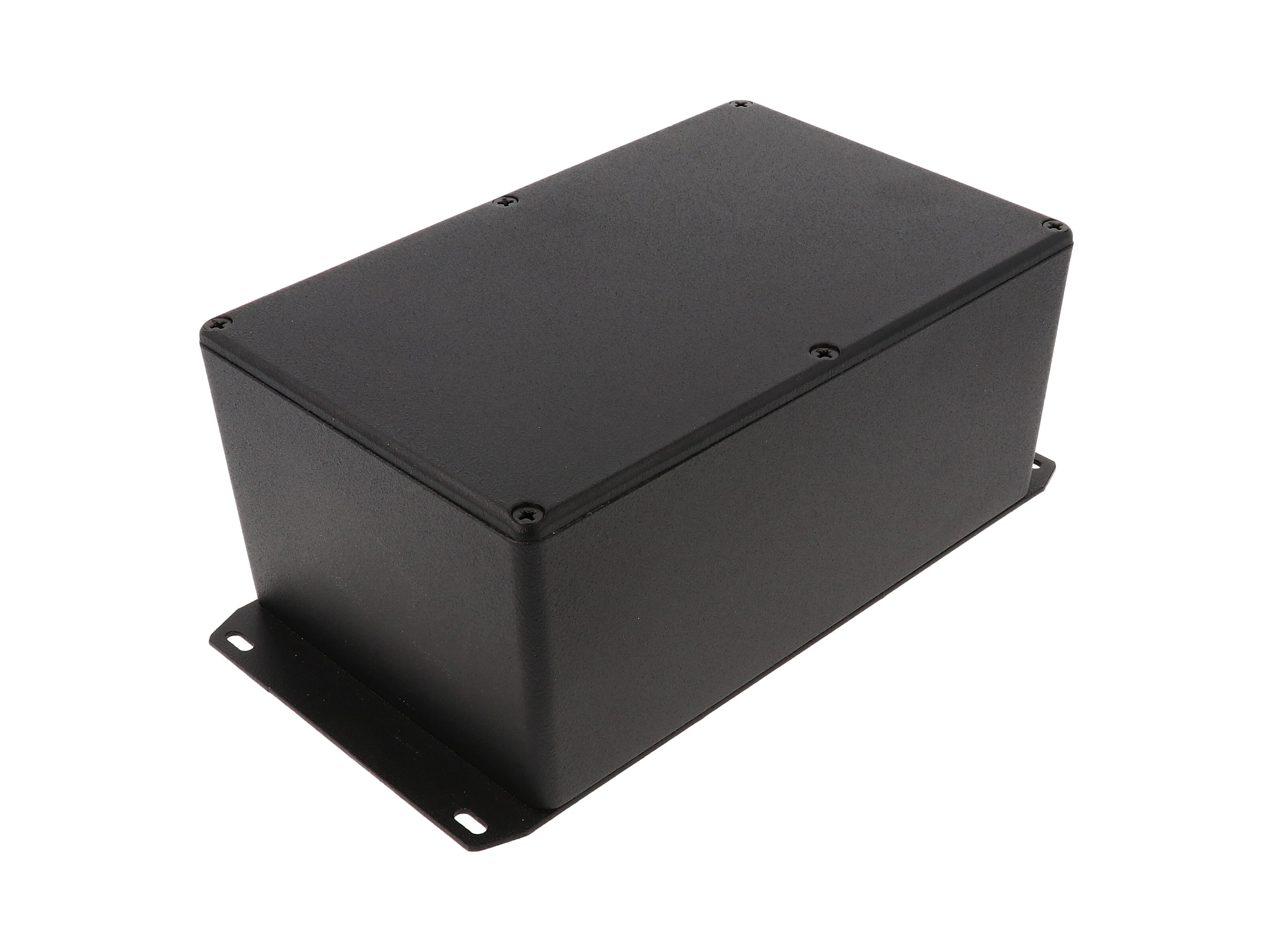

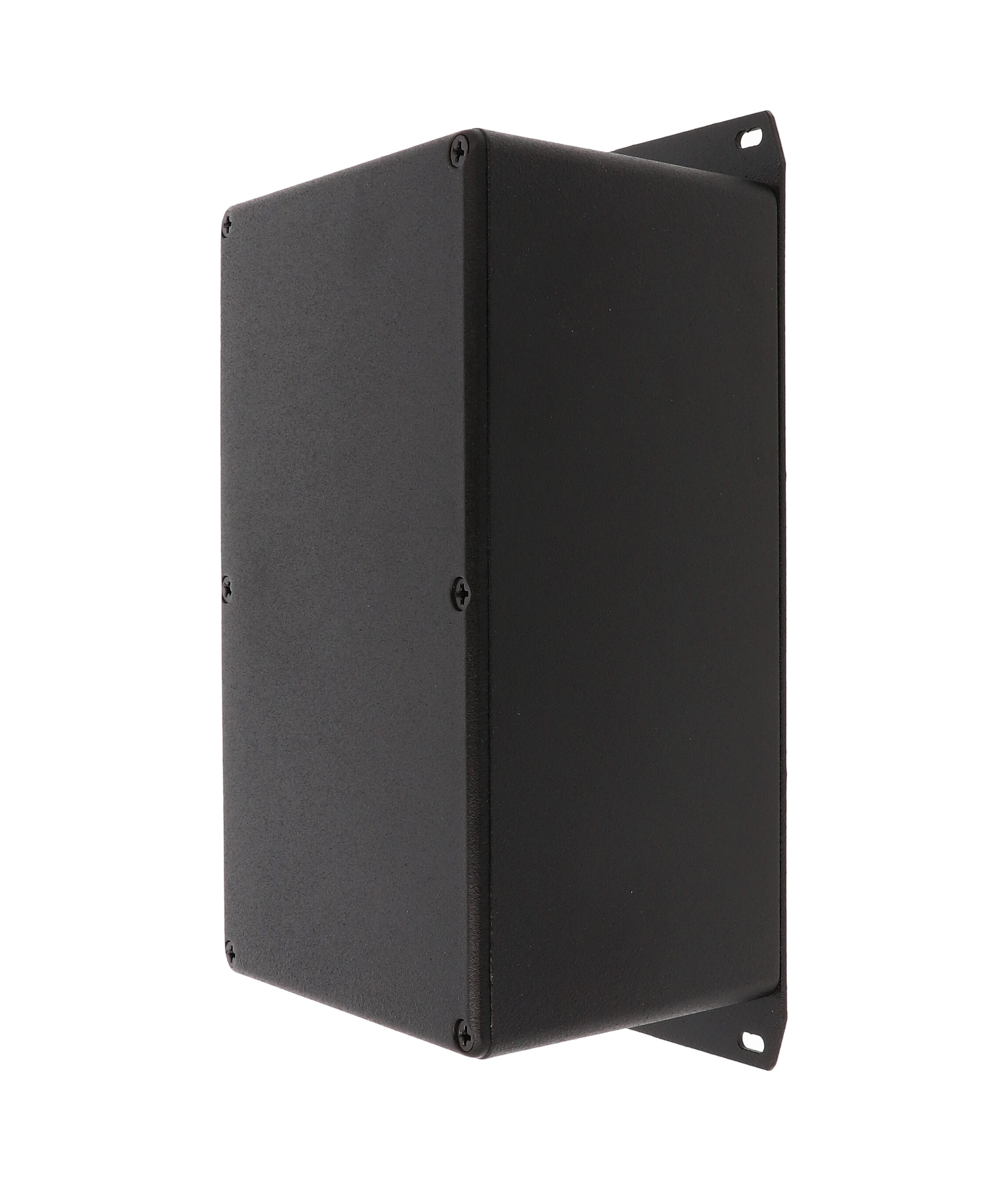

The 1590EFBK is the textured black version of the 1590E enclosure with a flanged bottom plate ("1590EBK with flange"). It measures a nominal 188 x 120 x 82 mm (7.4 x 4.72 x 3.23 in), and its welded base flange lets integrators fix a deep, painted metal box directly to equipment or a wall.
The diecast aluminum alloy box and lid are coated with tough polyester powder paint for a finish that lasts even after machining, and black screws are supplied. A lap joint between lid and box provides protection against dust and splashing water, with the standard version designed to meet IP54.
- Overall length including bottom flange: 216.64 mm [8.529 in]
- Box: 188.00 x 120.00 x 82.00 mm; height including flange 83.50 mm
- Inside: 177.67 x 109.67 x 77.00 mm
- Maximum PC board: 175.67 x 107.67 mm
- Shipping weight: 1.5 lb (0.68 kg)
Six cover screws fit factory-tapped 6-32 UNC holes at a recommended 50-55 cN.m. The 1590EFBK can be taken to IP65 with the 1590EGASKET kit and 1590WMS100BK black stainless O-ring screws at 25-30 cN.m; the factory water-tight version is 1590WEFBK. Side walls have a draft of 2° or less for board mounting.
RoHS and REACH compliant and shrink wrapped. Factory modification and STEP/IGES solid models are available.
Ideal For
- Surface-mounted black electronics enclosures
- Deep equipment-mounted instrument housings
- OEM PC board enclosures
- Dust- and splash-protected installations (IP54)
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590EFBK |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Short Description | 1590EBK WITH FLANGE |
| Water-Tight Equivalent | 1590WEFBK (includes silicone gasket) |
Dimensions
| Box Width | 120.00 mm [4.724 in] |
| Box Height | 82.00 mm [3.228 in] |
| Box Length | 188.00 mm [7.402 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 109.67 mm [4.318 in] |
| Inside Height | 77.00 mm [3.031 in] |
| Inside Length | 177.67 mm [6.995 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 3.23 in (188 mm x 120 mm x 82 mm) |
| Height Incl. Bottom Flange | 83.50 mm [3.287 in] |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 4.72 in (120 mm) x 3.23 in (82 mm) |
| Overall Length Incl. Bottom Flange | 216.64 mm [8.529 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590EGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980536972 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.5 lbs (0.68 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Included Items | Box, lid and 6 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the 1590EFBK add over the 1590EBK?▾
It adds a welded flanged bottom plate for mounting, bringing the overall length to 216.64 mm; both are textured black.
What are the inside dimensions?▾
177.67 x 109.67 x 77.00 mm (length x width x height).
Can it be made water-tight?▾
Fit the 1590EGASKET kit and torque the lid screws to 25-30 cN.m for an IP65 design, or order the water-tight 1590WEFBK.
What is included?▾
The box, lid and six cover screws; black screws are included with the black version.
