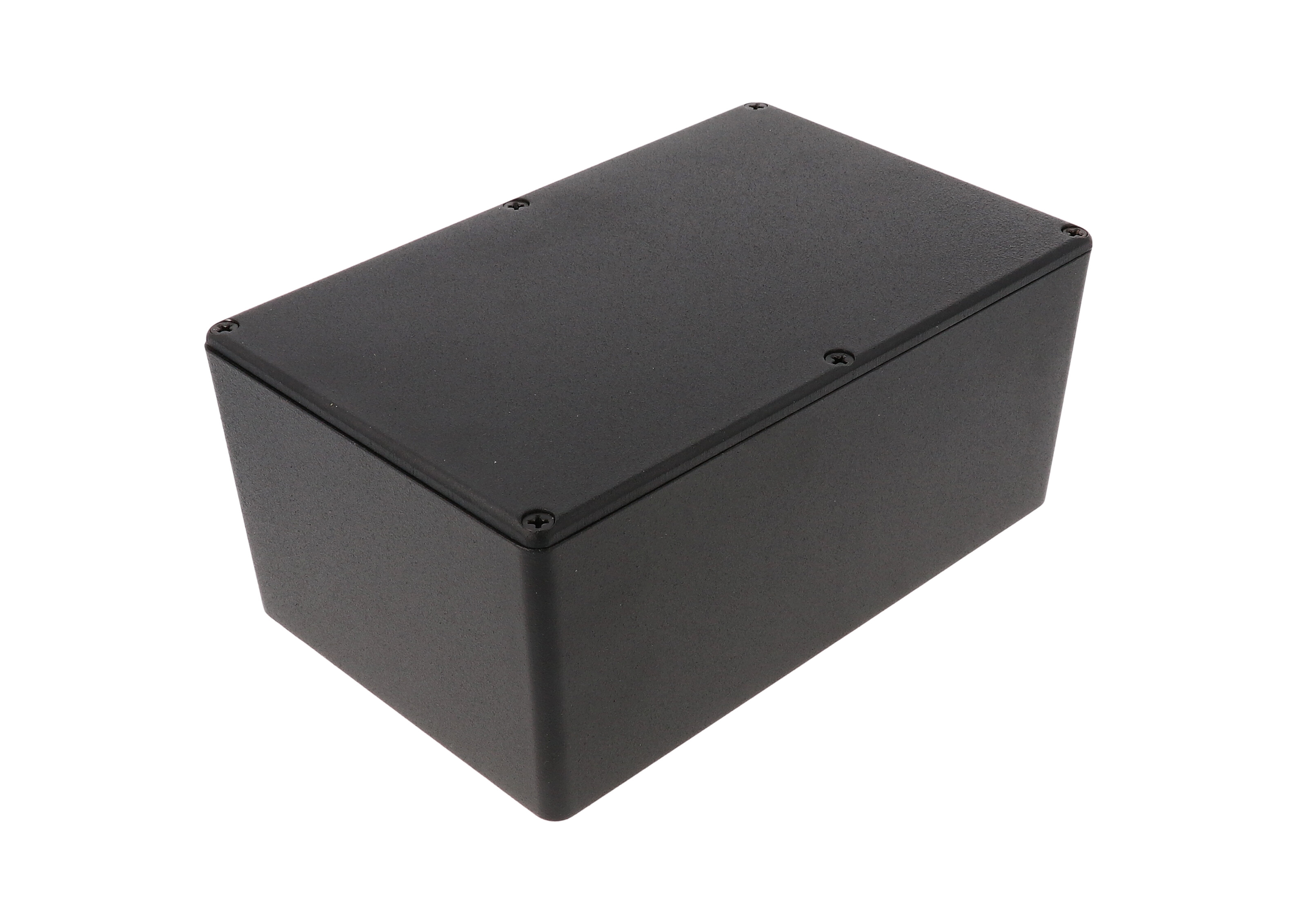

Hammond 1590EEBK 200x120x85mm Black Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint with black screws
- Nominal 200 x 120 x 85 mm; inside 191.63 x 111.63 x 80.00 mm
- IP54 lap joint lid; IP65 with 1590DEGASKET
- Six M3.5 x 0.6 cover screws in factory-tapped holes
- PC boards up to 175.67 x 107.67 mm
- Side wall draft 2° or less
- RoHS and REACH compliant, 1.41 lb shipping weight
The 1590EEBK is the black-painted version of the 200 x 120 x 85 mm (7.88 x 4.73 x 3.33 in) 1590EE diecast aluminum enclosure. With 80 mm of usable inside height, it suits designers and integrators who need a deep, finished metal case for taller electronics.
The aluminum alloy box and lid carry a textured black polyester powder paint that lasts even after machining, and black screws are included. Lap joint construction where lid and box meet protects against dust and splashing water; the standard enclosure is designed to meet IP54.
- Overall (drawing): 200.20 x 120.20 x 84.50 mm [7.882 x 4.732 x 3.327 in]
- Inside: 191.63 x 111.63 x 80.00 mm [7.545 x 4.395 x 3.150 in]
- Maximum PC board: 175.67 x 107.67 mm
- Lid height 4 mm (0.16 in); side wall draft 2° or less
- Shipping weight: 1.41 lb (0.64 kg)
Six cover screws are supplied for the factory-tapped M3.5 x 0.6 holes; torque them to 50-55 cN.m. To upgrade the 1590EEBK to IP65, apply the 1590DEGASKET kit to the lid, torque to 25-30 cN.m and use 1550WMS100BK black stainless steel O-ring screws. The water-tight equivalent is 1590WEEBK.
RoHS and REACH compliant, shipped shrink wrapped. Factory milling, drilling and printing are offered, and STEP or IGES models are available.
Ideal For
- Black-finished instrument enclosures
- Deep housings for tall electronics
- Machined OEM product cases
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590EEBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | PAINTED ENCL.. 200X120 X84 |
| Water-Tight Equivalent | 1590WEEBK (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 111.63 mm [4.395 in] |
| Inside Height | 80.00 mm [3.150 in] |
| Inside Length | 191.63 mm [7.545 in] |
| Overall Width | 120.20 mm [4.732 in] |
| Overall Height | 84.50 mm [3.327 in] |
| Overall Length | 200.20 mm [7.882 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.88 in x 4.73 in x 3.33 in (200 mm x 120 mm x 85 mm) |
| Ordering Table Size (L X W X H) | 7.87 in (200 mm) x 4.72 in (120 mm) x 3.35 in (85 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1550MS100 (plated, M3.5 x 12mm, pkg 100); 1550MS100BK (black, M3.5 x 12mm, pkg 100) |
| Replacement Gasket Kit | 1590DEGASKET |
| Liquid Resistant Cover Screws | 1550WMS100 (stainless steel, M3.5 x 12mm with O-ring, pkg 100); 1550WMS100BK (black stainless steel, M3.5 x 12mm with O-ring, pkg 100) |
Identifiers
| UPC | 623980023175 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.41 lbs (0.64 kg) |
Construction & Finish
| Finish | Textured black polyester powder paint |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 6 cover screws (black screws) |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X M3.5 x 0.6, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590DEGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
