Hammond 1590E 188x120x82mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 188 x 120 x 82 mm (7.4 x 4.72 x 3.23 in)
- 77.00 mm inside height; inside 177.67 x 109.67 mm
- Natural unpainted diecast aluminum, vibra finished
- Lap joint lid designed to meet IP54; IP65 with 1590EGASKET
- Six 6-32 UNC cover screws in factory-tapped holes, included
- PC boards up to 175.67 x 107.67 mm; draft 2° or less
- RoHS and REACH compliant

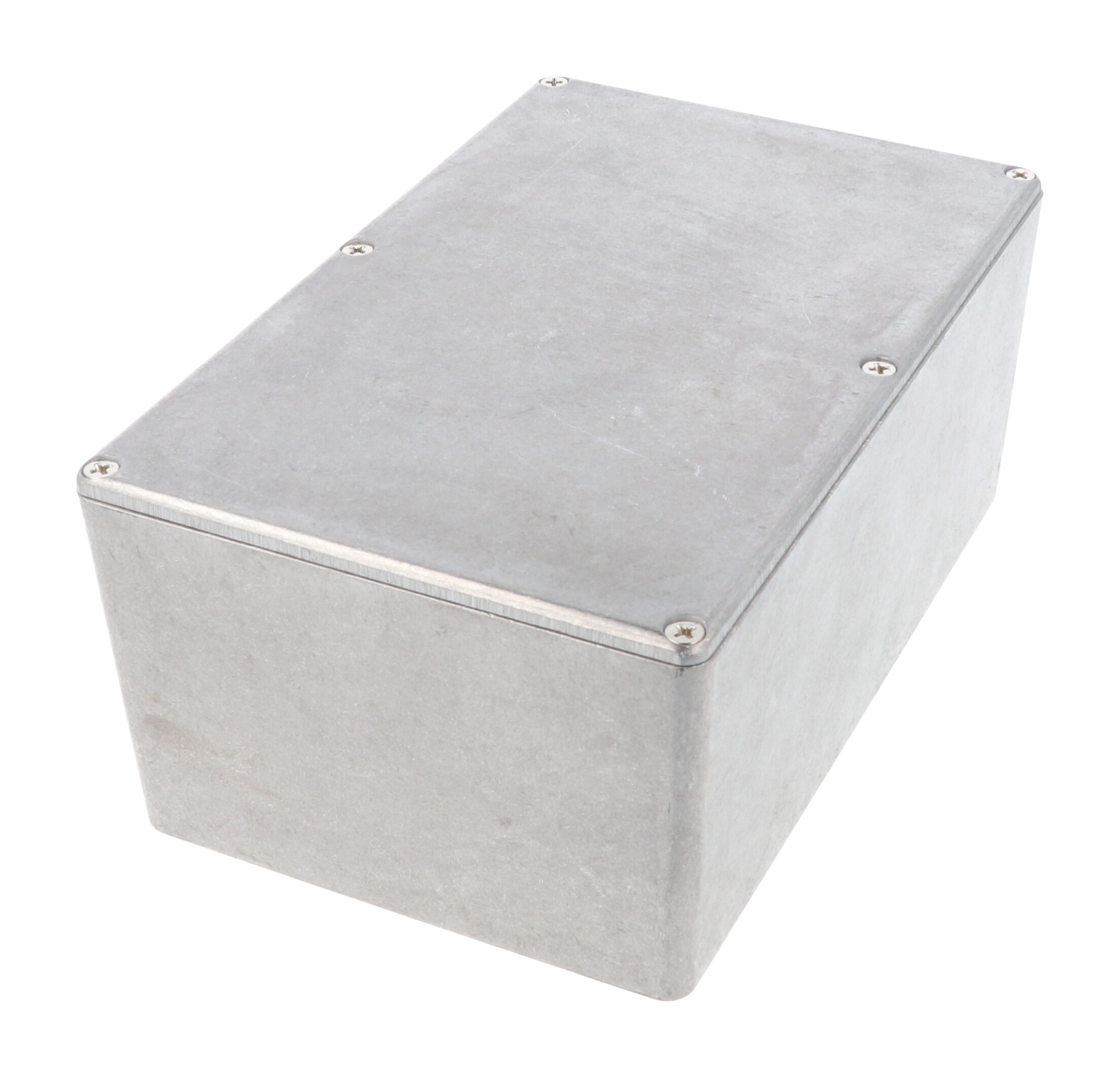

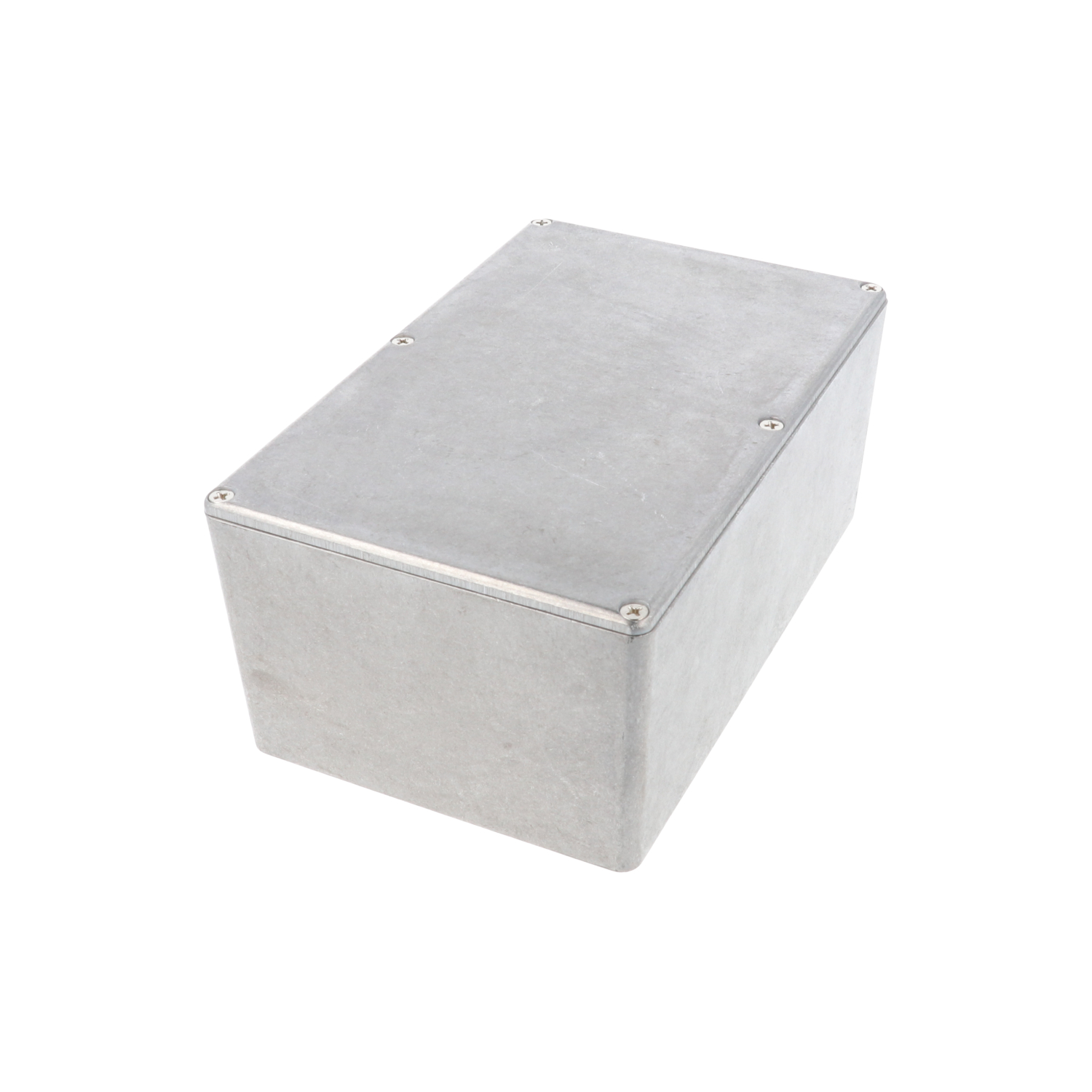

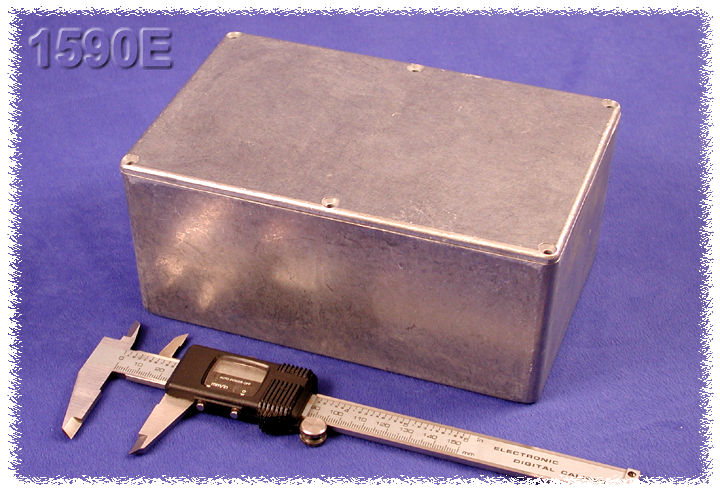

The 1590E is a natural-finish 1590 Series diecast aluminum enclosure measuring a nominal 188 x 120 x 82 mm (7.4 x 4.72 x 3.23 in). Its 77 mm inside height makes it the deep option in the 188 x 120 mm footprint, useful for electronics designers housing taller components, stacked boards or terminal wiring.
The box and lid are cast from aluminum alloy, which is tough yet easy to machine, and the unpainted version is vibra finished to leave a smooth surface with no sharp edges. Lap joint construction where the lid meets the box protects against dust and splashing water, and the standard 1590E is designed to meet IP54.
Drawing dimensions are 188.00 x 120.00 x 82.00 mm overall, with an inside length of 177.67 mm, inside width of 109.67 mm and inside height of 77.00 mm. The maximum PC board is 175.67 x 107.67 mm, the lid is 4 mm (0.16 in) high, and side walls have a draft of 2° or less. Shipping weight is 1.29 lb (0.59 kg).

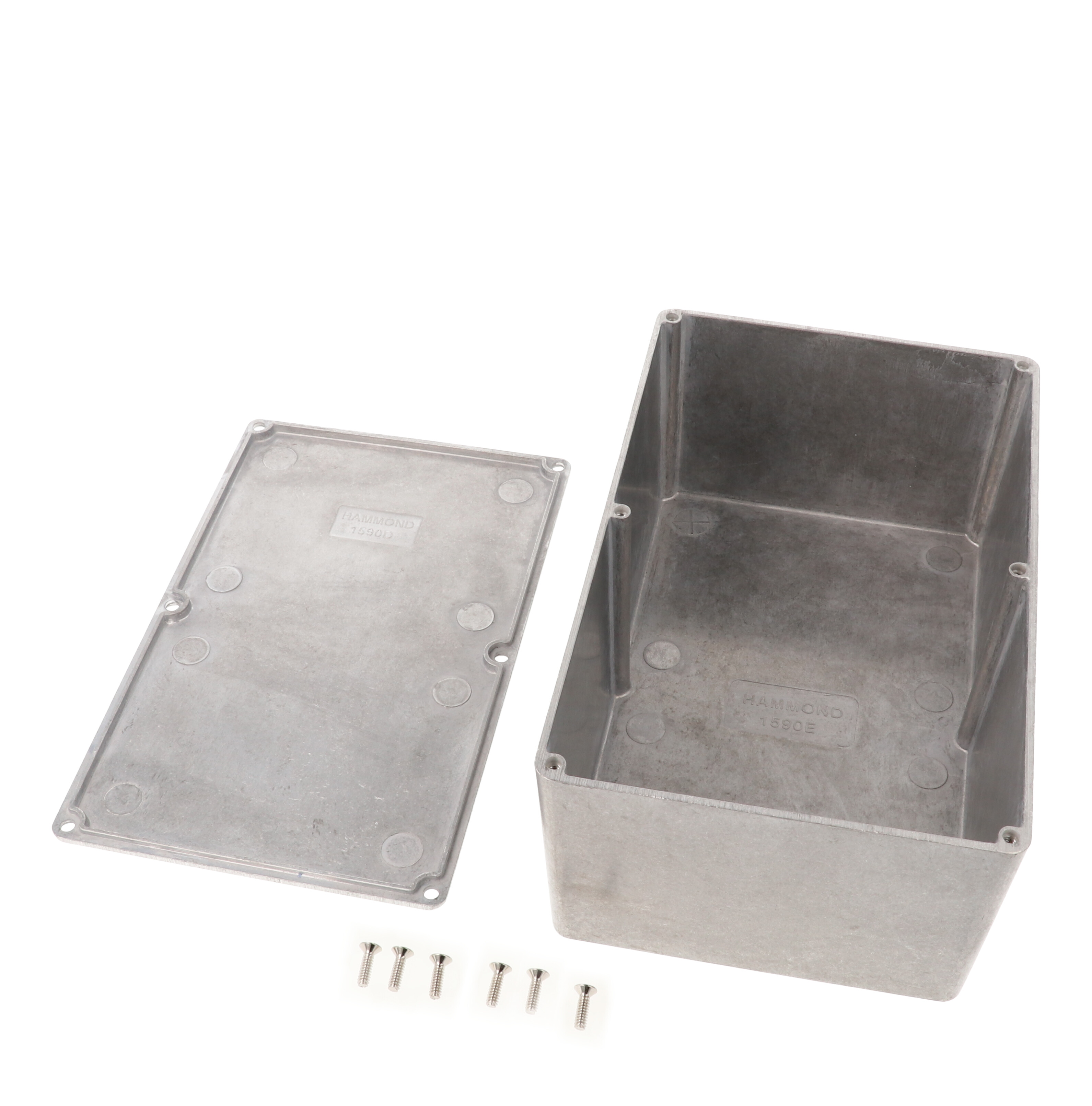

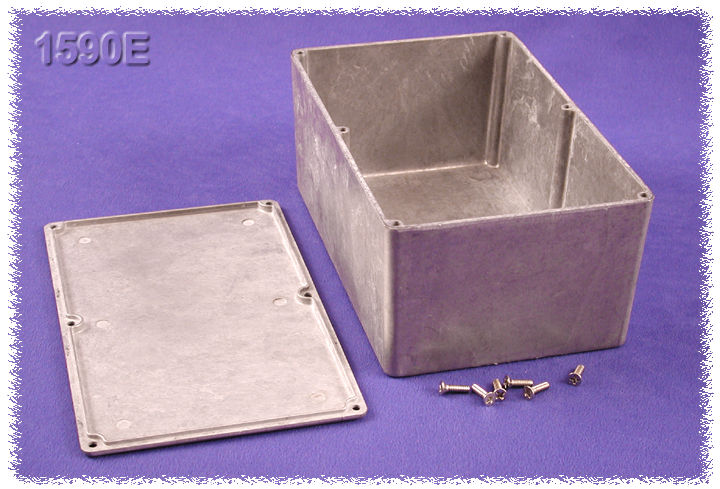

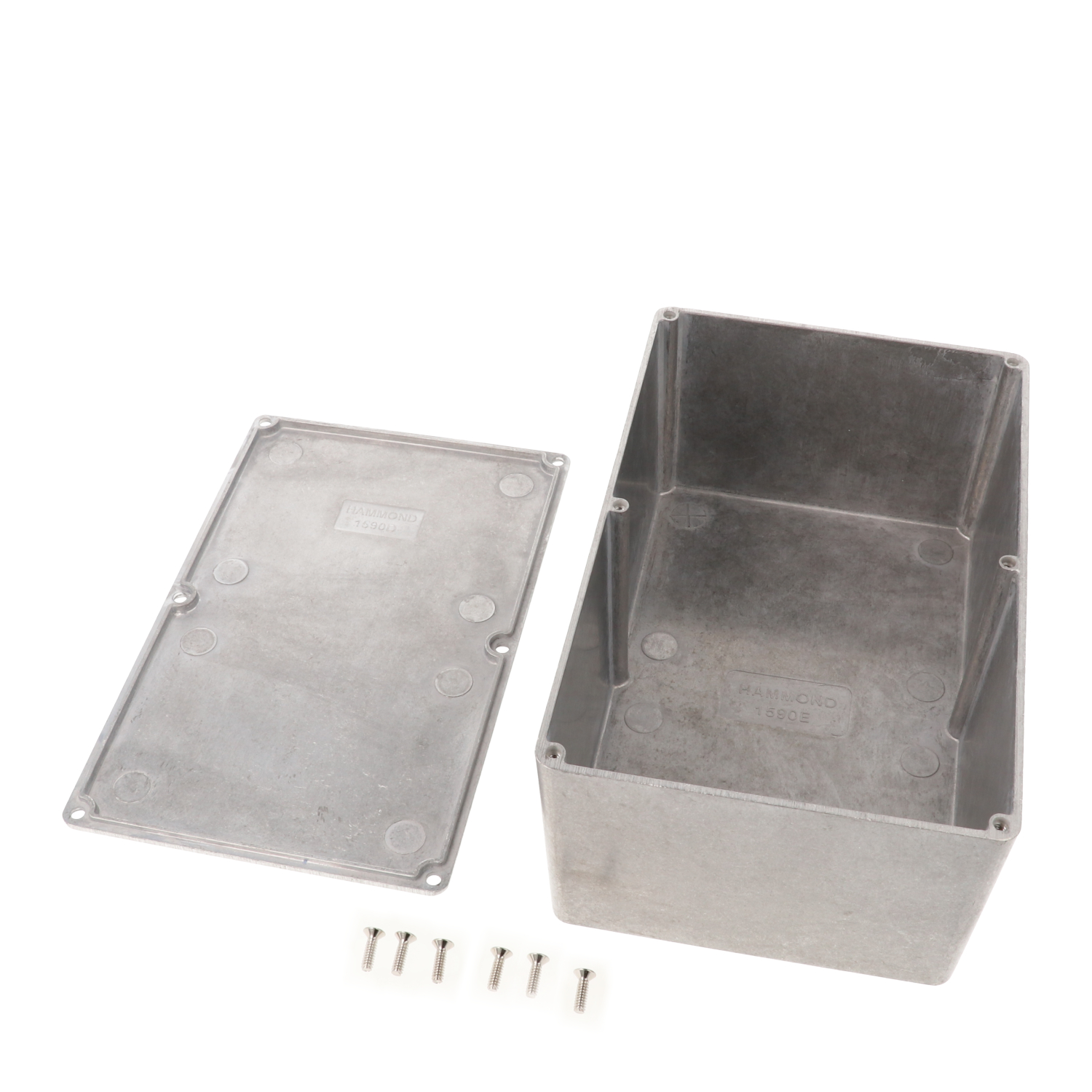

The enclosure comes with its box, lid and six cover screws in factory-tapped 6-32 UNC holes (50-55 cN.m recommended). Fit the 1590EGASKET kit with 1590WMS100 stainless steel O-ring screws, torqued to 25-30 cN.m, to reach an IP65 design, or order the gasketed 1590WE. Flanged versions are 1590EF (bottom plate) and 1590EFL (lid).
RoHS and REACH compliant, shrink wrapped, with factory modification and STEP/IGES models available.
Ideal For
- Electronic instrument enclosures
- Housings for taller components and stacked boards
- General purpose diecast project boxes
- Dust- and splash-protected electronics (IP54)
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard (IP54) |
| Part Number | 1590E |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST BOX 7.3X4.7X3.2 C90 |
| Water-Tight Equivalent | 1590WE (includes silicone gasket) |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 109.67 mm [4.318 in] |
| Inside Height | 77.00 mm [3.031 in] |
| Inside Length | 177.67 mm [6.995 in] |
| Overall Width | 120.00 mm [4.724 in] |
| Overall Height | 82.00 mm [3.228 in] |
| Overall Length | 188.00 mm [7.402 in] |
| Max. P.C. Board Width | 175.67 mm |
| Max. P.C. Board Length | 107.67 mm |
| Nominal Size (L X W X H) | 7.4 in x 4.72 in x 3.23 in (188 mm x 120 mm x 82 mm) |
| Ordering Table Size (L X W X H) | 7.40 in (188 mm) x 4.72 in (120 mm) x 3.23 in (82 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Standard Cover Screws | 1590MS100 (plated, 6-32 x 1/2", pkg 100); 1590MS100BK (black, 6-32 x 1/2", pkg 100) |
| Replacement Gasket Kit | 1590EGASKET |
| Liquid Resistant Cover Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, 6-32 x 1/2" with O-ring, pkg 100) |
Identifiers
| UPC | 623980541303 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.29 lbs (0.59 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Included Items | Box, lid and 6 cover screws |
| Lid-to-Box Joint | Lap joint construction (protection against dust and splashing water) |
| Cover Screw Holes | 6X 6-32 UNC, factory-tapped |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590EGASKET |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590E inside dimensions?▾
Inside length 177.67 mm [6.995 in], inside width 109.67 mm [4.318 in] and inside height 77.00 mm [3.031 in].
What IP rating does the 1590E have?▾
The standard version is designed to meet IP54. With the 1590EGASKET kit installed and lid screws torqued to 25-30 cN.m it is designed to meet IP65; the gasketed version is 1590WE.
How many screws hold the lid?▾
Six cover screws, included, in factory-tapped 6-32 UNC holes.
Is the 1590E available with mounting flanges?▾
Yes. The series table lists 1590EF with a flanged bottom plate and 1590EFL with a flanged lid.
What is the largest PC board that fits?▾
Maximum PC board length 107.67 mm and width 175.67 mm, as listed by Hammond.
Related Products

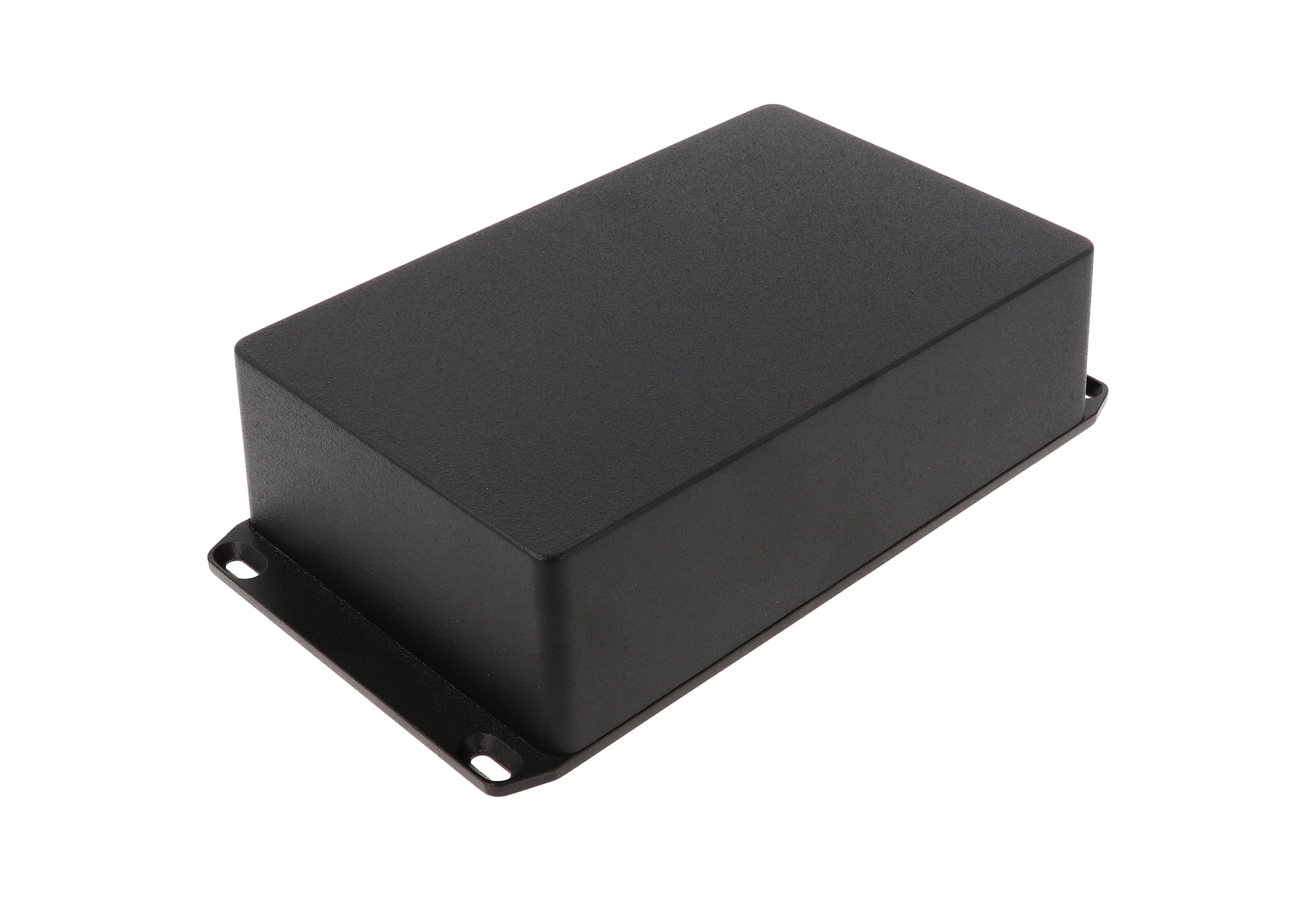

Save 52%1590DFLBK — enclosure - diecast
Hammond Manufacturing · 1590DFLBK

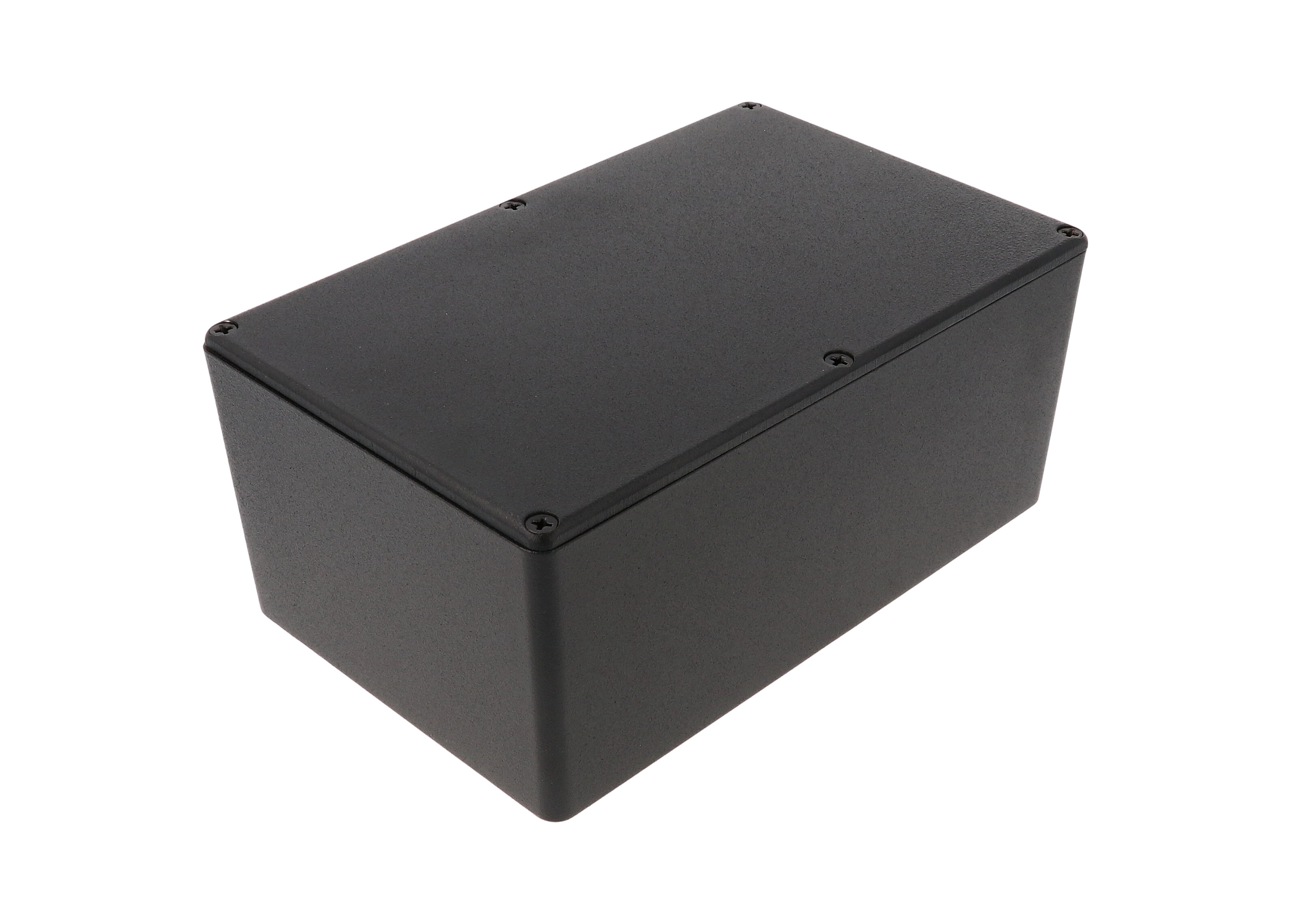

Save 52%1590EBK — enclosure - diecast
Hammond Manufacturing · 1590EBK

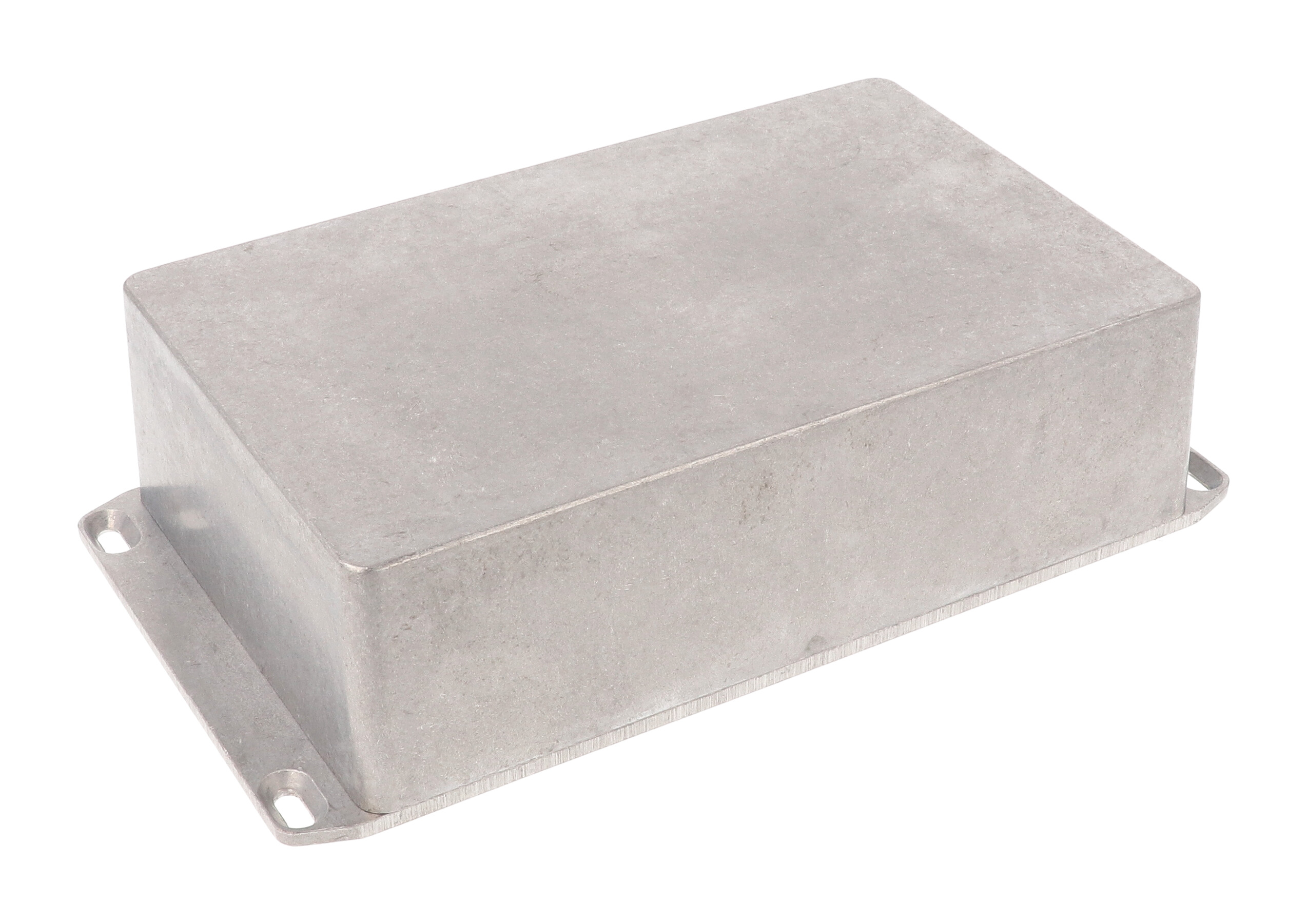

Save 52%1590DFL — enclosure - diecast
Hammond Manufacturing · 1590DFL

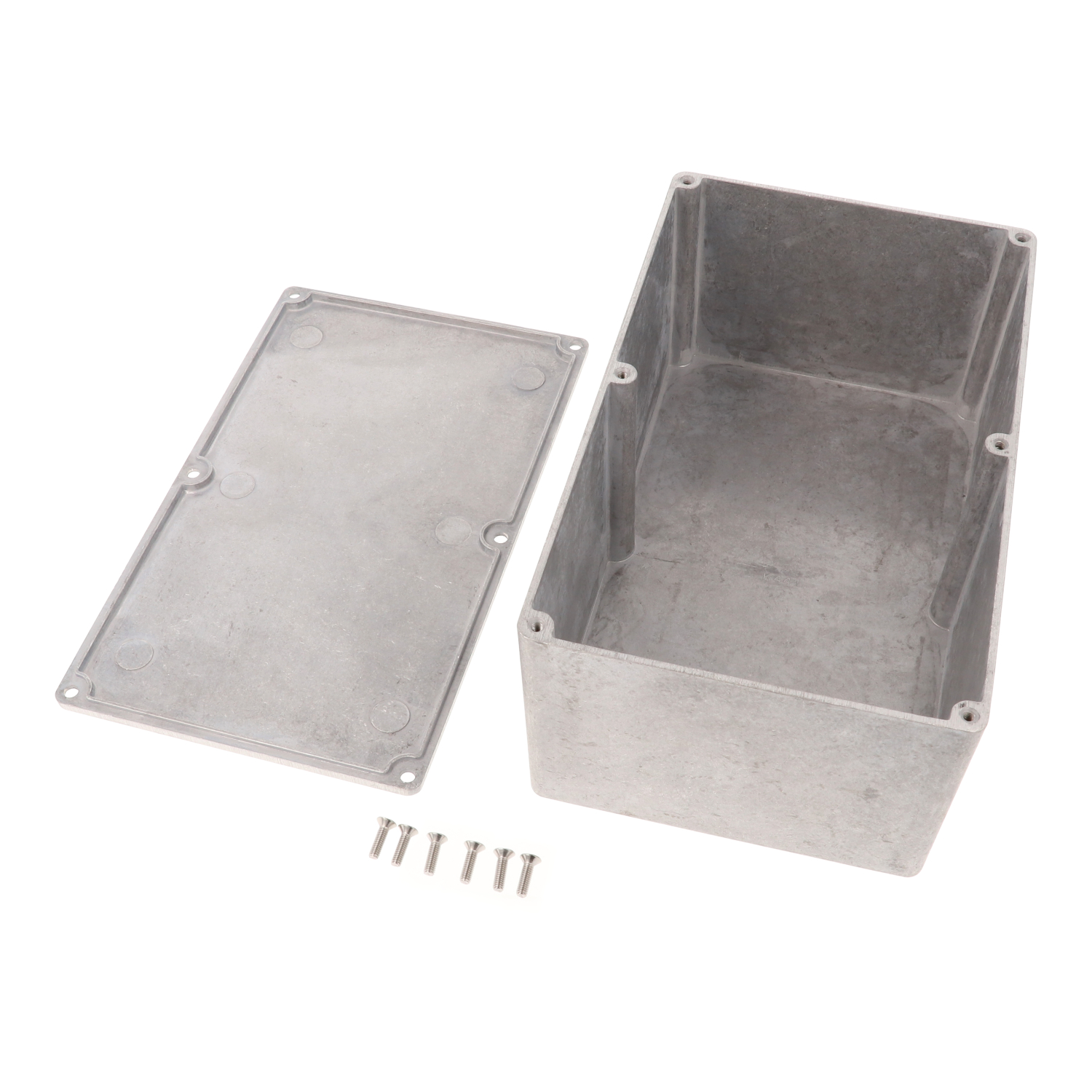

Save 52%1590EE — enclosure - diecast
Hammond Manufacturing · 1590EE

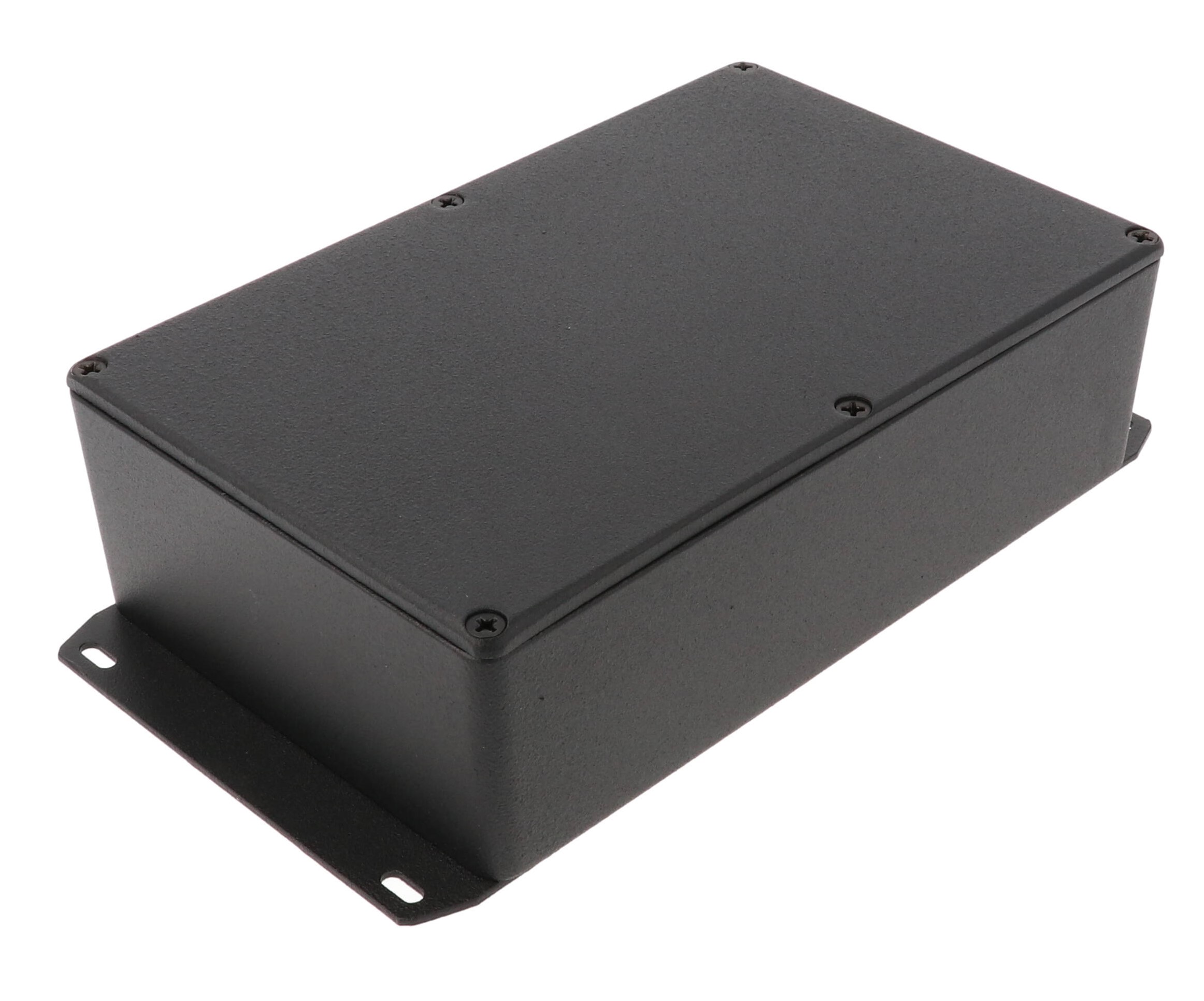

Save 52%1590DFBK — enclosure - diecast
