Hammond 1590CFLBK Black 119x94x56mm Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder finish; black screws included
- Wall-mounting flange integrated into the lid, 134.50 mm long
- 119 x 94 x 56 mm nominal; 111.27 x 85.77 x 52.25 mm inside
- Designed to meet IP54 with lap joint construction
- Four 6-32 UNC cover screws
- IP65 via 1590BBGASKET; water-tight version 1590WCFLBK

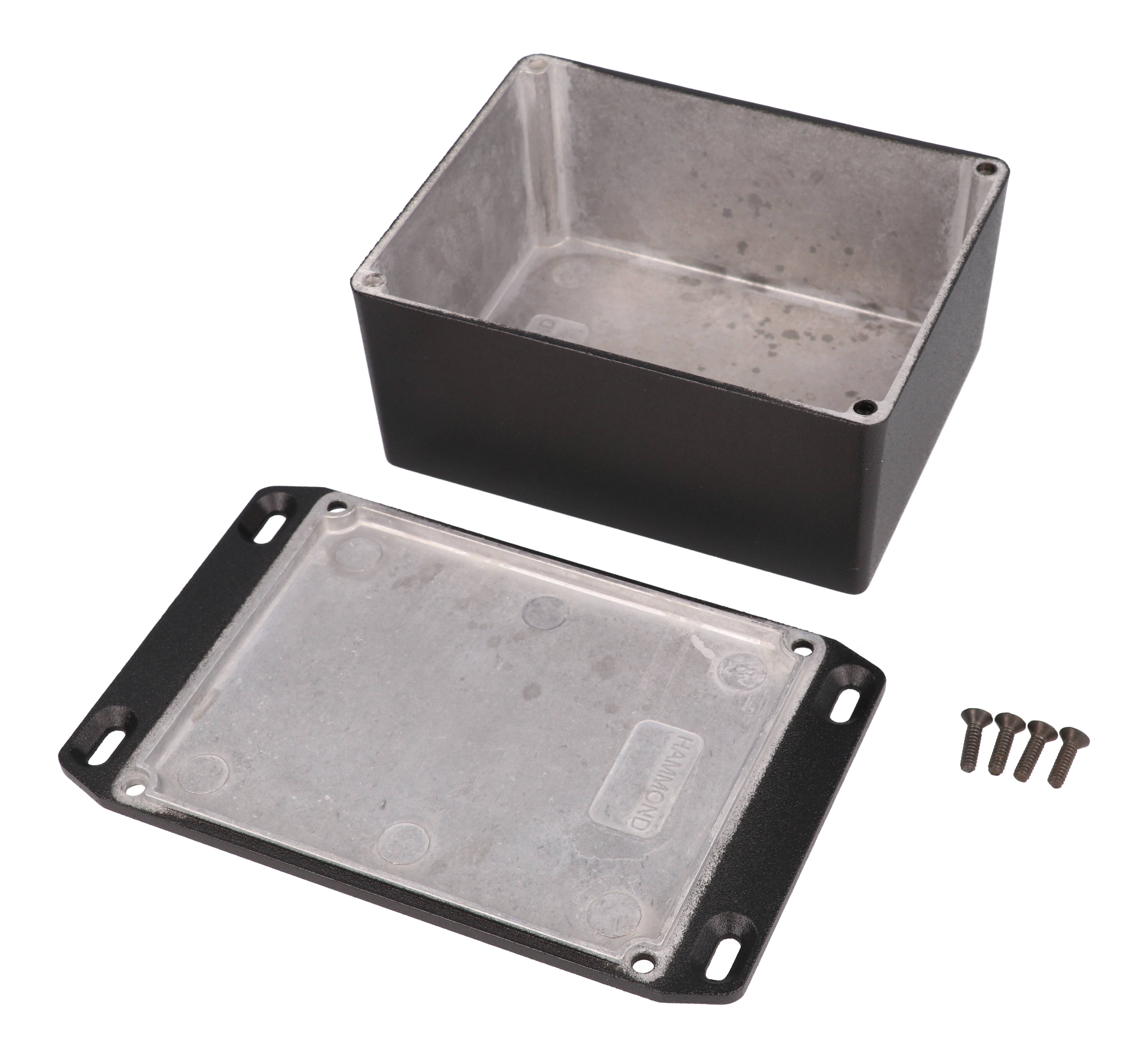

The 1590CFLBK is a textured black diecast aluminum enclosure, nominal 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in), whose lid includes an integrated wall-mounting flange. It gives AV, industrial and OEM installers a finished black housing that mounts by its lid to a wall or panel.
The black coating is a tough polyester powder paint for a lasting finish even after machining, and black screws are included. Box and lid are diecast aluminum alloy that is easy to machine, and a lap joint where they meet protects against dust and splashing water; the standard version is designed to meet IP54.
- Flanged lid length: 134.50 mm (5.295 in) per drawing
- Box body 119.50 x 94.00 mm with 56.50 mm overall height
- Inside space 111.27 x 85.77 x 52.25 mm
- Listed maximum PC board dimensions: 109.27 mm and 83.77 mm
Four 6-32 UNC cover screws thread into factory-tapped holes; use 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. The listed gasket kit is 1590BBGASKET, and the water-tight version is 1590WCFLBK. Shipping weight is 0.68 lbs (0.31 kg); RoHS and REACH compliant.
Ideal For
- Wall-mounted electronics with a black finish
- Panel-mounted control and interface boxes
- Custom machined instrument enclosures
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590C FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Box Width (Drawing) | 94.00 mm [3.701 in] |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Box Length (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 56.50 mm [2.224 in] |
| Flanged Lid Length (Drawing) | 134.50 mm [5.295 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
Identifiers
| UPC | 623980676173 |
| UNSPSC | 39121301 |
| Part Number | 1590CFLBK |
Related Parts
| No Flange, Standard | 1590CBK |
| Flanged Lid, Standard | 1590CFLBK |
| No Flange, Water-Tight | 1590WCBK |
| Flanged Lid, Water-Tight | 1590WCFLBK |
| Flanged Bottom Plate, Standard | 1590CFBK |
| Flanged Bottom Plate, Water-Tight | 1590WCFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.68 lbs (0.31 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCFLBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590CFLBK?▾
On the lid. The wall-mounting flange is integrated into the lid, which the drawing shows at 134.50 mm (5.295 in) long.
What finish does the 1590CFLBK have?▾
Textured black polyester powder paint, described as a lasting finish even after machining, with black screws included.
What PC board size fits?▾
The listed maximum PC board dimensions are 109.27 mm and 83.77 mm.
How much does it weigh?▾
0.68 lbs (0.31 kg) shipping weight.
