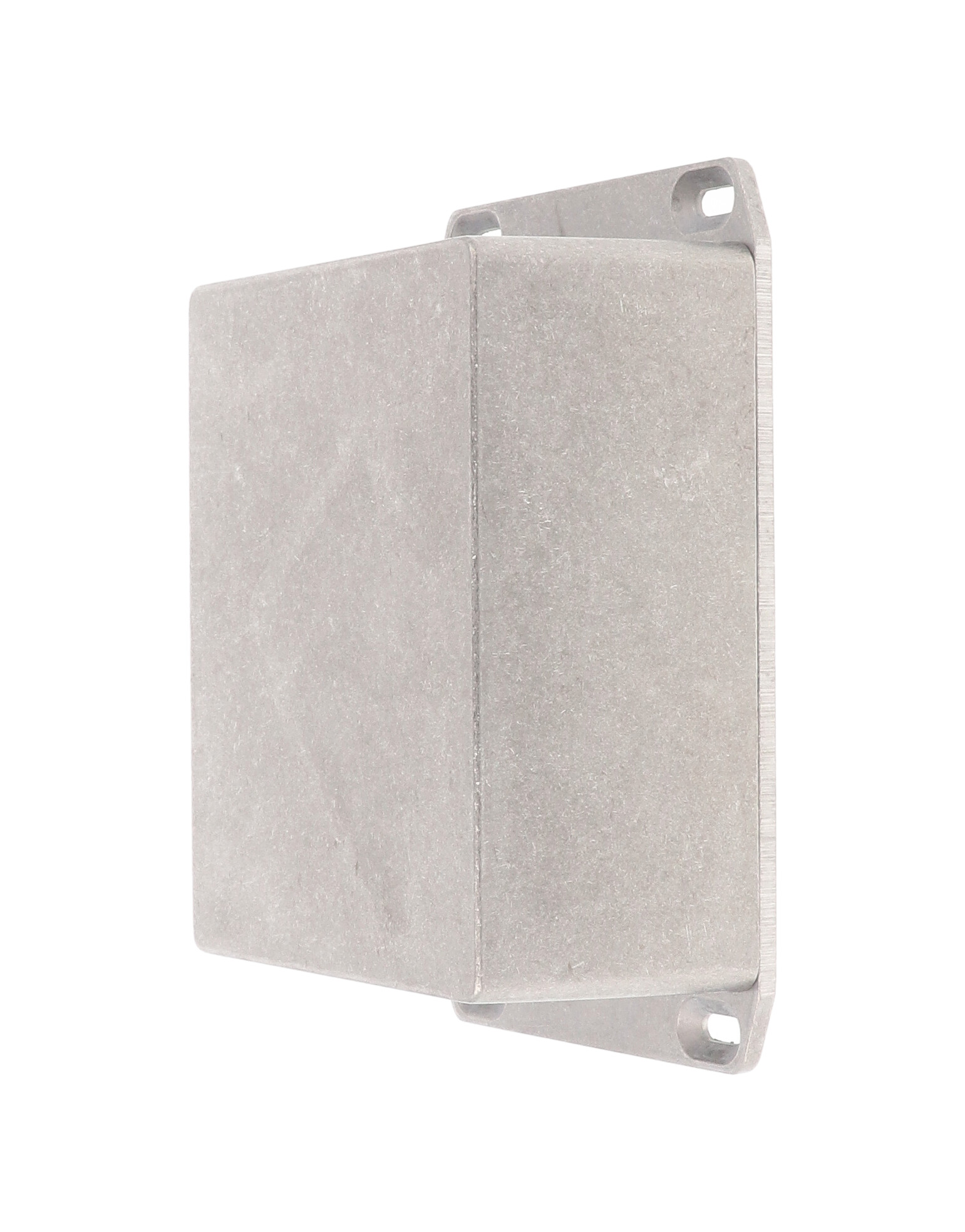

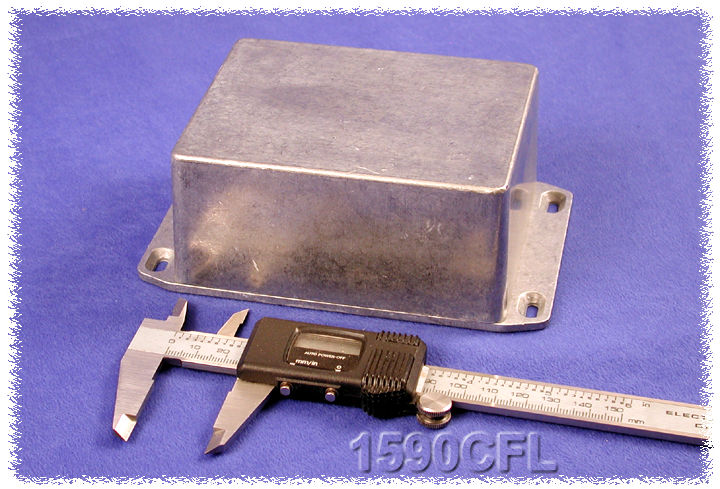

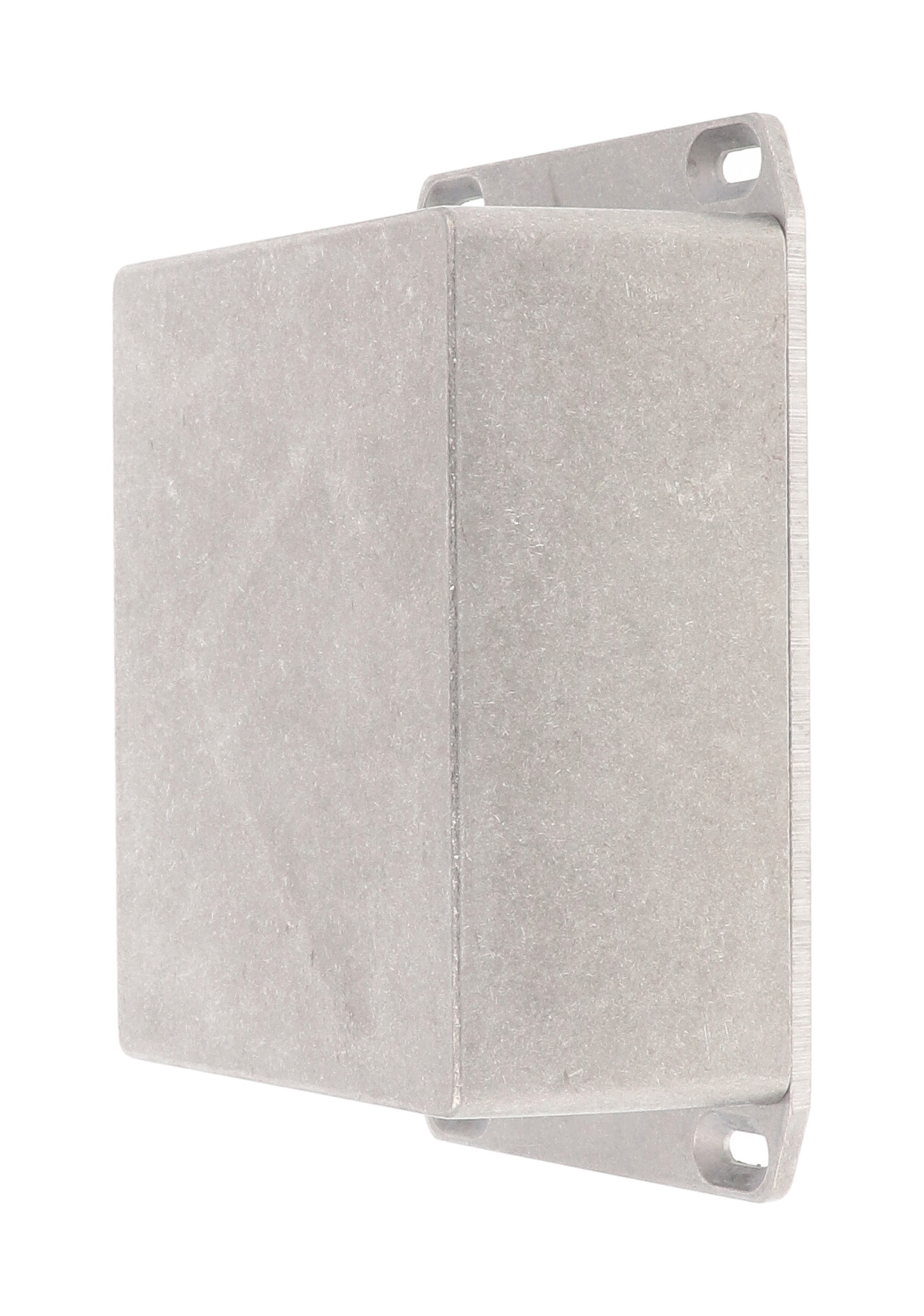

Hammond 1590CFL 119x94x56mm Diecast Enclosure with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid (134.50 mm lid length)
- Nominal 119 x 94 x 56 mm; inside 111.27 x 85.77 x 52.25 mm
- Unpainted, vibra-finished diecast aluminum alloy
- Lap joint construction designed to meet IP54
- Four 6-32 UNC cover screws in factory-tapped holes
- IP65 upgrade with 1590BBGASKET; water-tight version 1590WCFL

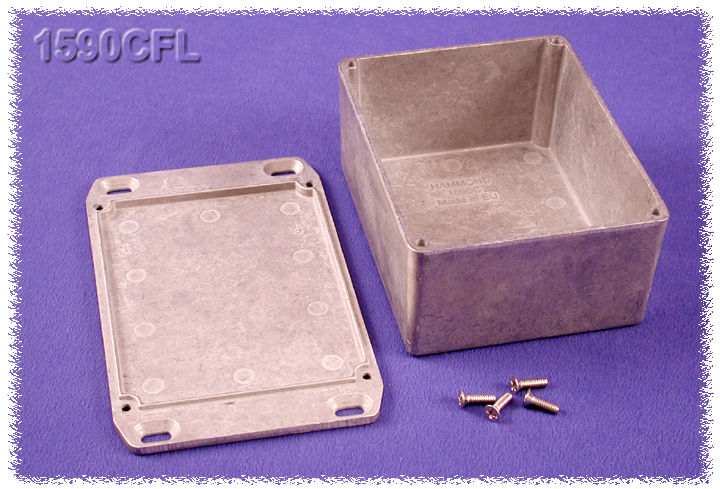

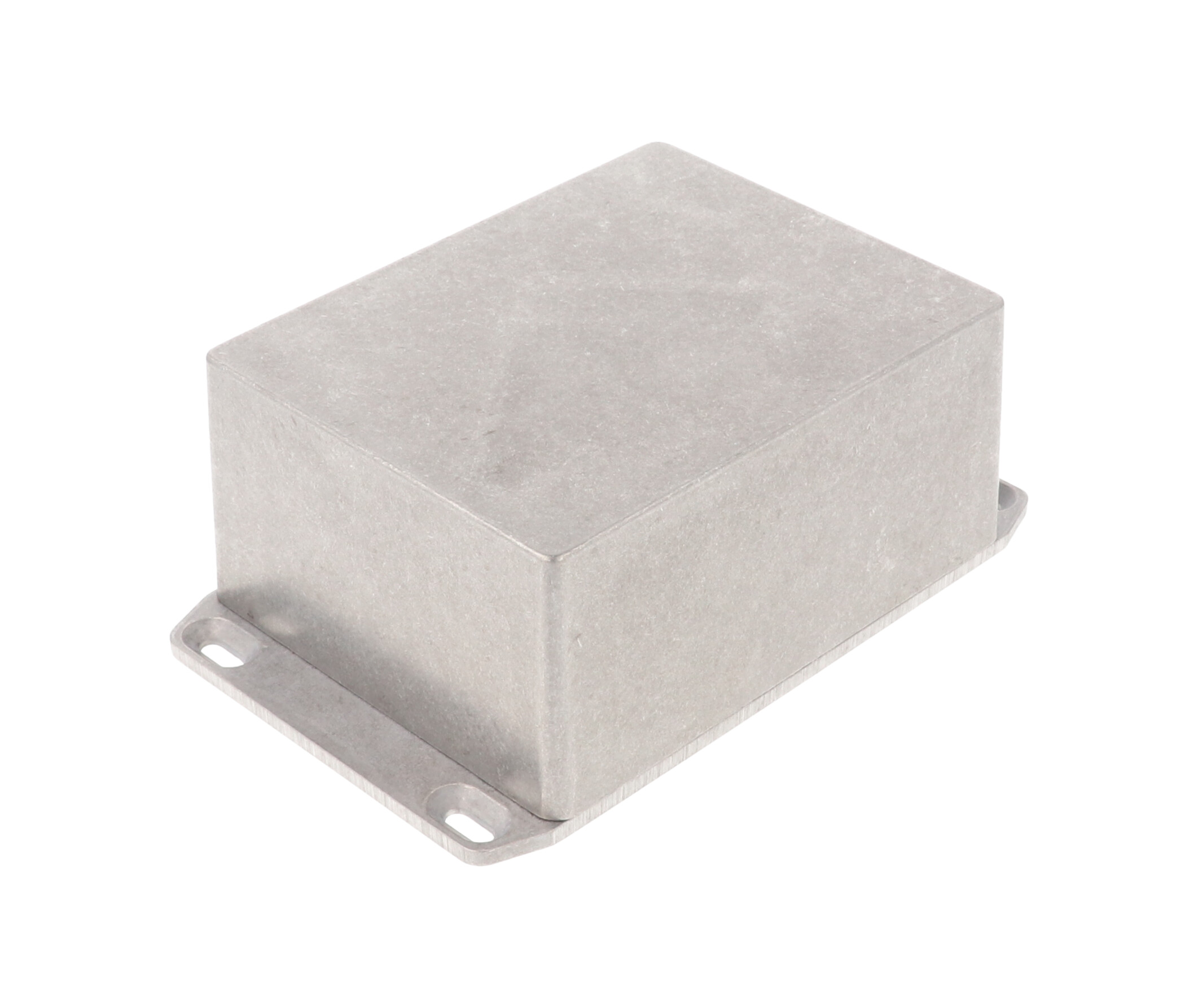

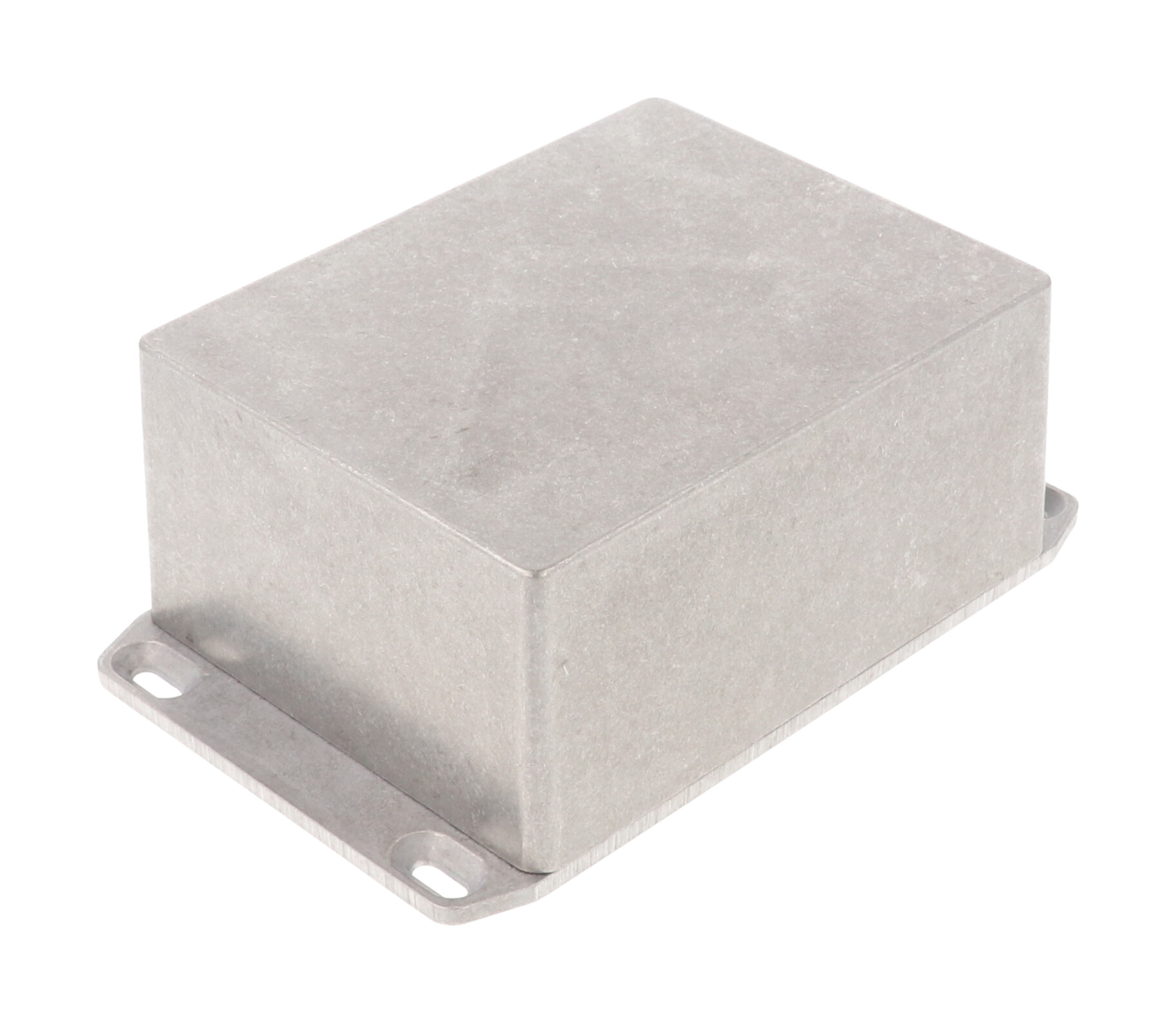

The 1590CFL is the 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in) 1590C diecast aluminum enclosure with a wall-mounting flange integrated into the lid. The lid mounts to the surface and the box body closes onto it, a layout that suits installers fixing electronics to walls, panels or inside equipment cabinets.
Box and lid are diecast aluminum alloy, which is tough yet easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and the enclosure is designed to meet IP54.
- Flanged lid length per drawing: 134.50 mm (5.295 in)
- Box body 119.50 x 94.00 mm, 56.50 mm overall height
- Inside 111.27 x 85.77 x 52.25 mm; listed maximum PC board dimensions 109.27 mm and 83.77 mm
- Four 6-32 UNC cover screws included
Torque the cover screws to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. The series table lists 1590BBGASKET for an IP65 upgrade and 1590WCFL as the water-tight version. The 1590CFL weighs 0.67 lbs (0.30 kg) shipped and is RoHS and REACH compliant.
Ideal For
- Wall-mounted electronics housings
- Panel- or cabinet-mounted control electronics
- Machinable custom instrument boxes
- Dust- and splash-protected installations
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590C WITH FLANGED LID |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Box Width (Drawing) | 94.00 mm [3.701 in] |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Box Length (Drawing) | 119.50 mm [4.705 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 56.50 mm [2.224 in] |
| Flanged Lid Length (Drawing) | 134.50 mm [5.295 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
Identifiers
| UPC | 623980676548 |
| UNSPSC | 39121301 |
| Part Number | 1590CFL |
Related Parts
| No Flange, Standard | 1590C |
| Flanged Lid, Standard | 1590CFL |
| No Flange, Water-Tight | 1590WC |
| Flanged Lid, Water-Tight | 1590WCFL |
| Flanged Bottom Plate, Standard | 1590CF |
| Flanged Bottom Plate, Water-Tight | 1590WCF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.67 lbs (0.30 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

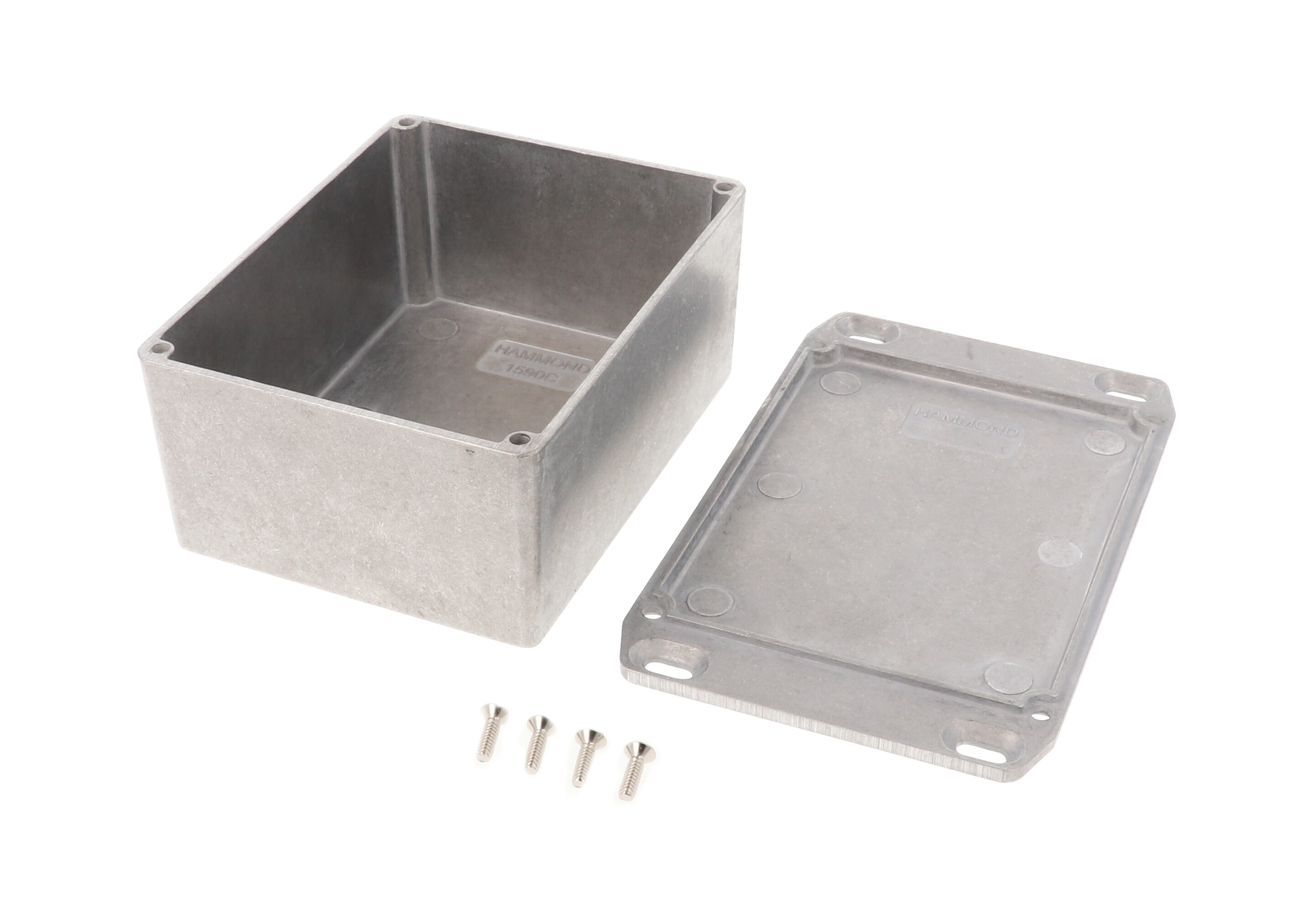

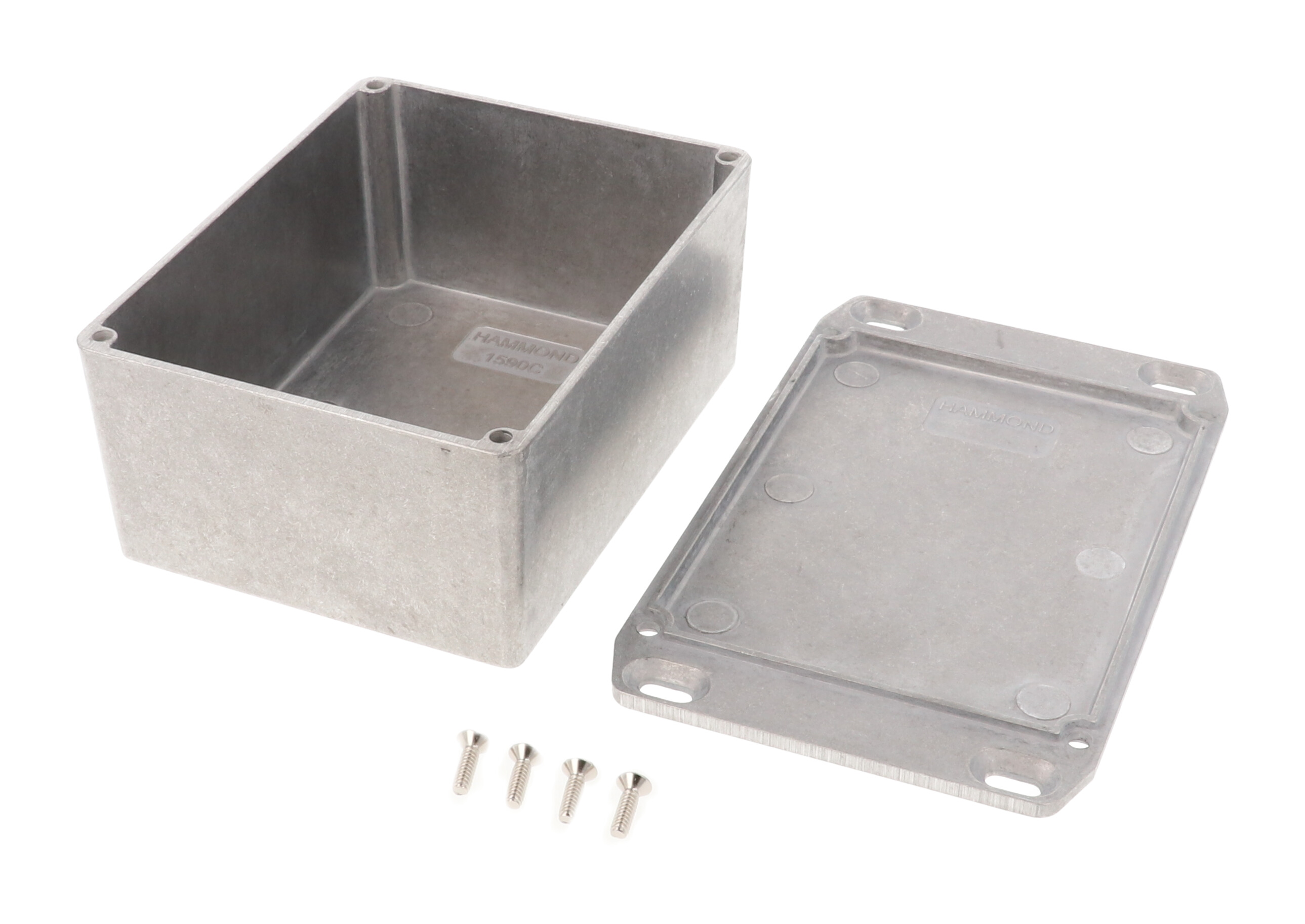

| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCFL |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590CFL mount?▾
A wall-mounting flange is integrated into the lid. The drawing shows the flanged lid at 134.50 mm (5.295 in) long.
What is the difference between the 1590CFL and 1590CF?▾
The 1590CFL has its flange on the lid; the 1590CF has a welded flanged bottom plate on the box.
What are the internal dimensions?▾
Inside length 111.27 mm, inside width 85.77 mm, inside height 52.25 mm.
Can the 1590CFL be sealed to IP65?▾
Yes, with the 1590BBGASKET kit installed and lid screws torqued to 25-30 cN.m. The water-tight version is 1590WCFL.
Related Products

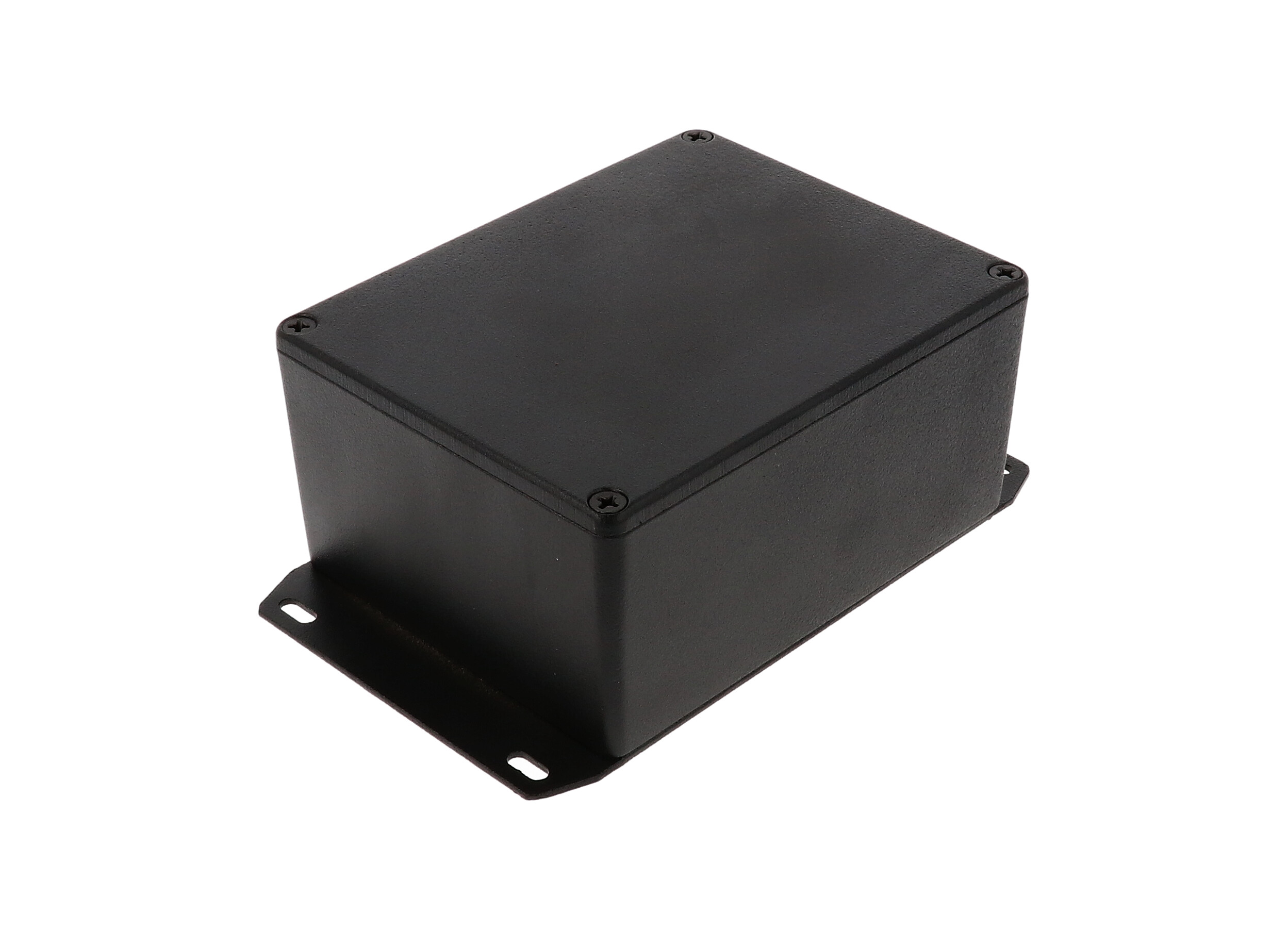

Save 52%1590CFBK — enclosure - diecast
Hammond Manufacturing · 1590CFBK

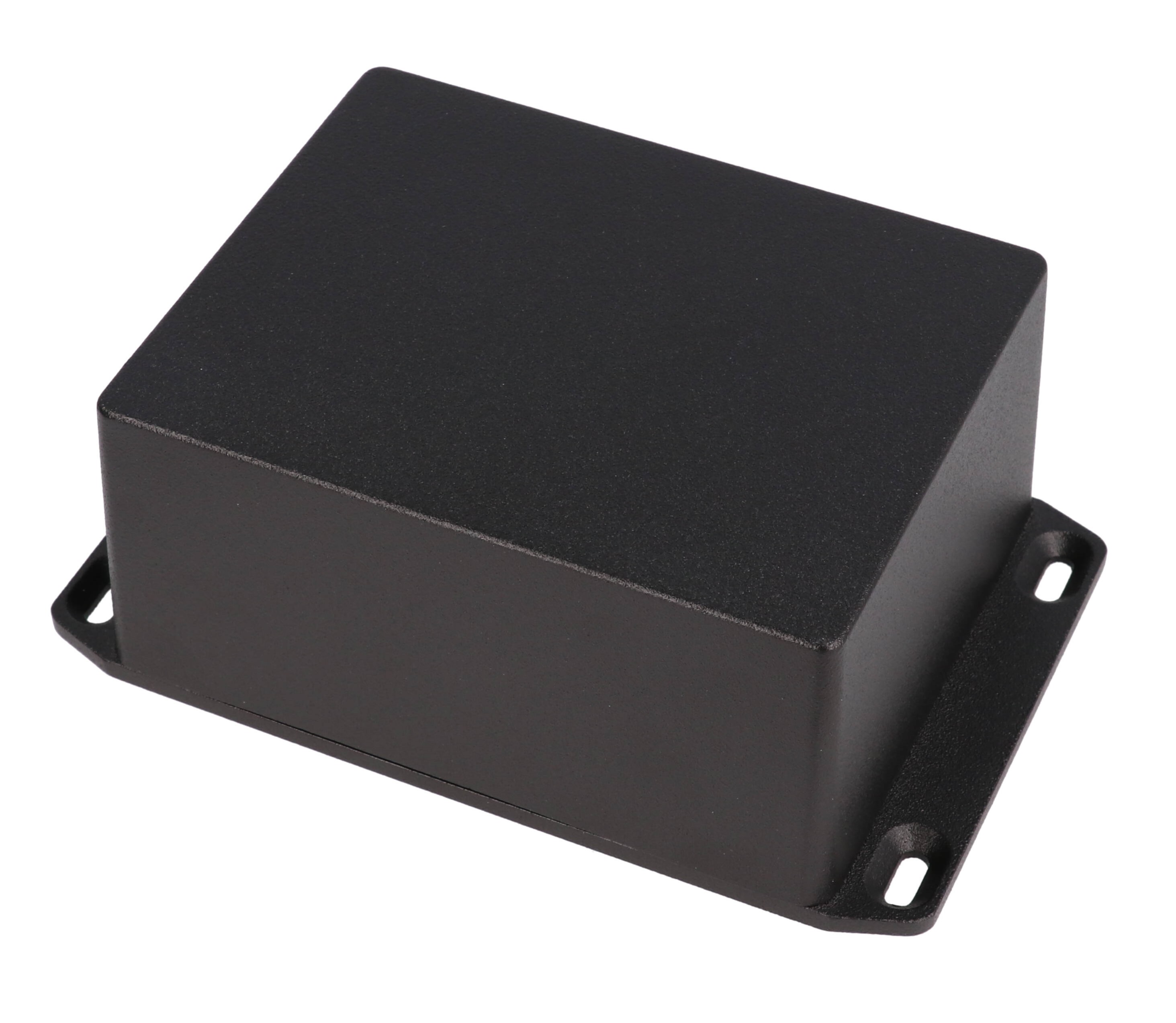

Save 52%1590CFLBK — enclosure - diecast
Hammond Manufacturing · 1590CFLBK

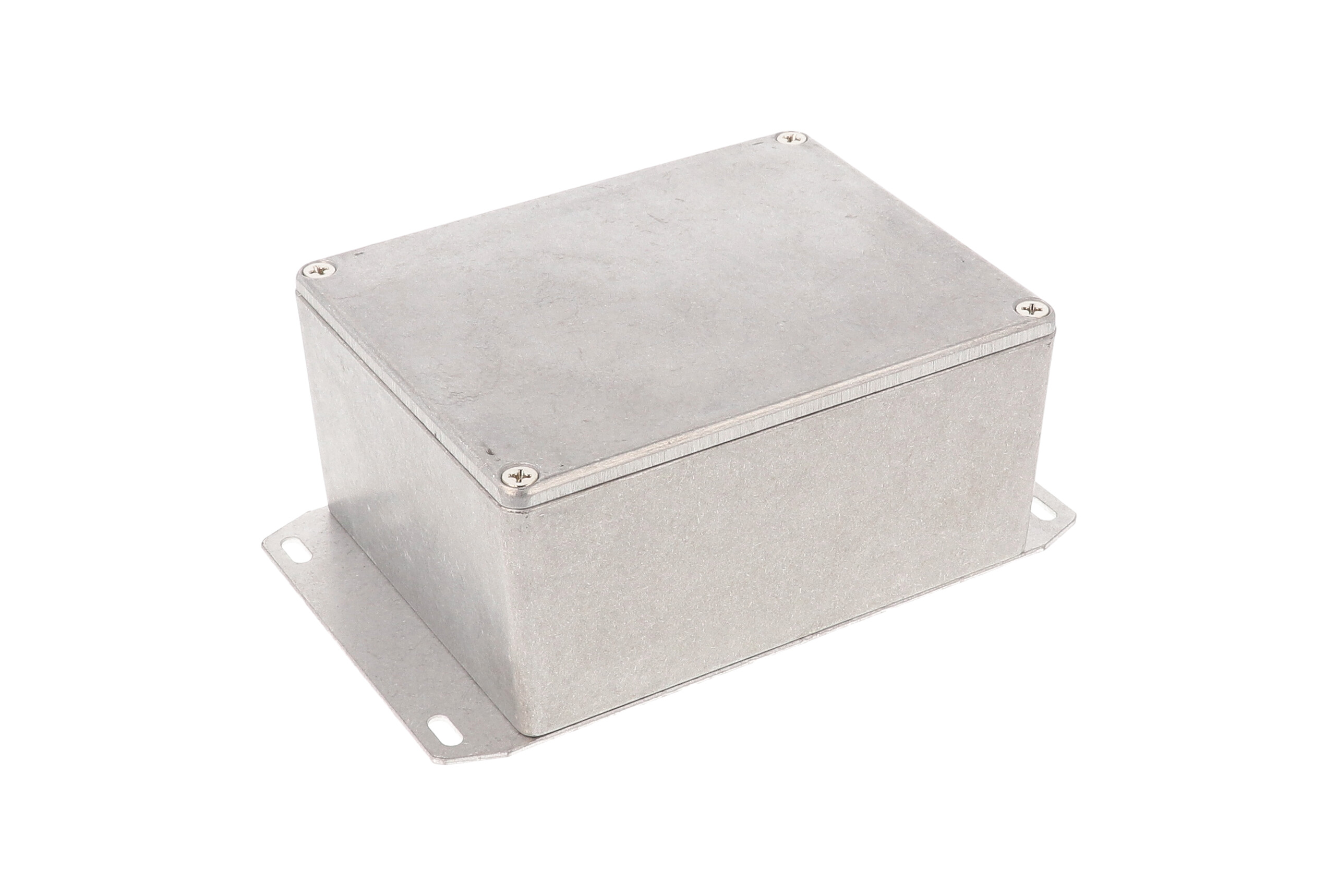

Save 52%1590CF — enclosure - diecast
Hammond Manufacturing · 1590CF

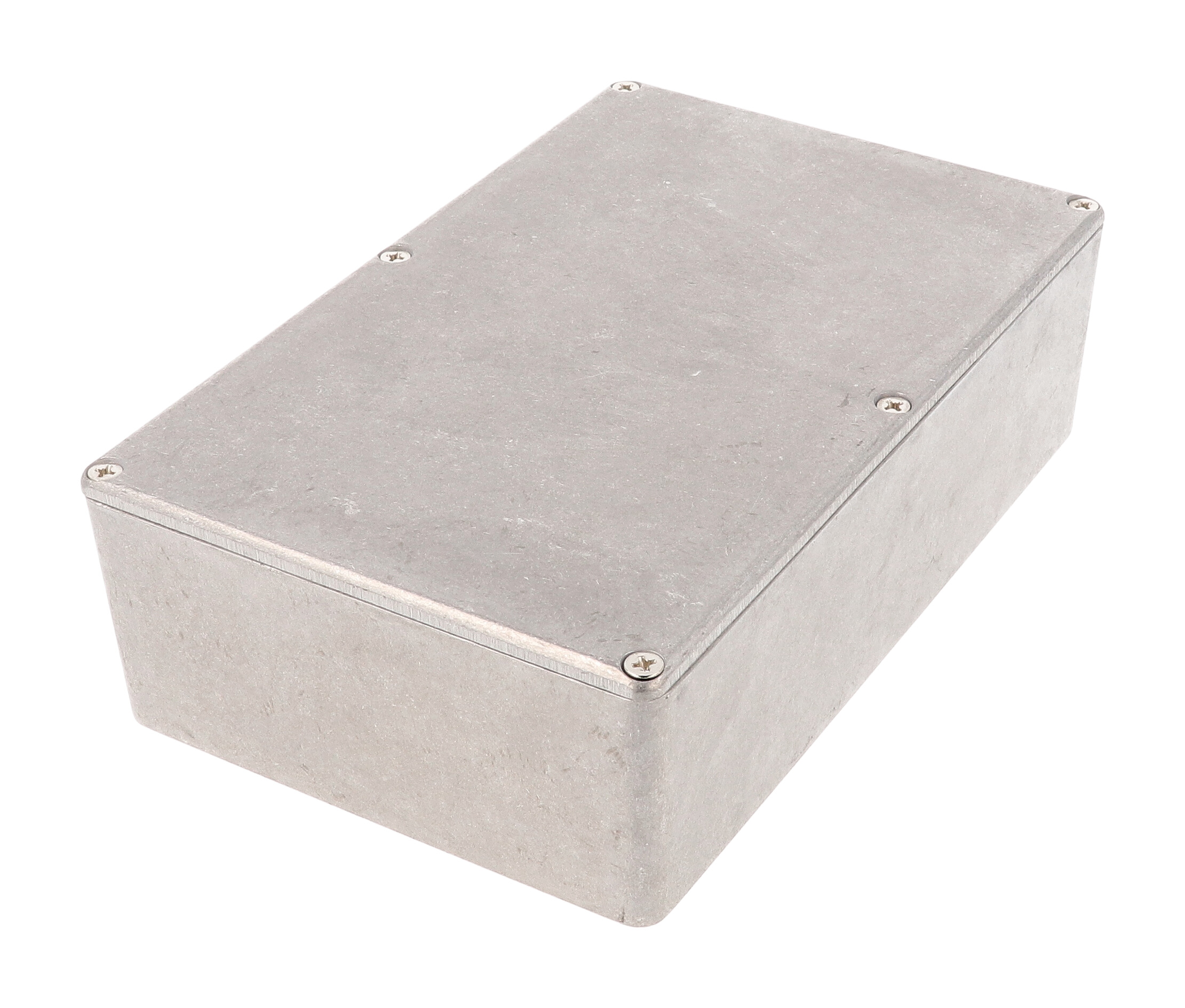

Save 52%1590D — enclosure - diecast
Hammond Manufacturing · 1590D

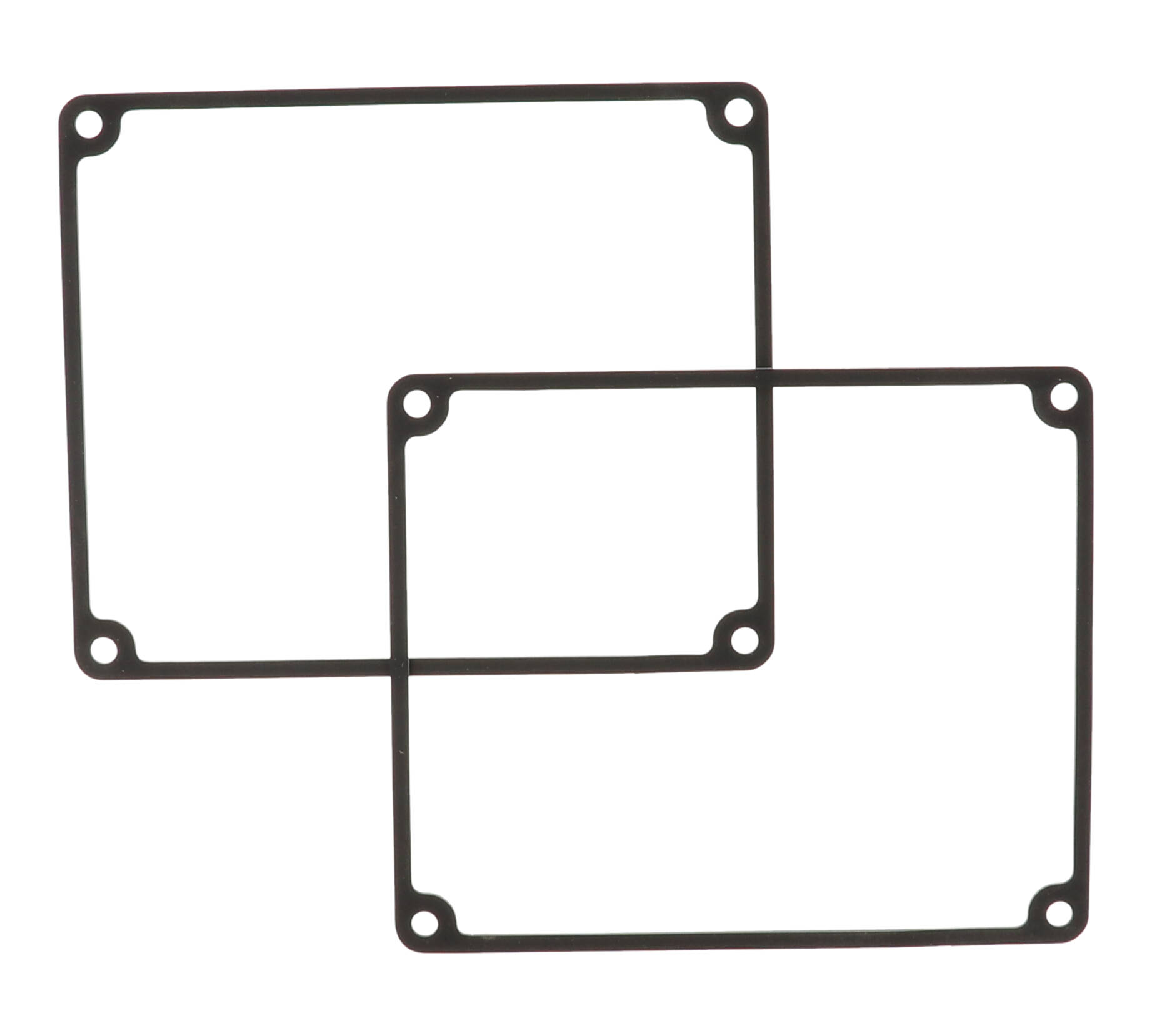

Save 52%1590CEGASKET — silicone gasket for 1590CE enclosures, 2-pack
