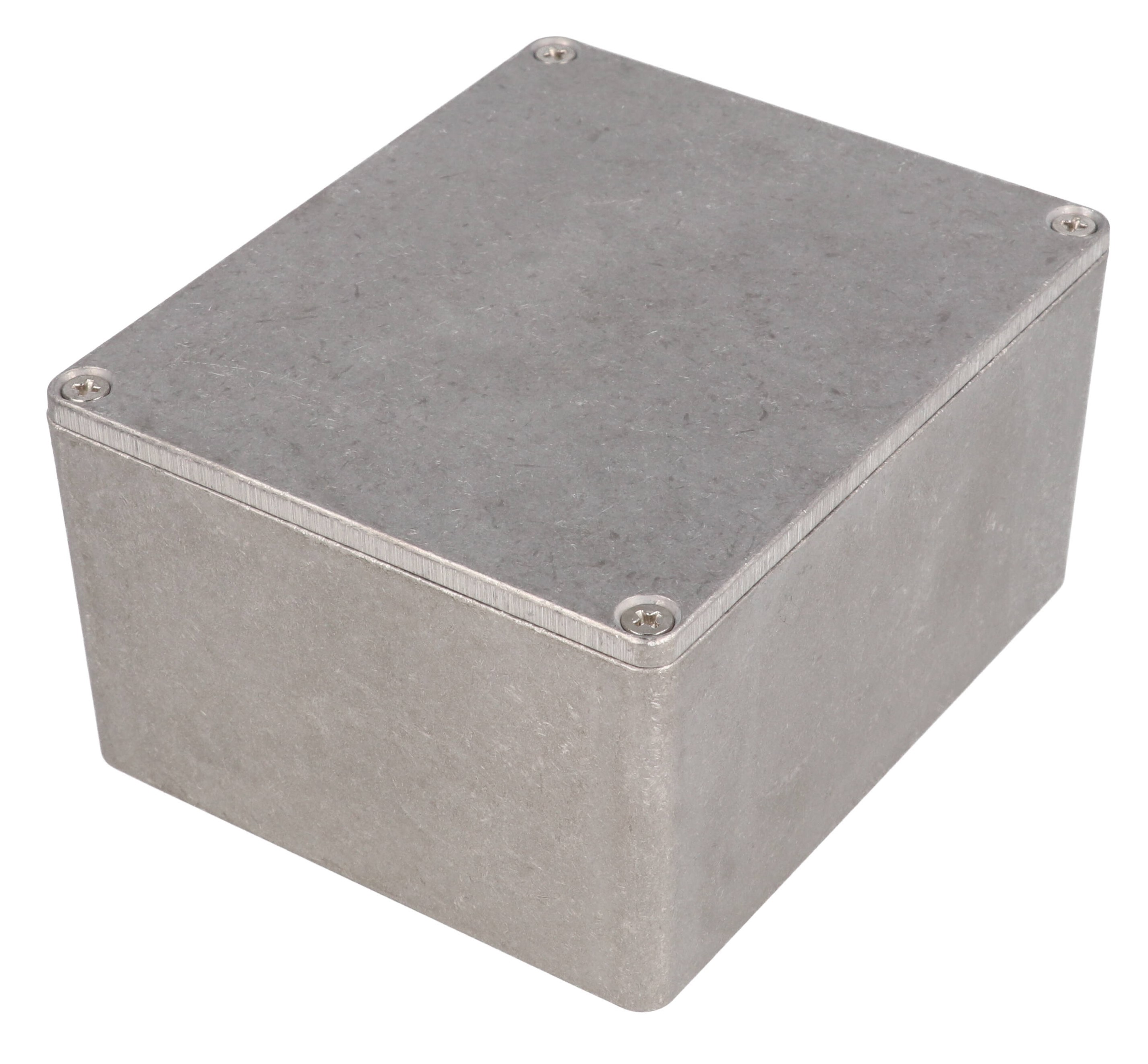

Hammond 1590CE 120x100x65mm Diecast Aluminum Enclosure, IP54
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 120 x 100 x 65 mm (4.74 x 3.95 x 2.54 in) diecast aluminum enclosure
- Inside space of 113.38 x 92.68 x 60.35 mm
- Unpainted, vibra finished with no sharp edges
- Lap joint construction designed to meet IP54
- Four M3.5 x 0.6 cover screws included
- IP65 upgrade with 1590CEGASKET; water-tight version 1590WCE
- RoHS and REACH compliant
The 1590CE is a diecast aluminum electronic instrument enclosure with a nominal size of 120 x 100 x 65 mm (4.74 x 3.95 x 2.54 in) and no mounting flanges. It is a deeper, wider box than many small diecast cases, giving designers room for stacked PC boards, terminal blocks or taller components.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The natural version is unpainted and vibra finished for a smooth surface with no sharp edges. A lap joint where lid and box meet protects against access of dust and splashing water, and the standard version is designed to meet IP54.
- Outside per drawing: 120.42 x 100.41 x 64.57 mm
- Inside length 113.38 mm, inside width 92.68 mm, inside height 60.35 mm
- Listed maximum PC board dimensions: 112.38 mm and 91.68 mm
- Side wall draft angle of 2° or less for easy PC board mounting
Unlike the 6-32 hardware used on many 1590 sizes, the 1590CE uses four M3.5 x 0.6 cover screws, included with the box and lid. Recommended torque is 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. Replacement screws come as M3.5 x 12mm packs (1550MS100, or o-ring stainless 1550WMS100). Upgrade to IP65 with the 1590CEGASKET kit or order the water-tight 1590WCE. Shipping weight is 0.66 lbs (0.30 kg); RoHS and REACH compliant.
Ideal For
- Electronic instrument enclosures needing extra depth
- Stacked PC board or terminal block housings
- Custom machined control boxes
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST ENCL. 120X100 X59 |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 92.68 mm [3.649 in] |
| Inside Height | 60.35 mm [2.376 in] |
| Inside Length | 113.38 mm [4.464 in] |
| Series Table Width | 3.94 in (100 mm) |
| Series Table Height | 2.56 in (65 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Overall Width (Drawing) | 100.41 mm [3.953 in] |
| Nominal Size (L X W X H) | 4.74 in x 3.95 in x 2.54 in (120 mm x 100 mm x 65 mm) |
| Overall Height (Drawing) | 64.57 mm [2.542 in] |
| Overall Length (Drawing) | 120.42 mm [4.741 in] |
| Max. P.C. Board Width (Listed) | 112.38 mm |
| Max. P.C. Board Length (Listed) | 91.68 mm |
Identifiers
| UPC | 623980023113 |
| UNSPSC | 39121301 |
| Part Number | 1590CE |
Related Parts
| No Flange, Standard | 1590CE |
| No Flange, Water-Tight | 1590WCE |
| Black Cover Screws (Pkg 100), M3.5 X 12mm | 1550MS100BK |
| Plated Cover Screws (Pkg 100), M3.5 X 12mm | 1550MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), M3.5 X 12mm | 1550WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), M3.5 X 12mm | 1550WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.66 lbs (0.30 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | M3.5 x 0.6 |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590CEGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCE |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws does the 1590CE use?▾
Four M3.5 x 0.6 cover screws, included. Replacement packs are M3.5 x 12mm, such as 1550MS100 (plated) or 1550WMS100 (stainless steel with o-ring).
What are the inside dimensions of the 1590CE?▾
Inside length 113.38 mm (4.464 in), inside width 92.68 mm (3.649 in) and inside height 60.35 mm (2.376 in).
Is a flanged version of the 1590CE available?▾
The series table lists only no-flange versions for this size: the standard 1590CE and the water-tight 1590WCE (plus black equivalents).
Which gasket kit fits?▾
The 1590CEGASKET kit, designed to meet IP65 with lid screws torqued to 25-30 cN.m.
Is the 1590CE RoHS compliant?▾
Yes, it is listed as RoHS and REACH compliant.
