Hammond 1590CBK 119x94x56mm Black Powder-Coated Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint for a lasting finish after machining
- Black cover screws included (four, 6-32 UNC)
- 119 x 94 x 56 mm nominal size; 111.27 x 85.77 x 52.25 mm inside
- Diecast aluminum alloy with lap joint construction, designed to meet IP54
- No mounting flanges; flanged versions 1590CFBK and 1590CFLBK available
- IP65 upgrade via the 1590BBGASKET gasket kit

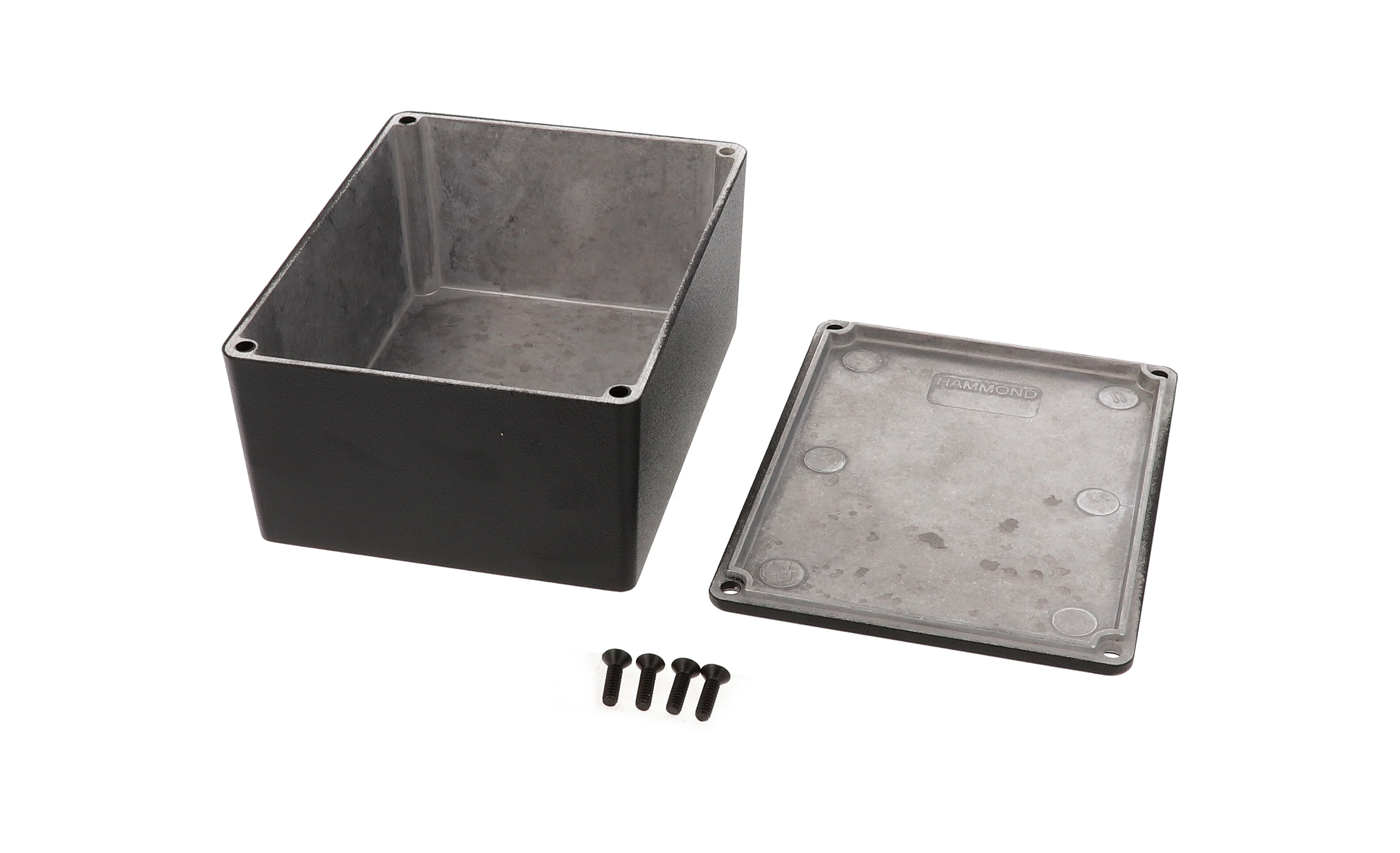

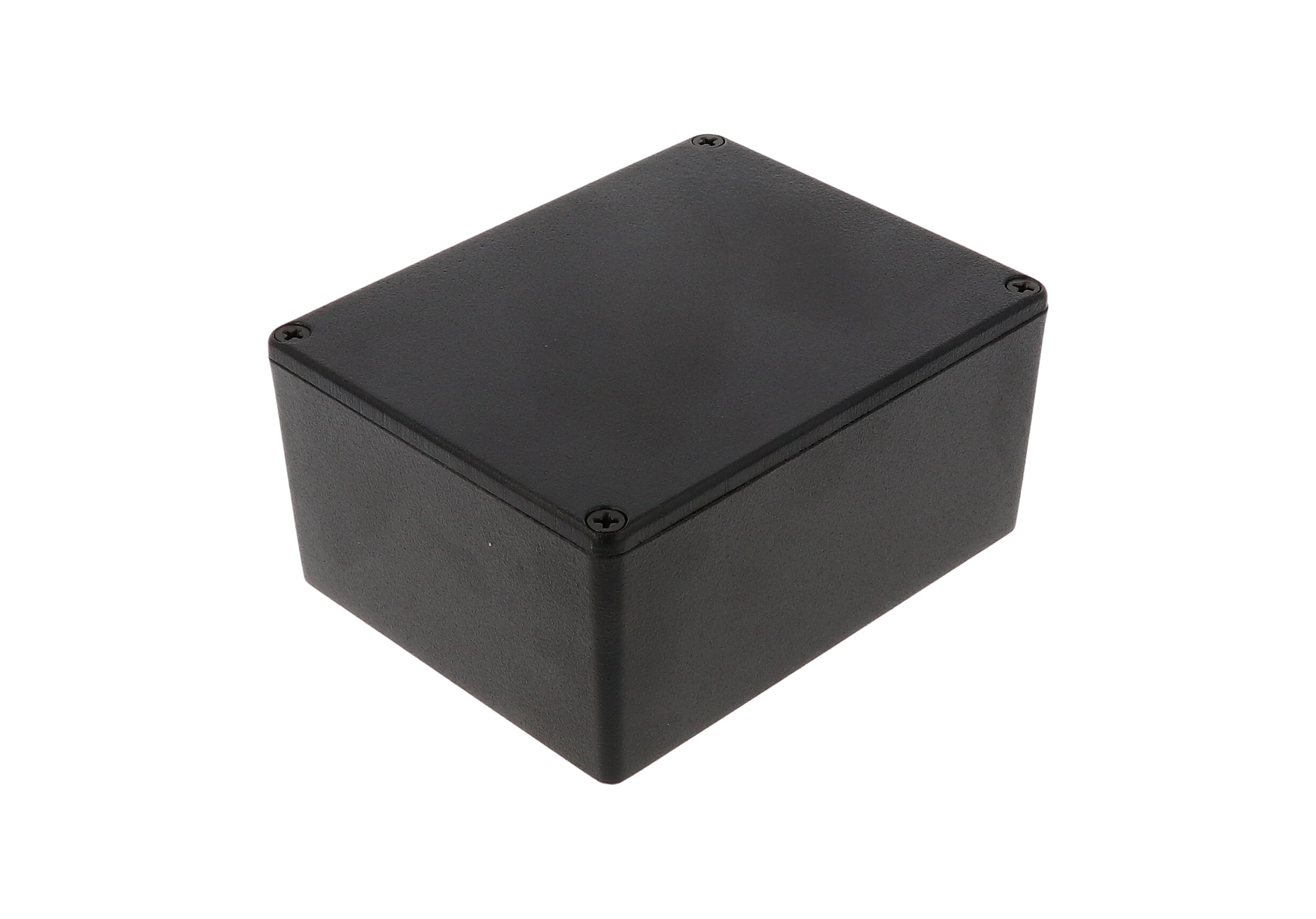

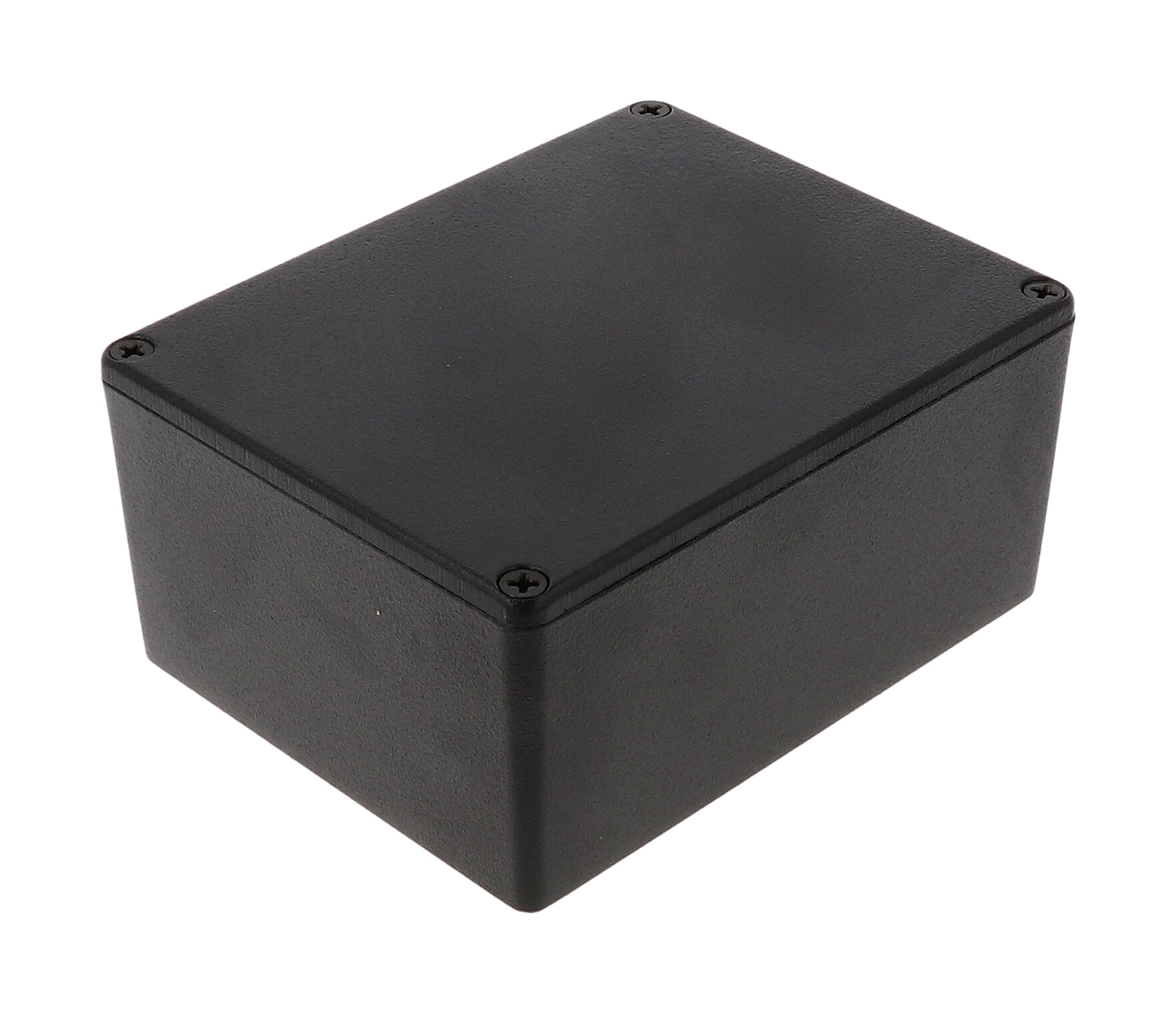

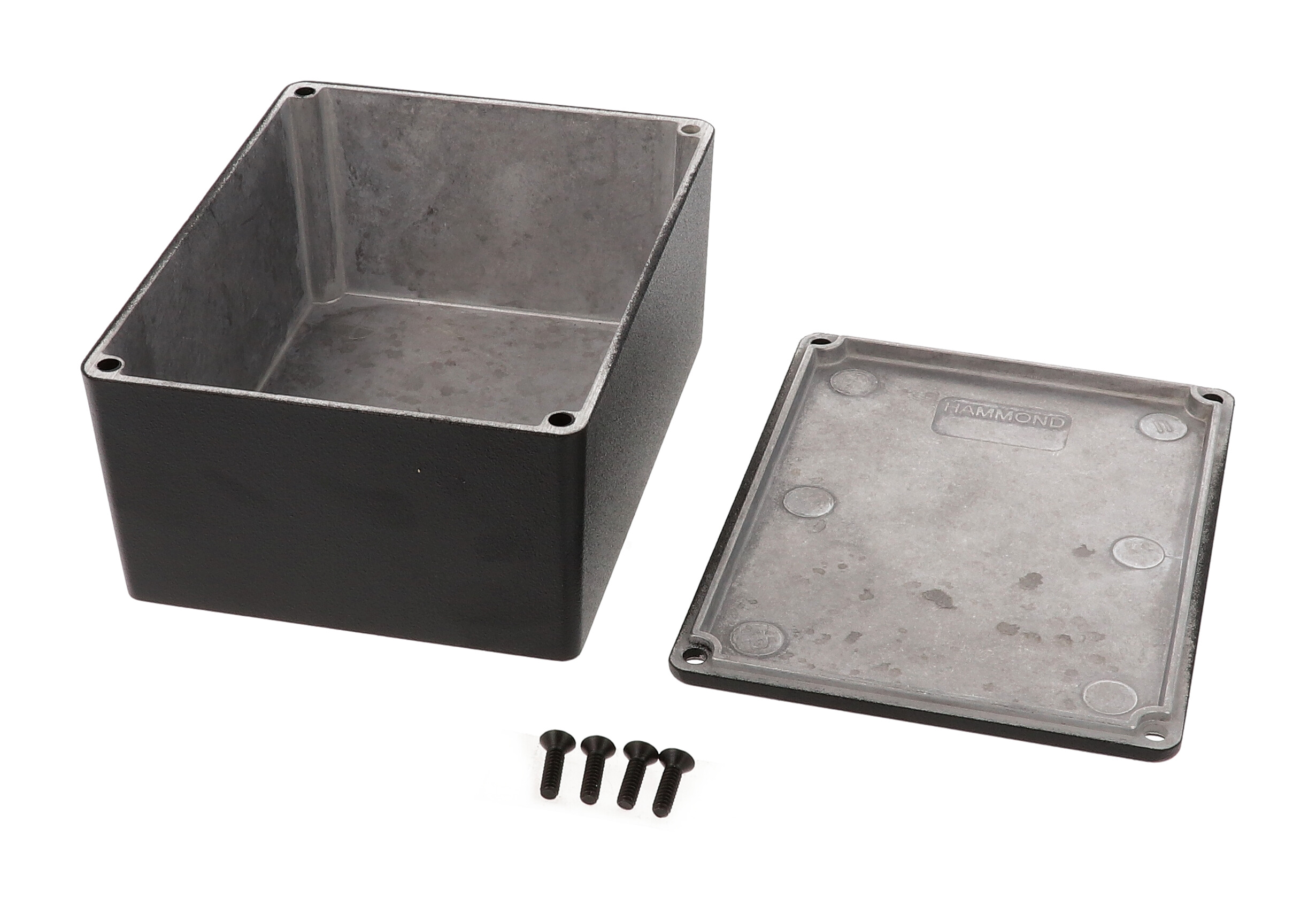

The 1590CBK is the textured black version of the 119 x 94 x 56 mm (4.7 x 3.7 x 2.22 in) 1590C diecast aluminum enclosure. It is intended for electronics builders who want a finished, painted metal case straight out of the pack, with no mounting flanges on the box or lid.
Its finish is a tough polyester powder paint that holds up even after machining, so holes for jacks, switches and displays can be added without the coating flaking away. Black screws are included to match. The diecast aluminum alloy box and lid meet at a lap joint for protection against dust and splashing water, and the standard version is designed to meet IP54.
- Overall dimensions from the drawing: 119.50 x 94.00 x 56.50 mm
- Inside space: 111.27 mm long, 85.77 mm wide, 52.25 mm high
- Listed maximum PC board dimensions of 109.27 mm and 83.77 mm
- Low 2°-or-less side wall draft for board mounting
Four 6-32 UNC cover screws fasten the lid into factory-tapped holes; tighten to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket. For IP65, the listed gasket kit is 1590BBGASKET and the water-tight version is 1590WCBK. The 1590CBK weighs 0.62 lbs (0.28 kg) shipped and is RoHS and REACH compliant.
Ideal For
- Finished-look electronic instrument enclosures
- Audio and signal electronics housings
- Machined custom control boxes
- Dust- and splash-protected electronics
Overview
| Type | Die-cast box |
| Color | Black |
| Finish | Textured black, coated with polyester powder paint; black screws included |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | No mounting flanges |
| Short Description | DIECAST 4.6X3.6X2.2 PAINTED |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.77 mm [3.377 in] |
| Inside Height | 52.25 mm [2.057 in] |
| Inside Length | 111.27 mm [4.381 in] |
| Series Table Width | 3.70 in (94 mm) |
| Series Table Height | 2.24 in (57 mm) |
| Series Table Length | 4.72 in (120 mm) |
| Overall Width (Drawing) | 94.00 mm [3.701 in] |
| Nominal Size (L X W X H) | 4.7 in x 3.7 in x 2.22 in (119 mm x 94 mm x 56 mm) |
| Overall Height (Drawing) | 56.50 mm [2.224 in] |
| Overall Length (Drawing) | 119.50 mm [4.705 in] |
| Max. P.C. Board Width (Listed) | 109.27 mm |
| Max. P.C. Board Length (Listed) | 83.77 mm |
Identifiers
| UPC | 623980540108 |
| UNSPSC | 39121301 |
| Part Number | 1590CBK |
Related Parts
| No Flange, Standard | 1590CBK |
| Flanged Lid, Standard | 1590CFLBK |
| No Flange, Water-Tight | 1590WCBK |
| Flanged Lid, Water-Tight | 1590WCFLBK |
| Flanged Bottom Plate, Standard | 1590CFBK |
| Flanged Bottom Plate, Water-Tight | 1590WCFBK |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.62 lbs (0.28 kg) |
Construction & Finish
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Box, lid and 4 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BBGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WCBK |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions

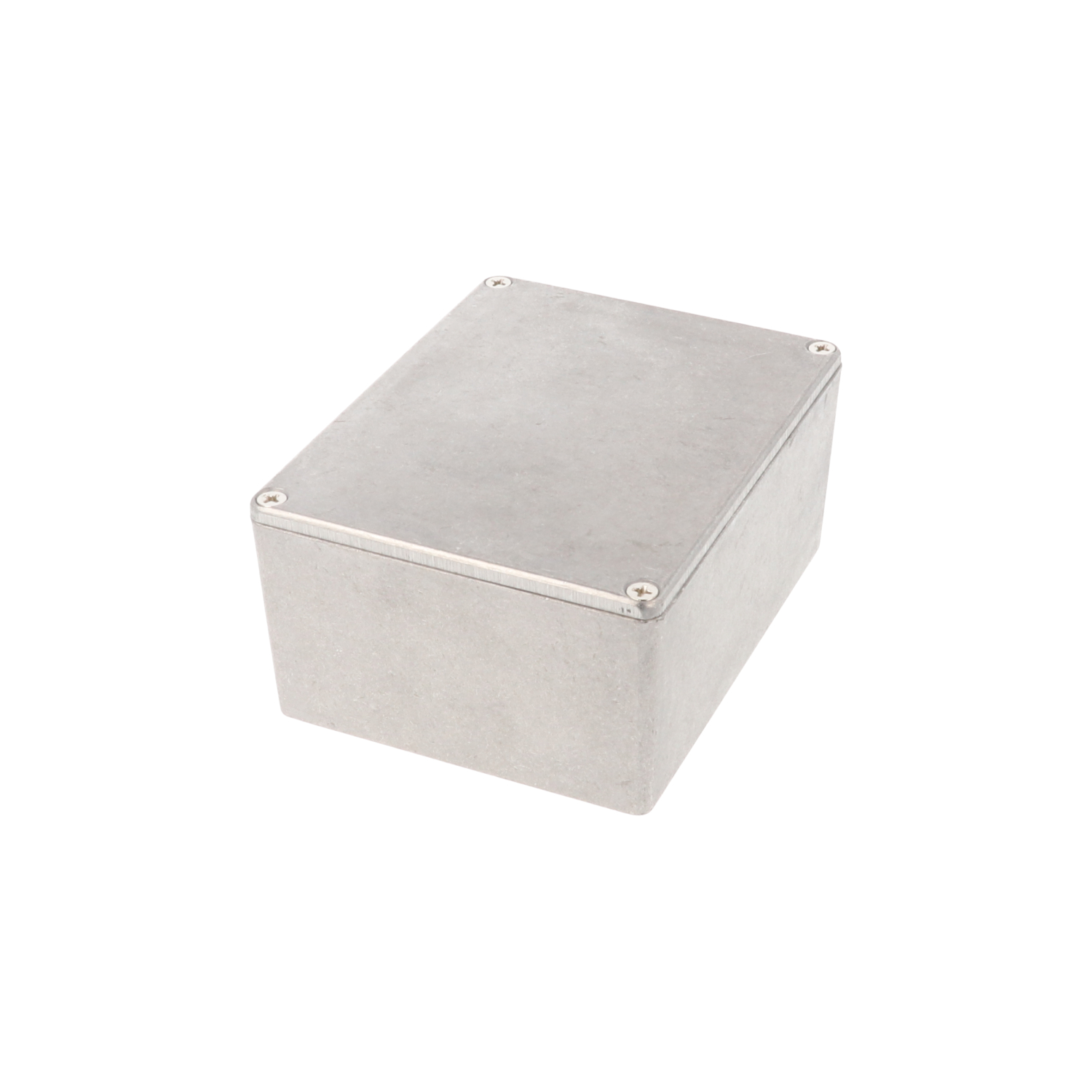

What is the difference between the 1590CBK and the 1590C?▾
They share the same size and construction. The 1590CBK is textured black with polyester powder paint and black screws; the 1590C is unpainted natural aluminum.
What size boards fit inside the 1590CBK?▾
The listed maximum PC board dimensions are 109.27 mm and 83.77 mm. The inside measures 111.27 x 85.77 x 52.25 mm.
Is the 1590CBK water-tight?▾
The standard version is designed to meet IP54. The 1590BBGASKET kit upgrades it to IP65 with lid screws torqued to 25-30 cN.m, or you can order 1590WCBK.
How much does the 1590CBK weigh?▾
Shipping weight is 0.62 lbs (0.28 kg).
