Hammond 1590BXFL 254x70x50mm Diecast Aluminum Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid, 283.00 mm overall length
- Nominal 254 x 70 x 50 mm diecast aluminum body for long, narrow electronics
- Unpainted vibra-finished surface with no sharp edges
- Inside space of 247.68 x 63.68 x 44.70 mm
- Lap joint construction designed to meet IP54; IP65 upgrade with 1590BXGASKET
- Six 6-32 UNC cover screws included, threaded into factory-tapped holes
- RoHS and REACH compliant

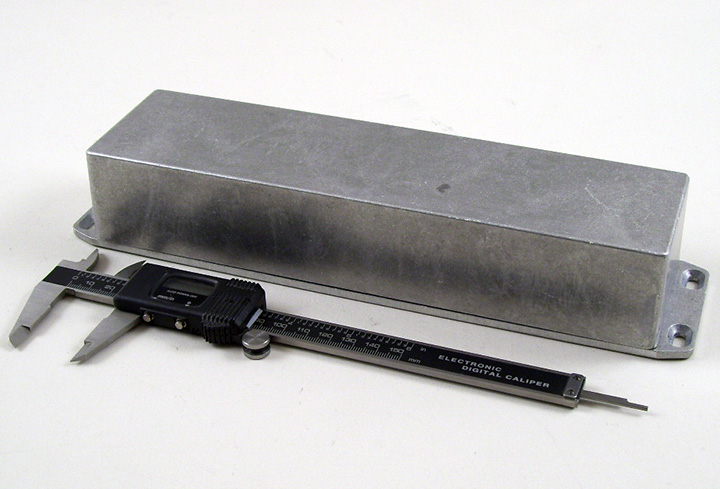

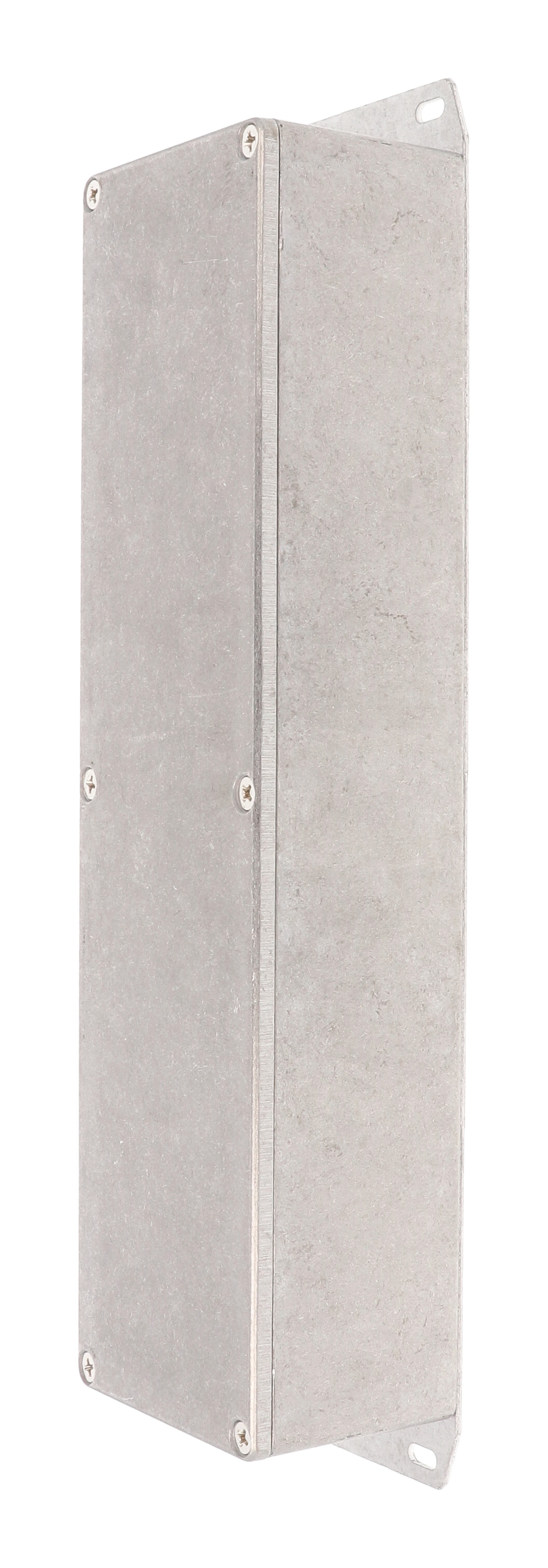

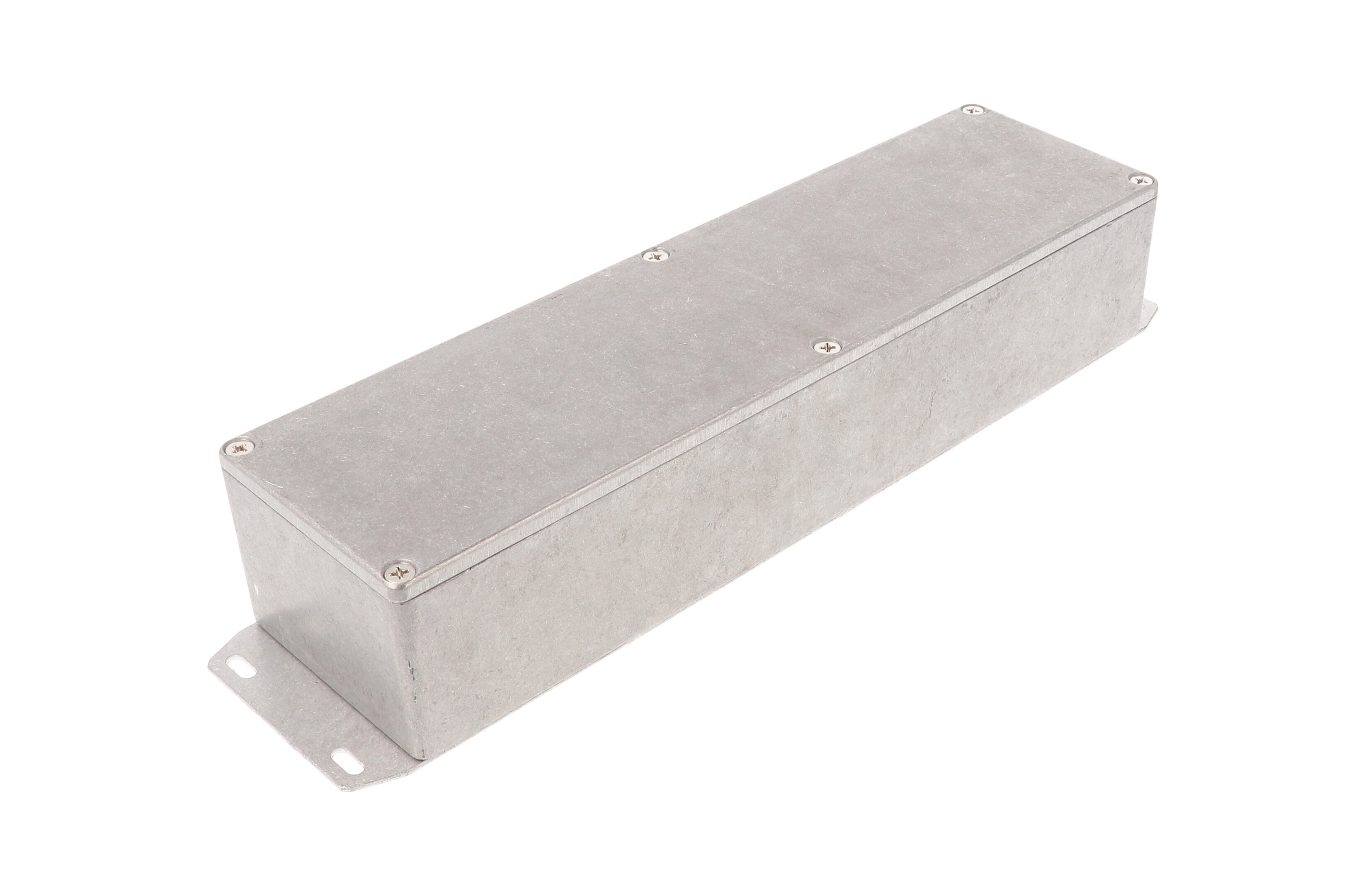

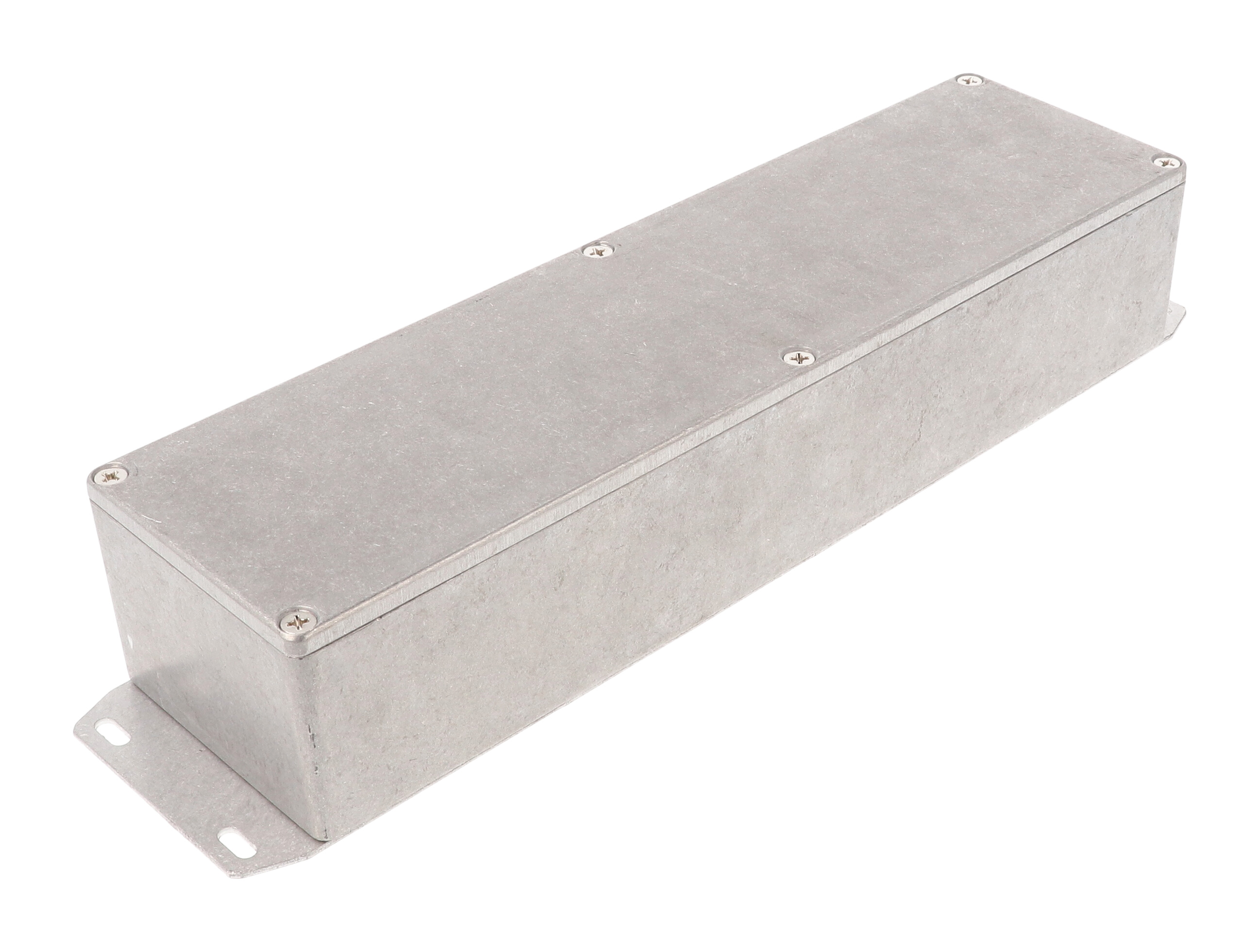

The 1590BXFL is an unpainted diecast aluminum enclosure whose lid carries an integrated wall-mounting flange. The lid becomes the mounting face, and the 254 x 70 x 50 mm (10 x 2.76 x 1.95 in) box body hangs from it. It is aimed at engineers and integrators who need a long, slim metal housing that bolts straight to a wall, panel or equipment frame.
Box and lid are diecast aluminum alloy, tough yet easy to machine for connectors, switches and displays. The natural finish is vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against access of dust and splashing water, and the enclosure is designed to meet IP54 as supplied.
- Overall length across the flanged lid: 283.00 mm (11.142 in)
- Inside length 247.68 mm, inside width 63.68 mm, inside height 44.70 mm
- Listed maximum PC board dimensions of 245.68 mm and 61.68 mm, with side walls drafted at 2° or less
- Six 6-32 UNC cover screws in factory-tapped holes
Tighten the lid screws to 50-55 cN.m (71-78 ozf.in), or 25-30 cN.m (36-43 ozf.in) with a gasket installed. The optional 1590BXGASKET kit upgrades the box to IP65; the factory water-tight version is 1590WBXFL. The 1590BXFL is RoHS and REACH compliant, ships shrink wrapped at 0.9 lbs (0.41 kg), and STEP or IGES solid models are available.
Ideal For
- Wall- or panel-mounted electronics housings
- Long, narrow PC board enclosures
- Machined custom instrument cases
- Dust- and splash-protected equipment electronics
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Version | Standard (non-gasketed) |
| Description | Enclosure - diecast |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Short Description | 1590BX FLANGED LID ENCL |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 63.68 mm [2.507 in] |
| Inside Height | 44.70 mm [1.760 in] |
| Inside Length | 247.68 mm [9.751 in] |
| Series Table Width | 2.76 in (70 mm) |
| Box Width (Drawing) | 70.00 mm [2.756 in] |
| Series Table Height | 1.97 in (50 mm) |
| Series Table Length | 10.00 in (254 mm) |
| Nominal Size (L X W X H) | 10 in x 2.76 in x 1.95 in (254 mm x 70 mm x 50 mm) |
| Overall Height (Drawing) | 49.50 mm [1.949 in] |
| Max. P.C. Board Width (Listed) | 245.68 mm |
| Max. P.C. Board Length (Listed) | 61.68 mm |
| Overall Length Incl. Flanged Lid (Drawing) | 283.00 mm [11.142 in] |
Identifiers
| UPC | 623980405384 |
| UNSPSC | 39121301 |
| Part Number | 1590BXFL |
Related Parts
| No Flange, Standard | 1590BX |
| Flanged Lid, Standard | 1590BXFL |
| No Flange, Water-Tight | 1590WBX |
| Flanged Lid, Water-Tight | 1590WBXFL |
| Flanged Bottom Plate, Standard | 1590BXF |
| Flanged Bottom Plate, Water-Tight | 1590WBXF |
| Black Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100BK |
| Plated Cover Screws (Pkg 100), 6-32 X 1/2" | 1590MS100 |
| Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100 |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100), 6-32 X 1/2" | 1590WMS100BK |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Lid | Wall-mounting flange integrated into lid |
| Material | Aluminum (Die-Cast Alloy); box and lid are made from diecast aluminum alloy |
| CAD Models | Solid models available in STEP or IGES |
| Screw Holes | Factory-tapped assembly screw holes |
| Cover Screw Thread | 6-32 UNC |
| Joint Construction | Lap joint where lid and box meet |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |

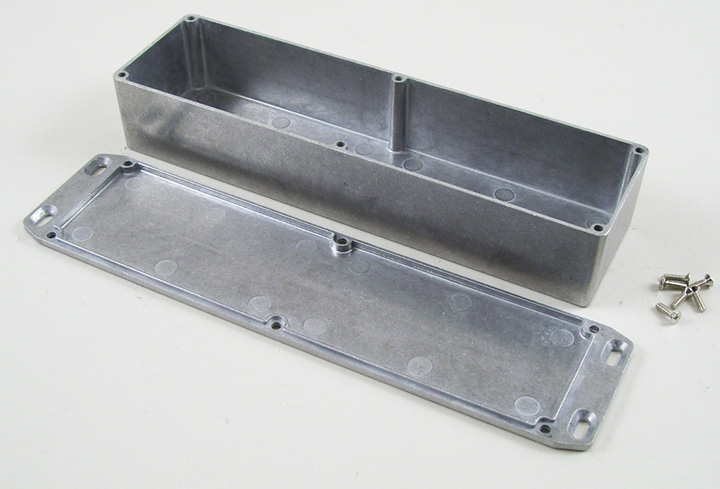

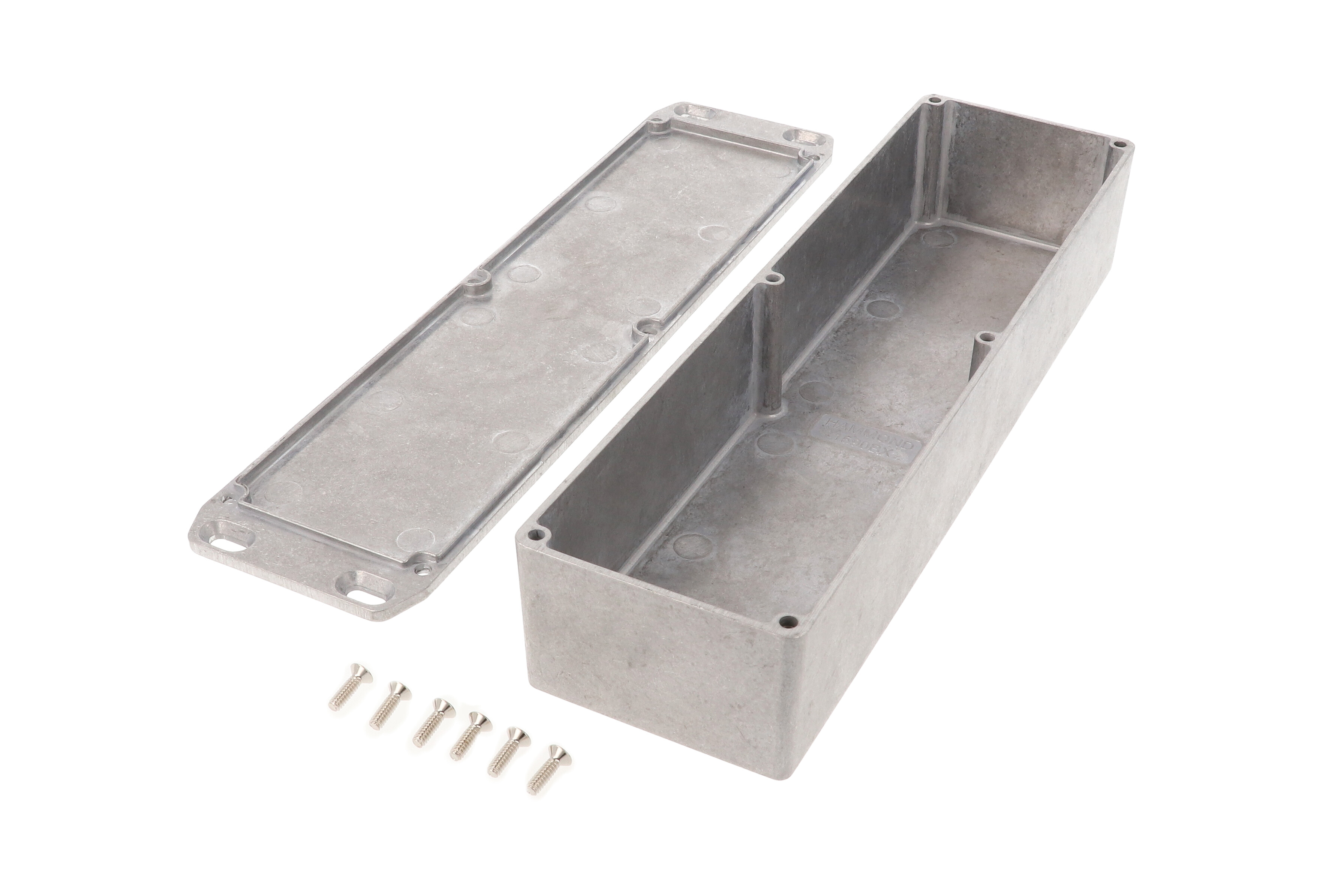

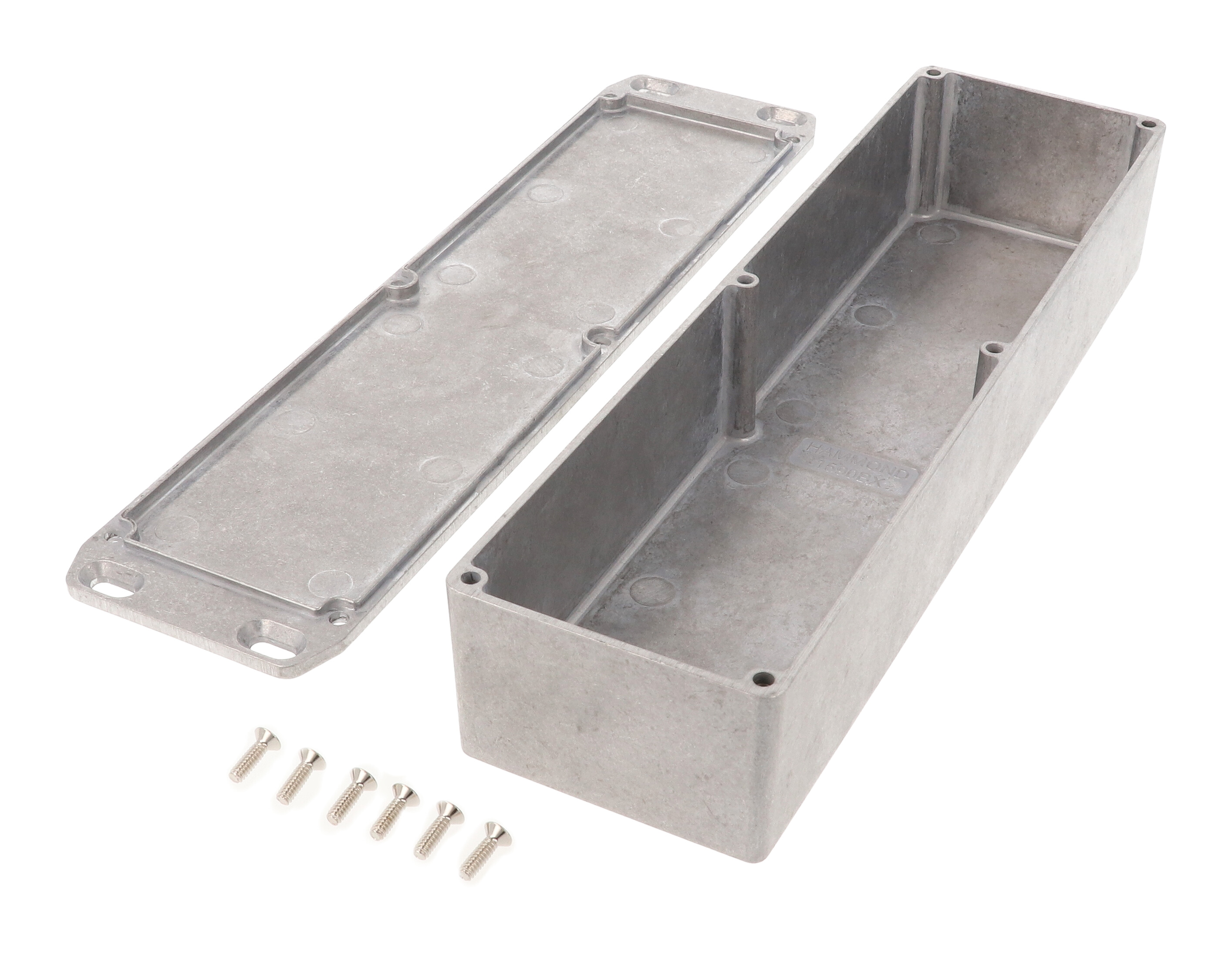

| Included In Assembly | Box, lid and 6 cover screws |
| Side Wall Draft Angle | 2° or less |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Upgrade | Optional replacement gasket kit 1590BXGASKET (designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m) |
| Water-Tight Equivalent | 1590WBXFL |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590BXFL?▾
The wall-mounting flange is integrated into the lid. The drawing shows an overall length of 283.00 mm (11.142 in) across the flanged lid.
What size PC board fits the 1590BXFL?▾
The listed maximum PC board dimensions are 245.68 mm and 61.68 mm. Inside, the box measures 247.68 mm long, 63.68 mm wide and 44.70 mm high.
What IP rating does the 1590BXFL have?▾
It is designed to meet IP54. Adding the 1590BXGASKET kit, with lid screws torqued to 25-30 cN.m, is designed to meet IP65. A water-tight version, 1590WBXFL, is also listed.
Is the 1590BXFL painted?▾
No. It is the natural aluminum version, vibra finished for a smooth surface with no sharp edges. The black textured equivalent is 1590BXFLBK.
How many screws does it use?▾
Six 6-32 UNC cover screws, included with the box and lid.
