Hammond 1590BXFBK 254x70x50mm Black Diecast Box, Flanged Base

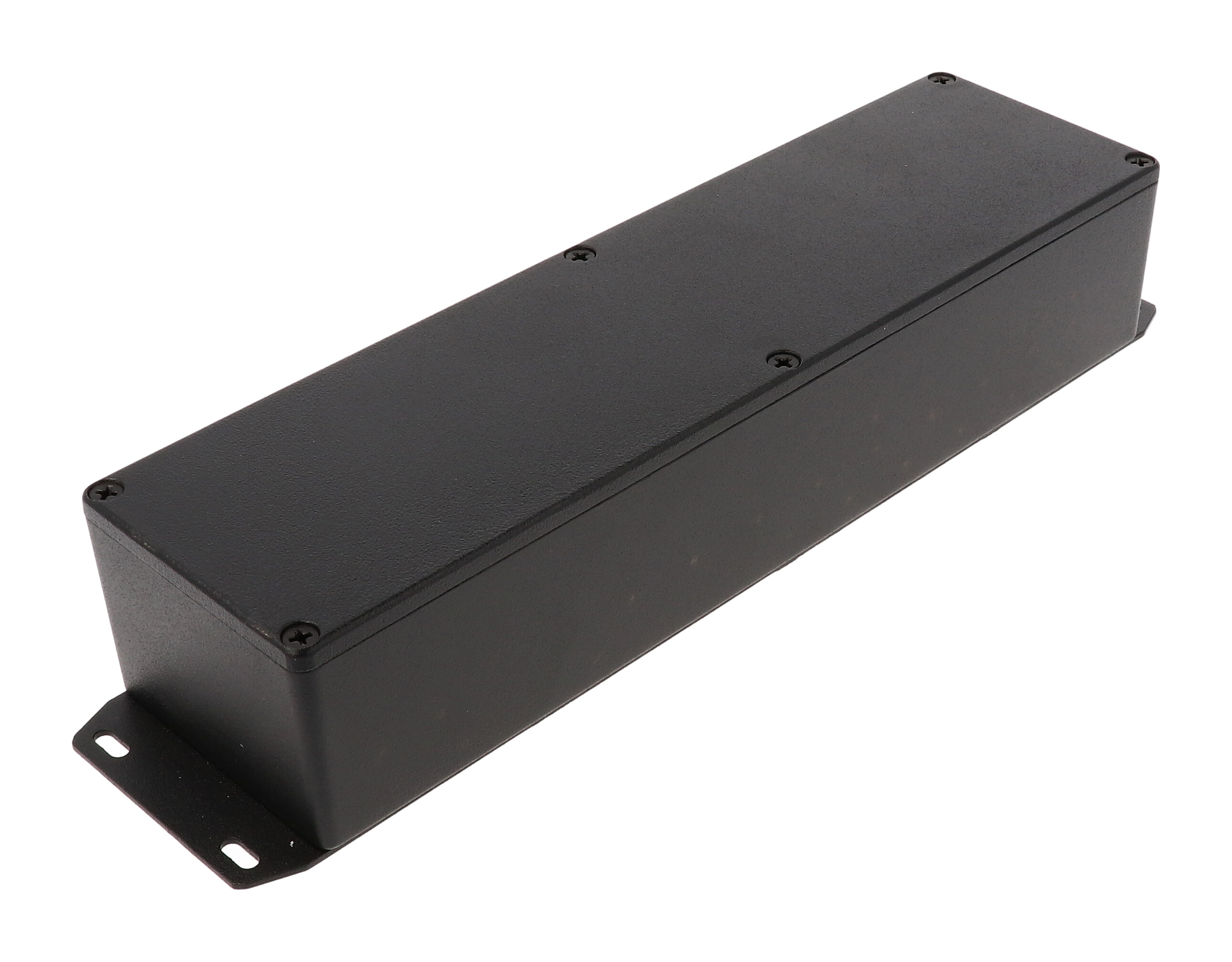

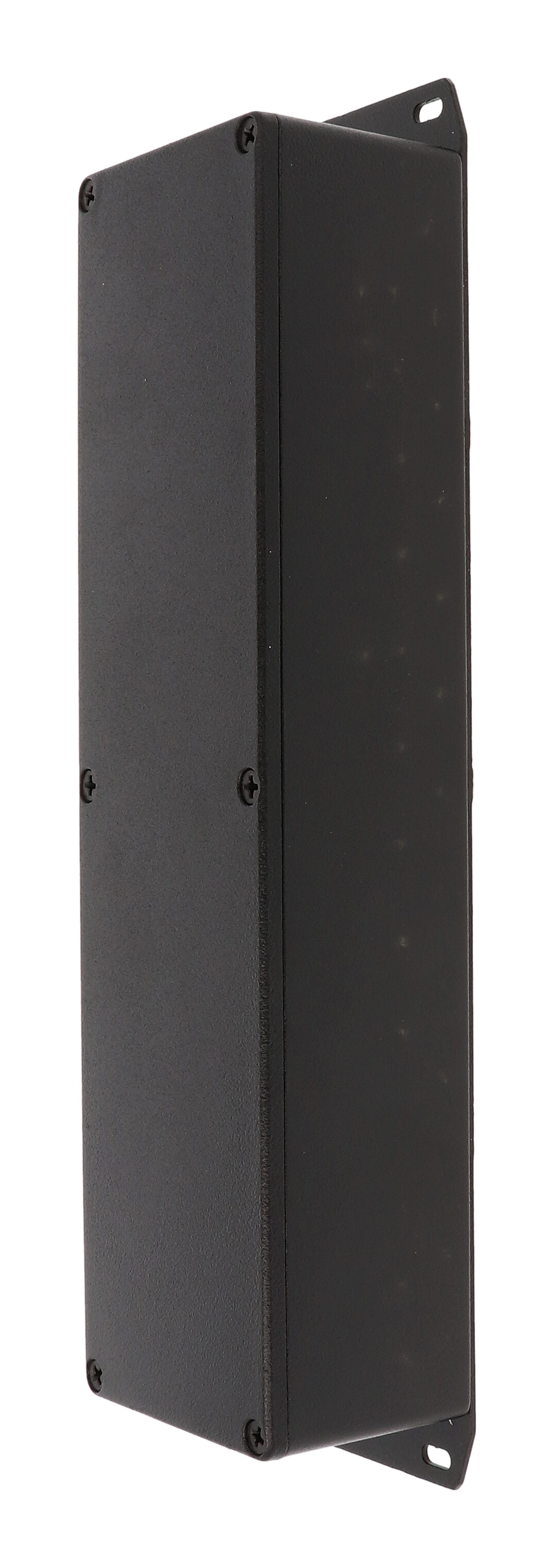

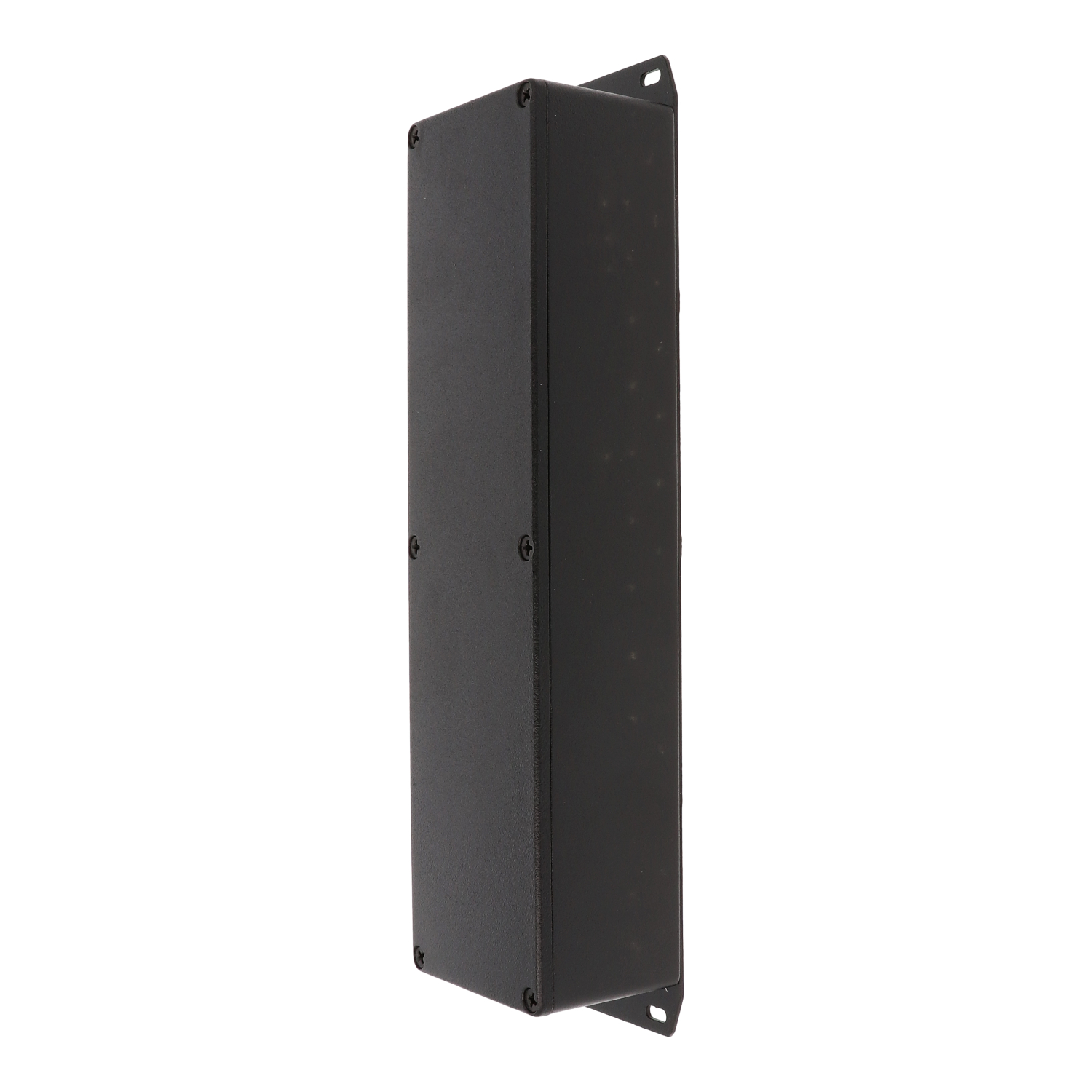

The 1590BXFBK is a long, narrow diecast aluminum enclosure in a textured black finish with a flanged bottom plate, so the box can be fastened directly to a panel, wall or chassis. At a nominal 254 x 70 x 50 mm (10 x 2.76 x 1.95 in), it suits OEM engineers and integrators housing elongated circuit boards, sensor electronics or instrument assemblies that need a rugged metal case.

Box and lid are made from diecast aluminum alloy, which is tough yet easy to machine. The black version is coated with a tough polyester powder paint for a lasting finish even after machining, and black screws are included to match. A lap joint where lid and box meet protects against dust and splashing water, and the standard version is designed to meet IP54.

• Inside length 247.68 mm, inside width 63.68 mm, inside height 44.70 mm
• Overall length across the flanged base 273.00 mm; box body 253.89 x 70.00 mm, 51.00 mm high
• Listed maximum PC board dimensions: 245.68 mm and 61.68 mm
• Side wall draft angle of 2° or less for easy PC board mounting

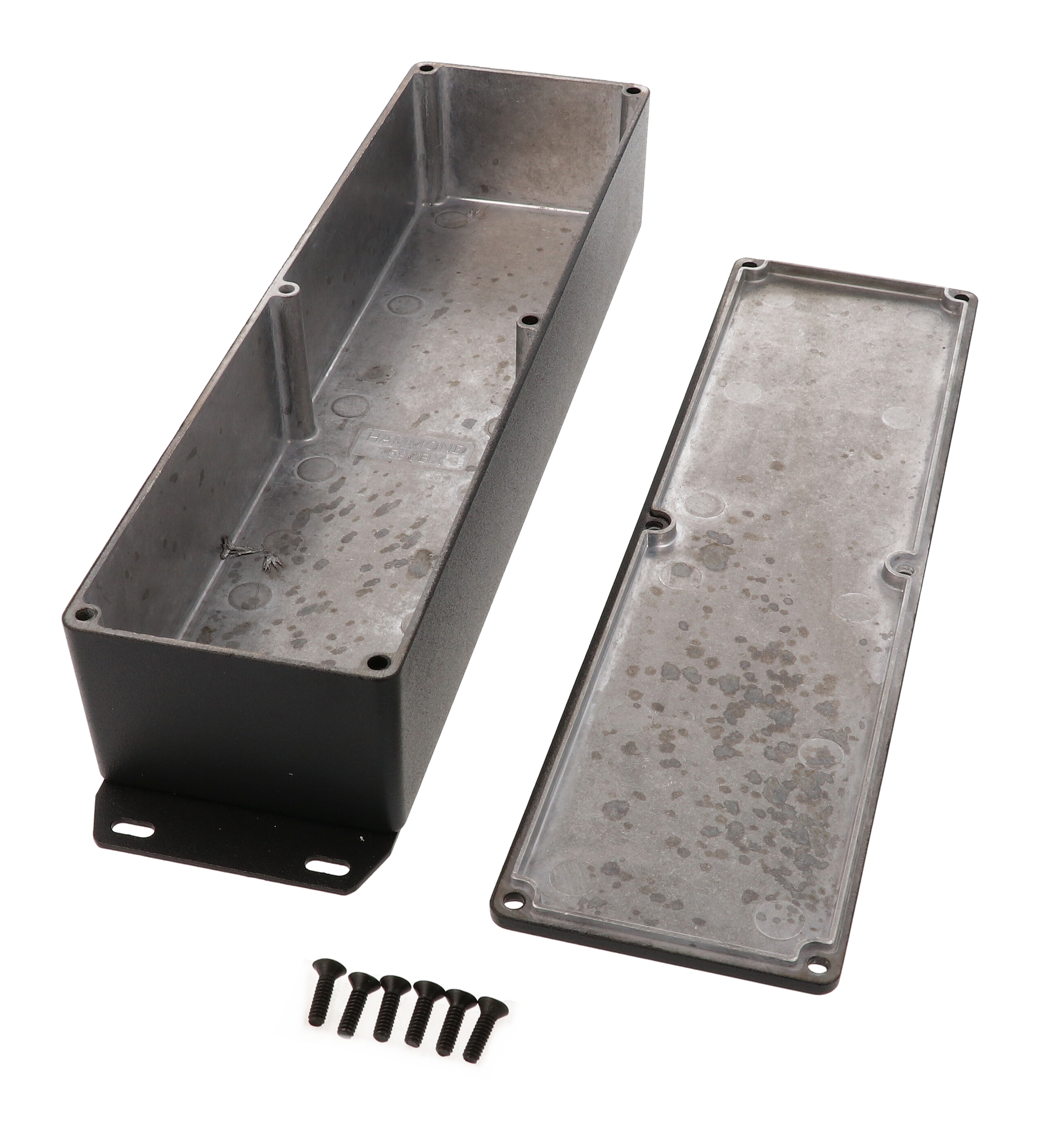

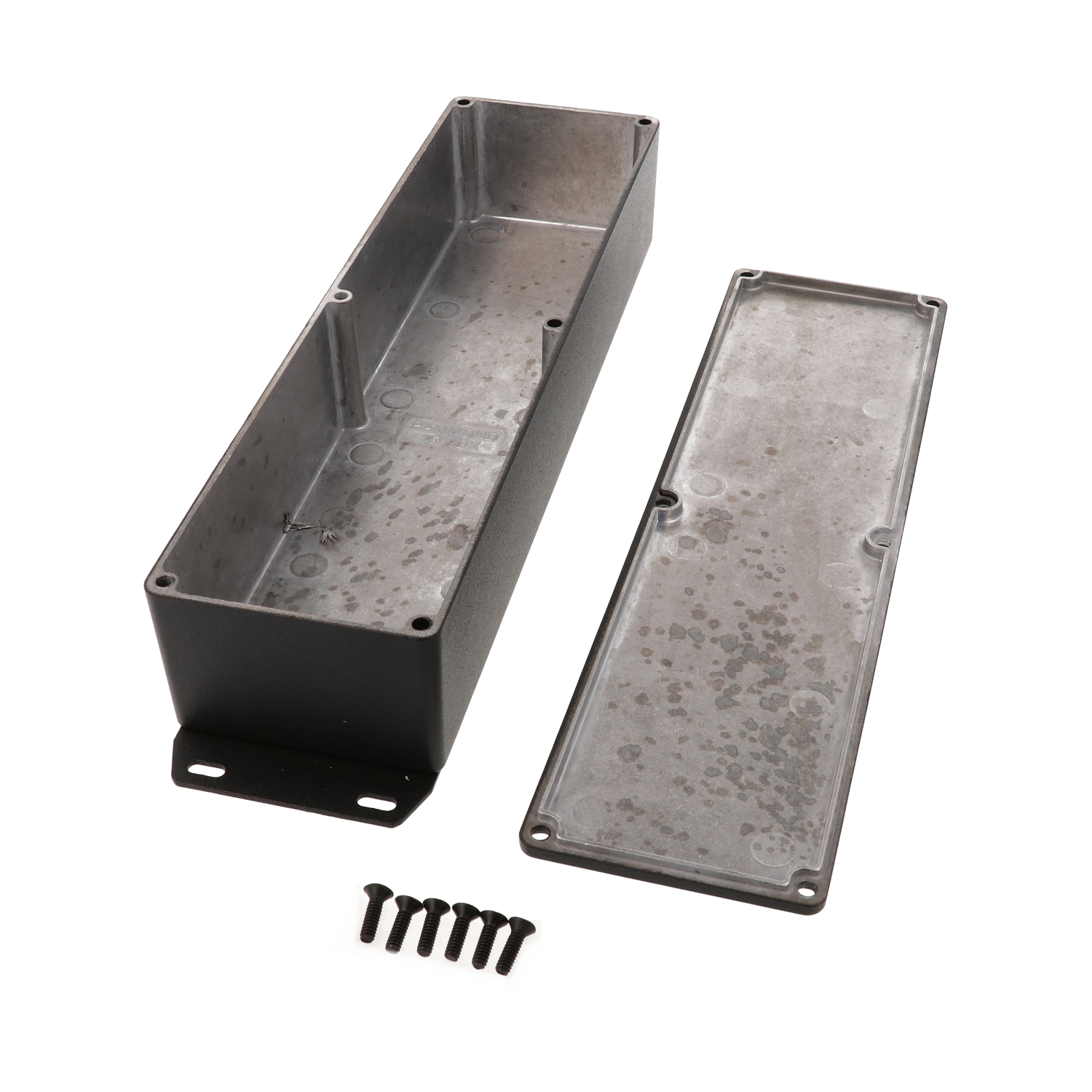

The assembly ships with the box, lid and six 6-32 UNC cover screws threaded into factory-tapped holes. Hammond recommends 50-55 cN.m (71-78 ozf.in) of lid screw torque, or 25-30 cN.m (36-43 ozf.in) when a gasket is fitted. To move to IP65, add the 1590BXGASKET kit, or order the water-tight equivalent 1590WBXFBK. Shipping weight is 0.9 lbs (0.41 kg); the part is RoHS and REACH compliant.
