Hammond 1590BSFLBK 112x60x42mm Black Diecast Box, Wall-Mount Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Mounting flange integrated into the lid; 138.00 mm overall length
- Textured black polyester powder paint with black screws
- 38.00 mm inside height in a 112 x 60 x 42 mm body
- Designed to meet IP54; IP65 with 1590BGASKET or 1590WBSFLBK
- Four 6-32 UNC screws into factory-tapped holes
- 2 degree or less wall draft for PCB mounting
- RoHS and REACH compliant

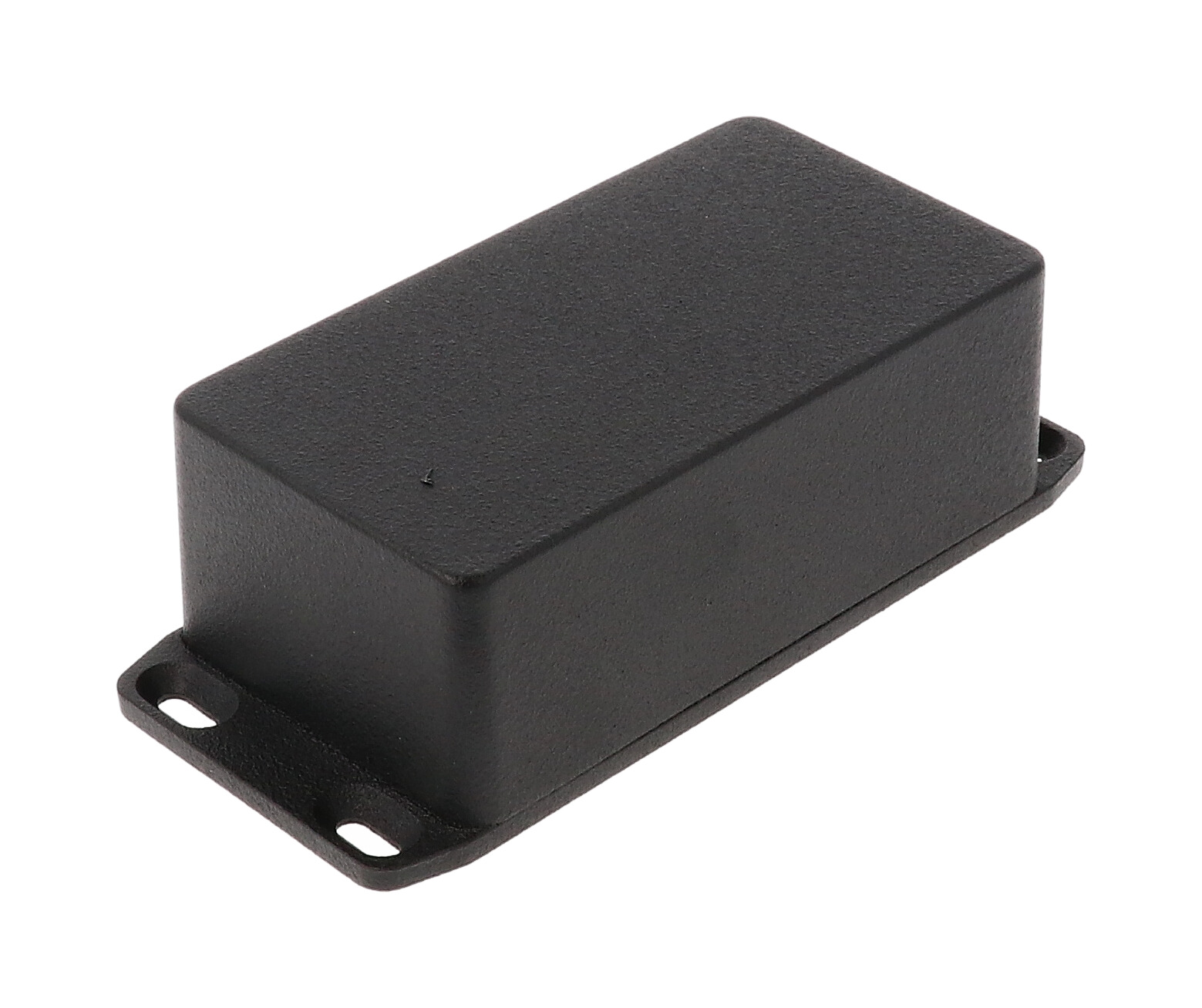

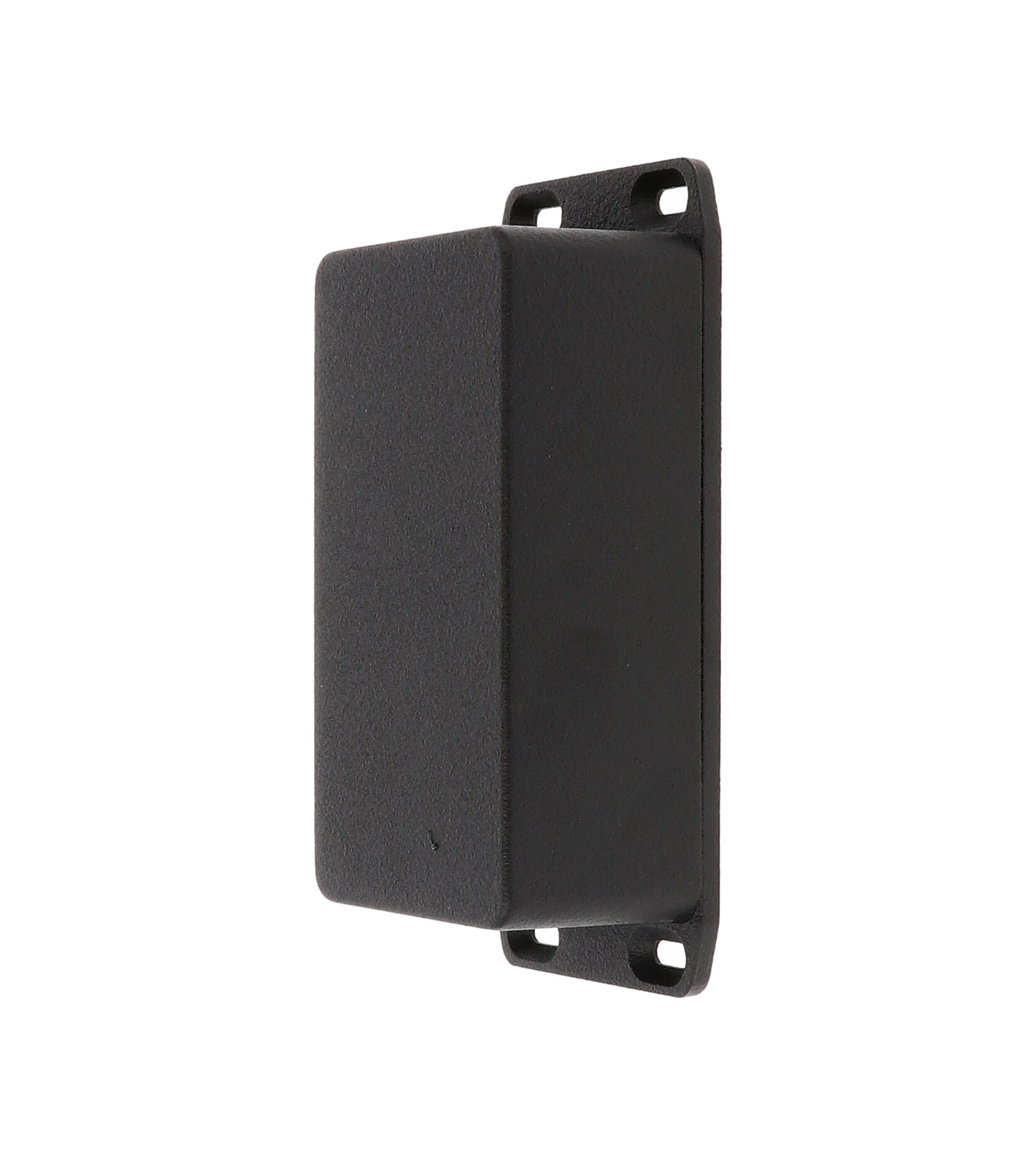

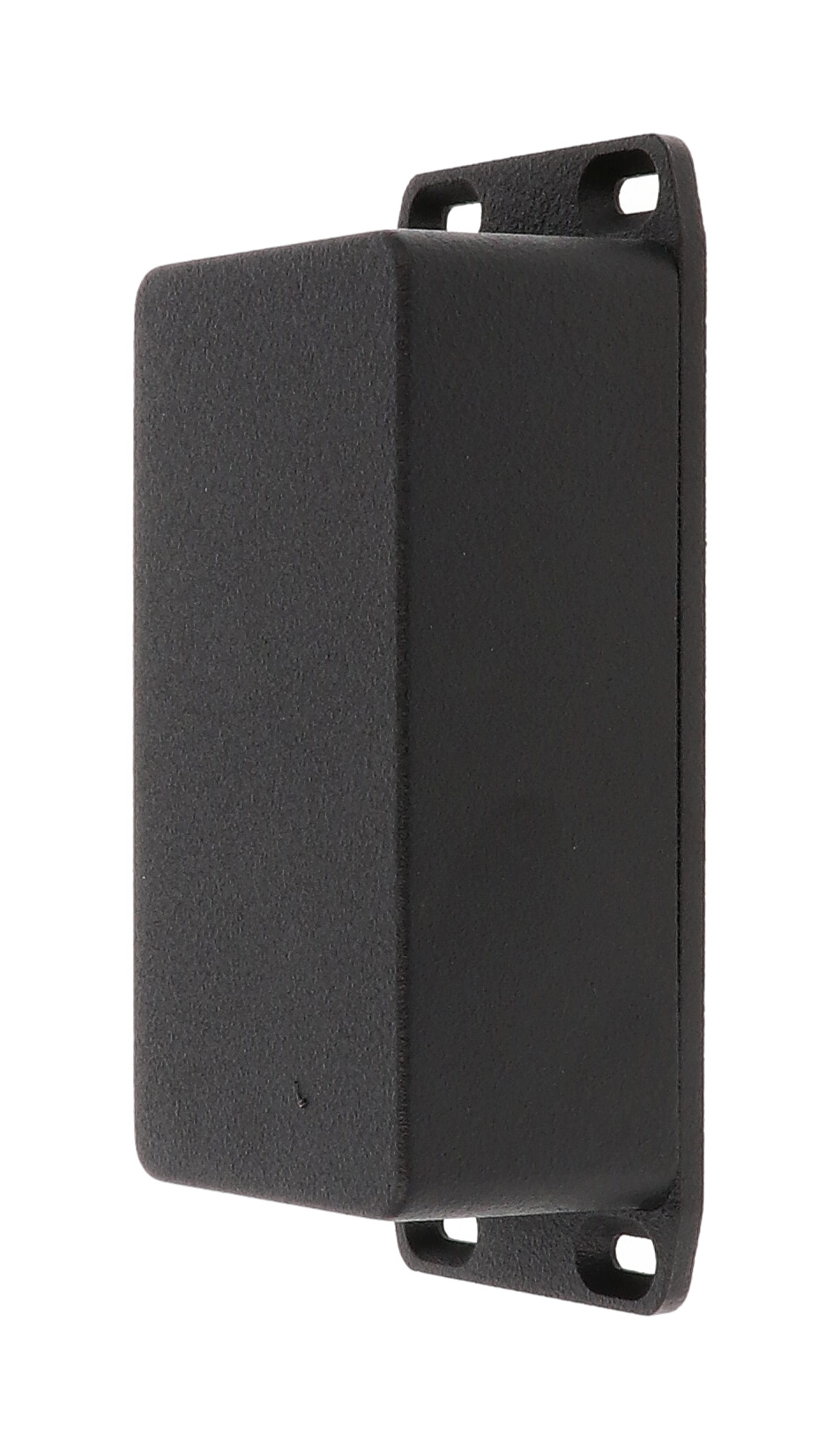

The 1590BSFLBK is a black textured diecast aluminum enclosure that pairs the deeper 1590BS body with a lid carrying an integrated mounting flange. It is built for electricians, integrators and OEM engineers who need a compact painted enclosure that mounts lid-first to a wall or panel. Part page size is 4.41 x 2.38 x 1.65 in (112 x 60 x 42 mm).
Its diecast aluminum alloy box and lid are coated with a tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
Across the lid flange the drawing shows 138.00 mm [5.433 in] overall length, with 42.00 mm [1.654 in] overall height. Inside dimensions are 106.47 x 54.97 x 38.00 mm [4.192 x 2.164 x 1.496 in], and the side walls have a draft angle of 2 degrees or less for easy PC board mounting. Maximum P.C. board figures in the part data are 52.97 mm and 104.47 mm.
Lap joint construction protects against dust and splashing water, and the 1590BSFLBK is designed to meet IP54. Four 6-32 UNC screws thread into factory-tapped holes, tightened to 50-55 cN.m [71-78 ozf.in]. For IP65, the water-tight equivalent is 1590WBSFLBK, or install the 1590BGASKET kit with 1590WMS100BK black stainless O-ring screws at 25-30 cN.m.
The enclosure weighs 0.31 lbs (0.14 kg), ships shrink wrapped, and is RoHS and REACH compliant.
Ideal For
- Wall-mounted instrument and control housings
- Painted enclosures for visible installations
- PC board housings needing taller component clearance
- Dust and splash protected electronics (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | PAINTED DIECAST ENCLOSURE |
| Part Number | 1590BSFLBK |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged lid |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 60.50 mm [2.382 in] |
| Max. P.C. Board Width | 104.47 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 54.97 mm [2.164 in] |
| Max. P.C. Board Length | 52.97 mm |
| Inside Height (Drawing) | 38.00 mm [1.496 in] |
| Inside Length (Drawing) | 106.47 mm [4.192 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Size L X W X H (Part Page) | 4.41 in x 2.38 in x 1.65 in (112 mm x 60 mm x 42 mm) |
| Nominal Width (Series Table) | 2.40 in (61 mm) |
| Nominal Height (Series Table) | 1.50 in (38 mm) |
| Nominal Length (Series Table) | 4.41 in (112 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 138.00 mm [5.433 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980027715 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |

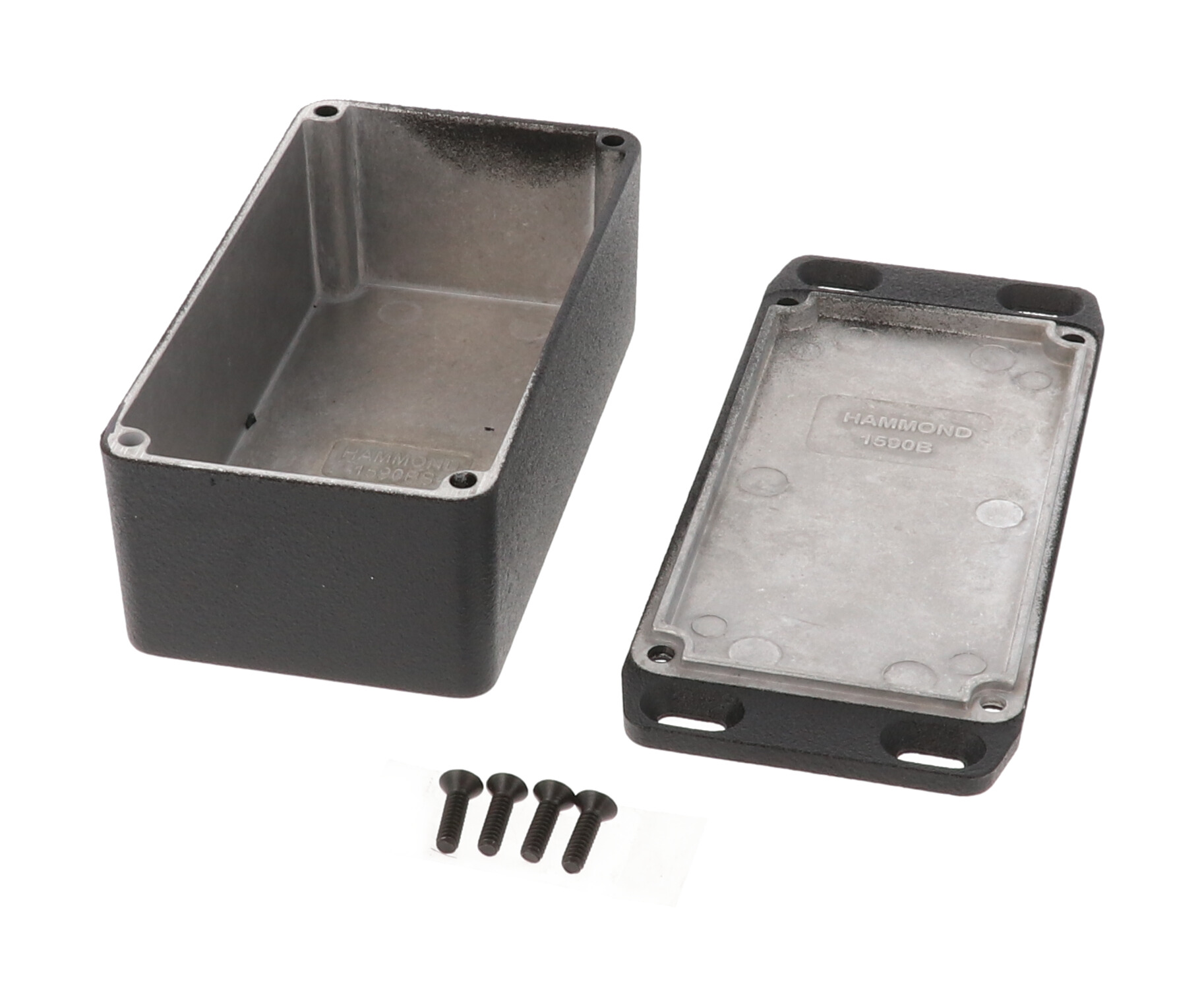

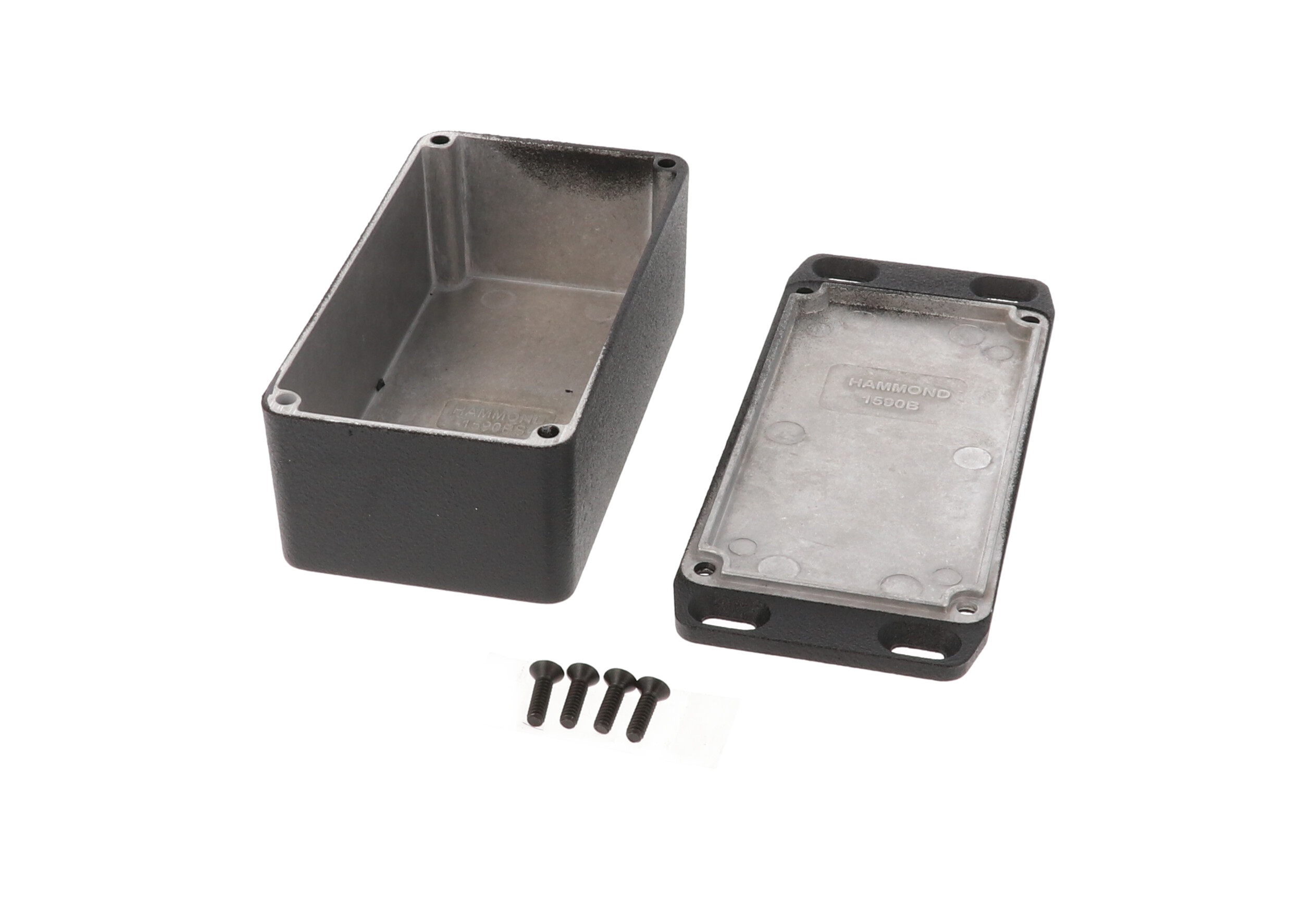

| Contents | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 4 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBSFLBK |
| Optional Replacement Gasket Kit | 1590BGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How do I mount the 1590BSFLBK?▾
The mounting flange is part of the lid ('w/ Flanged Lid' version), which gives an overall length of 138.00 mm [5.433 in].
What is the finish?▾
Textured black polyester powder paint, which keeps a lasting finish even after machining. Black screws are included.
What are the internal dimensions?▾
106.47 mm long, 54.97 mm wide and 38.00 mm high inside, per the drawing.
What IP rating does it meet?▾
The standard version is designed to meet IP54. Water-tight 1590WBSFLBK, or the 1590BGASKET upgrade with lid screws torqued to 25-30 cN.m, is designed to meet IP65.
What is the natural finish version?▾
1590BSFL.
