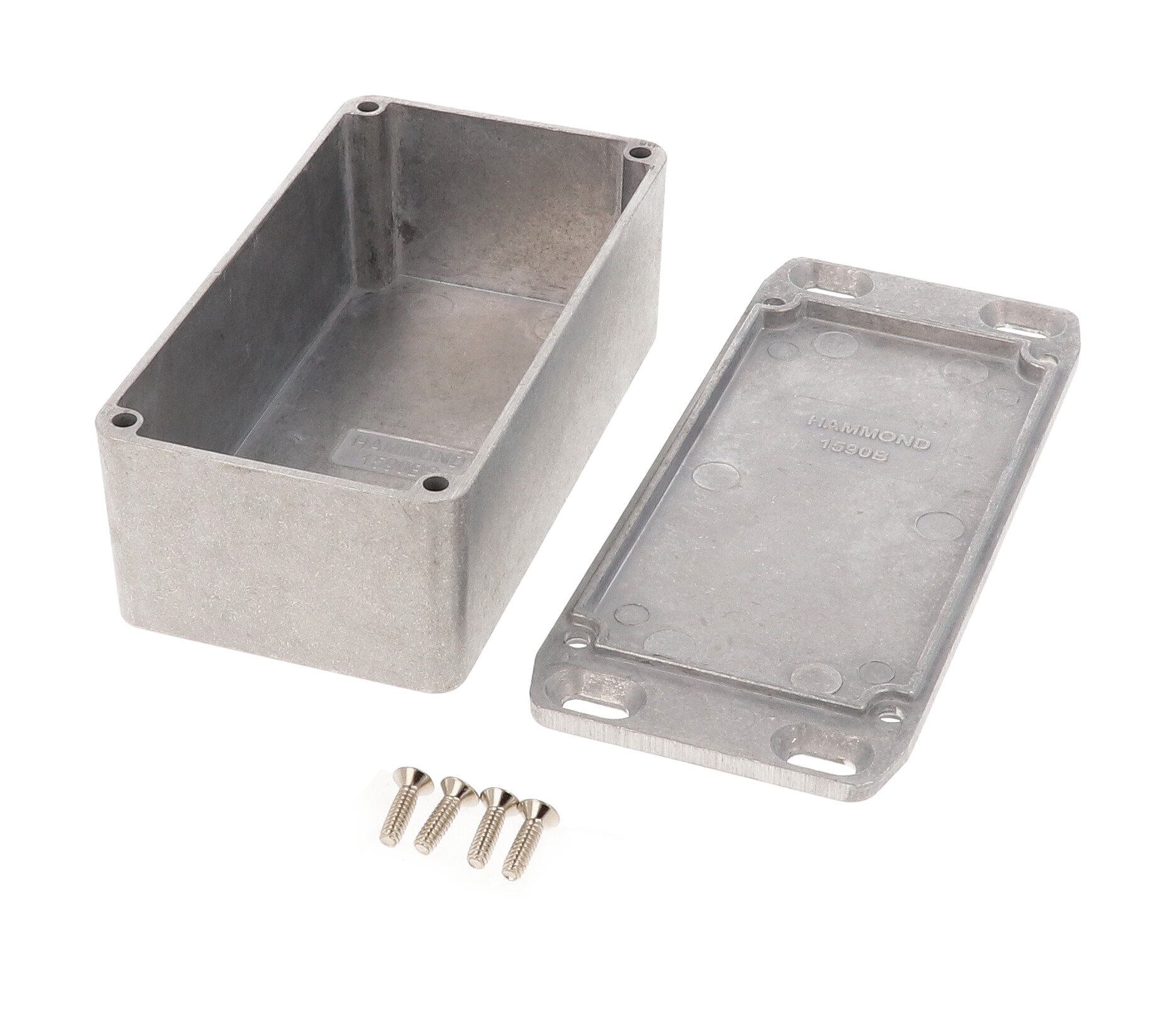

Hammond 1590BSFL 112x60x42mm Diecast Aluminum Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid; 138.00 mm overall length
- Deeper body: 38.00 mm inside height, 42 mm overall
- Natural vibra-finished diecast aluminum alloy
- Designed to meet IP54; IP65 with 1590BGASKET or 1590WBSFL
- Four 6-32 UNC screws in factory-tapped holes
- Inside 106.47 x 54.97 mm with low wall draft for PCBs
- RoHS and REACH compliant; 0.31 lbs

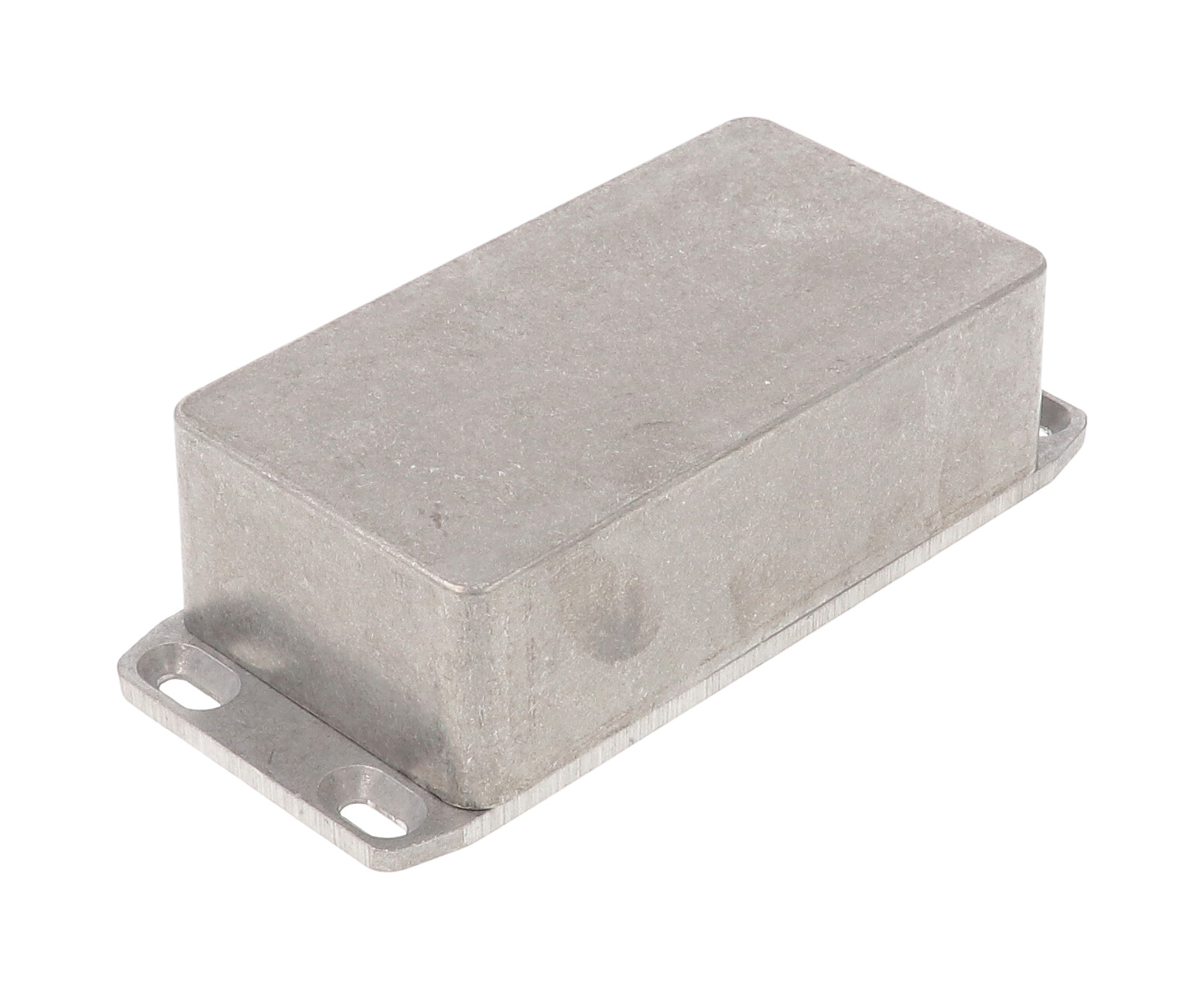

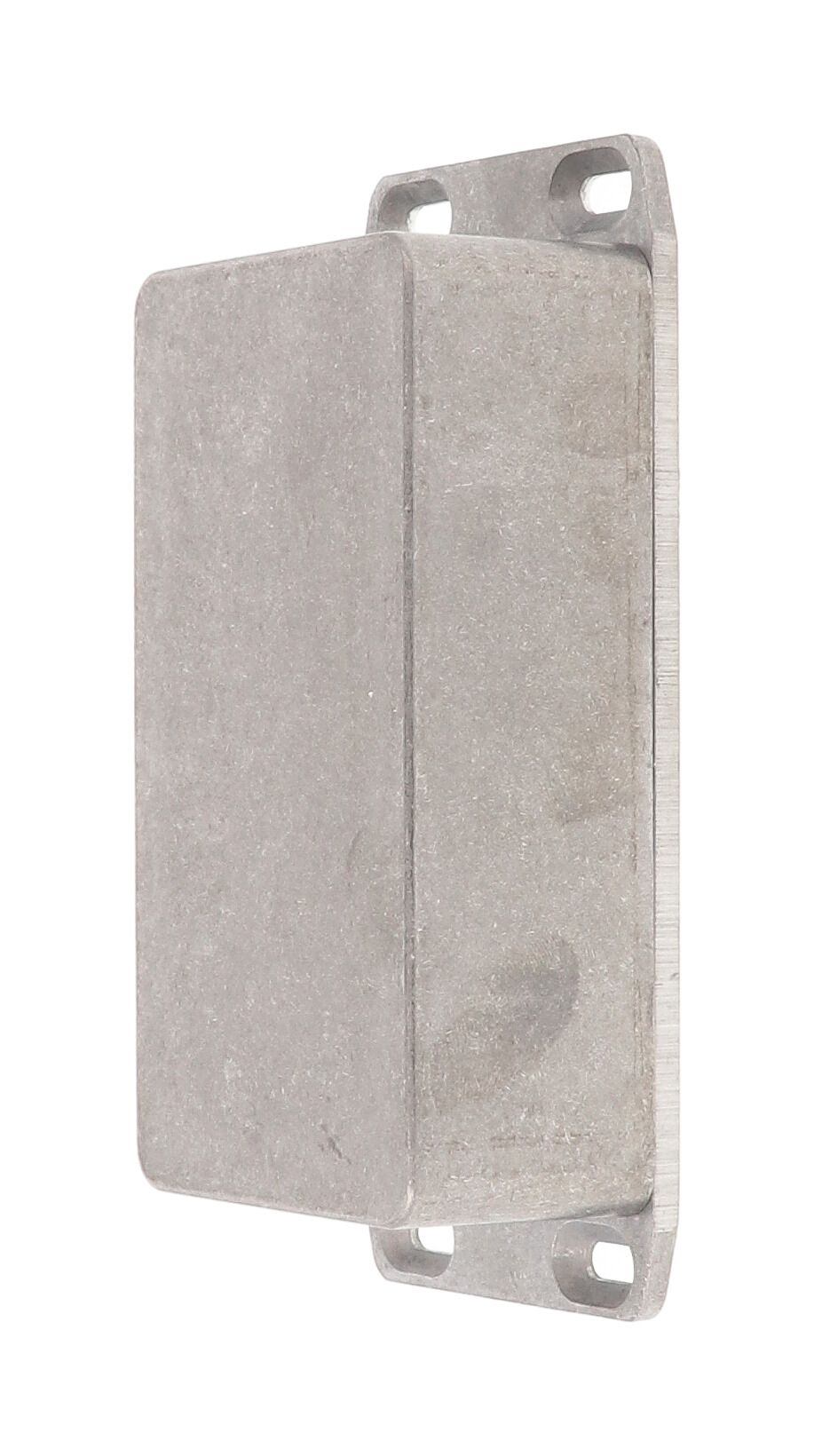

The 1590BSFL combines the deeper 1590BS body with a lid that includes its own mounting flange, in natural finish. With the flange integrated into the lid, the lid fastens to a wall, panel or frame and the box closes onto it, a layout suited to installers and OEM designers mounting compact electronics in fixed locations. The part page lists 4.41 x 2.38 x 1.65 in (112 x 60 x 42 mm).
Box and lid are diecast aluminum alloy, tough yet easy to machine. The unpainted version is vibra finished, leaving a smooth surface with no sharp edges.
The drawing shows an overall length of 138.00 mm [5.433 in] across the lid flange, an overall height of 42.00 mm [1.654 in] and inside dimensions of 106.47 x 54.97 x 38.00 mm [4.192 x 2.164 x 1.496 in]. Side walls have a draft angle of 2 degrees or less for easy PC board mounting; the part data gives maximum P.C. board figures of 52.97 mm and 104.47 mm.
A lap joint where lid and box meet protects against dust and splashing water, and this standard version is designed to meet IP54. Four 6-32 UNC cover screws thread into factory-tapped holes at 50-55 cN.m [71-78 ozf.in]. The water-tight version is 1590WBSFL; the 1590BGASKET kit can also upgrade the 1590BSFL to IP65.
Shipping weight is 0.31 lbs (0.14 kg), shrink wrapped. RoHS and REACH compliant, with STEP and IGES models available.
Ideal For
- Wall-mounted electronic instrument enclosures
- Panel or frame mounted control electronics
- PC board housings needing taller component clearance
- Dust and splash protected installations (IP54)
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Category | Enclosures (enclosure - diecast) |
| Description | DIECAST BOX 4.4X2.3X1.6 |
| Part Number | 1590BSFL |
| Product Type | Die-cast box, flanged |
| Mounting Style | Flanged lid |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Box Width (Drawing) | 60.50 mm [2.382 in] |
| Max. P.C. Board Width | 104.47 mm |
| Side Wall Draft Angle | 2° or less |
| Inside Width (Drawing) | 54.97 mm [2.164 in] |
| Max. P.C. Board Length | 52.97 mm |
| Inside Height (Drawing) | 38.00 mm [1.496 in] |
| Inside Length (Drawing) | 106.47 mm [4.192 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Size L X W X H (Part Page) | 4.41 in x 2.38 in x 1.65 in (112 mm x 60 mm x 42 mm) |
| Nominal Width (Series Table) | 2.40 in (61 mm) |
| Nominal Height (Series Table) | 1.50 in (38 mm) |
| Nominal Length (Series Table) | 4.41 in (112 mm) |
| Overall Length Incl. Lid Flange (Drawing) | 138.00 mm [5.433 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980027708 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Contents | Box, lid and 4 cover screws |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Cover Screws | 4 included, 6-32 UNC, threaded into factory-tapped holes |
| Joint Construction | Lap joint where lid and box meet |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WBSFL |
| Optional Replacement Gasket Kit | 1590BGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590BSFL?▾
It is integrated into the lid ('w/ Flanged Lid' version). The overall length across the flange is 138.00 mm [5.433 in].
What are the inside dimensions?▾
Inside length 106.47 mm [4.192 in], inside width 54.97 mm [2.164 in], inside height 38.00 mm [1.496 in].
Is the 1590BSFL water-tight?▾
It is designed to meet IP54. The water-tight 1590WBSFL, or this enclosure with the 1590BGASKET kit and lid screws torqued to 25-30 cN.m, is designed to meet IP65.
How many screws hold the lid?▾
Four 6-32 UNC cover screws, included, threaded into factory-tapped holes.
Is it available in black?▾

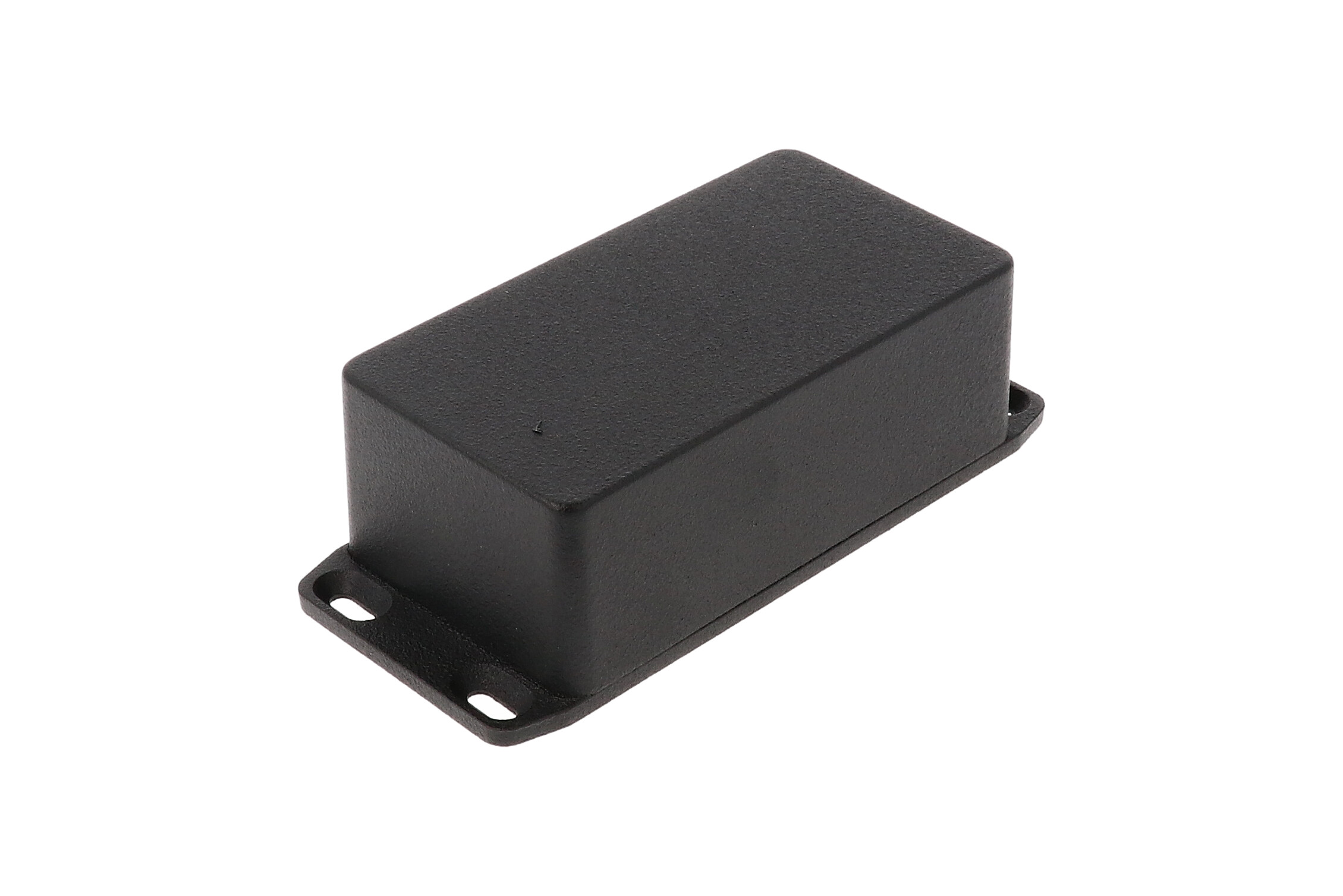

Yes, the black textured version is 1590BSFLBK.
