Hammond 1583T8A1BK 1U 8-Outlet Rear-Facing 15A Rack Power Strip
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight rear-facing NEMA 5-15R outlets for power distribution from the back of the rack; no front outlets
- 1U horizontal 19-inch rack mount format: 1.72 in H x 19.00 in W x 2.66 in D
- Red power indicator light version (no on/off switch) keeps connected loads energized
- Built-in resettable 15 Amp, 125 VAC circuit breaker prevents accidental overload
- 6 ft heavy-duty 14/3 SJT cord with integral moulded NEMA 5-15P straight blade plug
- Black painted steel front and back; powder coat complies with Greenguard indoor air quality guidelines
- CSA Certified C22.2 No. 21-95 & 42-99, UL Recognized UL1363, UL File E166039
- TAA-compliant, USMCA compliant, RoHS and REACH compliant, made in North America

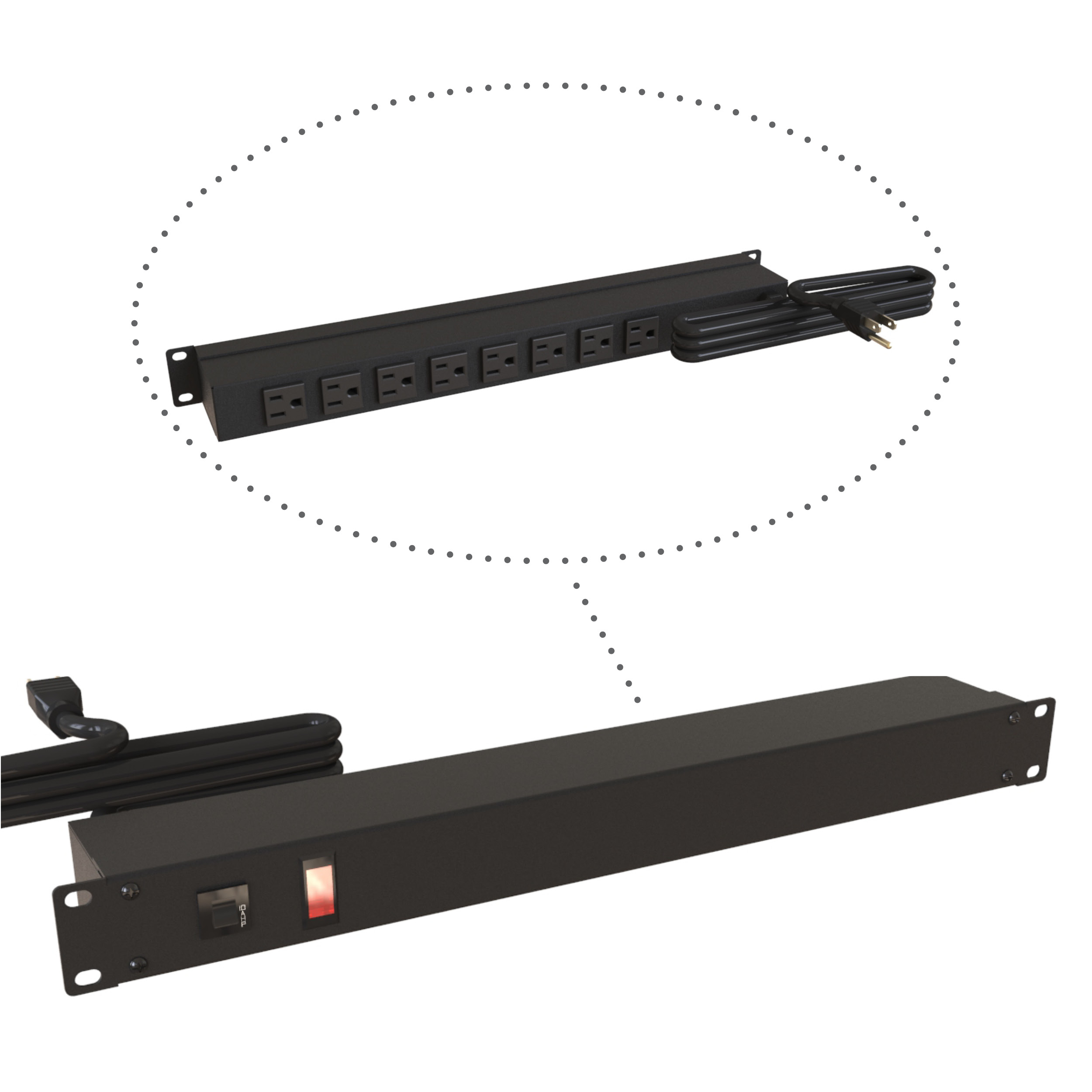

The 1583T8A1BK is a 1U, 19-inch rack mount basic PDU that distributes single-phase 125 VAC power to eight rear-facing NEMA 5-15R outlets. It is built for IT and AV integrators, electricians, OEM engineers and facilities teams who need straightforward, hard-wearing power distribution behind servers, switches, amplifiers and control gear in a standard equipment rack.
This version uses a red power indicator (pilot) light rather than an illuminated on/off rocker switch, so connected loads stay live and there is no switch to be knocked accidentally. A resettable 15 Amp, 125 VAC circuit breaker is built in to guard against accidental overload. Power is supplied by a heavy-duty 14 gauge, 14/3 SJT cord rated for extreme temperature ranges, 6 ft long with an integral moulded NEMA 5-15P straight blade plug. The cord on this model is unshielded, and the unit is not surge protected, metered, or fitted with rotated outlets.
Construction is painted steel front and back, finished in black. Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, occupying a single rack unit in a 19-inch rack, cabinet or relay rack. Shipping weight is 3.5 lbs (1.59 kg).
- 8 rear outlets, 0 front outlets
- Rated 125 VAC, 60 Hz, 15 Amps
- CSA Certified to C22.2 No. 21-95 and 42-99; UL Recognized to UL1363 (UL File E166039)
1583T8A1BK is RoHS and REACH compliant, USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America. The powder coat finish complies with Greenguard guidelines for indoor air quality.
Ideal For
- Rear-of-rack power distribution in 19-inch server and network cabinets
- AV and broadcast equipment racks needing eight 5-15R outlets in 1U
- Telecom and structured cabling relay racks
- Federal GSA schedule projects requiring TAA-compliant power strips
- Lab, test bench and OEM equipment racks running 120 VAC gear
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Part Number | 1583T8A1BK |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 8XREAR 5-15R RACK OUTLET STRIP |
Dimensions
| Depth | 2.66 in (68 mm) / 67.58 mm [2.661 in] per drawing |
| Width | 19.00 in (483 mm) / 482.60 mm [19.000 in] per drawing |
| Height | 1.72 in (44 mm) / 43.64 mm [1.718 in] per drawing |
Electrical
| Phase | Single-phase |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | No Switch. Power Indicator Light |
| Cord Included | Yes |
| Rated Current | 15 Amps |
| Rated Voltage | 120 VAC (drawing: 125 VAC, 60 Hz) |
| Shielded Cord | No |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 8 |
| Circuit Breaker | Resettable 15 Amp, 125 VAC circuit breaker |
| Outlets (Front) | 0 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Surge Protection | No |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type with integral moulded plug |
| Metered (Ammeter) | No |
Identifiers
| UPC | 623980997599 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980997599 |
| Tariff Code | 8537.10.9170 |
| Country Of Origin | CA (Manufactured in North America) |
Rack Mounting
| Rack Units | 1U horizontal rackmount installation |
| Rack Width | 19 inch |
Packaging & Shipping
| Shipping Weight | 3.5 lbs (1.59 kg) |
Construction & Finish
| Color | Black |
| Material / Finish - Back | Black painted steel |
| Material / Finish - Front | Black painted steel |
Environmental & Protection
| Indoor Air Quality | Powder coat finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Series Recognition | UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Approvals (Drawing) | CSA Certified Standards C22.2 (No. 21-95, 42-99); UL Recognized Standard UL1363 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1583T8A1BK have an on/off switch?▾
No. This is the pilot light version: it has a red power indicator light instead of an illuminated on/off rocker switch. The switched equivalent in the same configuration is 1583H8A1BK.
Where are the outlets located?▾
All eight NEMA 5-15R outlets face the rear of the unit; there are no front outlets. The design is intended for power distribution from the rear of the rack.
Is this unit surge protected or metered?▾
No. The 1583T8A1BK has no surge protection, no ammeter and no shielded cord. It does include a resettable 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
What cord and plug are supplied?▾
A 6 ft heavy-duty 14 gauge 14/3 SJT cord with an integral moulded NEMA 5-15P straight blade plug is included.
How much rack space does it take?▾
It is a 1U horizontal 19-inch rackmount unit measuring 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep.
Is this part suitable for US federal GSA purchases?▾
Yes. The 1583 Series is TAA-compliant for federal GSA schedule purchases within the USA, and this part is also RoHS, REACH and USMCA compliant.
