Hammond 1583H8B1BKV 1U 8-Outlet Rack PDU, 15 ft Shielded Cord
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight rear-facing NEMA 5-15R outlets (0 front, 8 rear) for power distribution from the back of the rack
- 15 ft shielded cord with 100% aluminum foil coverage and 20 gauge drain wire to reduce EMI/RFI and "dirty" power
- Rated 125 VAC, 60 Hz, 15 Amps with integral moulded NEMA 5-15P straight-blade plug
- Lighted on/off rocker power switch plus resettable 15 Amp, 125 VAC circuit breaker
- 1U horizontal 19" rack mount format: 1.72 x 19.00 x 2.66 in (44 x 483 x 68 mm)
- Heavy-duty 14 gauge 14/3 SJT cord rated for extreme temperature ranges
- Black painted steel front and back, RAL9005 textured powder coat meeting Greenguard indoor air quality guidelines
- cURus Recognized to UL1363 and C22.2 No. 308-14; TAA, USMCA, RoHS and REACH compliant

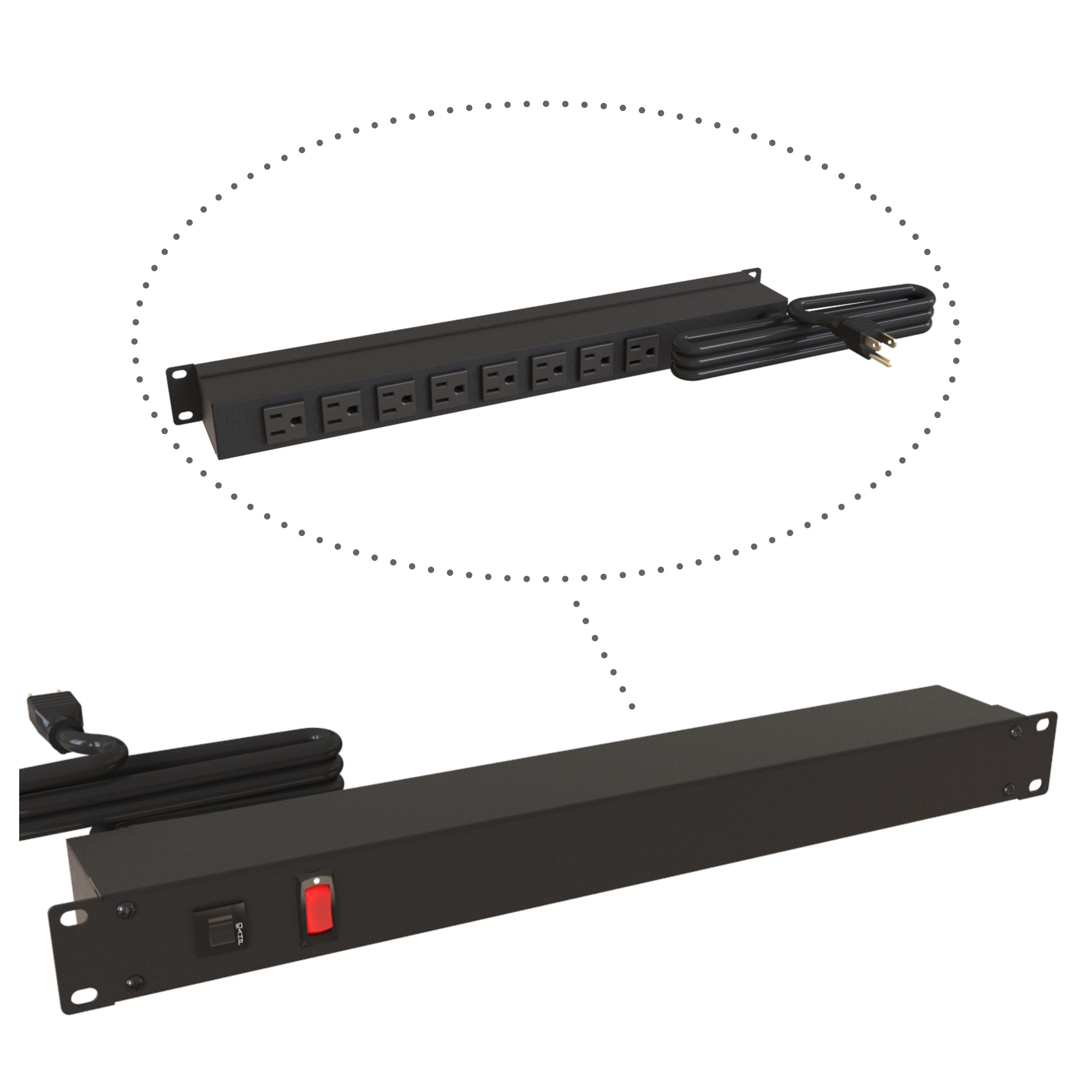

The 1583H8B1BKV is a 1U horizontal 19-inch rack mount basic PDU (power bar) rated 125 VAC, 60 Hz, 15 Amps, built for IT, AV, broadcast and industrial cabinets where equipment is powered from the rear of the rack. All eight NEMA 5-15R outlets face the rear (0 front, 8 rear), and the unit ships with a 15 ft shielded cord terminated in an integral moulded NEMA 5-15P straight-blade plug.
The shielded cord is the distinguishing feature of this version: 100% aluminum mylar foil coverage with a 20 gauge drain wire, which reduces EMI/RFI and "dirty" power from utilities. The cord is heavy-duty 14 gauge, 14/3 SJT type for extreme temperature ranges. A lighted on/off rocker power switch and a resettable 15 Amp, 125 VAC circuit breaker are built into the front face to guard against accidental overload. This part is not surge protected, not metered, not hospital grade, and does not use rotated outlets.
Construction is painted steel front and back, finished in textured black (RAL9005 powder coat), which complies with Greenguard guidelines for indoor air quality. Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, with 17.500 in (444.50 mm) between mounting hole centres, and shipping weight is 4.5 lbs (2.04 kg).
Compliance is broad: the 1583H8B1BKV is cURus Recognized to Standard UL1363 and CSA C22.2 No. 308-14 (UL File # E166039), TAA-compliant for federal GSA schedule purchases within the USA, USMCA compliant, RoHS and REACH compliant, and manufactured in North America.
Ideal For
- Rear-of-rack power distribution in server and network cabinets
- 1U horizontal 19" rack mount power strip for AV and broadcast racks
- Powering sensitive equipment where EMI/RFI on the supply cord is a concern
- Federal GSA schedule and TAA-compliant procurement projects
- Switched 15A branch distribution in equipment and control racks
Overview
| Colour | Black |
| Series | 1583 Series Rack Mount Basic PDU |
| Part Number | 1583H8B1BKV |
| Long Description | 15A 8 Outlet Strip w/ switch, 15 ft. shielded cord - Outlets Rear - Black |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RM PBAR, 15' SHIELDED CORD |
Dimensions
| Weight | 4.5 lbs (2.04 kg) |
| Overall Depth | 2.66 in (68 mm) / 67.58 mm [2.661 in] |
| Overall Width | 19.00 in (483 mm) / 482.60 mm [19.000 in] |
| Overall Height | 1.72 in (44 mm) / 43.64 mm [1.718 in] |
Electrical
| Cord Type | Heavy-duty 14 gauge wire, 14/3 SJT type, integral moulded plug |
| Plug Type | NEMA 5-15P |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | Lighted on/off rocker switch |
| Cord Included | Yes |
| Rated Current | 15 Amps |
| Rated Voltage | 120 VAC (drawing: 125 VAC, 60 Hz) |
| Shielded Cord | Yes - 100% aluminum mylar foil coverage with 20 gauge drain wire |
| Total Outlets | 8 |
| Hospital Grade | No |
| Outlets (Rear) | 8 |
| Outlets (Front) | 0 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Surge Protection | No |
| Metered / Amp Meter | No |
| Overcurrent Protection | Resettable 15 Amp, 125 VAC circuit breaker |
Identifiers
| UPC | 623980505992 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980505992 |
| UPC W/o Check Digit | 62398050599 |
Rack Mounting
| Rack Units | 1U horizontal |
| Rack Width | 19 in |
| Mounting Hole Centres | 444.50 mm [17.500 in] |
| Mounting Flange Slot Pitch Reference | 461.98 mm [18.188 in] |
Packaging & Shipping
| Tariff Code | 8537.10.9170 |
| Shipping Weight | 4.5 lbs (2.04 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Paint Colour | RAL9005 black powder coat (textured black) |
| Material / Finish - Back | Black painted steel |
| Material / Finish - Front | Black painted steel |
Environmental & Protection
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Approvals | cURus Recognized Standard UL1363, C22.2 No. 308-14 |
| UL File # | E166039 |
| TAA Compliant | Yes - for federal GSA schedule purchases within the USA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Standards Listing | cRUus, TAA-compliant |
| Additional Standards Referenced | CSA C22.2 No. 0.4-04 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many outlets does the 1583H8B1BKV have and which way do they face?▾
It has eight NEMA 5-15R outlets, all facing the rear of the unit (0 front, 8 rear), so it is designed for power distribution from the rear of the rack.
What does the shielded cord do?▾
The shielded cord reduces EMI/RFI and "dirty" power from utilities. Shielding is 100% coverage in aluminum mylar foil with a 20 gauge drain wire. The cord is 15 ft long, heavy-duty 14 gauge 14/3 SJT type with an integral moulded NEMA 5-15P plug.
Is this PDU surge protected or metered?▾
No. The 1583H8B1BKV is a basic PDU: surge protection is listed as No and metering is listed as No. It does include a resettable 15 Amp, 125 VAC circuit breaker and a lighted on/off rocker switch.
How much rack space does it take and what are the dimensions?▾
It installs in 1U of a horizontal 19" rack. Overall dimensions are 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep, with mounting hole centres 17.500 in (444.50 mm) apart.
Is the 1583H8B1BKV TAA compliant?▾
Yes. It is TAA-compliant for federal GSA schedule purchases within the USA, is USMCA compliant, and is manufactured in North America (country of origin CA).
What approvals does it carry?▾
It is cURus Recognized to Standard UL1363 and C22.2 No. 308-14 under UL File # E166039, and it is RoHS and REACH compliant.
