Hammond 1583H6B1S 1U 6-Outlet Surge Protected Rack PDU, 15A
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U horizontal 19" rackmount PDU with six rear-facing 5-15R outlets for power distribution behind rack equipment
- Rated 15 A, 125 VAC, 60 Hz with resettable 15 A circuit breaker to prevent accidental overload
- Integral 15 ft 14/3 SJT heavy-duty cord with moulded NEMA 5-15P straight blade plug
- Surge protected: 1080 J max energy, 500 V VPR in all three modes, 5 kA nominal discharge current
- Illuminated on/off rocker switch plus green surge-active indicator light
- ASA 61 grey powder coated steel, compliant with Greenguard indoor air quality guidelines
- cURus recognized to UL 1449 & C22.2 No. 269.3-17; UL file E166039; RoHS and REACH compliant
- TAA-compliant and USMCA compliant, manufactured in North America
The 1583H6B1S is a 1U horizontal 19-inch rack mount basic PDU with six rear-facing NEMA 5-15R outlets, rated 15 A at 125 VAC, 60 Hz. It is built for IT, AV and industrial installations that need clean power distribution from the rear of a rack or cabinet, where equipment cords plug in behind the gear rather than across the front.

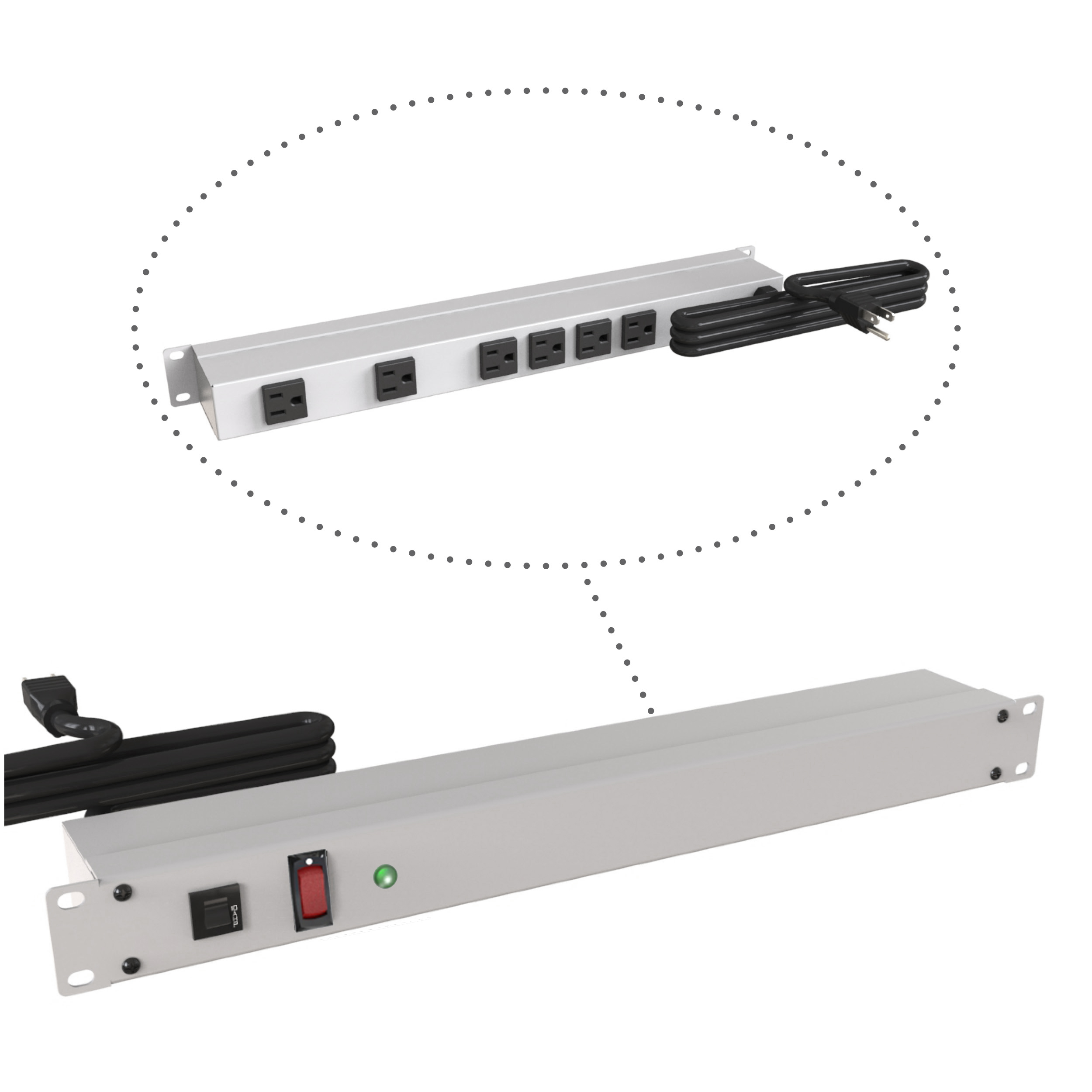

The chassis measures 19.000 in (482.60 mm) wide, 1.718 in (43.64 mm) high and 2.661 in (67.58 mm) deep, and is finished front and back in ASA 61 grey painted steel. Shipping weight is 4.5 lbs (2.04 kg). All six outlets are on the rear; there are no front outlets and the outlets are not rotated. A lighted on/off rocker switch and resettable 15 A, 125 VAC circuit breaker are on the front panel, along with a surge indicator light.
1583H6B1S includes an integral 15 ft, heavy-duty 14/3 SJT cord with moulded NEMA 5-15P straight blade plug, rated for extreme temperature ranges. The cord is unshielded and the unit is not metered.
Surge protection is built in: 1080 J maximum energy, 25000 A-rated MOVs for 75,000 amps of single pulse transient current, a 500 V Voltage Protection Rating in all three modes (L-N, L-G, N-G) and a 5 kA nominal discharge current. The green indicator confirms the surge module is active; at the end of the module's useful life internal protection disconnects it and extinguishes the light while maintaining power to the load, now unprotected.
The unit is cURus recognized to UL 1449 and C22.2 No. 269.3-17, with UL file E166039, and the series is UL/cUL recognized to UL 1363 and CSA C22.2 No. 308-14 and No. 0.4-04. It is RoHS and REACH compliant, USMCA and TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America.
Ideal For
- Rear-of-rack power distribution in server and network cabinets
- 1U 19-inch rack and relay rack power strip installations
- Surge-protected power for AV and broadcast rack equipment
- Federal GSA schedule and TAA-compliant procurement projects
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Rack Space | 1U horizontal 19" rackmount installation |
| Description | 19" Rack Mount, 6 Rec on Rear |
| Part Number | 1583H6B1S |
| Outlet Strip Type | 1U 19in Rack Mount |
Dimensions
| Overall Depth | 2.661 in (67.58 mm) / 2.66 in (68 mm) |
| Overall Width | 19.000 in (482.60 mm) |
| Overall Height | 1.718 in (43.64 mm) / 1.72 in (44 mm) |
Electrical
| Metered | No |
| Plug Type | NEMA 5-15P |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Switch Type | On/Off Rocker Switch (illuminated) |
| Cord Included | Yes |
| Rated Current | 15 A |
| Rated Voltage | 120 VAC |
| Shielded Cord | No |
| Total Outlets | 6 |
| Hospital Grade | No |
| Outlets (Rear) | 6 |
| Outlets (Front) | 0 |
| Plug Blade Type | Straight |
| Rotated Outlets | No |
| Rating (Drawing) | 125 VAC, 60 Hz, 15 Amps |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type for extreme temperature ranges, integral moulded plug |
Identifiers
| UNSPSC | 39121710 |
| GTIN-14 | 00623980535814 |
| UPC (With Check Digit) | 623980535814 |
| UPC (Without Check Digit) | 62398053581 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 4.5 lbs (2.04 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Color | Gray |
| Material | Painted steel |
| Finish - Back | ASA 61 Grey Painted Steel |
| Finish - Front | ASA 61 Grey Painted Steel |
| Indoor Air Quality | Complies with Greenguard guidelines |
Environmental & Protection
| Surge Protection | Yes |
| Surge Max. Energy | 1080 Joules |
| Transient Current | 25000 Amp-rated MOVs for 75,000 Amps single pulse transient current |
| Surge Status Indicator | Green indicator light confirms surge module is active; internal protection disconnects module at end of life and extinguishes light while maintaining unprotected power to the load |
| Nominal Discharge Current (In) | 5 kA |
| Voltage Protection Rating (Vpr) | 500 V in all three modes (L-N, L-G, N-G) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | cRUus, TAA-compliant |
| UL File # | E166039 |
| RoHS Compliant | Yes |
| TAA Compliance | TAA-compliant for federal GSA schedule purchases within the USA |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Series Recognition | UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Approvals (Drawing) | cURus Recognized to UL 1449 & C22.2 No. 269.3-17 |
| Surge Device Recognition | cRUus recognized to UL 1449 & C22.2 No. 269.3-17 & No. 269.4-17 for Surge Protective Devices – Type 3 & Type 4 |
| Relocatable Power Tap Recognition | cRUus recognized to UL 1363 & C22.2 No. 308-18 for Relocatable Power Taps & Multi Outlet Assemblies |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Are the outlets on the front or the rear of 1583H6B1S?▾
All six 5-15R outlets are on the rear of the unit (0 front, 6 rear). It is designed for power distribution from the rear of the rack, with the lighted on/off rocker switch, resettable circuit breaker and surge indicator on the front panel.
Does this PDU include surge protection?▾
Yes. 1583H6B1S is surge protected with 1080 Joules maximum energy, 25000 Amp-rated MOVs for 75,000 Amps of single pulse transient current, a 500 V Voltage Protection Rating in all three modes (L-N, L-G, N-G) and a 5 kA nominal discharge current. A green light confirms the surge module is active.
What cord and plug come with it?▾
It includes an integral 15 ft heavy-duty 14 gauge 14/3 SJT cord with a moulded NEMA 5-15P straight blade plug, rated for extreme temperature ranges.
How much rack space does it take and what are the dimensions?▾
It is a 1U horizontal 19-inch rackmount unit measuring 19.000 in (482.60 mm) wide, 1.718 in (43.64 mm) high and 2.661 in (67.58 mm) deep.
Is this unit metered or does it have a shielded cord?▾
No. 1583H6B1S is a basic PDU: it is not amp metered and the cord is not shielded. Other part numbers in the 1583 Series offer ammeter and shielded cord options.
Is 1583H6B1S suitable for GSA schedule purchases?▾
Yes. The series is TAA-compliant for federal GSA schedule purchases within the USA, and this part is also USMCA, RoHS and REACH compliant with a country of origin of CA.
