Hammond 1554WA2GY 180x180x90mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 180 x 180 x 90 mm body with 83.70 mm inside height
- UV stabilized light gray RAL 7035 polycarbonate, UL94 5VA
- cUL and UL 508A listed, E65324; UL Listed Type 4, 4X, 6, 6P mark
- Tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13
- Inside 171.32 x 168.38 x 83.70 mm; PC boards to 167 x 167.5 mm
- Four stainless M4 self-captivating lid screws, 43-57 ozf-in torque
- IK08 impact rating, -40°C to +110°C operating temperature

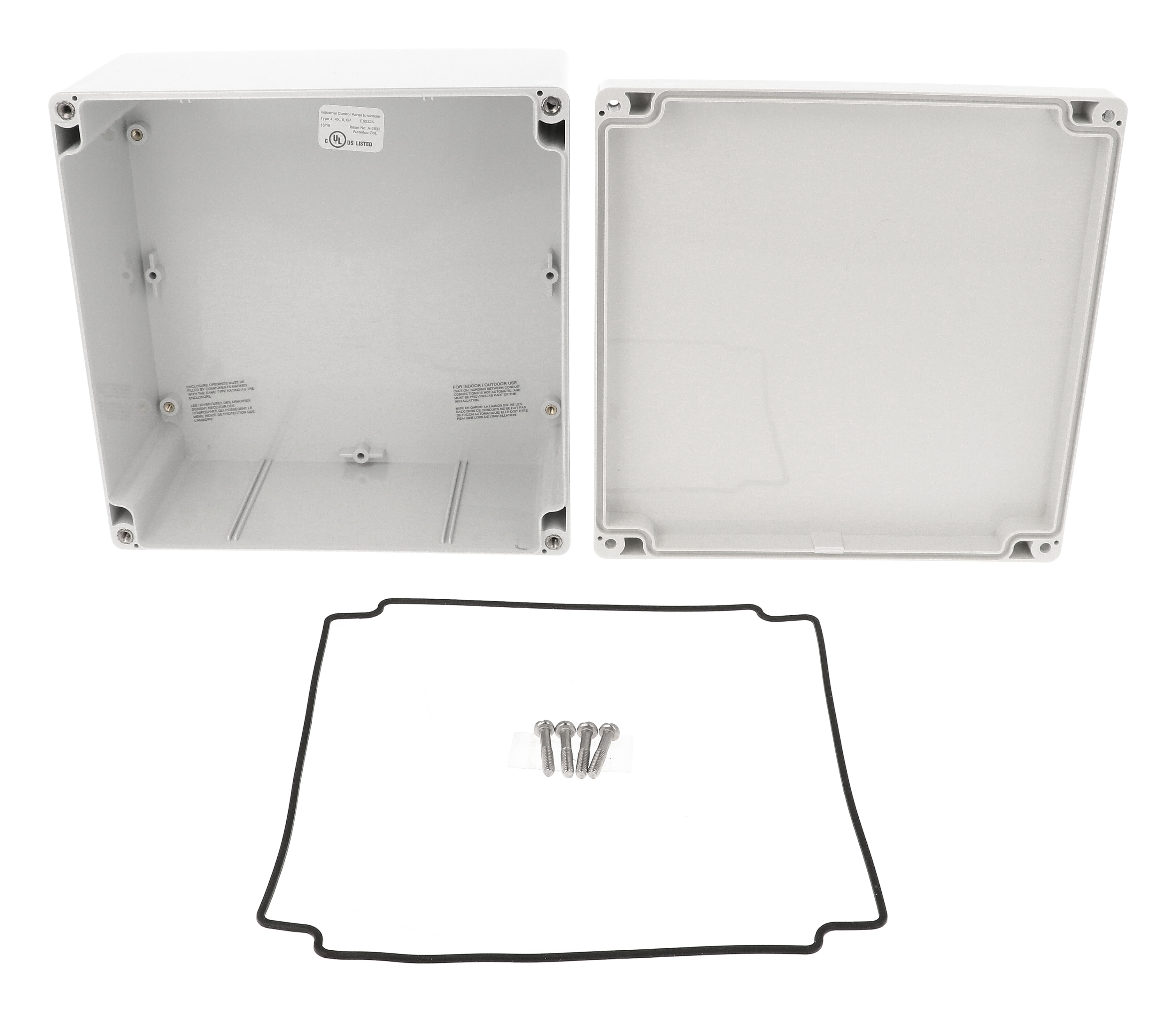

The 1554WA2GY is the taller, 90 mm version of the square 180 x 180 mm size, molded from UV stabilized light gray (RAL 7035) polycarbonate with a gray polycarbonate lid. The added height gives integrators and OEM engineers room for taller DIN rail devices or PC board components in outdoor installations.
The ordering table lists 7.09 x 7.09 x 3.54 in (180 x 180 x 90 mm); the part page nominal size is 7.1 x 7.1 x 3.54 in, and the drawing shows 90.10 mm [3.55 in] overall height. Inside dimensions are 171.32 x 168.38 x 83.70 mm. PC boards up to 167 x 167.5 mm fit on molded card guides for 1.5 mm boards, M3 brass inserts or #6 self-tapping standoffs, and DIN rail tabs are molded in. The 1554WPL steel inner panel is ordered separately.
This gray polycarbonate model is rated UL94 5VA and is cUL and UL 508A listed under E65324, with the UL Listed Type 4, 4X, 6, 6P mark on its drawing. Series testing covers IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. Impact rating is IK08 per IEC 62262:2021, and the recommended operating range is -40°C to +110°C (-40°F to +230°F).
Four included stainless steel M4 screws, self-captivating in corrosion resistant inserts, close the tongue and groove lid at 43-57 ozf-in (30-40 cN-m); replacements are SC576-50. The silicone gasket (1554WGASKET) ships loose. Four 4.30 mm mounting holes outside the gasket channel also take the 1554FT foot kit. The 1554WA2GY ships shrink wrapped at 1.12 lbs (0.51 kg), RoHS and REACH compliant.
Ideal For
- Outdoor DIN rail component assemblies
- Square PC board housings needing extra height
- UL 508A industrial control panels
- Washdown-area electronics requiring NEMA 4X
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / gray polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 180X180X90MM POLYCARB NEMA ENC |
Dimensions
| Width | 7.09 in (180 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 168.38 mm [6.63 in] |
| Total Height | 3.54 in (90 mm) |
| Inside Height | 83.70 mm [3.30 in] |
| Inside Length | 171.32 mm [6.74 in] |
| Max. P.C. Board Width | 167.5 mm |
| Max. P.C. Board Length | 167 mm |
| Nominal Size (L X W X H) | 7.1 in x 7.1 in x 3.54 in (180 mm x 180 mm x 90 mm) |
| Overall Height (Drawing) | 90.10 mm [3.55 in] |
Identifiers
| UPC | 623980762050 |
| UNSPSC | 39121301 |
| Part Number | 1554WA2GY |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 4 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554WGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554WAGY |
| Polycarbonate Clear Lid Version | 1554WA2GYCL |
| Polycarbonate Smoked Lid Version | 1554WA2GYSL |
Construction & Finish
| Color | Light Gray |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Flame Rating | UL94 5VA |
| UV Stabilized | Yes, for outdoor use |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Material Flammability (Drawing) | Polycarbonate: UL94 - 5VA @ 3 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and incompatible greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listed Mark (Drawing) | c UL US Listed, Type 4, 4X, 6, 6P |
Mounting & Internal Features
| Standoffs | Accept #6 self-tapping screws for PC board or inner panel mounting |
| Inner Panel | 1554WPL steel inner panel (order separately) |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | Threaded M3 integral brass inserts (inside box) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in], located outside of the gasket channel |
| Foot Kit (Accessory) | 1554FT, installs using the wall mounting holes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1554WA2GY differ from the 1554W2GY?▾
Both are 180 x 180 mm square polycarbonate enclosures with four lid screws; the 1554WA2GY is 90 mm tall with 83.70 mm inside height, versus 60 mm tall for the 1554W2GY.
What are the inside dimensions?▾
Inside length 171.32 mm [6.74 in], inside width 168.38 mm [6.63 in], inside height 83.70 mm [3.30 in].
Which inner panel and gasket fit?▾
The 1554WPL steel inner panel and 1554WGASKET replacement gasket.
What ratings does it carry?▾
UL94 5VA flame rating, cUL and UL 508A listing under E65324, IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 testing, and IK08 impact.
What does it weigh?▾
The shipping weight is 1.12 lbs (0.51 kg).
