Hammond 1554VB2GY 240x160x120mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Deep 120 mm body with 113.30 mm inside height for taller components
- UV stabilized light gray RAL 7035 polycarbonate, UL94 5VA
- cUL and UL 508A listed, file E65324; UL Listed Type 4, 4X, 6, 6P mark
- Tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13
- Inside 230.24 x 146.24 x 113.30 mm; PC boards to 145.5 x 226.82 mm
- Six stainless steel M4 self-captivating lid screws included
- IK08 impact rating, -40°C to +110°C operating temperature

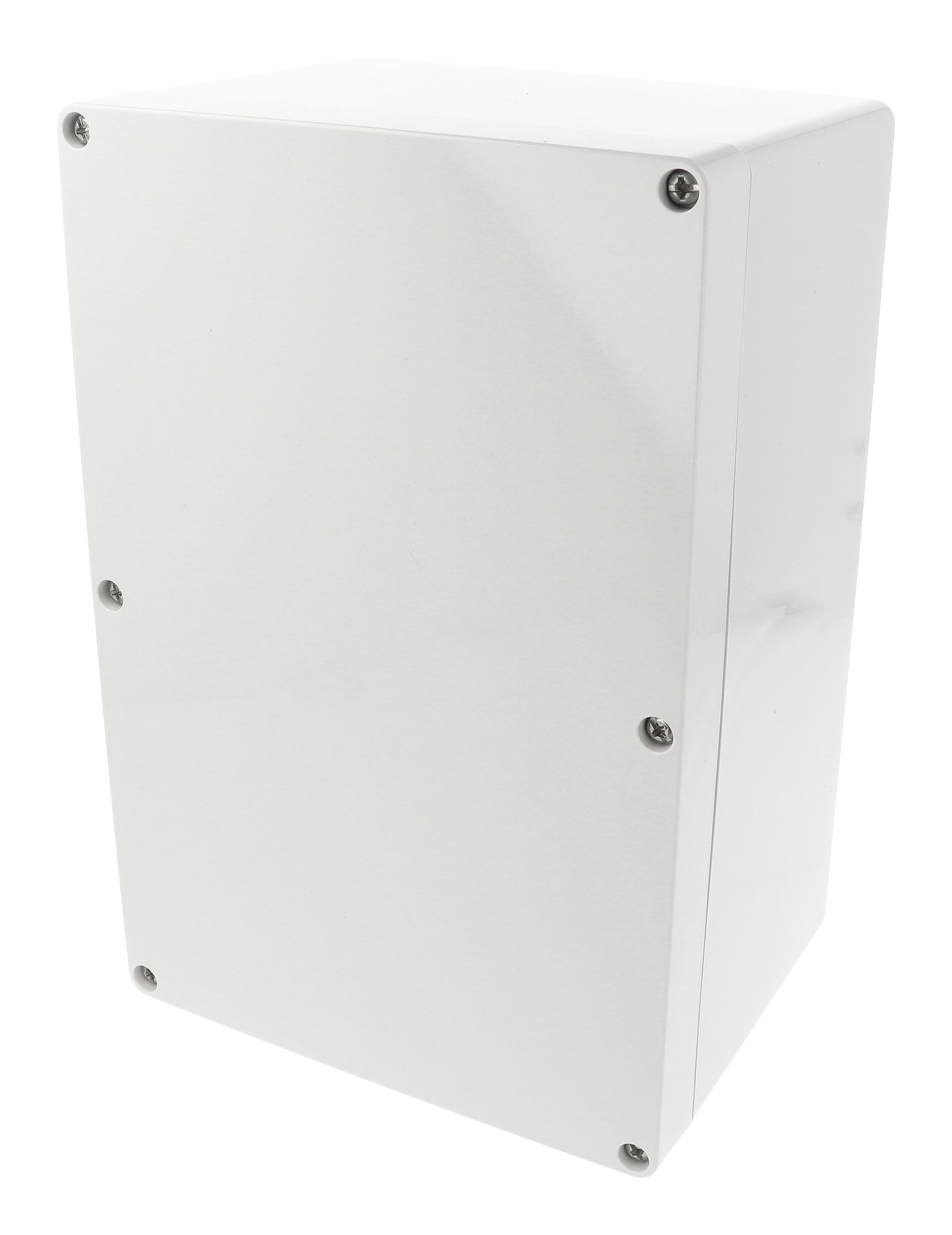

The 1554VB2GY is the deep, 120 mm tall version of the 240 x 160 mm footprint in this series, molded from UV stabilized light gray (RAL 7035) polycarbonate with a gray polycarbonate lid. The extra depth suits integrators and OEM engineers mounting taller DIN rail devices or stacked PC board assemblies outdoors.
The ordering table lists 9.45 x 6.30 x 4.72 in (240 x 160 x 120 mm), while the part page gives a nominal 239 x 160 x 119 mm (9.4 x 6.3 x 4.7 in). Inside, the drawing shows 230.24 x 146.24 x 113.30 mm. Maximum PC board size is 145.5 x 226.82 mm, and the interior has molded DIN rail tabs, 1.5 mm card guides, M3 brass inserts and #6 self-tapping standoffs.
Gray polycarbonate is rated UL94 5VA. The 1554VB2GY is cUL and UL 508A listed under E65324 and the drawing carries the UL Listed Type 4, 4X, 6, 6P mark; series testing covers IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. It is IK08 impact rated with a recommended operating range of -40°C to +110°C (-40°F to +230°F).
Six included stainless steel M4 screws, self-captivating in corrosion resistant inserts, close the tongue and groove lid at 71-85 ozf-in (50-60 cN-m) onto a replaceable silicone gasket shipped loose. Four 4.50 mm wall mounting holes outside the gasket channel also take the 1554FT foot kit. Accessories include the 1554VAPL inner panel, 1591MM100 M3 panel screws and 1598ATS100 self-tapping screws. Shipping weight is 1.34 lbs (0.61 kg), shrink wrapped, RoHS and REACH compliant.
Ideal For
- Outdoor DIN rail control assemblies
- Deep PC board housings
- UL 508A listed industrial control panels
- Washdown-area electronics requiring NEMA 4X
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / gray polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 240X160X120MM PC NEMA ENCL |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 9.45 in (240 mm) |
| Inside Width | 146.24 mm [5.76 in] |
| Total Height | 4.72 in (120 mm) |
| Inside Height | 113.30 mm [4.46 in] |
| Inside Length | 230.24 mm [9.06 in] |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 4.7 in (239 mm x 160 mm x 119 mm) |
| Overall Height (Drawing) | 120.00 mm [4.72 in] |
Identifiers
| UPC | 623980401454 |
| UNSPSC | 39121301 |
| Part Number | 1554VB2GY |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 6 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC583-50 (stainless steel, M4-0.7 x 25 mm, pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping

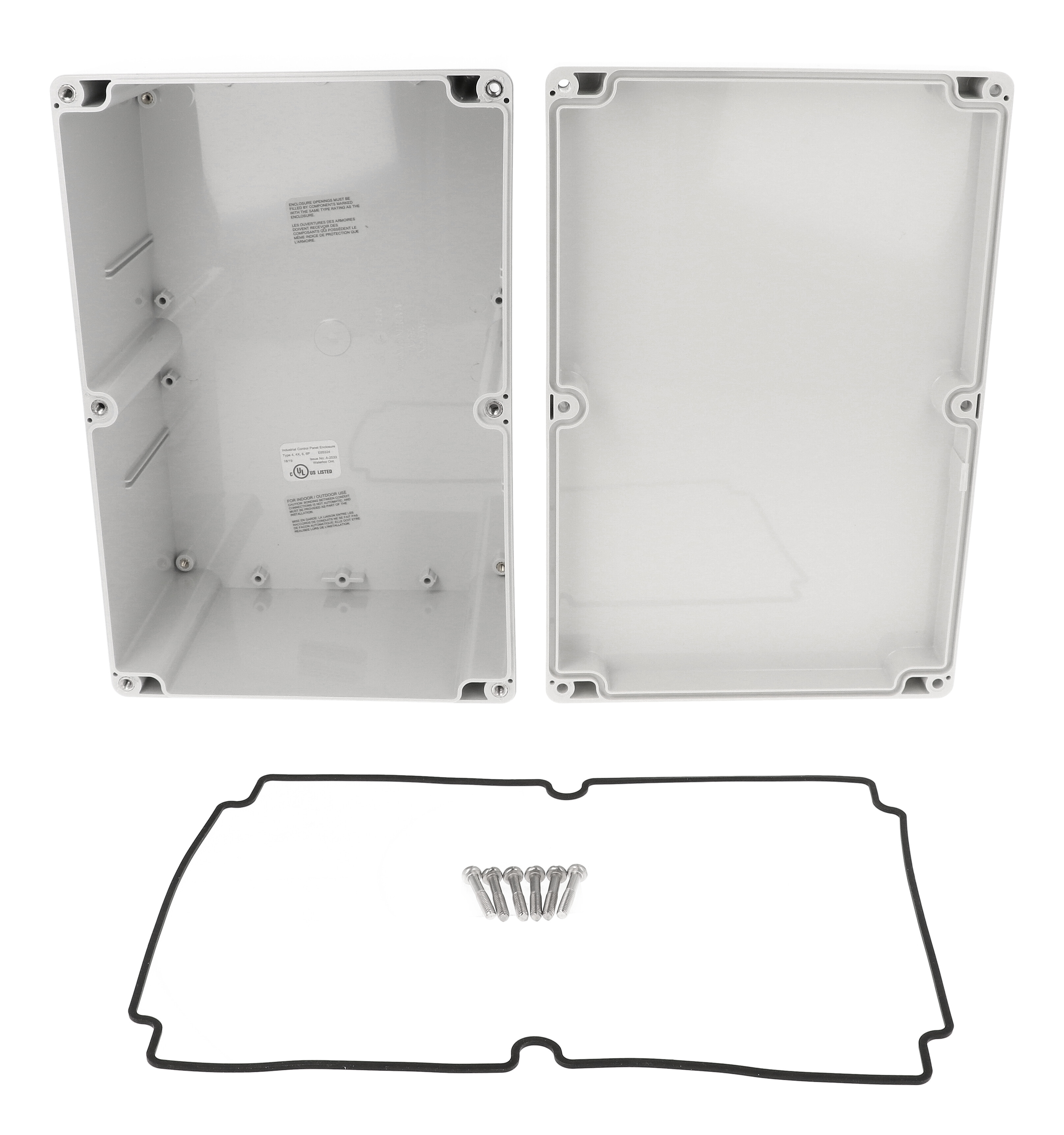

| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.34 lbs (0.61 kg) |
Related Part Numbers
| ABS Gray Lid Version | 1554VBGY |
| Polycarbonate Clear Lid Version | 1554VB2GYCL |
| Polycarbonate Smoked Lid Version | 1554VB2GYSL |
Construction & Finish
| Color | Light Gray |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Flame Rating | UL94 5VA |
| UV Stabilized | Yes, for outdoor use |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Material Flammability (Drawing) | Polycarbonate: UL94 - 5VA @ 3 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and incompatible greases and oils |
| IP Ratings (Series Testing) | IP66, IP67 and IP68 (independently tested) |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listed Mark (Drawing) | c UL US Listed, Type 4, 4X, 6, 6P |
Mounting & Internal Features
| Standoffs | Accept #6 self-tapping screws for PC board or inner panel mounting |
| Inner Panel | 1554VAPL steel inner panel (order separately) |
| PC Card Guides | Vertical PC card guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | Threaded M3 integral brass inserts (inside box) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4 x 4.50 mm [0.18 in], located outside of the gasket channel |
| Foot Kit (Accessory) | 1554FT, installs using the wall mounting holes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between the 1554VB2GY and 1554VAL2GY?▾
Both share the 240 x 160 mm footprint and 6 lid screws, but the 1554VB2GY has a 120 mm total height (113.30 mm inside) versus 60 mm for the VAL size.
What are the inside dimensions?▾
Per the drawing: inside length 230.24 mm [9.06 in], inside width 146.24 mm [5.76 in], inside height 113.30 mm [4.46 in].
Is it rated for outdoor and washdown use?▾
Polycarbonate versions are UV stabilized for outdoor use and tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
Which inner panel fits?▾
The 1554VAPL steel inner panel, ordered separately. It can be fixed with 1591MM100 M3 screws or 1598ATS100 #6 self-tapping screws.
What torque should the lid screws get?▾
The recommended cover screw torque is 71-85 ozf-in (50-60 cN-m).
Related Products
Save 52%1554VAPL — 1554VA/VB Inner Panel
Hammond Manufacturing · 1554VAPL
Save 52%1554VB2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554VB2GYCL

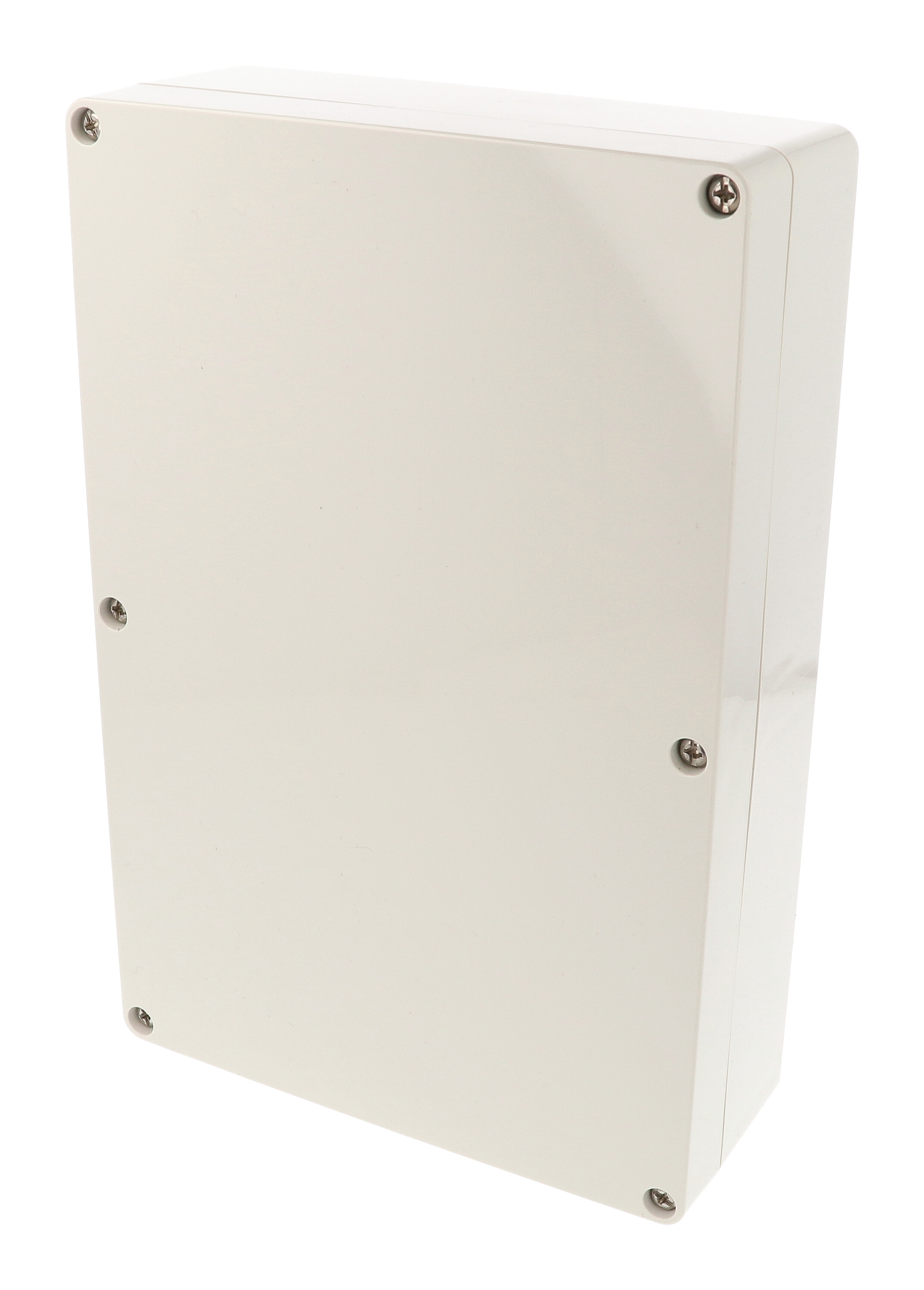

Save 52%1554VALGY — RAL7035 grey ABS plastic watertight enclosure
