Hammond 1554QA2GY 140mm Square, 90mm Gray Polycarbonate NEMA 4X Box
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 140 x 140 x 90 mm (5.51 x 5.51 x 3.54 in) solid gray polycarbonate box and lid
- cUL and UL 508A listed, file E65324; UL94 5VA flame rating
- IP68 rated; tested to NEMA Type 4, 4X, 6, 6P, 12 and 13
- UV stabilized for outdoor use; -40°C to +110°C recommended
- IK08 impact rating per IEC 62262:2021
- 83.70 mm inside height; PC boards up to 127 x 119 mm
- DIN rail tabs, M3 brass inserts and card guides molded in
- 4 M4 stainless steel lid screws and silicone gasket included

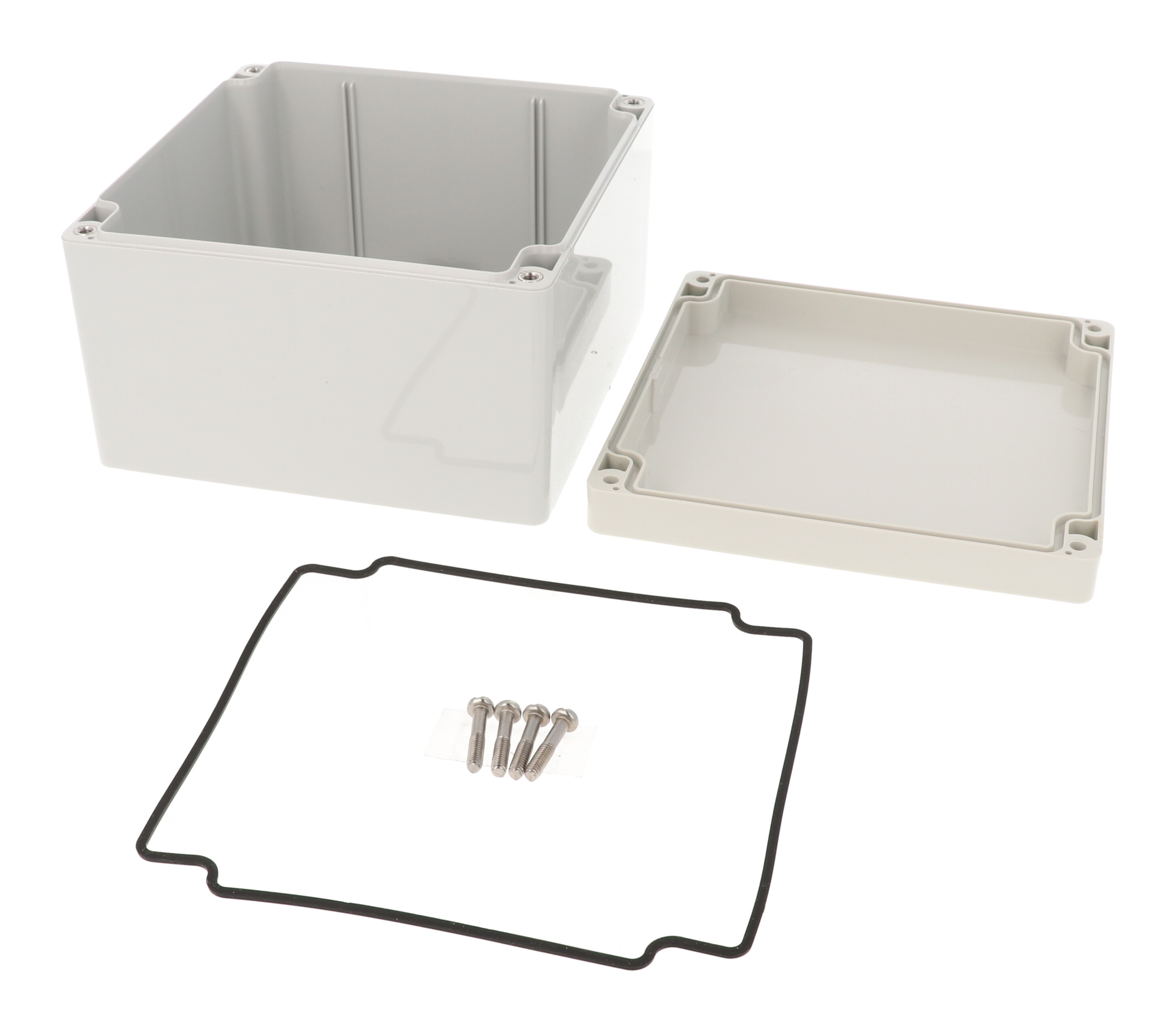

The 1554QA2GY is a solid gray polycarbonate enclosure measuring 5.51 x 5.51 x 3.54 in (140 x 140 x 90 mm), with both box and lid in light gray RAL 7035. It is aimed at electricians, integrators and OEM designers who need a deeper, fully sealed housing for control electronics or DIN rail devices that may be installed outdoors or in washdown areas.
The solid gray polycarbonate carries a UL94 5VA flame rating and the enclosure is cUL and UL 508A listed under file E65324. It is UV stabilized for outdoor use, rated IP68, and polycarbonate versions have been independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The impact rating is IK08 per IEC 62262:2021 and recommended operating temperature is -40°C to +110°C.
- Inside dimensions per the drawing: 131.32 x 128.38 mm, 83.70 mm high
- Maximum PC board: 127 x 119 mm
- Molded DIN rail tabs, threaded M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides
- Optional 1554QPL steel inner panel
The lid seals via a tongue and groove joint and a one-piece silicone gasket supplied loose, and is held by four included M4 stainless steel screws in corrosion resistant inserts (43-57 oz f-in recommended torque). Mount the 1554QA2GY through the four 4.30 mm holes located outside the gasket channel, or fit the 1554FT foot kit. Shipping weight is 0.82 lbs (0.37 kg).
Ideal For
- Outdoor control and junction enclosures
- NEMA 4X washdown installations
- DIN rail relay and terminal housings
- UL 508A panel sub-assemblies
Overview
| Lid | Gray polycarbonate lid |
| Color | Light Gray |
| Series | 1554 |
| Material | Polycarbonate |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Part Number | 1554QA2GY |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 140X140X90MM POLYCARB NEMA ENC |
Dimensions
| Width | 5.51 in (140 mm) |
| Length | 5.51 in (140 mm) |
| Total Height | 3.54 in (90 mm) |
| Size (L X W X H) | 5.51 in x 5.51 in x 3.54 in (140 mm x 140 mm x 90 mm) |
| Max. P.C. Board Width | 119 mm |
| Inside Width (Drawing) | 128.38 mm [5.05 in] |
| Max. P.C. Board Length | 127 mm |
| Inside Height (Drawing) | 83.70 mm [3.30 in] |
| Inside Length (Drawing) | 131.32 mm [5.17 in] |
| Assembled Height (Drawing, Side View) | 90.10 mm [3.55 in] |
Accessories
| Inner Panel | 1554QPL (steel, order separately) |
| Replacement Gasket | 1554QGASKET (silicone pre-formed gasket, black, pkg of 2) |
| Panel / PC Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg of 100) |
| Replacement Lid Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg of 50) |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Panel / PC Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg of 100) |
Identifiers
| UPC | 623980781693 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
Related Versions
| ABS, Gray Lid | 1554QAGY |
| Polycarbonate, Gray Lid | 1554QA2GY |
| Polycarbonate, Clear Lid | 1554QA2GYCL |
| Polycarbonate, Smoked Lid | 1554QA2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| NEMA Type Ratings | 4, 4X, 6, 6P, 12 and 13 (independently tested) |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554QA2GY UL listed?▾
Yes. The polycarbonate versions are cUL and UL 508A listed under file E65324.
What is the flame rating?▾
Solid gray polycarbonate carries a UL94 5VA rating; the drawing notes UL94-5VA at 3 mm.
Can it be mounted on a pole?▾
The series offers a pole mount kit as an accessory. The enclosure also has four 4.30 mm wall-mounting holes outside the gasket channel and accepts the 1554FT foot kit.
How much room is inside?▾
Inside dimensions are 131.32 x 128.38 mm with 83.70 mm of height; the maximum PC board is 127 x 119 mm.
Are clear or smoked lid versions available?▾
Yes, in the same size: 1554QA2GYCL (clear lid) and 1554QA2GYSL (smoked lid).
