Hammond 1554NL2GYSL Low-Profile 120x120x45mm Smoked Lid Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked UL94 V-0 polycarbonate lid on a low 45 mm gray polycarbonate box
- IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed, file E65324
- 120 x 120 x 45 mm; 39.35 mm inside height
- UV stabilized, IK08 impact rated, -40°C to +110°C
- Self-captivating M4 stainless lid screws in corrosion resistant inserts

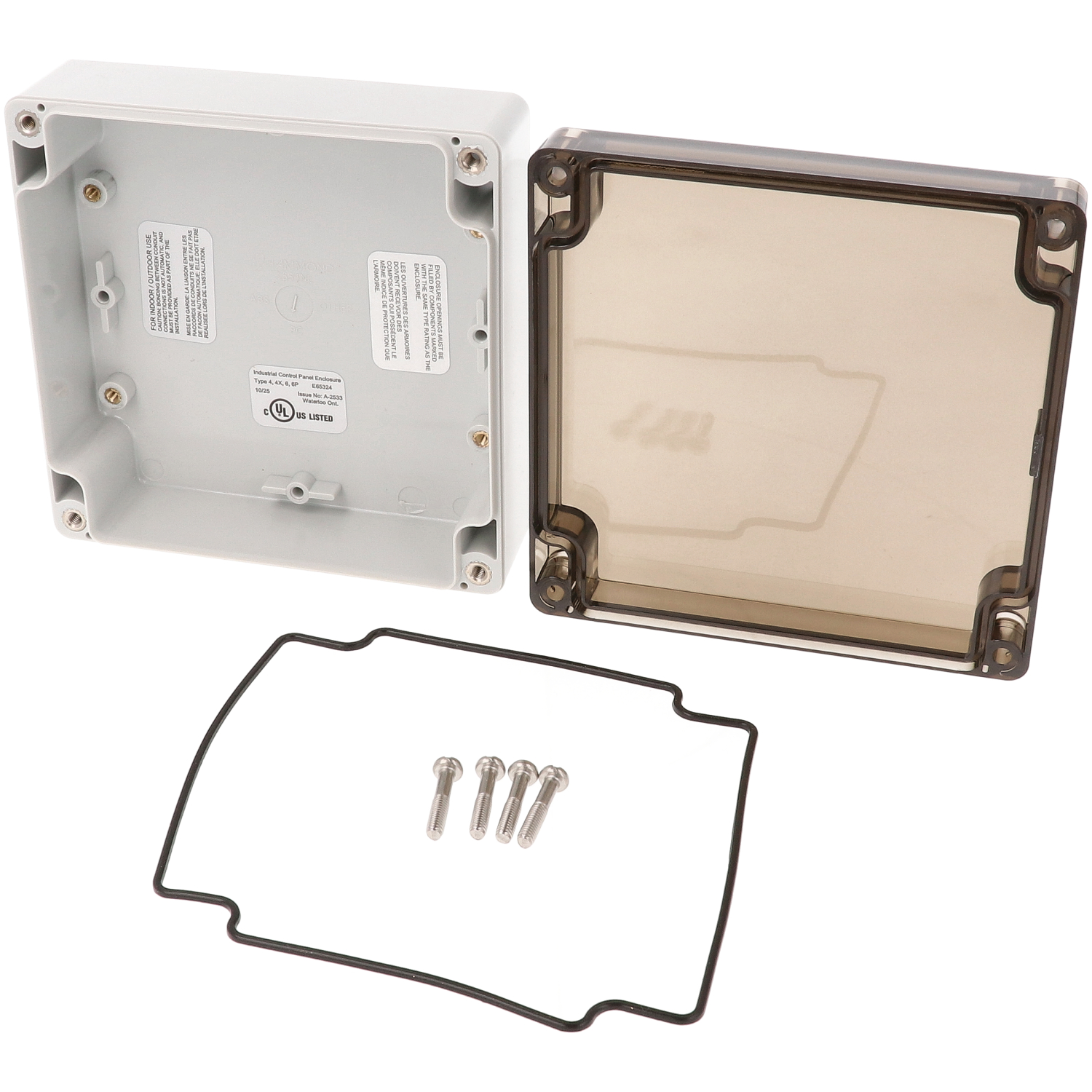

The 1554NL2GYSL is the smoked-lid version of the 45 mm (1.77 in) tall 1554NL enclosure. A light gray RAL 7035 polycarbonate box is paired with a tinted polycarbonate lid, suiting slim builds where indicators should show through a darker cover.
Nominal dimensions are 120 x 120 x 45 mm (4.72 x 4.72 x 1.77 in). The drawing lists 45.45 mm overall height, 39.35 mm inside height and 112.99 mm inside length; the maximum P.C. board is 107.7 x 106.6 mm. Internal DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides are molded in, and the 1554NPL inner panel fits.
The UL94 V-0 smoked lid seals with tongue and groove construction and a one-piece high-temperature silicone gasket shipped loose. Four self-captivating M4 stainless steel screws thread into corrosion resistant inserts for repeated access, at 43-57 ozf-in (30-40 cN-m).
As a polycarbonate 1554 enclosure, the 1554NL2GYSL is UV stabilized for outdoor use, cUL and UL 508A listed (E65324), tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, IK08 impact rated and recommended for -40°C to +110°C. Mount it through four 4.30 mm holes outside the gasket channel or with the 1554FT foot kit.
Ideal For
- Low-profile enclosures with tinted indicator view
- Outdoor slim electronics housings
- Shallow DIN rail component boxes
- UL 508A control applications
Overview
| Type | Water-tight |
| Version | Polycarbonate box / smoked polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoke lid |
| Part Number | 1554NL2GYSL |
| Short Description | 120X120X45MM P/S NEMA SMK LID |
| Enclosure Size Code | NL |
Dimensions
| Inside Height | 39.35 mm [1.55 in] |
| Inside Length | 112.99 mm [4.45 in] |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 107.7 mm |
| Nominal Size (L X W X H) | 4.72 in x 4.72 in x 1.77 in (120 mm x 120 mm x 45 mm) |
| Overall Height (Drawing) | 45.45 mm [1.79 in] |
| Size L X W X H (Part Page) | 4.7 in x 4.7 in x 1.77 in (119 mm x 119 mm x 45 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554NGASKET (silicone, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20 mm stainless, pkg 50) |
| Inner Panel (Order Separately) | 1554NPL steel inner panel |
| Panel / P.C. Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980425672 |
| UNSPSC | 39121301 |
| Drawing Revision | 01.04.2026 |
Packaging & Shipping
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high-temperature UL listed silicone, supplied loose (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate Plastic |
| Box Color | Light gray (RAL 7035) |
| Lid Style | Flat, screw cover |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating |
| PC Card Guides | Vertical, for 1.5 mm thick PC boards |
| Lid Construction | Gasketed, two-piece tongue and groove |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts; standoffs accept #6 self-tapping screws |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Wall-Mounting Holes | 4 x Ø4.30 mm [0.17 in], located outside the gasket channel |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers, cutting/tapping fluid, strong solvents |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 (clear/smoked lid) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What lid does the 1554NL2GYSL have?▾
A smoked polycarbonate lid rated UL94 V-0, on a light gray RAL 7035 polycarbonate box.
How big a board will fit?▾
The listed maximum P.C. board size is 107.7 x 106.6 mm.
Is it suitable outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use and tested to IP66, IP67 and IP68.
How is it mounted?▾
Through four 4.30 mm wall-mounting holes outside the gasket channel, which also accept the 1554FT foot kit.
What is included?▾
Box, lid, 4 cover screws and a preformed silicone gasket.
Related Products

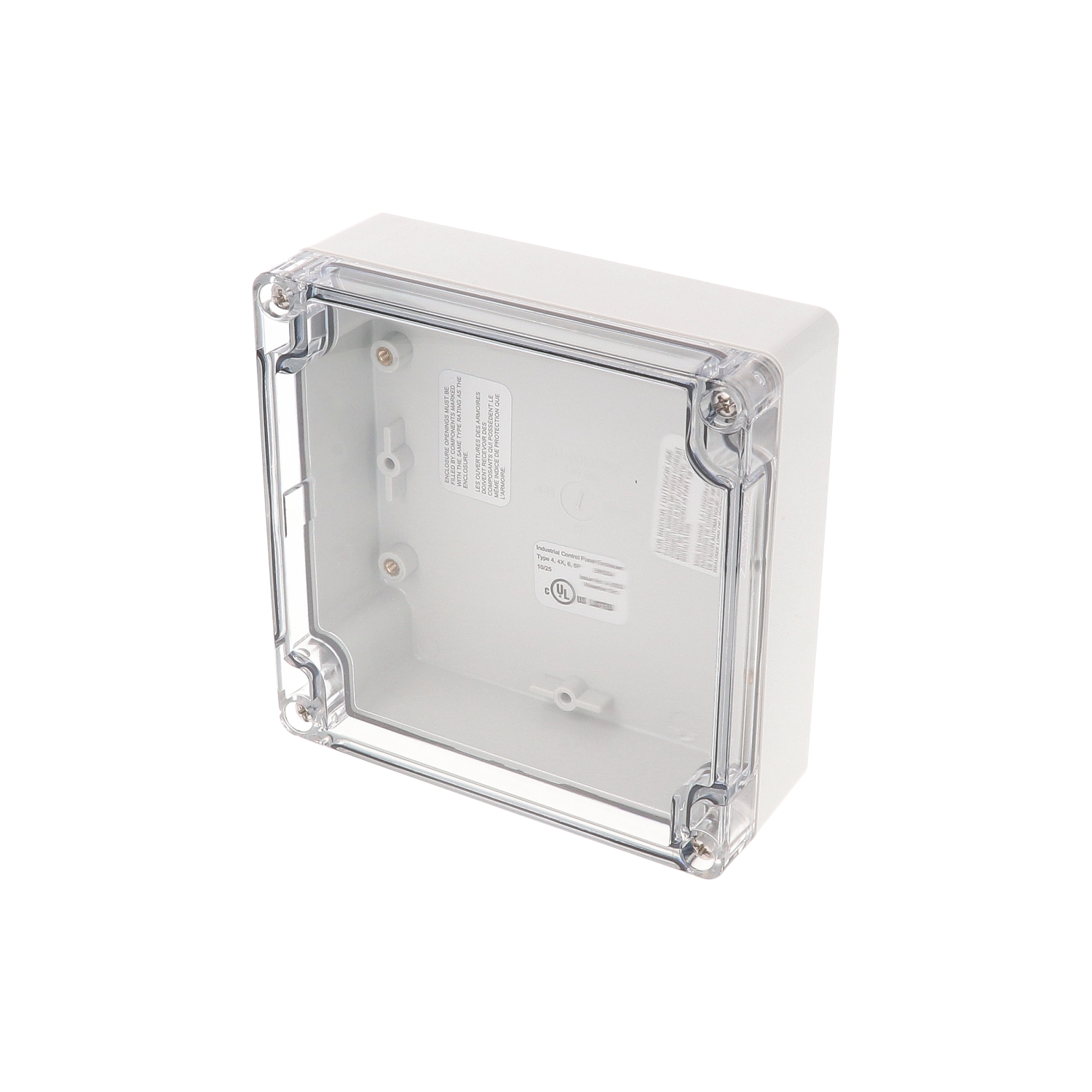

Save 52%1554NL2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554NL2GYCL
Save 52%1554NLGY — RAL7035 grey ABS plastic watertight enclosure
Hammond Manufacturing · 1554NLGY

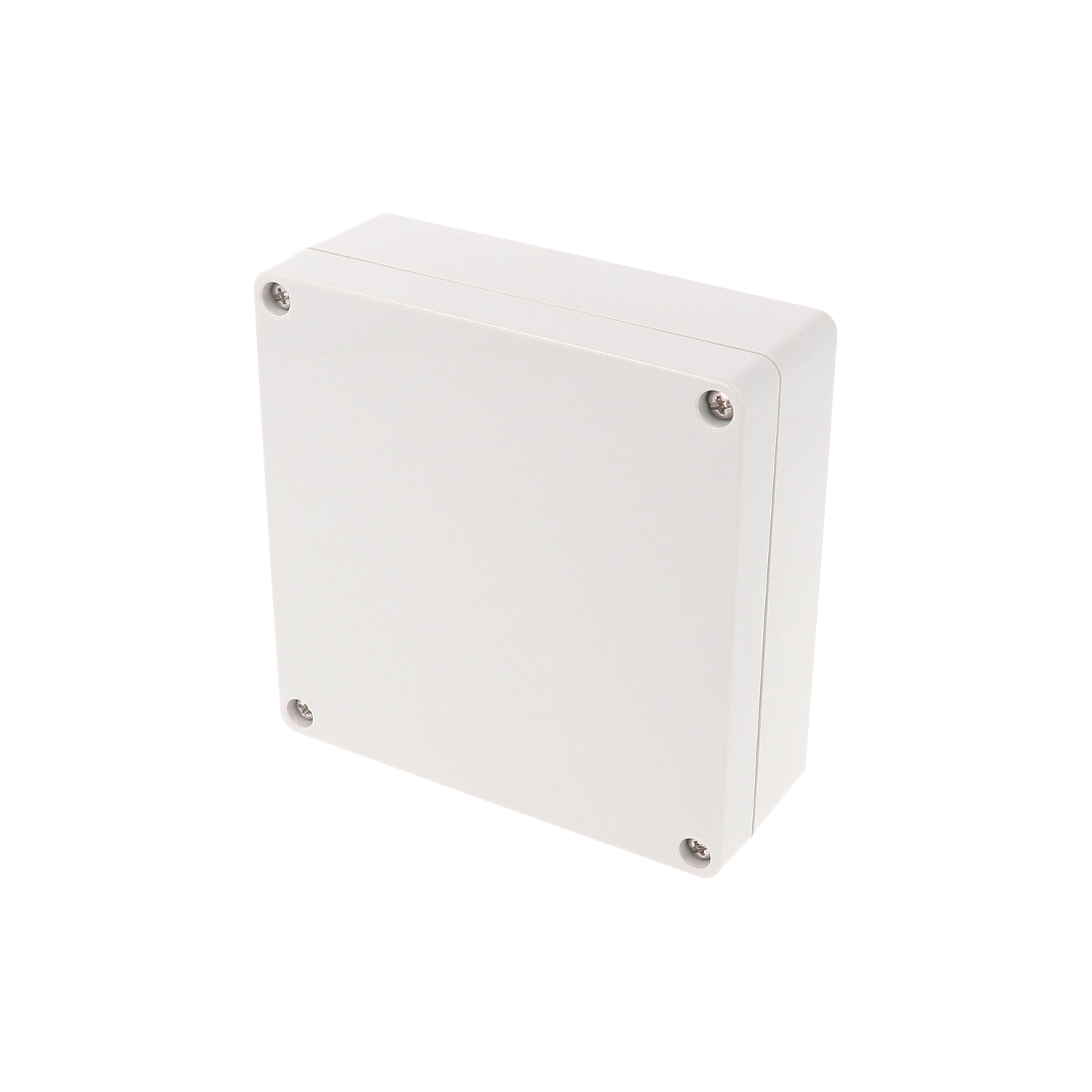

Save 52%1554NL2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554NL2GY
Save 52%1554NPL — galvanized steel inner panel doe 1554/55 sizes N & P
Hammond Manufacturing · 1554NPL

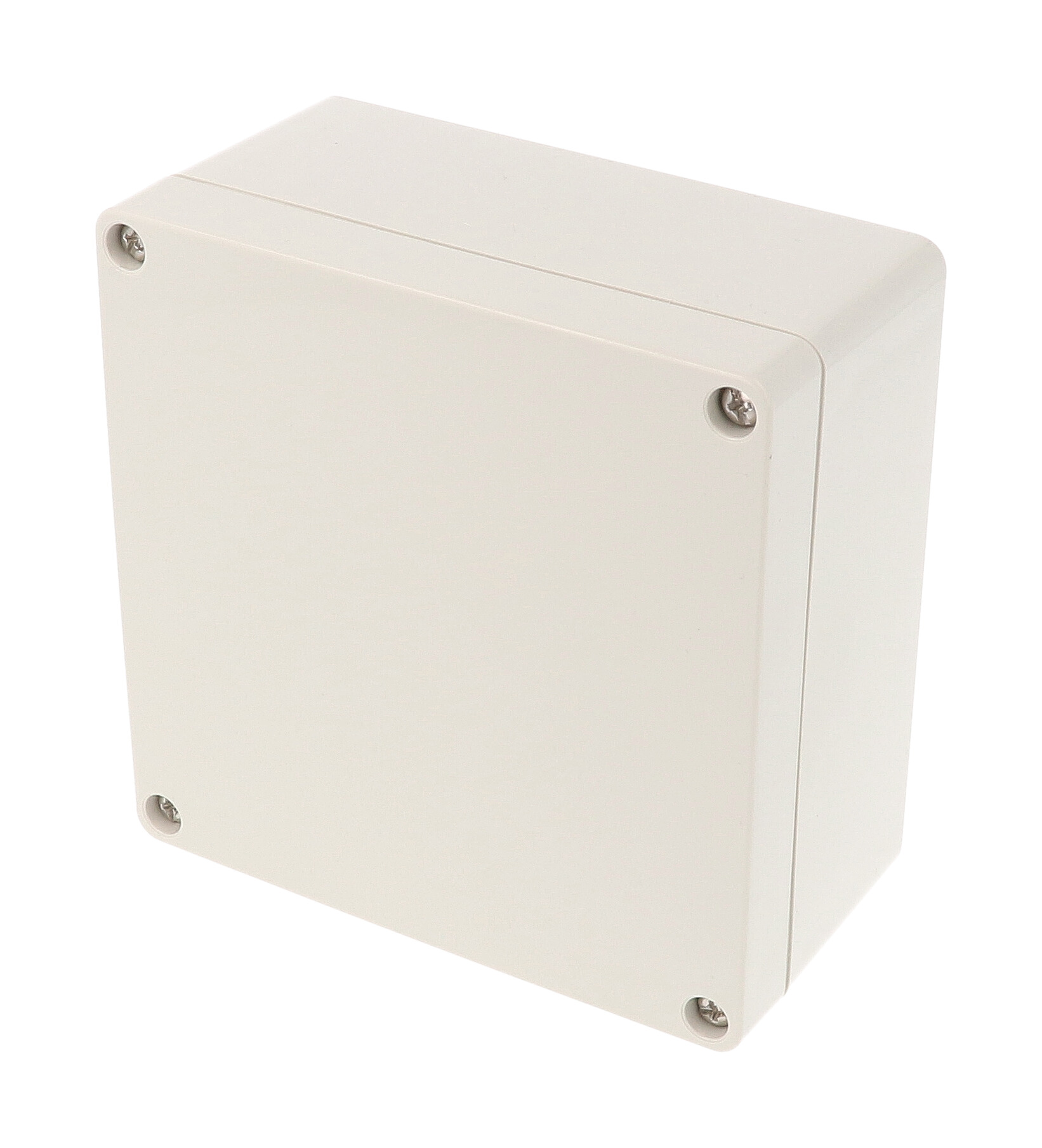

Save 52%1554NGY — RAL7035 grey ABS plastic watertight enclosure
