Hammond 1554NL2GYCL Low-Profile 120x120x45mm Clear Lid Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear UL94 V-0 polycarbonate lid on a low 45 mm gray polycarbonate box
- IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13
- cUL and UL 508A listed, file E65324
- 120 x 120 x 45 mm; max. PC board 107.7 x 106.6 mm
- UV stabilized for outdoor use; IK08 impact rating
- Wall-mounting holes outside the gasket channel, 1554FT foot kit compatible
The 1554NL2GYCL combines the 45 mm (1.77 in) low-profile 1554NL box with a clear polycarbonate lid. The light gray RAL 7035 polycarbonate base and see-through cover suit slim assemblies where an integrator wants LEDs, displays or wiring visible without breaking the seal.
Nominal size is 120 x 120 x 45 mm (4.72 x 4.72 x 1.77 in). The drawing shows 45.45 mm overall height, 39.35 mm inside height and 112.99 mm inside length, and the listed maximum P.C. board is 107.7 x 106.6 mm. Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides give mounting options; the 1554NPL steel inner panel is sold separately.
The clear lid is rated UL94 V-0. It closes onto a two-piece tongue and groove joint with a one-piece silicone gasket supplied loose, and is held by four self-captivating M4 stainless steel screws in corrosion resistant inserts, torqued to 43-57 ozf-in (30-40 cN-m).
The 1554NL2GYCL is listed with NEMA Type 4, 4X, 6, 6P, 12 and 13 and IP68, is cUL and UL 508A listed (E65324), UV stabilized for outdoor use, IK08 impact rated and recommended for -40°C to +110°C. Four 4.30 mm wall-mounting holes outside the gasket also take the 1554FT foot kit.
Ideal For
- Slim enclosures with visible displays or LEDs
- Outdoor low-profile electronics
- DIN rail modules needing visual inspection
- UL 508A control applications
Overview
| Type | Water-tight |
| Version | Polycarbonate box / clear polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554NL2GYCL |
| Short Description | 120X120X45MM P/S NEMA CLR LID |
| Enclosure Size Code | NL |
Dimensions
| Inside Height | 39.35 mm [1.55 in] |
| Inside Length | 112.99 mm [4.45 in] |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 107.7 mm |
| Nominal Size (L X W X H) | 4.72 in x 4.72 in x 1.77 in (120 mm x 120 mm x 45 mm) |
| Overall Height (Drawing) | 45.45 mm [1.79 in] |
| Size L X W X H (Part Page) | 4.7 in x 4.7 in x 1.77 in (119 mm x 119 mm x 45 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554NGASKET (silicone, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20 mm stainless, pkg 50) |
| Inner Panel (Order Separately) | 1554NPL steel inner panel |
| Panel / P.C. Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980425665 |
| UNSPSC | 39121301 |
| Drawing Revision | 01.04.2026 |
Packaging & Shipping
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high-temperature UL listed silicone, supplied loose (not pre-installed) |

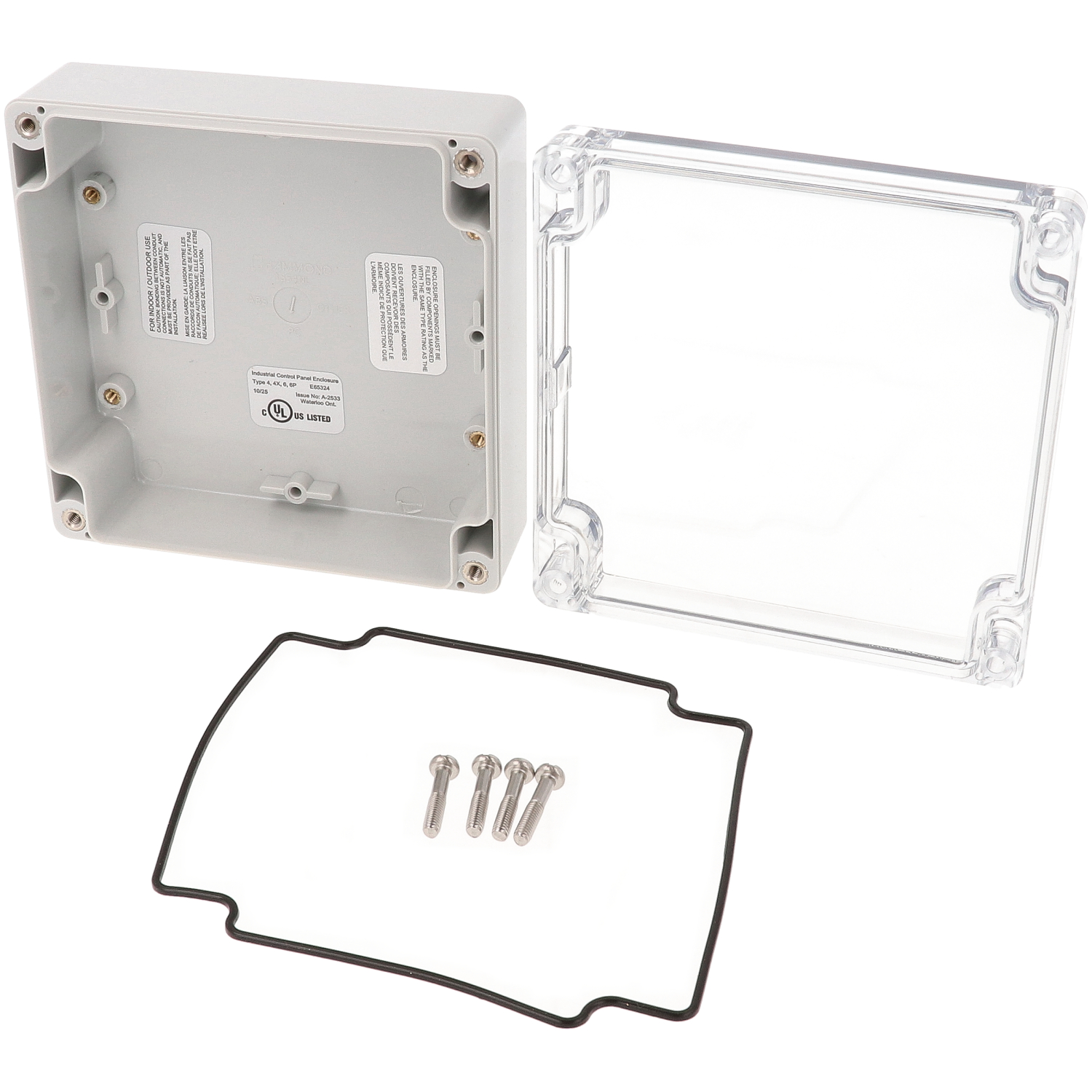

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate Plastic |
| Box Color | Light gray (RAL 7035) |
| Lid Style | Flat, screw cover |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating |
| PC Card Guides | Vertical, for 1.5 mm thick PC boards |
| Lid Construction | Gasketed, two-piece tongue and groove |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts; standoffs accept #6 self-tapping screws |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Wall-Mounting Holes | 4 x Ø4.30 mm [0.17 in], located outside the gasket channel |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers, cutting/tapping fluid, strong solvents |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 (clear/smoked lid) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What makes the 1554NL2GYCL different from the 1554NL2GY?▾
It has a clear polycarbonate lid rated UL94 V-0, while the 1554NL2GY has a solid gray lid. Both are 120 x 120 x 45 mm.
What is the inside height?▾
39.35 mm according to the drawing.
Is the gasket installed?▾
No, the silicone gasket is supplied loose inside the enclosure.
What operating temperature is recommended?▾
-40°C to +110°C (-40°F to +230°F); customers should test for their specific application.
What replacement parts are listed?▾
Gasket 1554NGASKET and stainless cover screws SC576-50 (pack of 50).
