Hammond 1554LA2GYCL 105x105x90 mm Deep Clear Lid Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a deep 105 x 105 x 90 mm (4.13 x 4.13 x 3.54 in) box
- IP68 listed; NEMA 4, 4X, 6, 6P, 12 & 13
- UL94 V-0 lid; cUL and UL 508A listed, file E65324
- UV stabilized for outdoor use, -40°C to +110°C recommended range
- IK08 impact rating per IEC 62262:2021
- 83.70 mm inside height; DIN rail tabs, card guides and M3 brass inserts
- Self-captivating M4 stainless lid screws included

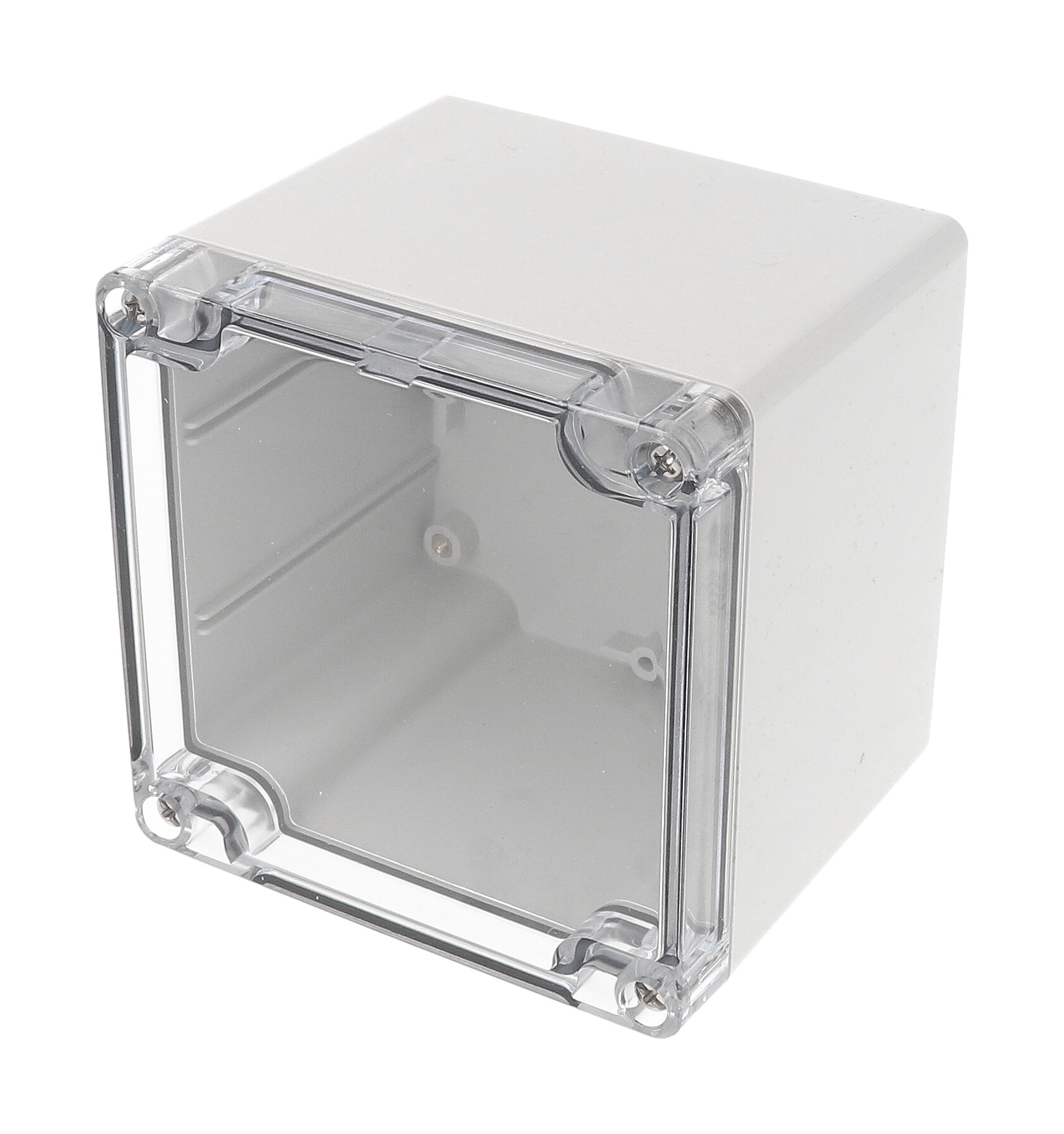

The 1554LA2GYCL is a deep square polycarbonate enclosure with a clear polycarbonate lid, measuring 4.13 x 4.13 x 3.54 in (105 x 105 x 90 mm). The see-through cover and 90 mm height make it a fit for taller devices whose indicators or displays need to be read in place.
Clear lids are rated UL94 V-0. The polycarbonate is UV stabilized for outdoor use, and polycarbonate versions are cUL and UL 508A listed under file E65324 and independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13; the part page lists IP68. Impact rating is IK08 per IEC 62262:2021, with a recommended range of -40°C to +110°C (-40°F to +230°F).

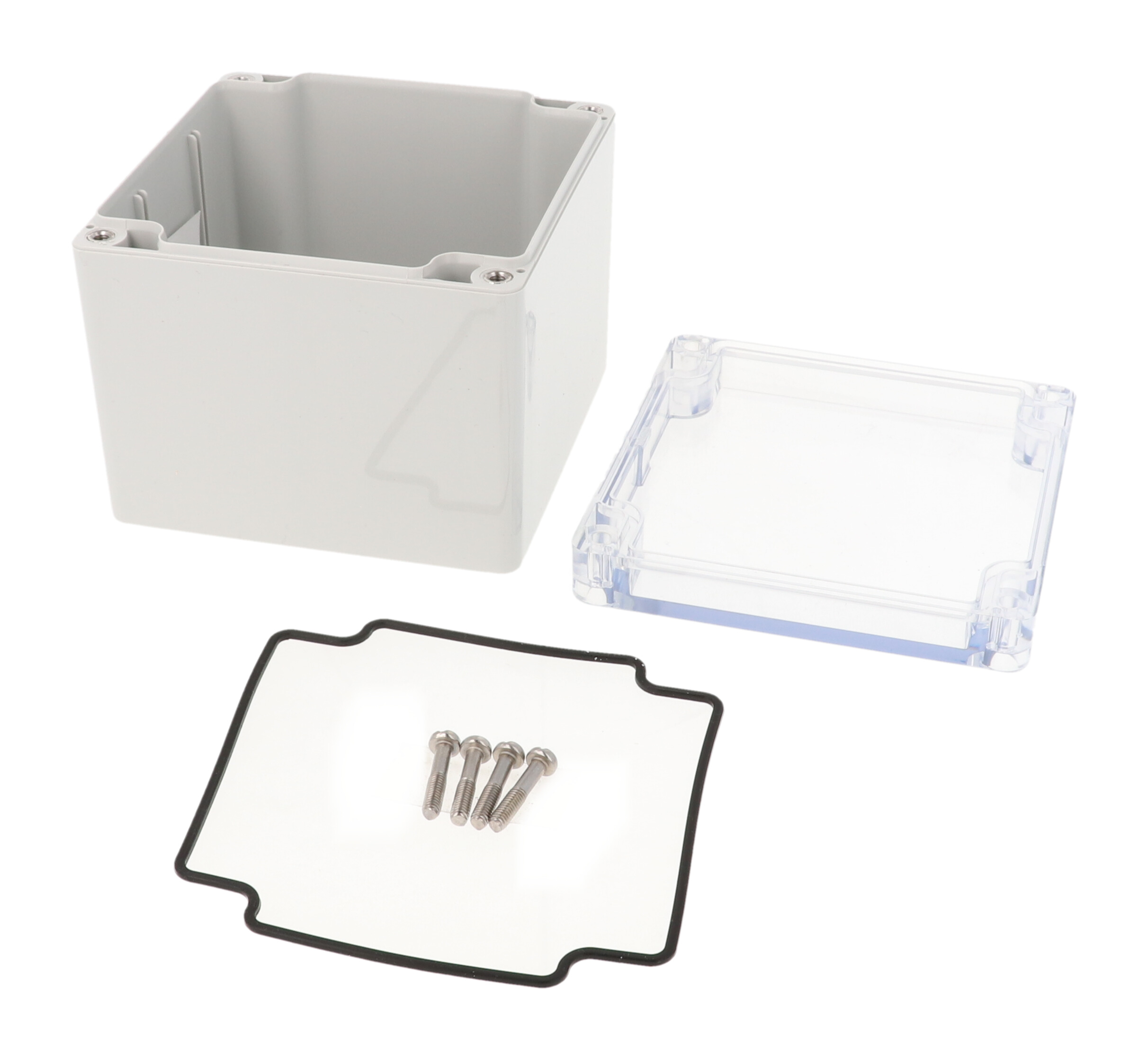

The lid closes on a two piece tongue and groove joint with a replaceable silicone gasket supplied loose, and four included self-captivating M4 stainless steel screws thread into corrosion resistant bushings (43-57 ozf-in / 30-40 cN-m).
Inside there is 96.32 x 93.19 x 83.70 mm of space with molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that also accept #6 self-tapping screws. Boards up to 92.57 x 93 mm or the optional 1554LPL steel inner panel can be mounted. The 1554LA2GYCL ships at 0.55 lbs (0.25 kg), shrink wrapped, and is RoHS and REACH compliant.
Ideal For
- Taller devices with visible displays
- Outdoor monitoring equipment
- DIN rail components needing inspection
- Wet-location control housings
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Lid Inserts | M4 corrosion resistant inserts inside lid |
| PC Card Guides | Vertical PC card guides for 1.5 mm thick PC boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| Internal Box Mounting | M3 brass inserts; accepts #6 self-tapping screws |
Overview
| Lid | Clear polycarbonate lid |
| Type | Water-tight |
| Series | 1554 |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554LA2GYCL |
| Recommended Use | Outdoor use (UV stabilized) |
| Short Description | 105X105X90MM P/C NEMA CLR LID |
Dimensions
| Width | 4.13 in (105 mm) |
| Length | 4.13 in (105 mm) |
| Inside Width | 93.19 mm [3.67 in] |
| Inside Height | 83.70 mm [3.30 in] |
| Inside Length | 96.32 mm [3.79 in] |
| Max. P.C. Board Width | 93 mm |
| Max. P.C. Board Length | 92.57 mm |
| Nominal Size (L X W X H) | 4.13 in x 4.13 in x 3.54 in (105 mm x 105 mm x 90 mm) |
| Overall Height (Drawing) | 90.10 mm [3.55 in] |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
Accessories
| Foot Kit | 1554FT |
| Steel Inner Panel (Order Separately) | 1554LPL |
| Replacement Gasket (Silicone, Black, Pkg 2) | 1554LGASKET |
| Panel / P.C. Board Screw (M3-0.5 X 8 Mm Plated, Pkg 100) | 1591MM100 |
| Replacement Cover Screws (M4-0.7 X 20 Mm Stainless, Pkg 50) | SC576-50 |
| Panel / P.C. Board Self Tapping Screw (#6 X 1/4" (6.4 Mm) Plated, Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980781556 |
| UNSPSC | 39121301 |
| Drawing Revision | 15.06.2026 |
| Enclosure Family | 1554LA |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two piece tongue and groove construction |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), self-captivating, threaded into corrosion resistant bushings |
| Construction | Polycarbonate box / clear polycarbonate lid |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Series IP Testing | Independently tested to meet IP66, IP67 and IP68 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| IP Rating (Part Page) | IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why pick the 1554LA2GYCL?▾
It combines the deeper 90 mm body with a clear lid, so taller equipment can be housed and its indicators seen without opening the enclosure.
What flame rating does it have?▾
The part page lists UL94 V-0, the rating for clear and smoked lids.
Is it suitable for outdoor use?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use.
What are the inside dimensions?▾
96.32 mm [3.79 in] long, 93.19 mm [3.67 in] wide and 83.70 mm [3.30 in] high.
Is a lower-profile clear lid version available?▾
Yes. The 1554L2GYCL has the same footprint at 60 mm high.
Related Products
Save 52%1554LA2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554LA2GY
Save 52%1554LA2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554LA2GYSL
Save 52%1554L2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554L2GYSL

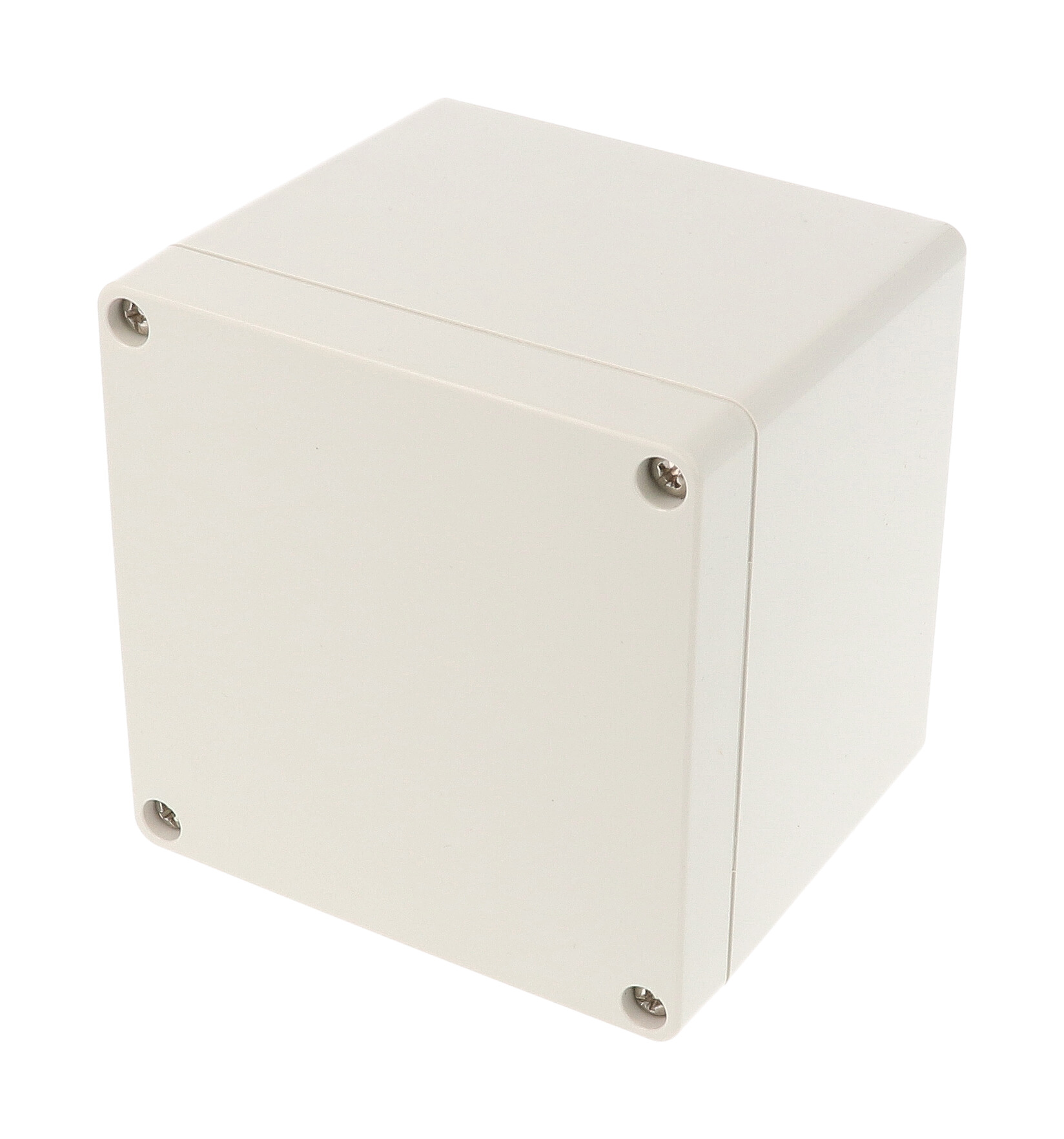

Save 52%1554LAGY — RAL7035 grey ABS plastic watertight enclosure
