Hammond 1554L2GY 105x105x60 mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 105 x 105 x 60 mm (4.13 x 4.13 x 2.36 in) solid gray polycarbonate enclosure
- IP68 listed; NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed under file E65324; UL94 5VA
- UV stabilized for outdoor use, -40°C to +110°C recommended range
- IK08 impact rating per IEC 62262:2021
- Holds P.C. boards up to 92.57 x 93 mm; DIN rail tabs and M3 brass inserts
- Gasketed lid with four self-captivating M4 stainless screws

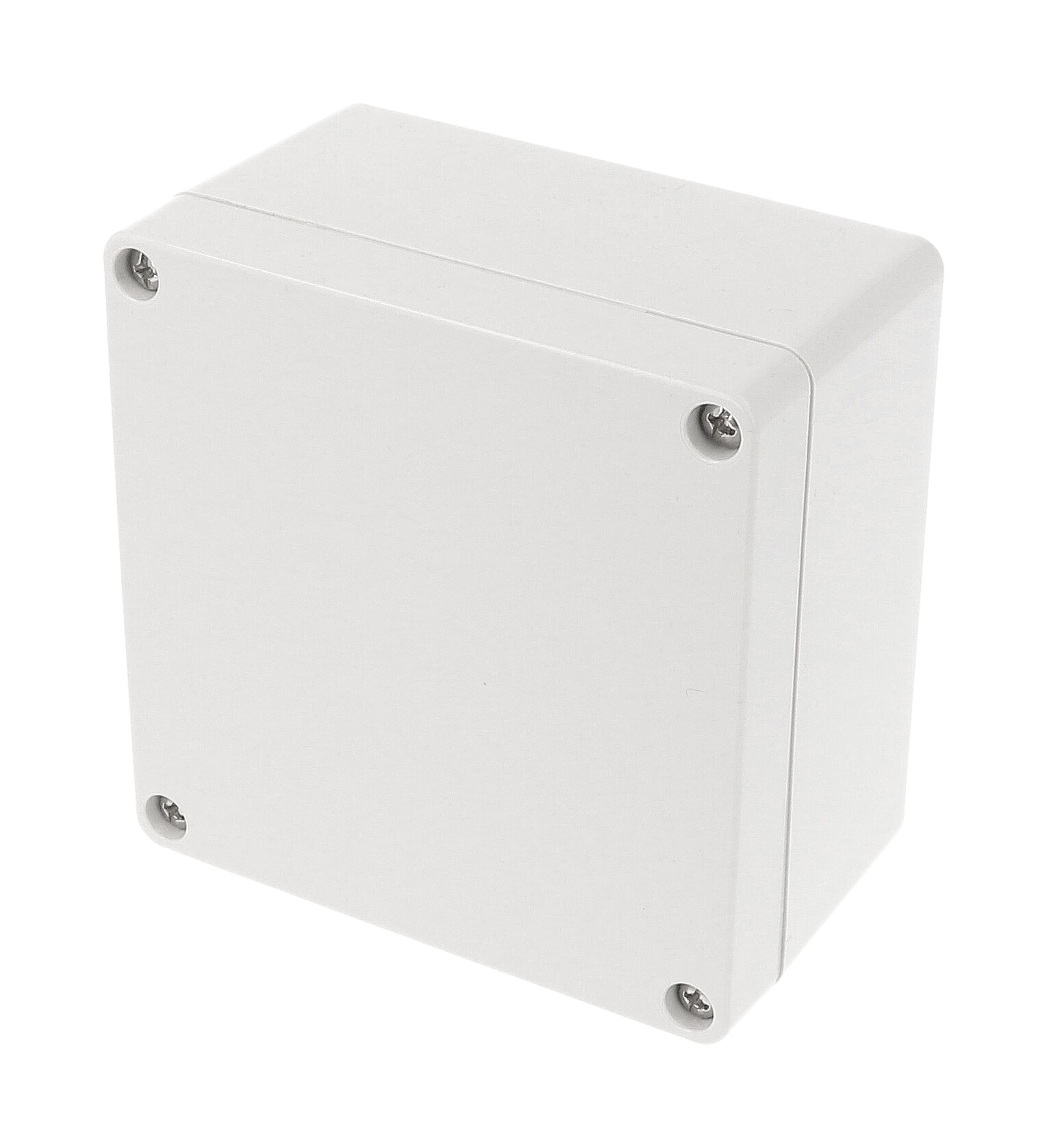

The 1554L2GY is a square, solid gray polycarbonate watertight enclosure, 4.13 x 4.13 x 2.36 in (105 x 105 x 60 mm). It gives electricians and OEM designers a compact, outdoor-capable housing for small circuit boards and DIN rail components.
The solid gray polycarbonate carries a UL94 5VA rating and is UV stabilized for outdoor use. Polycarbonate versions are cUL and UL 508A listed under file E65324 and independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13; the part page lists IP68. The impact rating is IK08 per IEC 62262:2021, and the recommended operating range is -40°C to +110°C (-40°F to +230°F).
- Inside length 97.36 mm [3.83 in], width 93.35 mm [3.68 in], height 53.70 mm [2.11 in]
- Maximum P.C. board 92.57 x 93 mm; optional 1554LPL steel inner panel
- Molded DIN rail tabs, 1.5 mm card guides and M3 brass inserts accepting #6 self-tapping screws
- Four self-captivating M4 stainless steel lid screws, torque 43-57 ozf-in (30-40 cN-m)
A two piece tongue and groove lid with a one piece silicone gasket, supplied loose inside, seals against oil, dust and water. Wall-mounting holes sit outside the gasket channel and also accept the 1554FT foot kit. The 1554L2GY weighs 0.44 lbs (0.20 kg) shipped and is RoHS and REACH compliant.
Ideal For
- Outdoor junction and sensor boxes
- Wet-location PCB housings
- Small DIN rail component enclosures
- UL 508A control sub-assemblies
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Lid Inserts | M4 corrosion resistant inserts inside lid |
| PC Card Guides | Vertical PC card guides for 1.5 mm thick PC boards |
| Wall Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| Internal Box Mounting | M3 brass inserts; accepts #6 self-tapping screws |
Overview
| Lid | Solid gray polycarbonate lid |
| Type | Water-tight |
| Series | 1554 |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Part Number | 1554L2GY |
| Recommended Use | Outdoor use (UV stabilized) |
| Short Description | 105X105X60MM POLYCARB NEMA ENC |
Dimensions
| Width | 4.13 in (105 mm) |
| Length | 4.13 in (105 mm) |
| Inside Width | 93.35 mm [3.68 in] |
| Inside Height | 53.70 mm [2.11 in] |
| Inside Length | 97.36 mm [3.83 in] |
| Max. P.C. Board Width | 93 mm |
| Max. P.C. Board Length | 92.57 mm |
| Nominal Size (L X W X H) | 4.13 in x 4.13 in x 2.36 in (105 mm x 105 mm x 60 mm) |
| Overall Height (Drawing) | 60.10 mm [2.37 in] |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Foot Kit | 1554FT |
| Steel Inner Panel (Order Separately) | 1554LPL |
| Replacement Gasket (Silicone, Black, Pkg 2) | 1554LGASKET |
| Panel / P.C. Board Screw (M3-0.5 X 8 Mm Plated, Pkg 100) | 1591MM100 |
| Replacement Cover Screws (M4-0.7 X 20 Mm Stainless, Pkg 50) | SC576-50 |
| Panel / P.C. Board Self Tapping Screw (#6 X 1/4" (6.4 Mm) Plated, Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980781488 |
| UNSPSC | 39121301 |
| Drawing Revision | 15.06.2026 |
| Enclosure Family | 1554L |
Packaging & Shipping

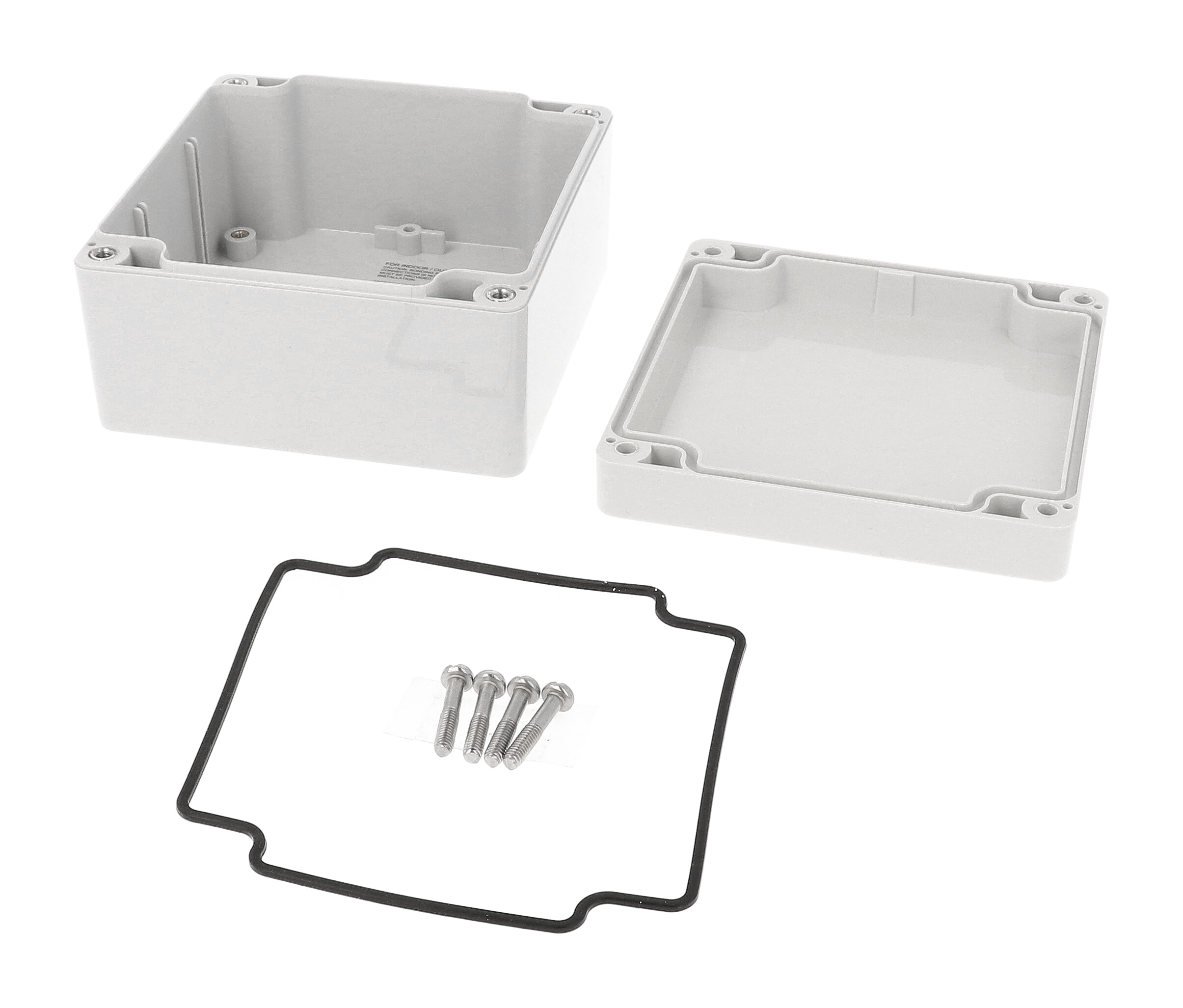

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two piece tongue and groove construction |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), self-captivating, threaded into corrosion resistant bushings |
| Enclosure Color | Light gray (RAL 7035) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Series IP Testing | Independently tested to meet IP66, IP67 and IP68 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| IP Rating (Part Page) | IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554L2GY UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
What NEMA ratings does the 1554L2GY meet?▾
NEMA 4, 4X, 6, 6P, 12 and 13.
How much space is inside?▾
Inside length 97.36 mm [3.83 in], inside width 93.35 mm [3.68 in] and inside height 53.70 mm [2.11 in].
What temperature range is recommended?▾
-40°C to +110°C (-40°F to +230°F); customers should test for suitability in their specific application.
Is there a taller version with the same footprint?▾
Yes. The 1554LA2GY shares the 105 x 105 mm footprint with a 90 mm height.
Related Products
Save 52%1554KGY — RAL7035 grey ABS plastic watertight enclosure
Hammond Manufacturing · 1554KGY

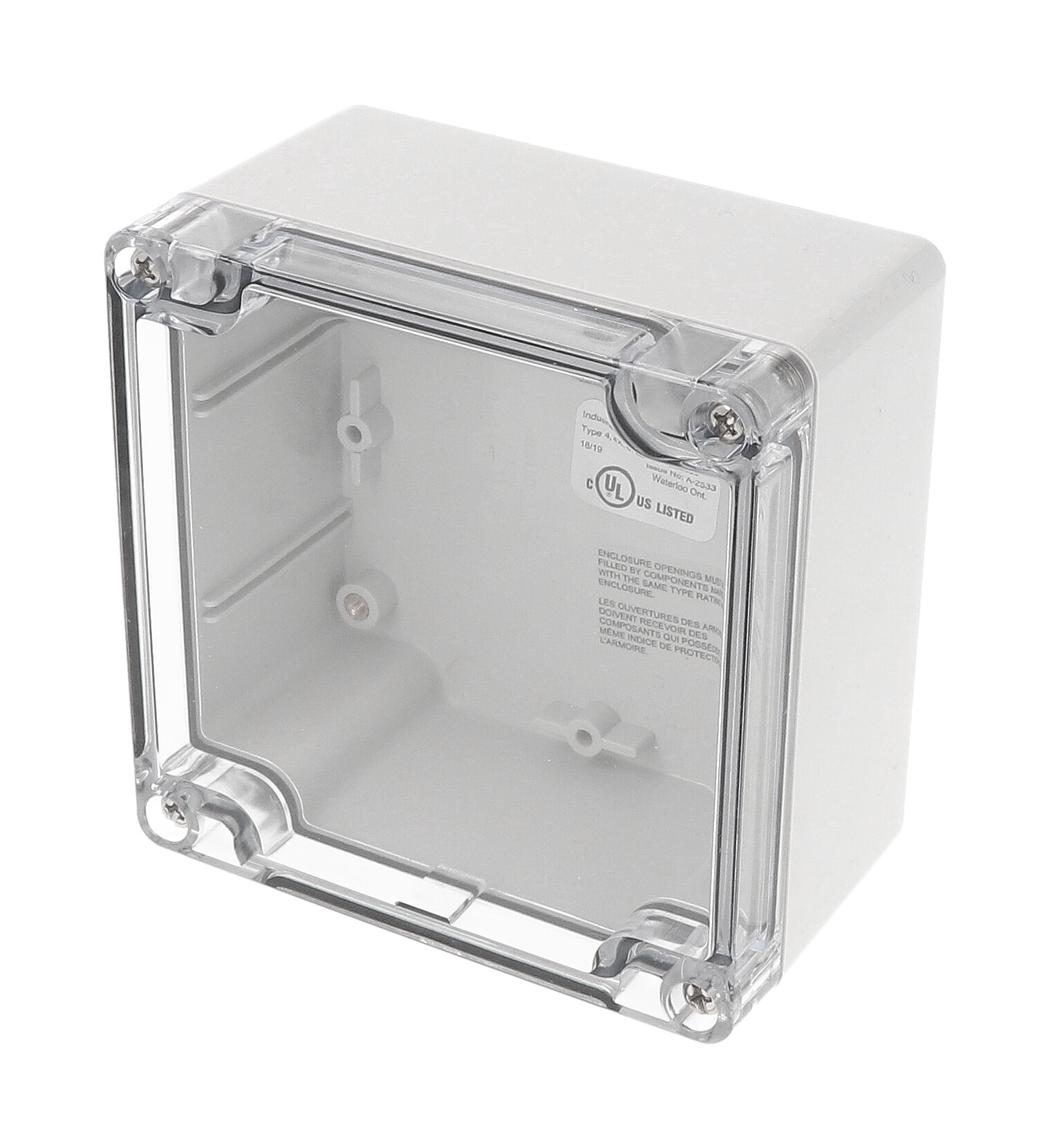

Save 52%1554L2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
