Hammond 1554JL2GYCL 160x90x46mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94V-0) over a light gray RAL 7035 box
- Compact 160 x 90 x 46 mm with 39.45 mm inside height
- IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12, 13 tested
- cUL and UL 508A listed under file #E65324
- UV stabilized for outdoor use; IK08 impact rating
- Fits PC boards up to 77.47 x 147.32 mm

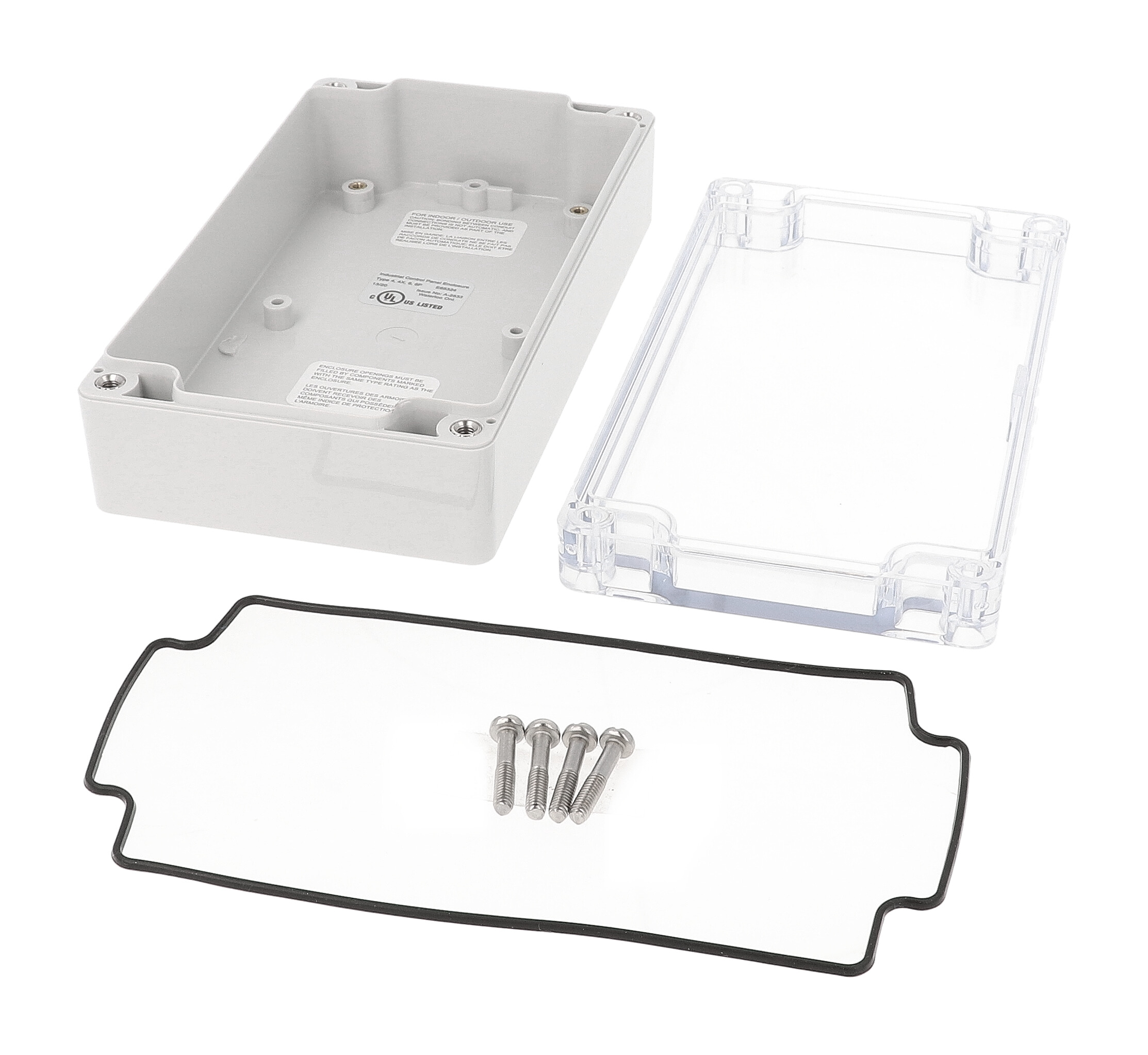

The 1554JL2GYCL is a low-height 160 x 90 x 46 mm enclosure with a RAL 7035 light gray polycarbonate box and a clear polycarbonate lid. The see-through cover keeps displays, status LEDs and wiring visible, which helps with inspection of compact field electronics.
Clear lids in the 1554 Series are rated UL94V-0. The polycarbonate construction is UV stabilized for outdoor use, cUL and UL 508A listed under file #E65324, and independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. An IK08 impact rating per IEC 62262:2021 and a recommended operating temperature of -40°C to +110°C (-40°F to +230°F) apply.
Inside there is approximately 153.09 x 77.00 x 39.45 mm of space, and PC boards up to 77.47 x 147.32 mm fit. Molded DIN rail tabs, threaded M3 brass inserts, #6 self-tapping standoffs and vertical guides for 1.5 mm boards are provided; the 1554JPL steel inner panel is ordered separately.
The lid seals with tongue and groove construction and a loose-supplied one-piece silicone gasket, and closes with four self-captivating M4 stainless steel screws into corrosion resistant bushings (43-57 ozf-in / 30-40 cN-m recommended). Shipping weight is 0.44 lbs (0.20 kg).
Ideal For
- Compact enclosures for visible displays and LEDs
- Outdoor sensor and monitoring electronics
- UL 508A control housings with view window
- Low-height PC board enclosures
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Clear polycarbonate lid on light gray polycarbonate box |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Enclosure Type | Water-Tight |
| Short Description | 160X90X45MM P/C NEMA CLR LID |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 77.00 mm [3.03 in] |
| Nominal Size | 160 x 90 x 45 mm |
| Total Height | 1.81 in (46 mm) |
| Inside Height | 39.45 mm [1.55 in] |
| Inside Length | 153.09 mm [6.03 in] |
| Size L X W X H | 6.3 in x 3.54 in x 1.77 in (160 mm x 90 mm x 45 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554JLGY; polycarbonate gray lid 1554JL2GY; clear lid 1554JL2GYCL; smoked lid 1554JL2GYSL |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554JPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980513867 |
| UNSPSC | 39121301 |
| Part Number | 1554JL2GYCL |
| Drawing Revision | 23.06.2020 |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Clear polycarbonate (UL94V-0) |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.30 mm [.17 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilization | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | cULus Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554JL2GYCL?▾
A 1554 Series watertight enclosure with a gray polycarbonate box and clear polycarbonate lid, 160 x 90 x 46 mm per the ordering table.
Can I see inside with the lid closed?▾
Yes. The lid is clear polycarbonate.
What is the inside height?▾
About 39.45 mm (1.55 in) per the drawing.
Is the gasket pre-installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. The replacement part is 1554JGASKET.
Can it mount on a wall?▾
Yes. Wall-mounting holes are located outside the gasket channel, and the 1554FT foot kit uses the same holes.
