Hammond 1554H2GYSL 180x120x61mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94V-0) on a RAL 7035 light gray polycarbonate box
- IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed under file #E65324
- UV stabilized for outdoor use; -40°C to +110°C recommended operating range
- 180 x 120 x 61 mm overall; accepts PC boards up to 106.68 x 167.13 mm
- DIN rail tabs, M3 brass inserts and 1.5 mm PC card guides molded in
- Four captive M4 stainless lid screws in corrosion resistant bushings
- IK08 impact rating per IEC 62262:2021

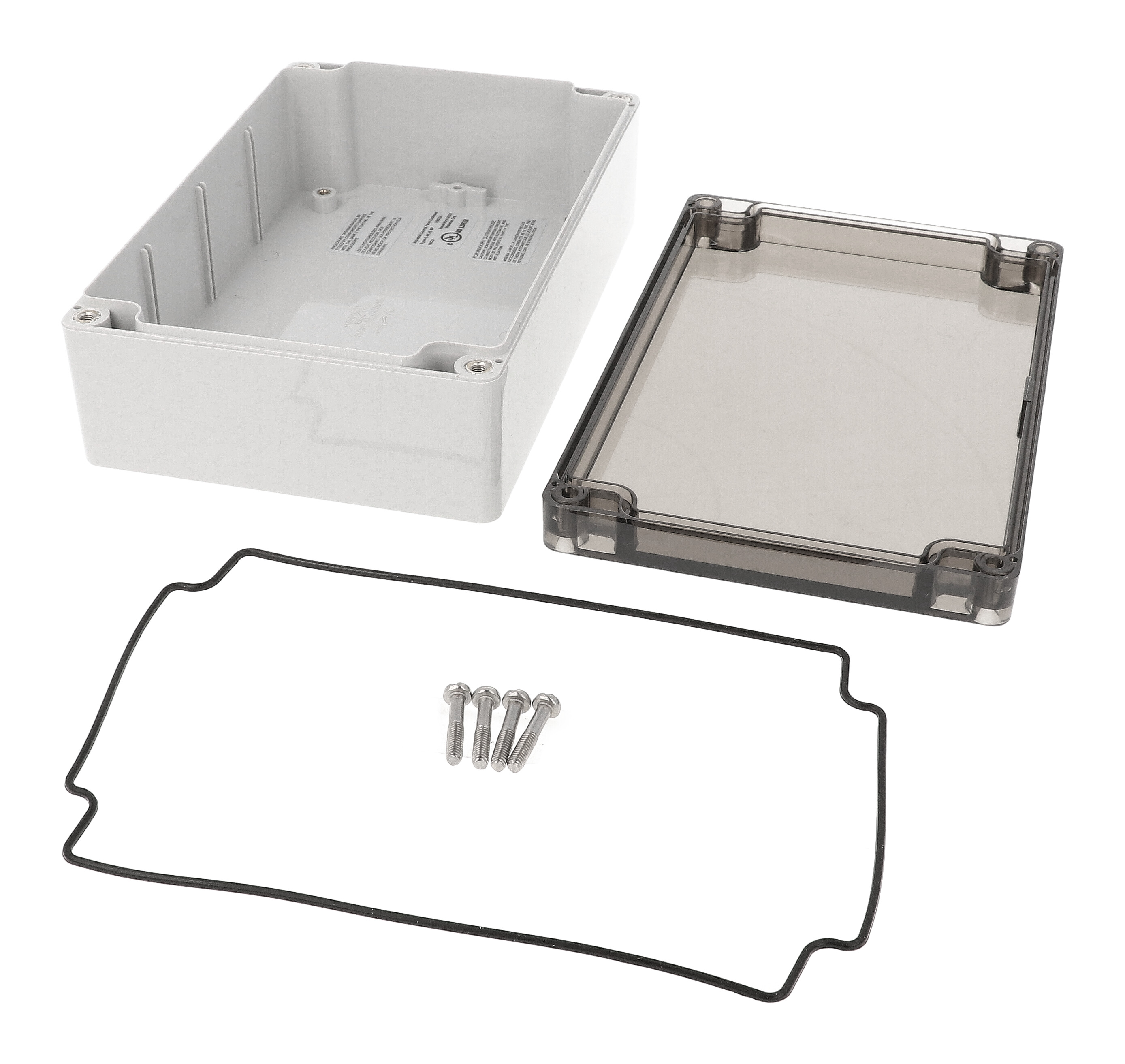

The 1554H2GYSL is a 180 x 120 x 61 mm watertight enclosure with a light gray (RAL 7035) polycarbonate box and a smoked polycarbonate lid. It suits OEM engineers, panel builders and integrators who need to house printed circuit boards or DIN rail mounted components while keeping indicators or displays partly visible through a tinted cover.
Polycarbonate versions in the 1554 Series are UV stabilized for outdoor use. The smoked lid carries a UL94V-0 flame rating, and the enclosure is cUL and UL 508A listed under file #E65324. It has been independently tested to IP66, IP67 and IP68 and to NEMA Type 4, 4X, 6, 6P, 12 and 13, with an IK08 impact rating per IEC 62262:2021 and a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
Inside, the box offers roughly 172.91 x 107.00 x 54.50 mm of space and accepts a PC board up to 106.68 x 167.13 mm. Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards give several mounting routes; the 1554HPL steel inner panel is ordered separately.
The two-piece tongue and groove lid seals against a one-piece silicone gasket, supplied loose. Four self-captivating M4 stainless steel screws thread into corrosion resistant bushings; recommended torque is 43-57 ozf-in (30-40 cN-m). Wall-mounting holes sit outside the gasket channel and also take the 1554FT foot kit. Shipping weight is 0.7 lbs (0.32 kg).
Ideal For
- Outdoor electronics housings needing a tinted lid
- PC board and DIN rail component enclosures
- UL 508A industrial control panels
- Washdown and wet locations requiring NEMA 4X / IP68
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Smoked polycarbonate lid on light gray polycarbonate box |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Enclosure Type | Water-tight |
| Short Description | 180X120X60MM P/C NEMA SMK LID |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 107.00 mm [4.21 in] |
| Nominal Size | 180 x 120 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 172.91 mm [6.81 in] |
| Size L X W X H | 7.1 in x 4.7 in x 2.4 in (180 mm x 119 mm x 61 mm) |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554HGY; polycarbonate gray lid 1554H2GY; clear lid 1554H2GYCL; smoked lid 1554H2GYSL |
| Replacement Gasket | 1554HGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554HPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132587 |
| UNSPSC | 39121301 |
| Part Number | 1554H2GYSL |
| Drawing Revision | 28.02.2020 |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.7 lbs (0.32 kg) |
Construction & Finish
| Lid | Smoked polycarbonate (UL94V-0) |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.00 mm [.16 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilization | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | cULus Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1554H2GYSL?▾
The ordering table lists 180 mm (7.09 in) long, 120 mm (4.72 in) wide and 61 mm (2.40 in) total height. The part page lists 180 mm x 119 mm x 61 mm.
Is the 1554H2GYSL suitable for outdoor installation?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use and are tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What comes in the box?▾
The purchased assembly includes the box, the lid, 4 cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed.
How large a circuit board fits inside?▾
The maximum PC board size is 106.68 mm by 167.13 mm. Vertical PC card guides are molded in for 1.5 mm thick boards.
Which inner panel and replacement parts fit this enclosure?▾
The steel inner panel is 1554HPL (ordered separately), the replacement gasket is 1554HGASKET and replacement cover screws are SC576-50 (50-pack).
