Hammond 1554H2GYCL 180x120x61mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a 180 x 120 x 61 mm light gray base
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- cUL and UL 508A listed (E65324); UL94 V-0
- Inside 172.91 x 108.91 x 54.50 mm; PCB up to 106.68 x 167.13 mm
- Includes 4 M4 stainless cover screws and preformed silicone gasket
- UV stabilized for outdoor use; IK08; -40°C to +110°C recommended
- M3 brass inserts, #6 standoffs, card guides and DIN rail tabs inside

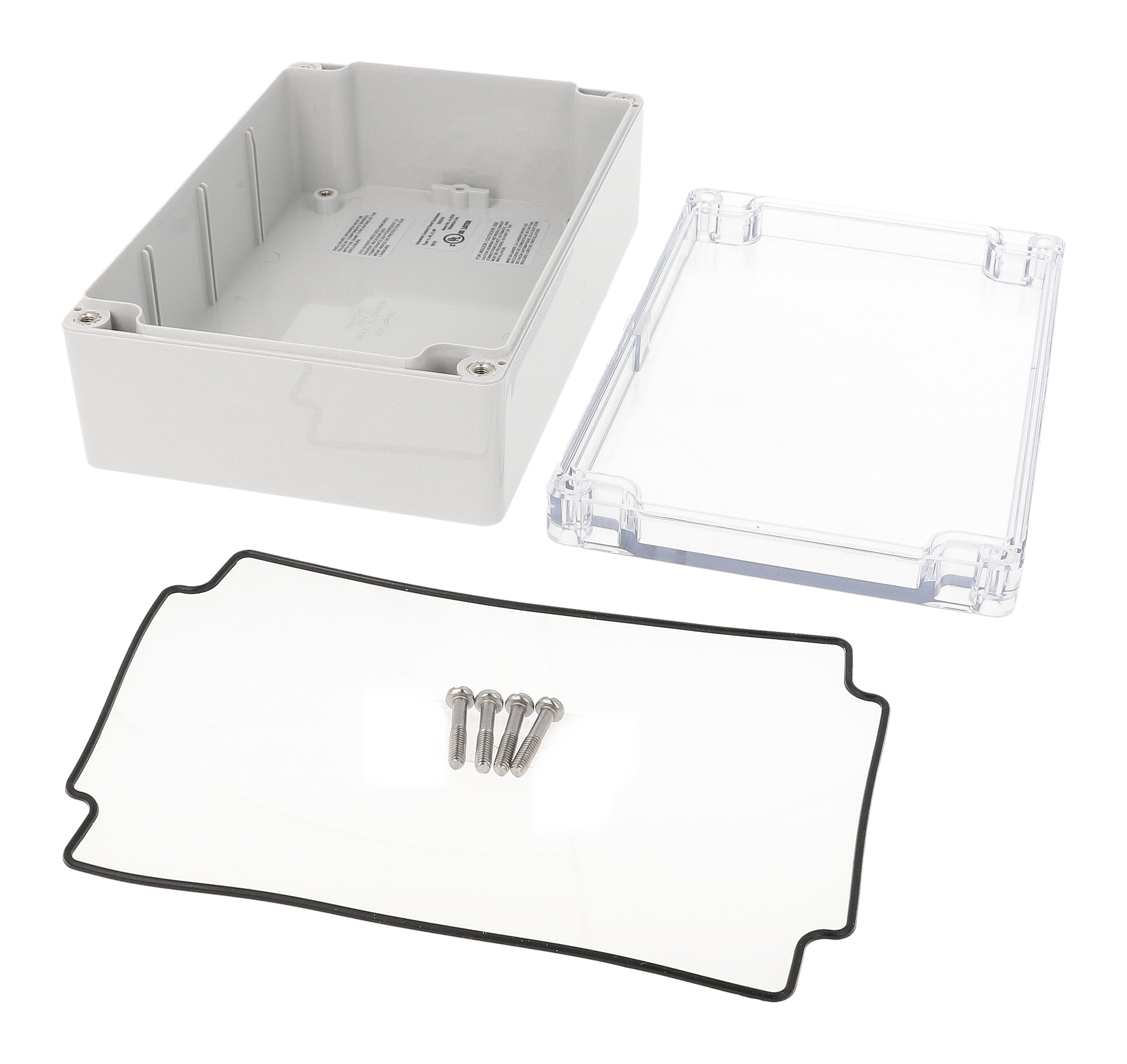

The 1554H2GYCL is the clear-lid version of the 180 x 120 x 61 mm 1554H enclosure. A transparent polycarbonate flat lid over a light gray (RAL 7035) polycarbonate base lets technicians check displays, LEDs or DIN rail devices at a glance, while keeping the enclosure sealed.
Listed at UL94 V-0 (the series rating for clear lids), the part is cUL and UL 508A listed under file E65324, rated IP68 and NEMA 4, 4X, 6, 6P, 12 and 13, and carries an IK08 impact rating. Polycarbonate versions are UV stabilized for outdoor use and have a recommended operating range of -40°C to +110°C.
Per the drawing, the enclosure measures 180.00 x 120.00 mm with a 60.50 mm overall height, and inside provides 172.91 mm of length, 108.91 mm of width and 54.50 mm of height. The part page lists a maximum PC board of 106.68 x 167.13 mm. Boards and inner panels mount on M3 brass inserts (the drawing lists 1591MM100 M3 screws) or #6 self-tapping standoffs (1598ATS100 screws), the card guides take 1.5 mm boards, and DIN rail tabs are molded in. The 1554HPL steel inner panel is ordered separately.
The drawing notes the purchased assembly includes box, lid, four cover screws and a preformed silicone gasket, which is supplied loose. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m). Mount the 1554H2GYCL with the 4X Ø4.00 mm holes outside the gasket channel or the 1554FT foot kit. It ships shrink wrapped at 0.7 lbs (0.32 kg) and is REACH and RoHS compliant.
Ideal For
- Outdoor display and indicator housings
- DIN rail assemblies requiring visual inspection
- UL 508A control panels with viewable contents
- Telemetry and instrumentation enclosures
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Drawing Reference | 1554H (REV: 28.02.2020) |
| Short Description | 180X120X60MM P/C NEMA CLR LID |
| Assembly Contents (Drawing Note) | Box, lid, 4 cover screws and preformed silicone gasket |
Dimensions
| Inside Width (Drawing) | 108.91 mm [4.29 in] |
| Width (Ordering Table) | 4.72 in (120 mm) |
| Inside Height (Drawing) | 54.50 mm [2.15 in] |
| Inside Length (Drawing) | 172.91 mm [6.81 in] |
| Length (Ordering Table) | 7.09 in (180 mm) |
| Nominal Size (L X W X H) | 7.1 in x 4.7 in x 2.4 in (180 mm x 119 mm x 61 mm) |
| Overall Height (Drawing) | 60.50 mm [2.38 in] |
| Total Height (Ordering Table) | 2.40 in (61 mm) |
| Overall Length X Width (Drawing) | 180.00 x 120.00 mm [7.09 x 4.72 in] |
Accessories
| Inner Panel | 1554HPL (steel, order separately) |
| Replacement Gasket | 1554HGASKET |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Replacement Gasket Detail | 1554HGASKET - silicone pre-formed gasket, black, pkg 2 |
| Replacement Lid Screws (50-pk) | SC576-50 |
| Steel Panel / P.C. Board Screw | 1591MM100 - M3-0.5 x 8 mm plated, pkg 100 |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 - #6 x 1/4" (6.4 mm) plated, pkg 100 |
Identifiers
| UPC | 623980842424 |
| UNSPSC | 39121301 |
| Part Number | 1554H2GYCL |
Wall Mounting
| Foot Kit | 1554FT (installs in the same wall-mounting holes) |
| Mounting Holes | 4X Ø4.00 mm [Ø.16 in], located outside of the gasket channel |
Related Versions
| ABS, Gray Lid | 1554HGY |
| Polycarbonate, Gray Lid | 1554H2GY |
| Polycarbonate, Clear Lid | 1554H2GYCL |
| Polycarbonate, Smoked Lid | 1554H2GYSL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.7 lbs (0.32 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Clear |
| Gasket | One-piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Two piece tongue and groove construction |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, included; self-captivating |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Cover Screws (SC576-50) | Stainless steel, M4-0.7 x 20 mm, pkg 50 |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
PCB & Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | M3 brass inserts inside box |
| Internal Standoffs | Accept #6 self-tapping screws |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Series IP Testing (Polycarbonate) | Independently tested to meet IP66, IP67 and IP68 |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed, file #E65324 |
| Drawing Note | Polycarbonate version is UL 508A approved (Matl UL94-5VA @ 3 mm) |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554H2GYCL?▾
A 180 x 120 x 61 mm light gray polycarbonate watertight enclosure with a clear polycarbonate lid.
What are the inside dimensions?▾
The drawing gives 172.91 mm inside length, 108.91 mm inside width and 54.50 mm inside height.
Is the gasket pre-installed?▾
No. The preformed silicone gasket is supplied loose inside the enclosure. The replacement is 1554HGASKET (black, pkg 2).
What is the recommended lid screw torque?▾
43-57 ozf-in (30-40 cN-m), per the drawing.
Can I get the same size with a gray or smoked lid?▾
Yes: 1554H2GY has a gray lid and 1554H2GYSL a smoked lid; 1554HGY is the ABS version.
