Hammond 1554EE2GYSL 90x90x91mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid, UL94 V-0, on a tall light gray RAL 7035 box
- NEMA Type 4, 4X, 6, 6P, 12, 13 with IP66, IP67 and IP68 testing
- cUL and UL 508A listed, file E65324
- 90 x 90 x 91 mm outside; 82.13 x 78.06 x 84.50 mm inside
- UV stabilized for outdoor use, -40°C to +110°C, IK08
- Molded DIN rail tabs, M3 brass inserts and 1.5 mm card guides
- Self-captivating M4 stainless lid screws into corrosion resistant inserts

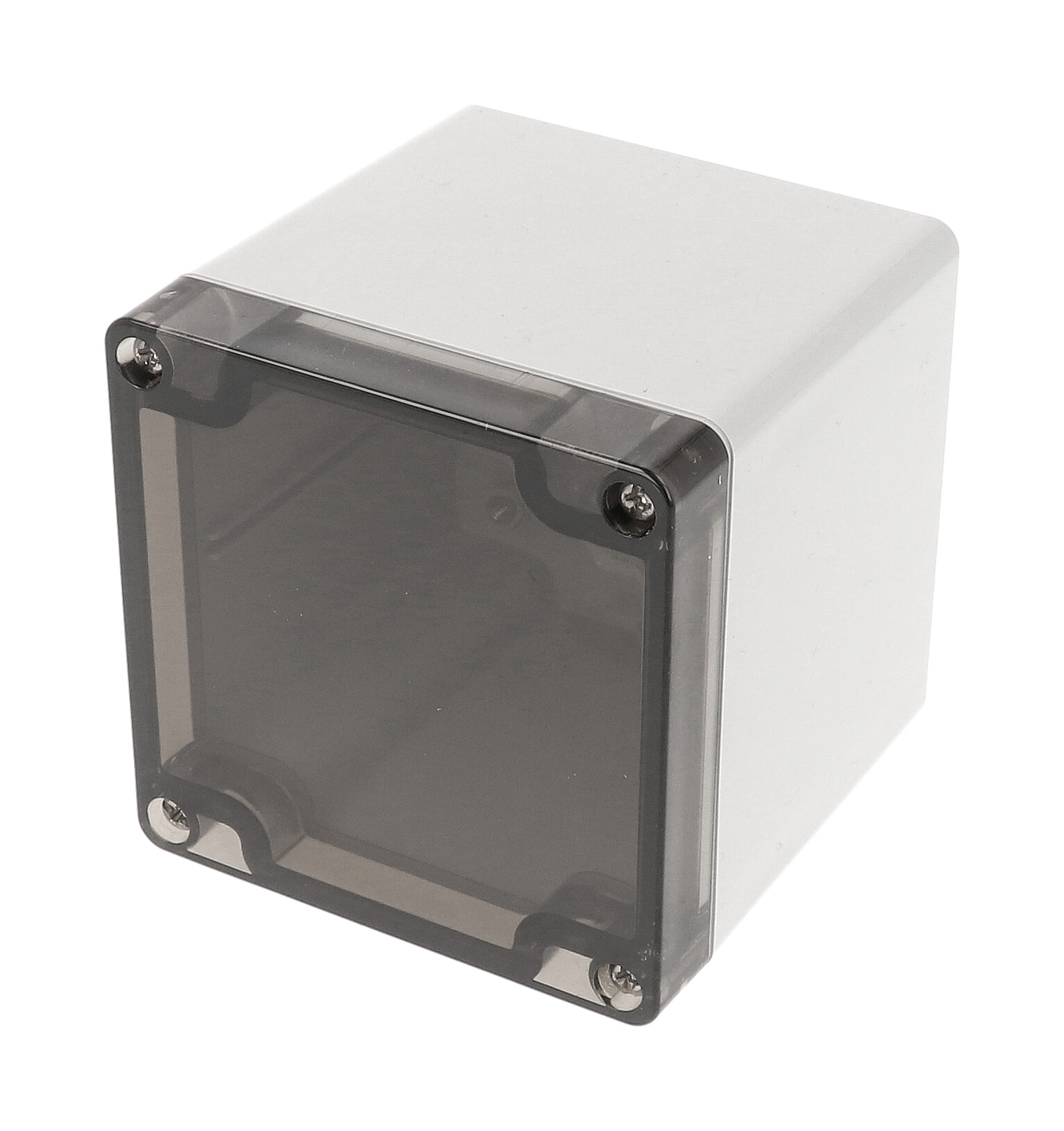

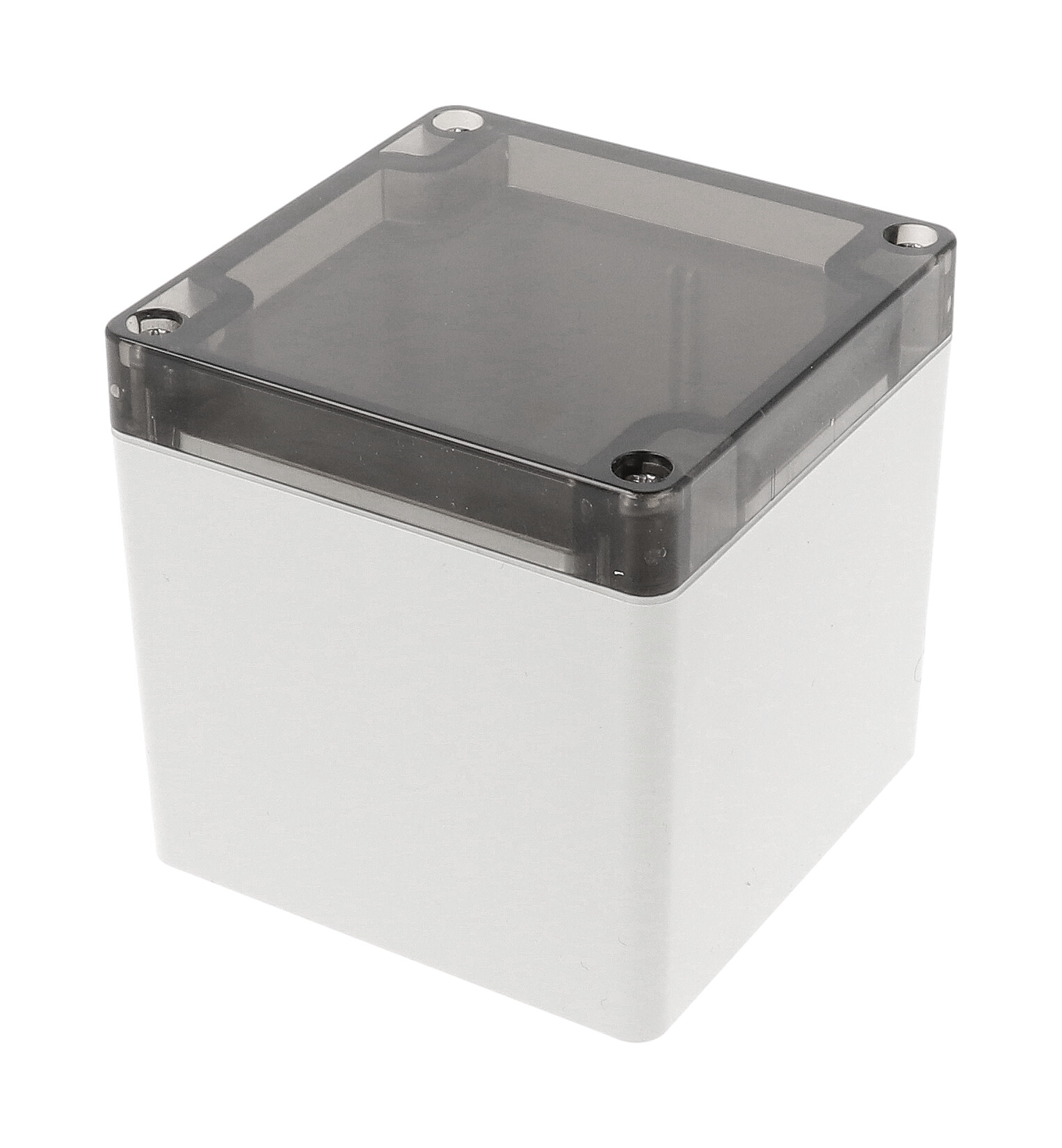

The 1554EE2GYSL is a tall, square light gray RAL 7035 polycarbonate enclosure fitted with a smoked polycarbonate lid. Outside it measures 3.54 x 3.54 x 3.58 in (90 x 90 x 91 mm); inside there is 84.50 mm [3.33 in] of height for DIN rail parts and taller electronics that should remain visible through a tinted cover.
As a polycarbonate version it is UV stabilized for outdoor use and cUL and UL 508A listed under file E65324. Independent testing covers IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13. The smoked lid is rated UL94 V-0, the enclosure carries an IK08 impact rating per IEC 62262:2021, and the recommended operating temperature runs from -40°C to +110°C (-40°F to +230°F).
- Inside length, width, height: 82.13 x 78.06 x 84.50 mm
- Maximum PC board: 77.47 x 78.41 mm
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs, 1.5 mm card guides
- Four 4 mm mounting holes outside the gasket channel; 1554FT foot kit compatible
The lid is gasketed with a one-piece high temperature silicone seal in a two-piece tongue and groove joint; the gasket is supplied loose. Four included self-captivating M4 stainless steel machine screws thread into corrosion resistant inserts, with a recommended torque of 43-57 oz f-in (30-40 cN-m). The 1554EE2GYSL is REACH and RoHS compliant and ships shrink wrapped at 0.35 lbs (0.16 kg).
Ideal For
- Outdoor DIN rail equipment with tinted viewing lid
- Tall sealed electronics assemblies
- Wet-location control devices
- UL 508A listed sub-enclosures
Overview
| Type | Water-tight |
| Style | Screw cover, flat lid |
| Series | 1554 Series |
| Application | Mounting printed circuit boards or DIN rail mounted components |
| Part Number | 1554EE2GYSL |
| Long Description | RAL7035 grey polycarb watertight enclosure, smoked lid |
| Short Description | 90X90X90MM P/C NEMA SMK LID |
| Enclosure Size Code | EE |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 3.54 in (90 mm) |
| Inside Width | 78.06 mm [3.07 in] |
| Nominal Size | 90 x 90 x 90 mm |
| Total Height | 3.58 in (91 mm) |
| Inside Height | 84.50 mm [3.33 in] |
| Inside Length | 82.13 mm [3.23 in] |
| Size (L X W X H) | 3.5 in x 3.5 in x 3.5 in (89 mm x 89 mm x 89 mm) |
| Box Height (Drawing) | 90.50 mm [3.56 in] |
| Max. P.C. Board Width | 78.41 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT (installs using the wall mounting holes) |
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554EGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Inner Panel (Steel, Order Separately) | 1554EPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980401744 |
| UNSPSC | 39121301 |
Packaging & Shipping

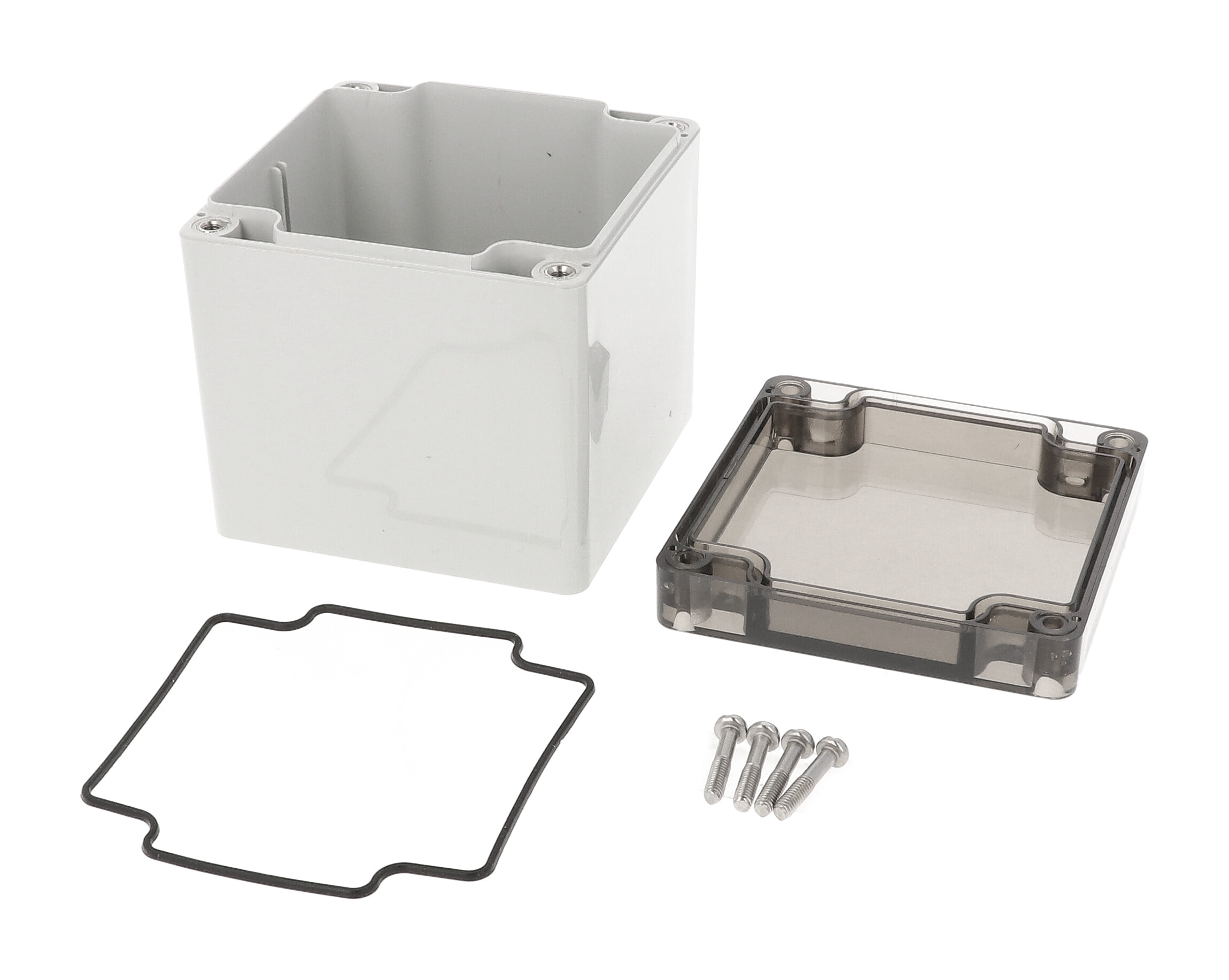

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high temperature UL listed silicone, preformed, black; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two-piece tongue and groove construction |
| Material | Polycarbonate |
| Lid Screws | 4 included M4 stainless steel machine screws, self-captivating |
| Material Grade | UV stabilized polycarbonate for outdoor use |
| Mounting Holes | 4X 4.00 mm [.16 in] diameter; wall-mounting holes located outside the gasket channel |
| PC Card Guides | Vertical, molded in, for 1.5 mm thick PC boards |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| DIN Rail Mounting Tabs | Molded in |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
| Internal PC Board / Panel Mounting | Threaded M3 integral brass inserts inside box; standoffs accept #6 self-tapping screws |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Flame Rating Note | Solid gray polycarbonate is UL94-5VA; clear and smoked lids are UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate version) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554EE2GYSL used for?▾
It is a tall polycarbonate watertight enclosure suited to mounting printed circuit boards or DIN rail mounted components, with a smoked lid.
Which ratings does the 1554EE2GYSL have?▾
NEMA 4, 4X, 6, 6P, 12 & 13, IP68 (tested to IP66, IP67 and IP68), IK08, and a UL94 V-0 lid flame rating.
What is the operating temperature?▾
-40°C to +110°C (-40°F to +230°F) recommended; the manufacturer advises testing for your specific application.
Which inner panel fits?▾
The 1554EPL steel inner panel, ordered separately.
How is the gasket supplied?▾
The one-piece silicone gasket ships loose inside the enclosure; the replacement is 1554EGASKET (pkg 2).
