Hammond 1455K1601RD 160x78x43mm Red Aluminum Enclosure, Metal Ends

The 1455K1601RD is a red anodized extruded aluminum enclosure with metal end panels, measuring 160 x 78 x 43 mm. Designed to house PC boards or for equipment interfacing, it takes boards up to 159 mm long in a bright red housing that stands out from standard grey and black gear.

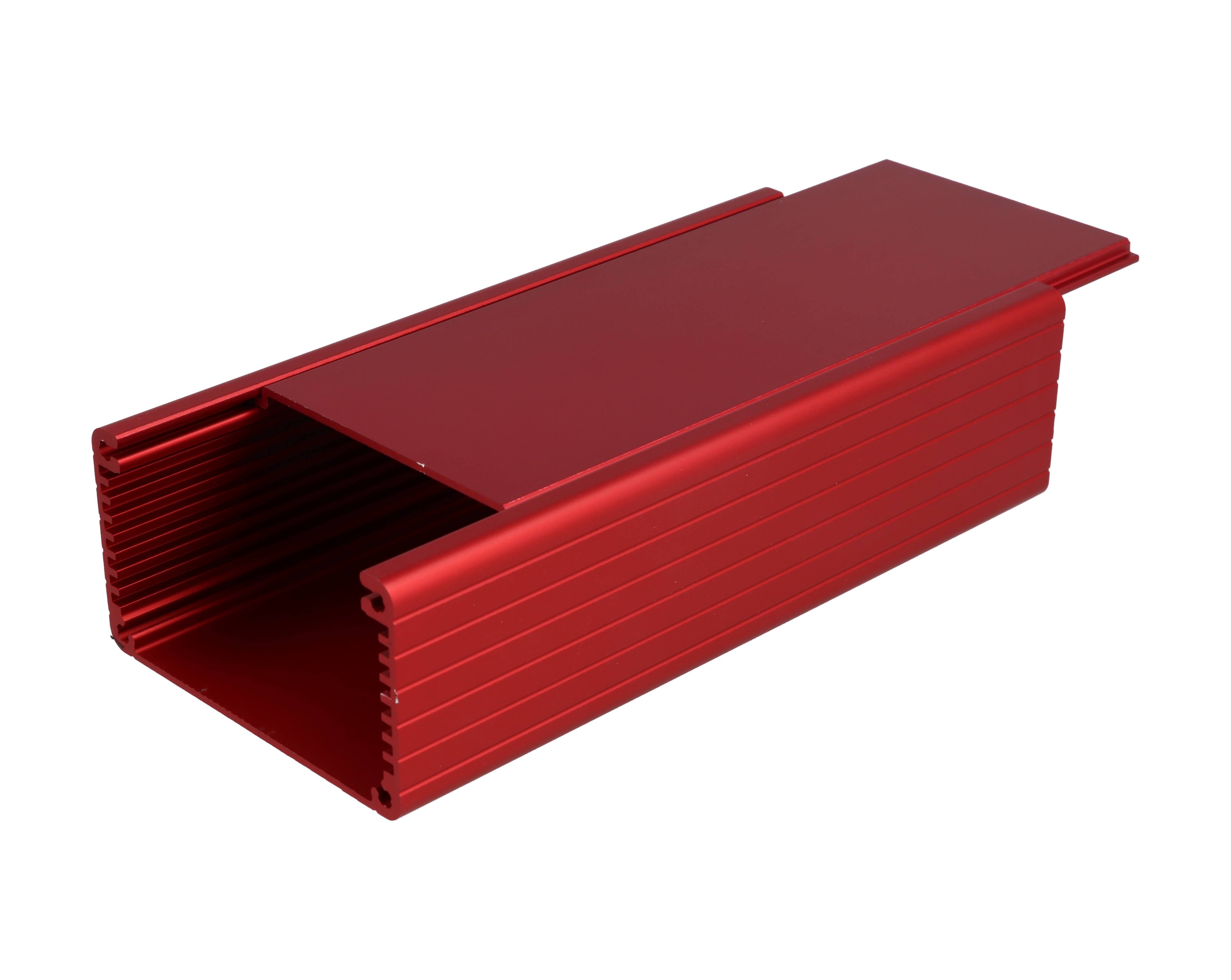

The body is extruded aluminum with a minimum thickness of 0.06 in (1.5 mm), finished in red anodized aluminum. It measures 6.3 in x 3.07 in x 1.69 in (160 mm x 78 mm x 43 mm), with the drawing showing a 160.00 ±0.50 mm length, 78.00 mm extrusion width and 43.02 mm height. Printed circuit boards up to 159 mm long and 74 mm wide mount horizontally by sliding into internal slots extruded into the body, and the enclosure includes a removable sliding plate.

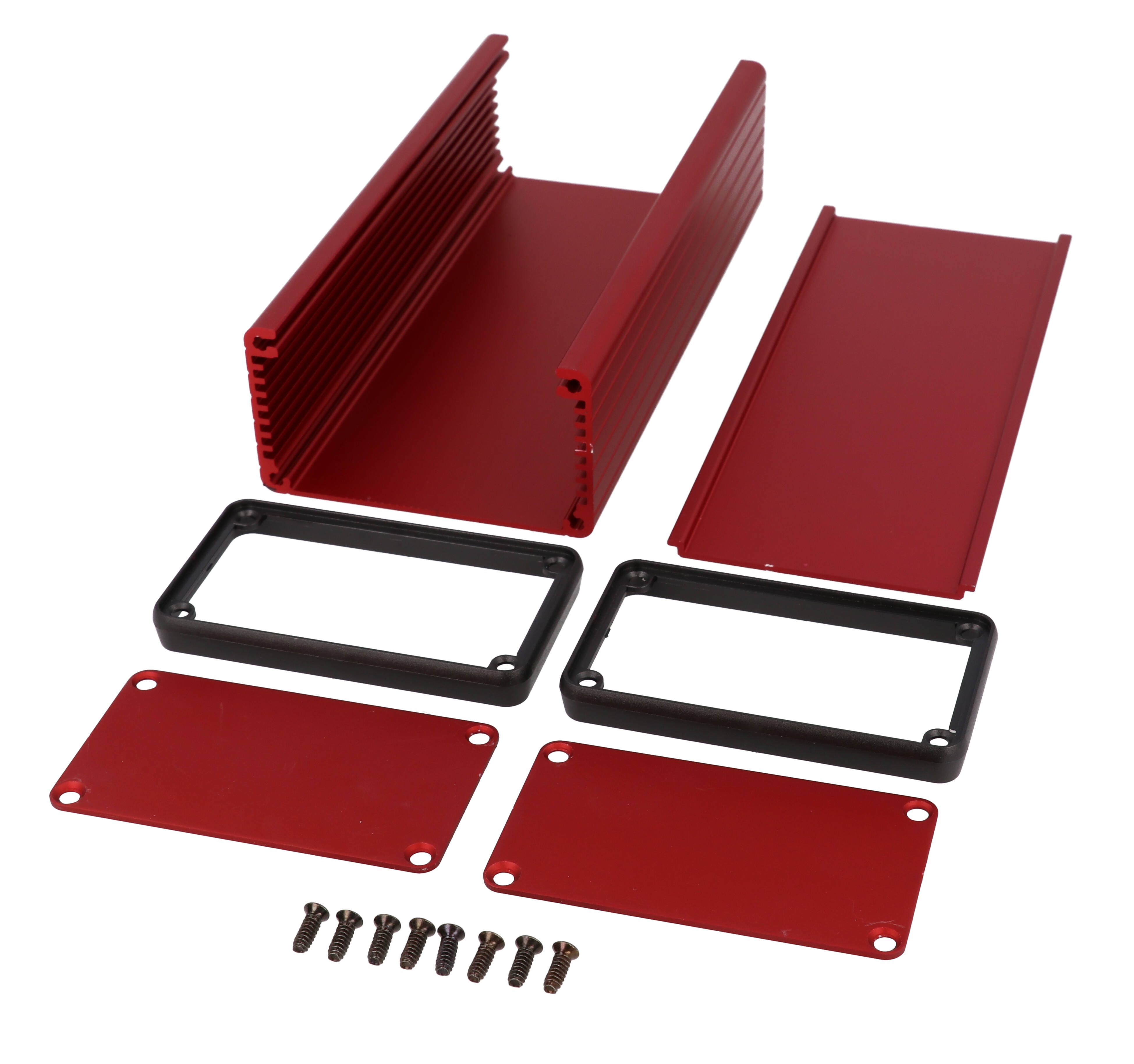

Each enclosure includes two flat aluminum end panels, color matched to the housing, and two open black plastic bezels, four adhesive rubber feet and #6 x 3/8 in thread rolling steel end panel screws with a #4 flat head phillips drive in a black finish. Tighten end panel screws to the recommended 5 lbf-in. Replacement feet are 1421T2CL (pack of 24) and replacement screws are 1455MS100BK (quantity 100).

The enclosure is IP54 rated and RoHS and REACH compliant; it ships in shrink wrap at 0.54 lbs (0.24 kg). Red aluminum end panels are sold separately as 1455KALRD-10, and the drawing shows optional 1455KF flange end panels. Factory modification (milling, drilling, printing) and STEP or IGES solid models are available.
