Hammond 1426V 12x8x4 in Beige Vented Instrument Case
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm) footprint
- 20 gauge steel top and bottom, beige powder coat
- 0.064 in thick aluminum front and rear panels, easy to machine
- Satin black front panel; rear panel matches case colour
- Vented rear panel and vented bottom
- Includes 4 x 6-32 x 1/4 self-tapping screws and 4 self-adhesive rubber feet
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant

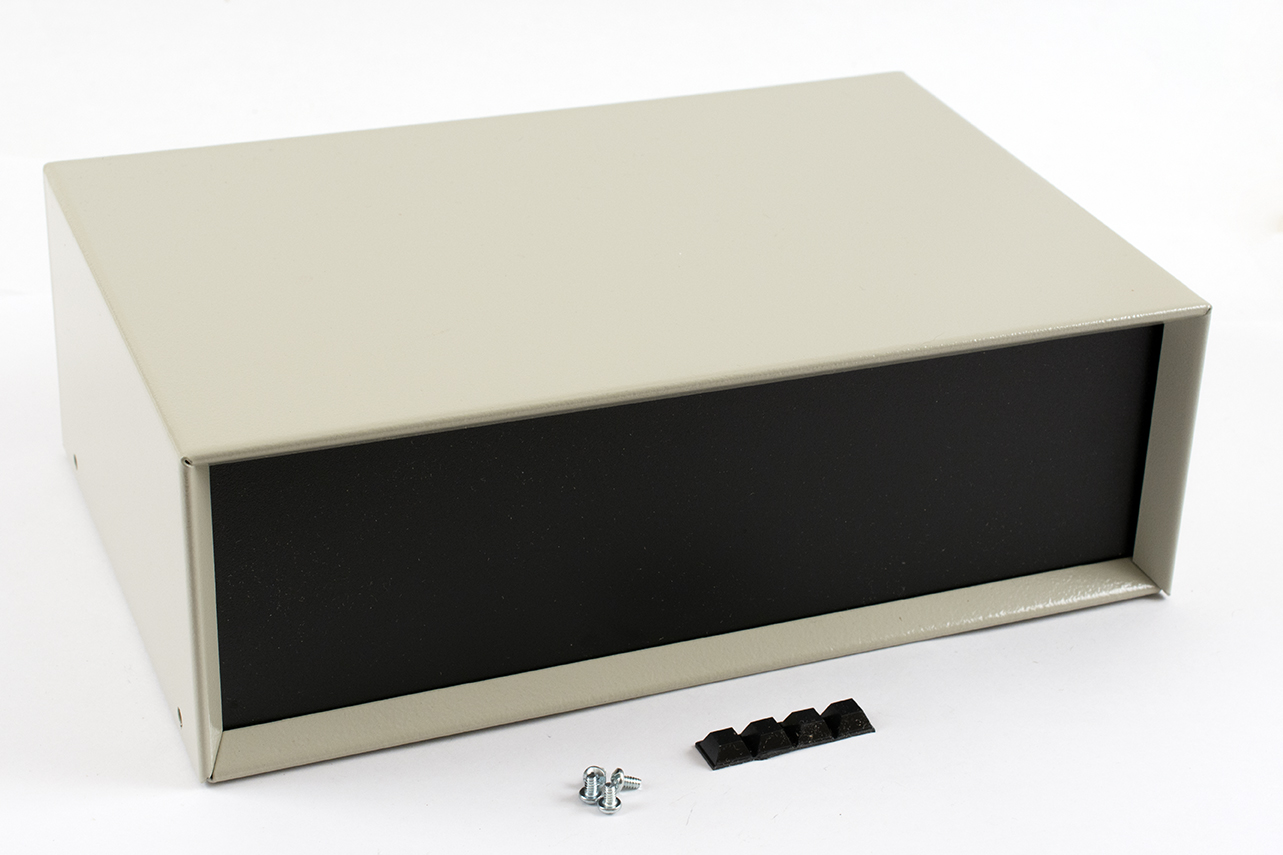

The 1426V is a 12 x 8 x 4 in (305 x 203 x 102 mm) metal instrument enclosure in a beige powder coat, sized for bench instruments, test fixtures and electronics projects that need a low, 4 in tall desktop case with a generous 8 in of depth. It is aimed at electronics designers, OEM engineers and hobbyists building desktop equipment.
The top and bottom are 20 gauge steel for strength, powder coated beige. The front and rear panels are 0.064 in thick aluminum that is easy to machine for switches, connectors and displays. The front panel is satin black and the rear panel matches the beige case colour. The rear panel and the bottom of the enclosure are vented.
At 12 in wide by 8 in deep, the 1426V shares its 4 in height with the 1426W but is 2 in shallower, and it ships at 3.77 lbs (1.71 kg). The material is listed as steel with aluminum end panels, and the 1426V is supplied in shrink wrap packaging.
Each case includes four 6-32 x 1/4 self-tapping Philips nickel plated screws and four self-adhesive rubber feet. Replacement screws are part 1421J6 (package of 6) and replacement rubber feet are 1421T9. The same size is offered in satin blue as 1426V-B. The enclosure can be factory modified (milling, drilling, printing), solid models are available in STEP or IGES, and it is RoHS and REACH compliant.
Ideal For
- Desktop test and measurement instruments
- Electronics prototypes needing a machinable front panel
- Low-profile 4 in tall bench equipment
- Custom control boxes with vented base
Overview
| Type | Instrument Enclosure |
| Series | 1426 Series Metal Instrument Enclosures |
| Description | enclosure - beige w/ vented bottom; black front panel |
| Part Number | 1426V |
| Short Description | BEIGE INSTRUMENT CASE 12X8X4 |
Dimensions
| Depth | 8.00 in (203 mm) |
| Width | 12.00 in (305 mm) |
| Height | 4.00 in (102 mm) |
| Size (L X W X H) | 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm) |
Identifiers
| UPC | 623980491509 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 3.77 lbs (1.71 kg) |
Construction & Finish
| Color | Beige |
| Material | Steel w/ Aluminum End Panels |
| CAD Models | Solid models available in STEP or IGES |
| Ventilation | Rear panel and bottom of enclosure vented |
| Top And Bottom | 20 gauge steel, powder coat finished |
| Color Alternative | 1426V-B (Satin Blue case/rear panel, same size) |
| Hardware Included | 4 x 6-32 x 1/4 self tapping Philips nickel plated screws; 4 x self-adhesive rubber feet |
| Rear Panel Finish | Matches case color |
| Front Panel Finish | Satin black |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 Philips head screws) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Replacement Rubber Feet | 1421T9 |
| Case/Rear Panel Color (Drawing) | Off White |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1426V?▾
The 1426V is 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm): 12.00 in (305 mm) wide, 8.00 in (203 mm) deep and 4.00 in (102 mm) high.
What colour is the 1426V?▾
The case and rear panel are beige (Off White on the drawing) and the front panel is satin black. The same size in satin blue is 1426V-B.
What are the panels made of?▾
The front and rear panels are 0.064 in thick aluminum, easy to machine; the top and bottom are 20 gauge steel.
Is the enclosure ventilated?▾
Yes. The rear panel and the bottom of the enclosure are vented.
What hardware comes with it?▾
Four 6-32 x 1/4 self-tapping Philips nickel plated screws and four self-adhesive rubber feet. Replacement screws are 1421J6 (package of 6) and replacement feet are 1421T9.
Can it be customised?▾
The enclosure can be factory modified with milling, drilling and printing, and solid models are available in STEP or IGES.
