Hammond 1411ZU 17x5x4 Inch Unfinished Aluminum Utility Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 17 x 5 x 4 in (432 x 127 x 102 mm) utility case in natural aluminum
- 0.04 in (1.02 mm) aluminum bottom and cover
- Plastic film protects the unpainted finish and doubles as a removable drilling template
- Inner box 429.41 x 121.79 x 99.77 mm [16.91 x 4.80 x 3.93 in]
- Includes bottom, cover and 4 cover screws
- Replacement 6-32 x 1/4 in screws available as 1421J6 (pack of 6)
- RoHS and REACH compliant

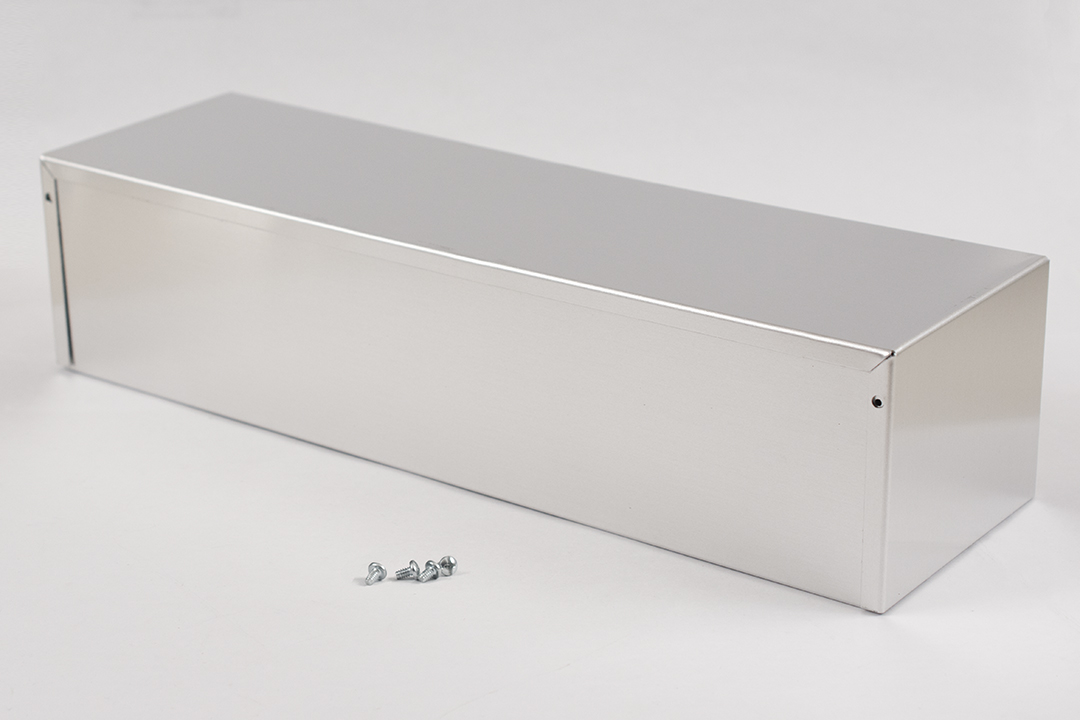

The 1411ZU is a 17 in x 5 in x 4 in (432 mm x 127 mm x 102 mm) utility case in natural, unpainted aluminum. It is the unfinished counterpart of the grey 1411Z and gives engineers, hobbyists and panel builders a long, slim metal housing they can drill, mark and finish to their own requirements.
The bottom and cover are made from 0.04 in (1.02 mm) aluminum panels. Because the surface is unpainted, it is protected through manufacturing and shipping by a plastic film cover that keeps the finish clean. That film also doubles as a removable drilling template, so you can lay out holes directly on the case before cutting.
The drawing lists overall dimensions of 431.44 mm [16.99 in] x 126.64 mm [4.99 in] x 101.80 mm [4.01 in] and an inner box of 429.41 mm [16.91 in] x 121.79 mm [4.80 in] x 99.77 mm [3.93 in]. Shipping weight is 1.4 lbs (0.64 kg), shrink wrapped.
- Includes bottom, cover and 4 cover screws
- Replacement screws: 1421J6, six 6-32 x 1/4 in plated self-tapping screws
- RoHS and REACH compliant
- Factory milling, drilling and printing available on quotation; STEP or IGES models available
Ideal For
- Custom-drilled electronics project enclosures
- Long, narrow control and terminal housings
- Prototype cases to be painted or finished in-house
- Utility and instrument boxes
Overview
| Type | Utility Case |
| Series | 1411-1412 Series Utility Enclosures |
| Part Number | 1411ZU |
| Manufacturer Description | UTILITY CASE 17.0 X 5.0 X 4.0 |
Dimensions
| Width | 5.00 in (127 mm) |
| Height | 4.00 in (102 mm) |
| Length | 17.00 in (432 mm) |
| Inner Box Width | 121.79 mm [4.80 in] |
| Inner Box Height | 99.77 mm [3.93 in] |
| Inner Box Length | 429.41 mm [16.91 in] |
| Size (L X W X H) | 17 in x 5 in x 4 in (432 mm x 127 mm x 102 mm) |
| Overall Width (Drawing) | 126.64 mm [4.99 in] |
| Overall Height (Drawing) | 101.80 mm [4.01 in] |
| Overall Length (Drawing) | 431.44 mm [16.99 in] |
Identifiers
| UPC | 623980485911 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.4 lbs (0.64 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unfinished (unpainted) aluminum with protective plastic film cover that doubles as a removable drilling template |
| Included | Bottom, cover and 4 cover screws |
| Material | Aluminum |
| CAD Models | STEP or IGES solid models available |
| Construction | Two-piece assembly: bottom and cover |
| Panel Material | Bottom and cover made from 0.04" aluminum panels |
| Wall Thickness | 1.02 mm [0.04 in] |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
| Companion Finish Version | 1411Z (ASA 61 grey) |
| Replacement Cover Screws | 1421J6 (Pkg. of 6, 6-32 x 1/4" plated self-tapping Phillips head screws) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between the 1411ZU and the 1411Z?▾
They share the 17 x 5 x 4 in size. The 1411ZU is unfinished natural aluminum, while the 1411Z is powder coated ASA 61 grey.
What is the plastic film on the 1411ZU for?▾
It protects the unpainted aluminum through manufacturing and shipping and doubles as a removable drilling template.
How much room is inside?▾
The drawing shows an inner box of 429.41 x 121.79 x 99.77 mm [16.91 x 4.80 x 3.93 in].
What is included?▾
The bottom, the cover and 4 cover screws. Replacement screws are part 1421J6 (six 6-32 x 1/4 in self-tapping screws).
How heavy is it to ship?▾
The shipping weight is 1.4 lbs (0.64 kg) and it is shrink wrapped.
