Surge, 6 Outlets, LED, 6' Cord
- Switch Type On/Off Rocker Switch
- Rotated Outlets No
$95.88In stock
Buy now

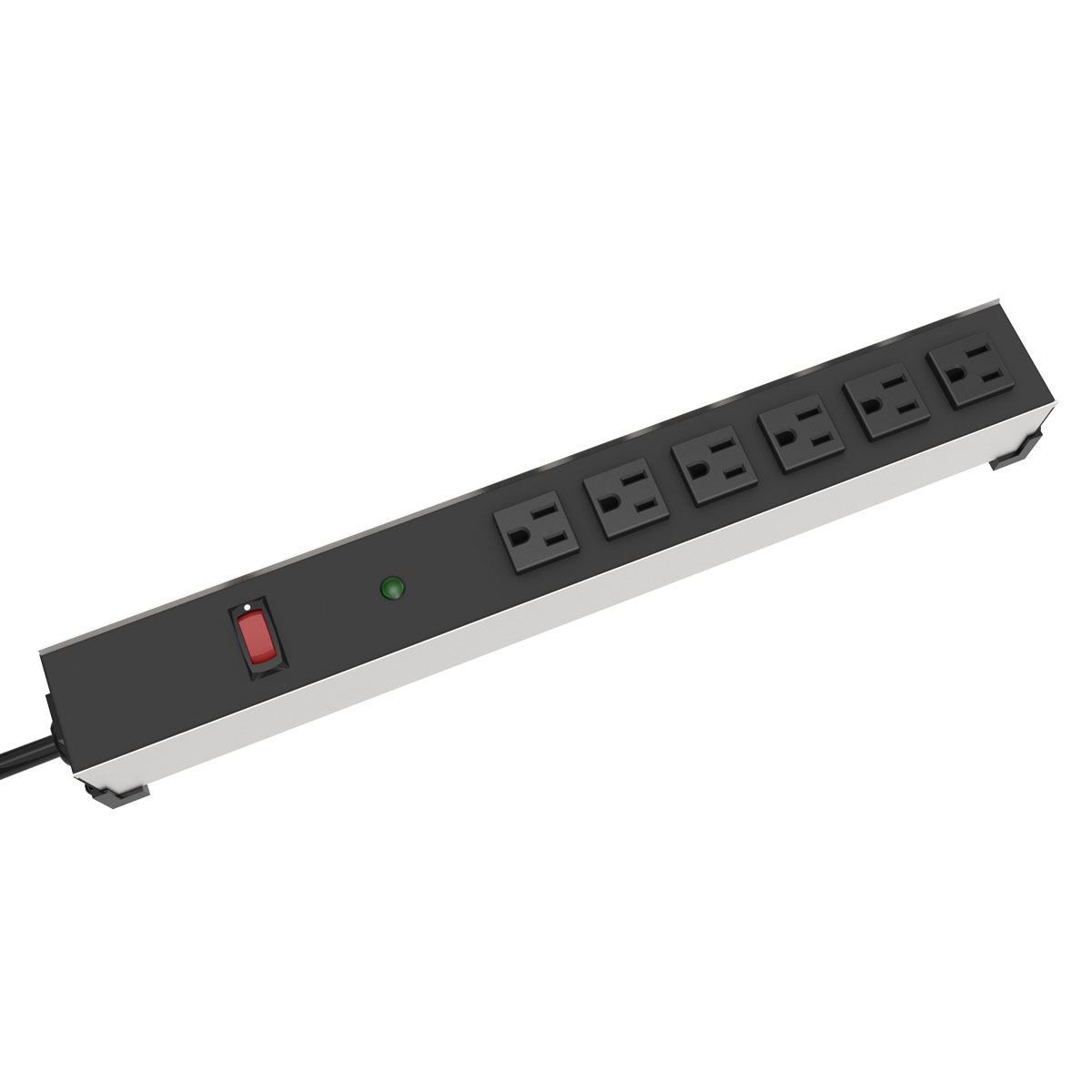

Heavy Duty Industrial Outlet Strip with Surge · 1584-S Series
Brand: Hammond Manufacturing · 9 part numbers
15A | 125V | 5-15R Outlets
- ■Built to meet the rugged requirements of commercial and industrial use.
- ■All metal housing - tough extruded aluminum case with a black powder paint coated steel cover.
- ■Heavy duty NEMA 5-15R receptacles.
- ■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
- ■On-Off switch is rocker type with pilot light (on units with on-off switch). A red pilot light is used to indicate power on (on units with no switch).
- ■Click here for our non-surge protected version .
from $1.46
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1584-S Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Surge, 6 Ra Recp, LED, 6' Cord
- Switch Type On/Off Rocker Switch
- Rotated Outlets Yes
$100.13In stock
Buy nowSurge, 6 Outlet, LED, 15' Cord
- Switch Type On/Off Rocker Switch
- Rotated Outlets No
$95.88In stock
Buy nowSurge, 6 Ra Recp, LED, 15' Crd
- Switch Type On/Off Rocker Switch
- Rotated Outlets Yes
$100.13In stock
Buy nowSurge, 6 Outlets, LED, 6' Cord
- Switch Type No Switch. Power Indicator Light
- Rotated Outlets No
$93.15In stock
Buy nowSurge, 6 Ra Recp, LED, 6' Cord
- Switch Type No Switch. Power Indicator Light
- Rotated Outlets Yes
$108.88In stock
Buy nowSurge, 6 Outlet, LED, 15' Cord
- Switch Type No Switch. Power Indicator Light
- Rotated Outlets No
$100.17In stock
Buy nowSurge, 6 Ra Recp, LED, 15' Crd
- Switch Type No Switch. Power Indicator Light
- Rotated Outlets Yes
$116.48In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Illuminated · On/Off Switch · Part No. | Illuminated · Light Only · Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Length | Outlet · Qty | Outlet · NEMA Type | Outlet · Rotated | Cord · Length (ft) | Plug · Type | Plug · NEMA Type | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1584H6A1S | 1584T6A1S | 2.33 | 2.12 | 16.51 | 6 | 5-15R | No | 6 | Straight | 5-15P | $95.88In stock1584H6A1S | Buy now |
| 1584H6A1SRA | 1584T6A1SRA | 2.33 | 2.12 | 16.51 | 6 | 5-15R | Yes | 6 | Straight | 5-15P | $100.13In stock1584H6A1SRA | Buy now |
| 1584H6B1S | 1584T6B1S | 2.33 | 2.12 | 16.51 | 6 | 5-15R | No | 15 | Straight | 5-15P | $95.88In stock1584H6B1S | Buy now |
| 1584H6B1SRA | 1584T6B1SRA | 2.33 | 2.12 | 16.51 | 6 | 5-15R | Yes | 15 | Straight | 5-15P | $100.13In stock1584H6B1SRA | Buy now |
Replacement Mounting Foot (One Foot)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | 1584MF | $1.46In stock | Buy now |
Features
- ■Built to meet the rugged requirements of commercial and industrial use.
- ■All metal housing - tough extruded aluminum case with a black powder paint coated steel cover.
- ■Heavy duty NEMA 5-15R receptacles.
- ■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
- ■On-Off switch is rocker type with pilot light (on units with on-off switch). A red pilot light is used to indicate power on (on units with no switch).
- ■Click here for our non-surge protected version .
Specifications
- ■Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
- ■Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type (see table below).
- ■Includes 15 amp, 125 volt resettable circuit breaker to prevent accidental line overload.
- ■Max Energy (Joules) is 1080 J.
- ■25000 Amp rated MOV’s for a total of 75,000 Amps of single pulse transient current.
- ■Voltage Protection Rating (Vpr) of 500V, in all 3 modes (L-N, L-G, N-G).
- ■Nominal Discharge Current (In) of 5kA.
- ■Voltage suppression at the outlet guards against transients from equipment on the outlet strip.
- ■Green indicator light confirms surge module is active.
- ■Internal protection will disconnect the surge module at the end of its useful life (and extinguish the green light) but will maintain power to the load, now unprotected.
- ■cULus Listed to UL 1449 & C22.2 No. 269.3-17, for Surge Protective Devices – Type 3.
- ■cULus Listed to UL 1363 & C22.2 No. 308-18, for Relocatable Power Taps & Multi Outlet Assemblies.
- ■TAA compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
