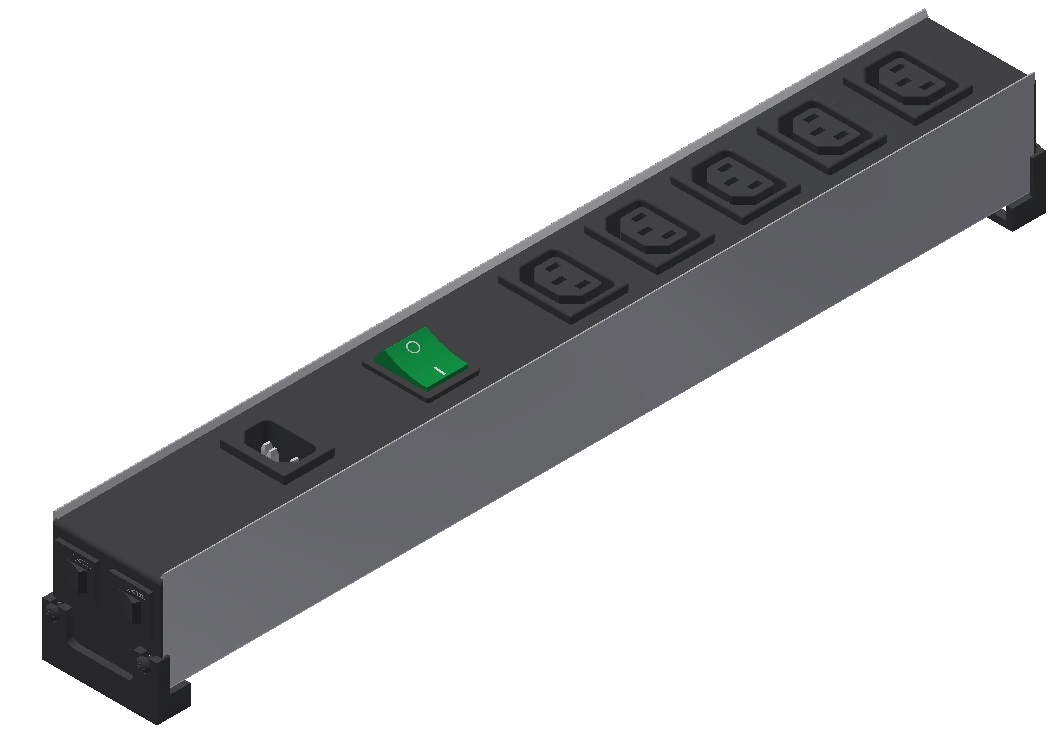

Heavy Duty Industrial Outlet Strip · 1581 DP Series

Brand: Hammond Manufacturing · 5 part numbers

10A Double Pole | 100-240V | Front or Rear Facing C13 Outlets

■On-Off switch is rocker type (double pole, single throw) with green light.
■Rated 100- 240VAC (TUV), 120- 240VAC (UL), 10 A, 50/60 Hz and designed for use with IEC power cords.
■All metal housing – tough extruded aluminum case with black powder-coated steel cover.
■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
■One IEC 320 - C14 inlet, and 4, 5, 6 or 8 IEC 320 - C13 outlets.
■Includes 10A circuit breakers to prevent accidental line overload.

from $1.46

5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1581 DP Series part number

Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

4 of 4 part numbers · 4 priced online

1581H4DP

4 Outlet IEC Pbar, Dbl Pole SW

$55.96In stock

Buy now

1581H5DP

5 Outlet IEC Pbar, Dbl Pole SW

$60.43In stock

Buy now

1581H6DP

6 Outlet IEC Pbar, Dbl Pole SW

$63.90In stock

Buy now

1581H8DP

8 Outlet IEC Pbar, Dbl Pole SW

$74.05In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Illuminated · On/Off Switch · Part No.	Overall Dimensions · Height	Overall Dimensions · Width	Overall Dimensions · Length	Outlet · Qty	Outlet · Type	Inlet · Type	Price	Order
1581H4DP	2.33	2.13	13.75	4	C13	C14	$55.96In stock	Buy now
1581H5DP	2.33	2.13	16.50	5	C13	C14	$60.43In stock	Buy now
1581H6DP	2.33	2.13	16.50	6	C13	C14	$63.90In stock	Buy now
1581H8DP	2.33	2.13	19.75	8	C13	C14	$74.05In stock	Buy now

Replacement Mounting Foot (One Foot)

col1	col2	Price	Order
Part No.	1584MF	$1.46In stock	Buy now

Features

■On-Off switch is rocker type (double pole, single throw) with green light.
■Rated 100- 240VAC (TUV), 120- 240VAC (UL), 10 A, 50/60 Hz and designed for use with IEC power cords.
■All metal housing – tough extruded aluminum case with black powder-coated steel cover.
■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.

Specifications

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

■One IEC 320 - C14 inlet, and 4, 5, 6 or 8 IEC 320 - C13 outlets.
■Includes 10A circuit breakers to prevent accidental line overload.
■cULus Listed UL 62368-1 (2nd Edition), 2014-12-01, and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition).
■TÜV-SUD Certified to EN 62368-1:2020/A11:2020, and IEC 62368-1:2018.
■TÜV-SUD tested for EMC Compliance to EN 55032:2015+A11:2020 (CISPR 32:2015+A1:2019) & EN 55035:2017+A11:2020 (CISPR 35:2016).
■CE compliant to the European Low Voltage Directive 2014/35/EU.
■CE compliant to the European EMC Directive 2014/30/EU.
■UKCA compliant to British Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1101).
■UKCA compliant to British Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091).
■TAA compliant for GSA Schedule purchases.
■RoHS Compliant.
■Manufactured in North America.
