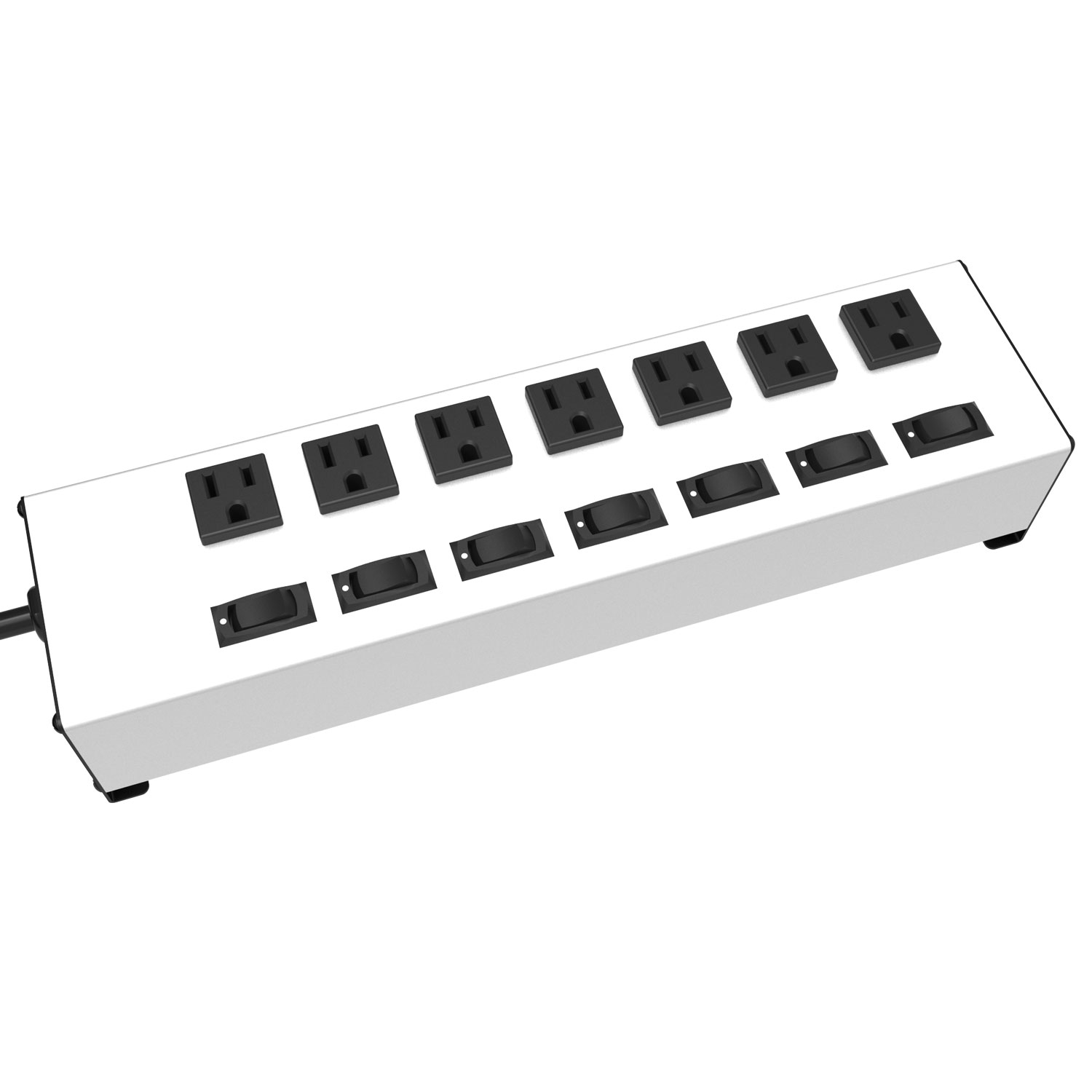

7 Rec Bar, 7 Switches, 6' Cord
$91.89In stock
Buy now
Individually Switched Power Strip · 1580X Series
Brand: Hammond Manufacturing · 2 part numbers
15A | 125V | 5-15R Outlets
- ■Designed for power distribution in a compact area.
- ■Individually switched receptacles help eliminate Phantom Power. Save hundreds of dollars off your energy bill by switching individual devices off at the source.
- ■Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
- ■Plug type available is NEMA 5-15P straight blade.
- ■Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
- ■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
from $91.89
2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1580X Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| On/Off Switch · Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Length | Outlet · Qty | Outlet · NEMA Type | Cord · Length (ft) | Plug · Type | Plug · NEMA Type | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 1580H7A1X | 2.50 | 3.50 | 13.54 | 7 | 5-15R | 6 | Straight | 5-15P | $91.89In stock | Buy now |
| 1580H7B1X | 2.50 | 3.50 | 13.54 | 7 | 5-15R | 15 | Straight | 5-15P | $97.01In stock | Buy now |
Features
- ■Designed for power distribution in a compact area.
- ■Individually switched receptacles help eliminate Phantom Power. Save hundreds of dollars off your energy bill by switching individual devices off at the source.
Specifications
- ■Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
- ■Plug type available is NEMA 5-15P straight blade.
- ■Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
- ■Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
- ■UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
- ■TAA compliant for GSA Schedule purchases.
- ■RoHS Compliant.
- ■Manufactured in North America.
Documents
