Modular Rack Mount Rails · HLPUR Series

Key Features and Benefits

The HLPUR Series Modular Rack Mount Rails provide a flexible way to install standard 19-inch rack equipment inside Hammond HLP, HLPB, and ERP enclosure systems. Available as either 180° rotating rails or fixed rails with five mounting positions, the HLPUR Series allows installers to optimize equipment placement for accessibility, cable routing, and serviceability without sacrificing enclosure protection.

Whether mounting Ethernet switches, industrial PCs, patch panels, PLCs, security equipment, or communications hardware, the HLPUR Series adapts to the application's requirements. Manufactured from durable 14-gauge steel and available in multiple rack unit heights, these rails provide a reliable, modular rack mounting solution for industrial networking, automation, and edge computing environments.

• ■Heavy-duty 14-gauge steel construction provides a rigid mounting platform for networking, industrial automation, communications, security, and edge computing equipment.
• ■Compatible with HLP and ERP enclosure systems, allowing standard 19-inch rack equipment to be installed inside industrial enclosures.
• ■Available as 180° rotating rails or fixed rails with five mounting positions, giving designers the flexibility to optimize equipment orientation for accessibility, cable routing, and available enclosure space.

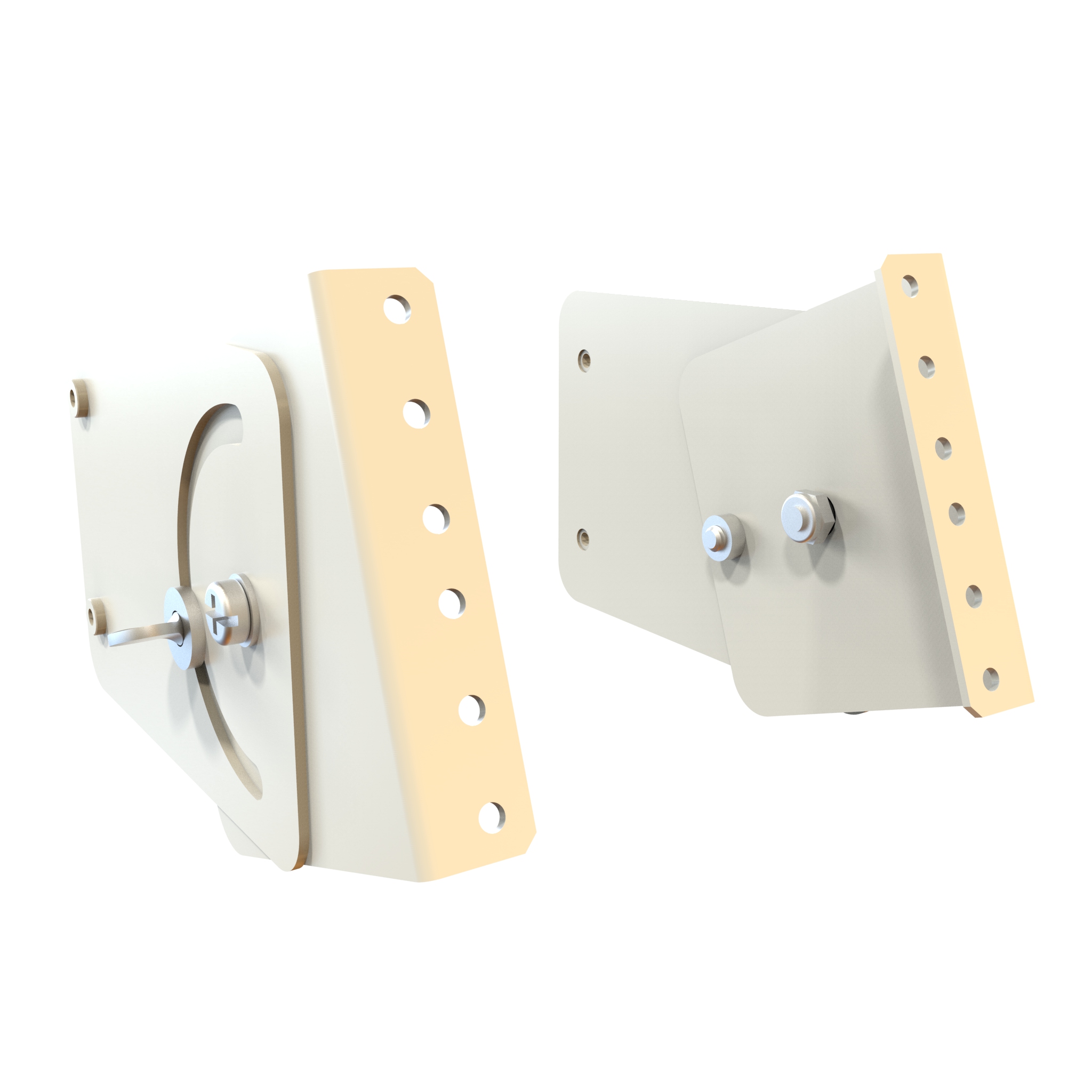

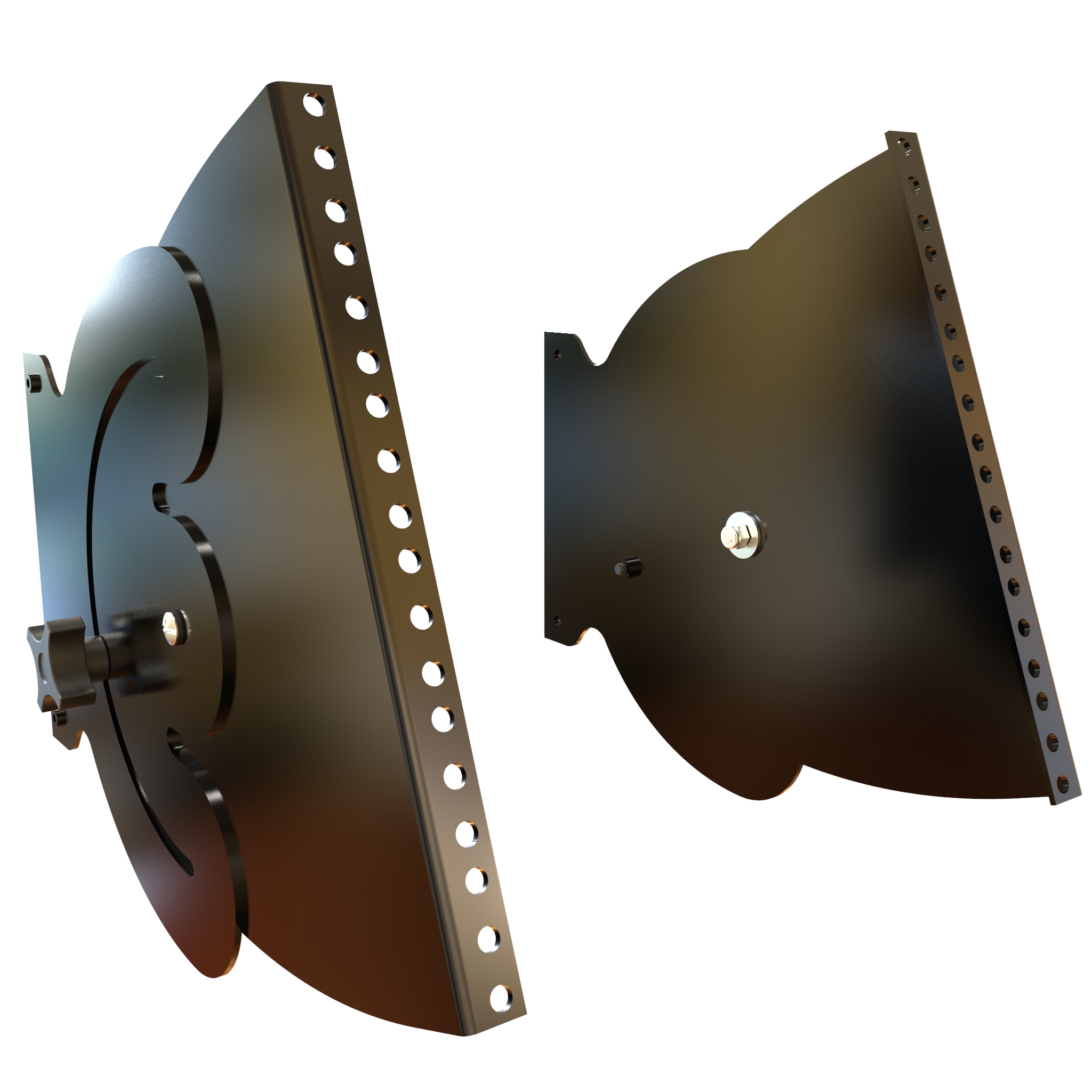

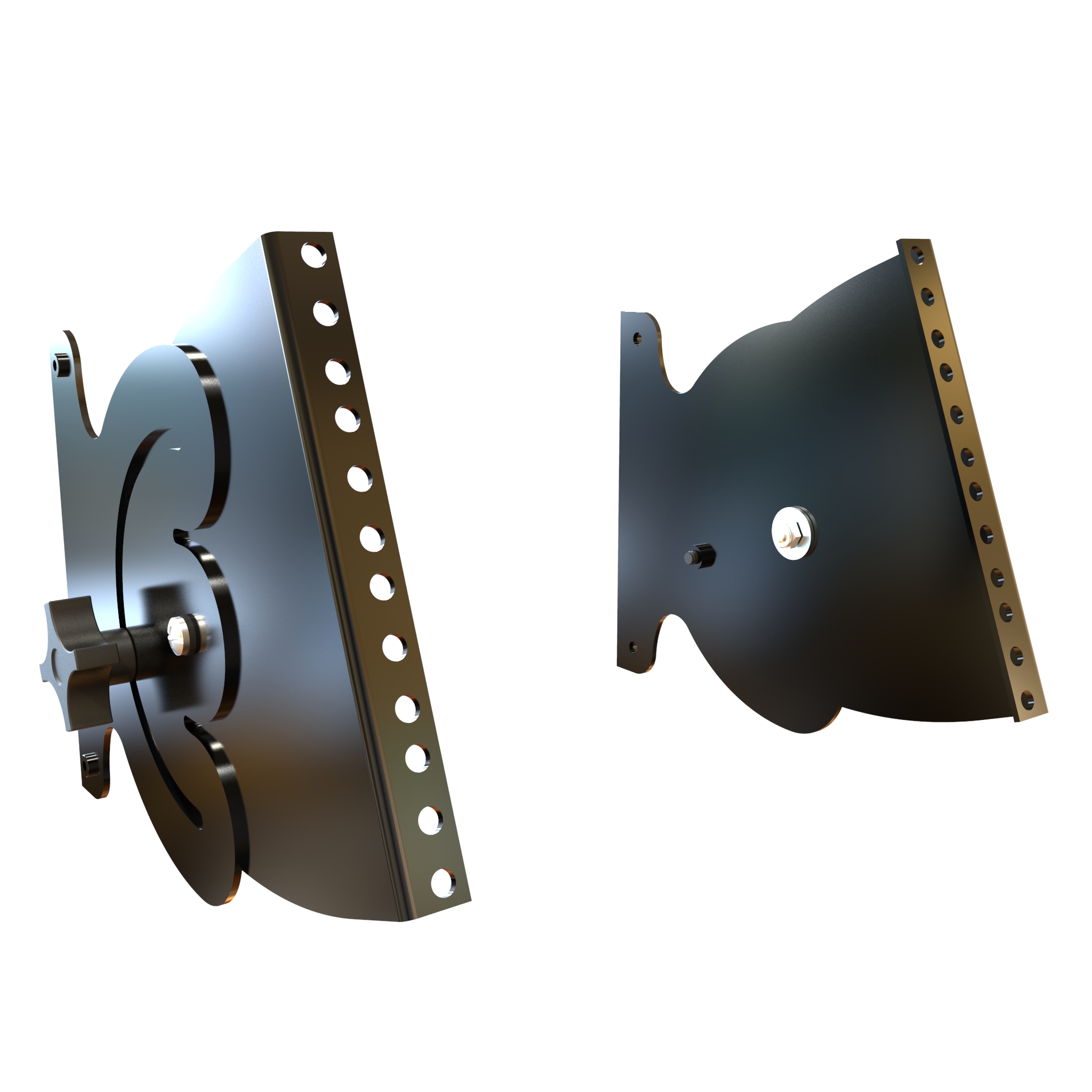

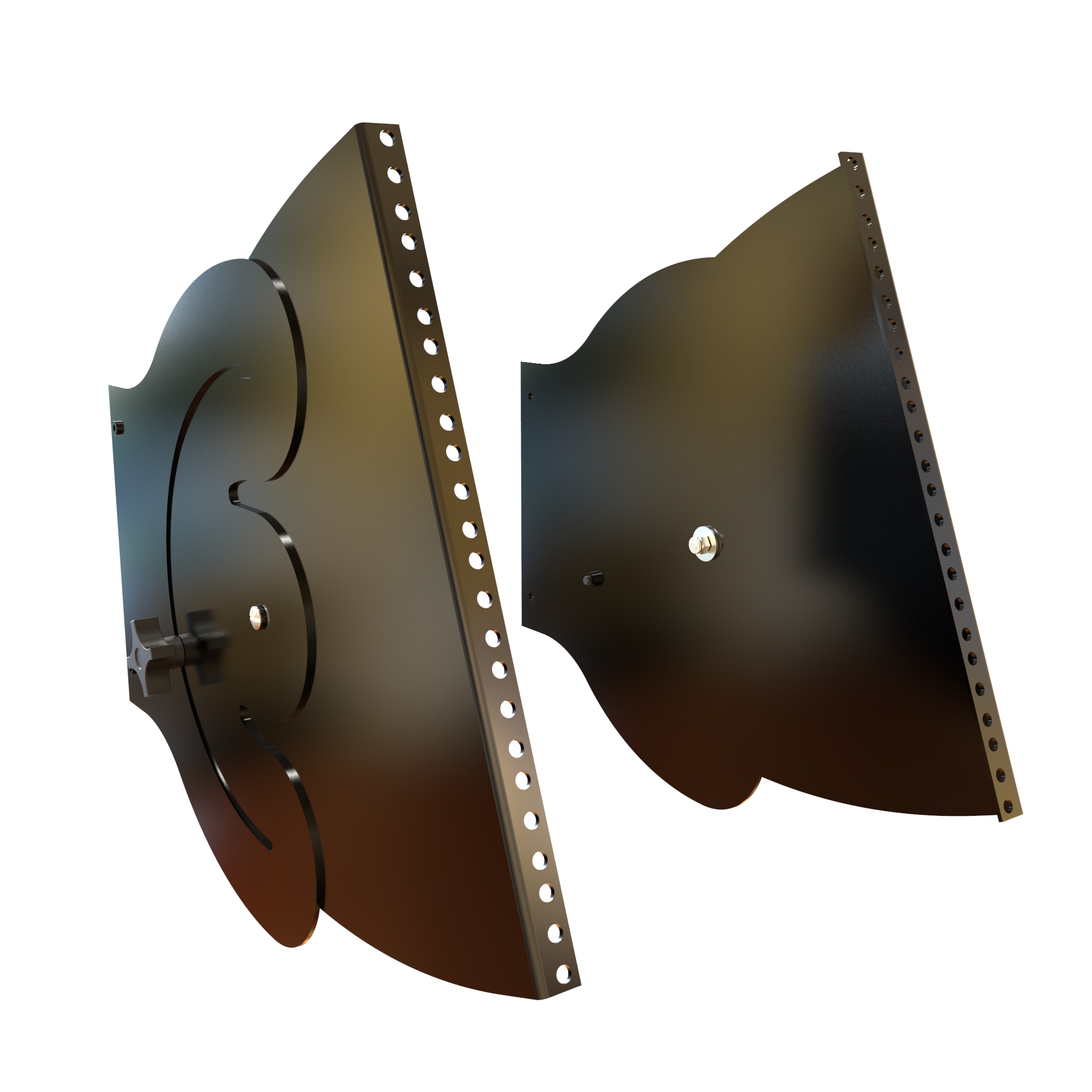

• ■Rotating rails allow equipment to swing out for improved installation and servicing while maintaining a compact enclosure footprint.

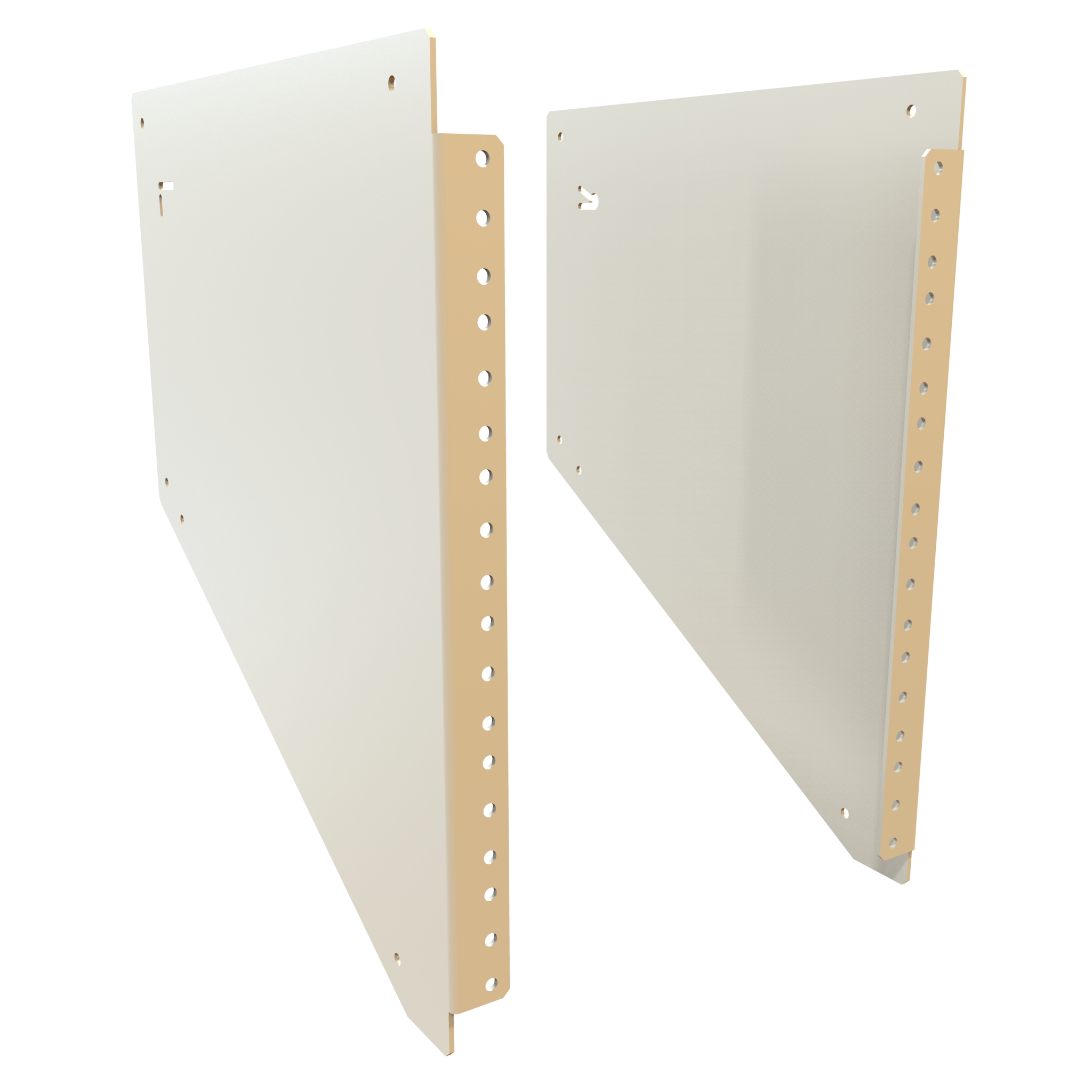

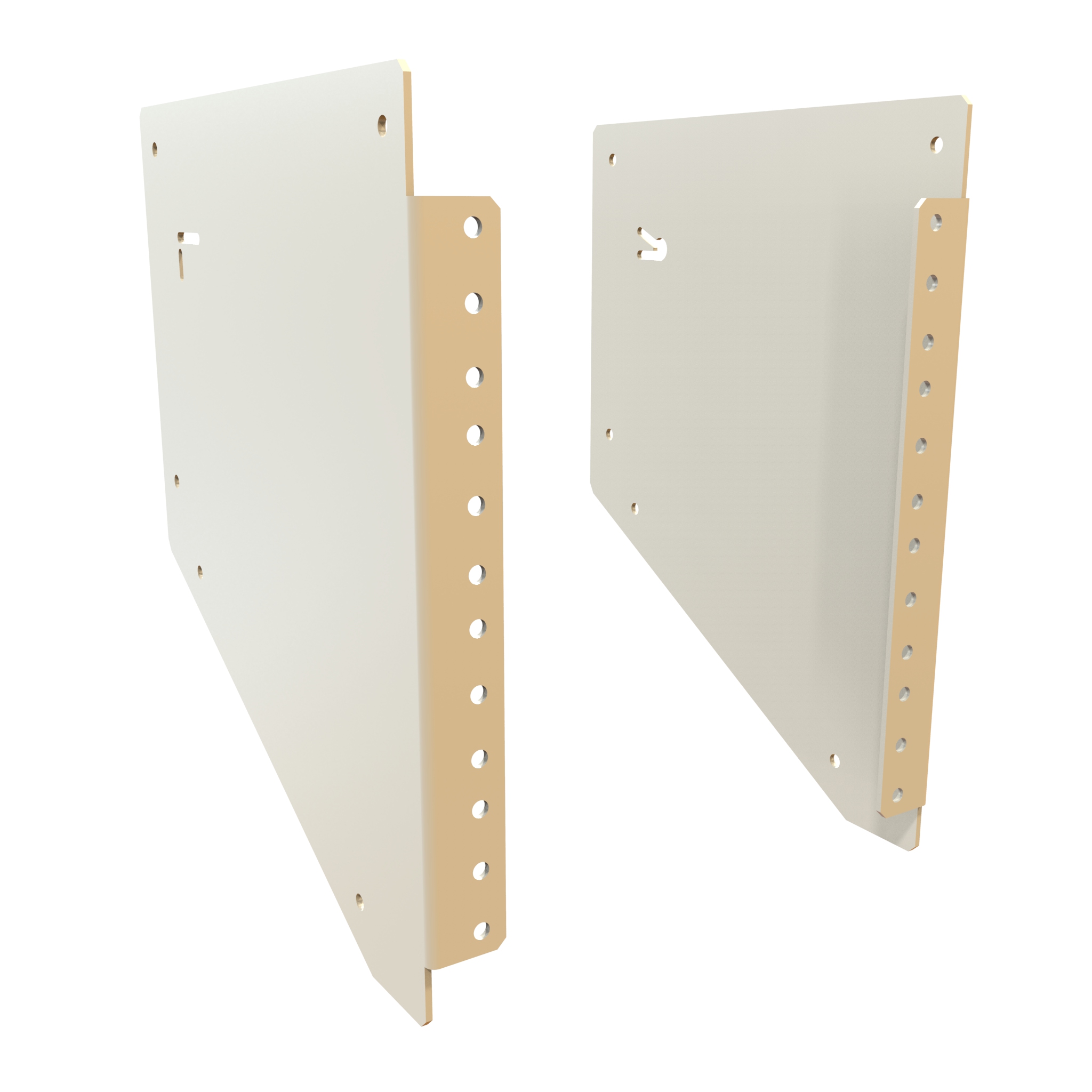

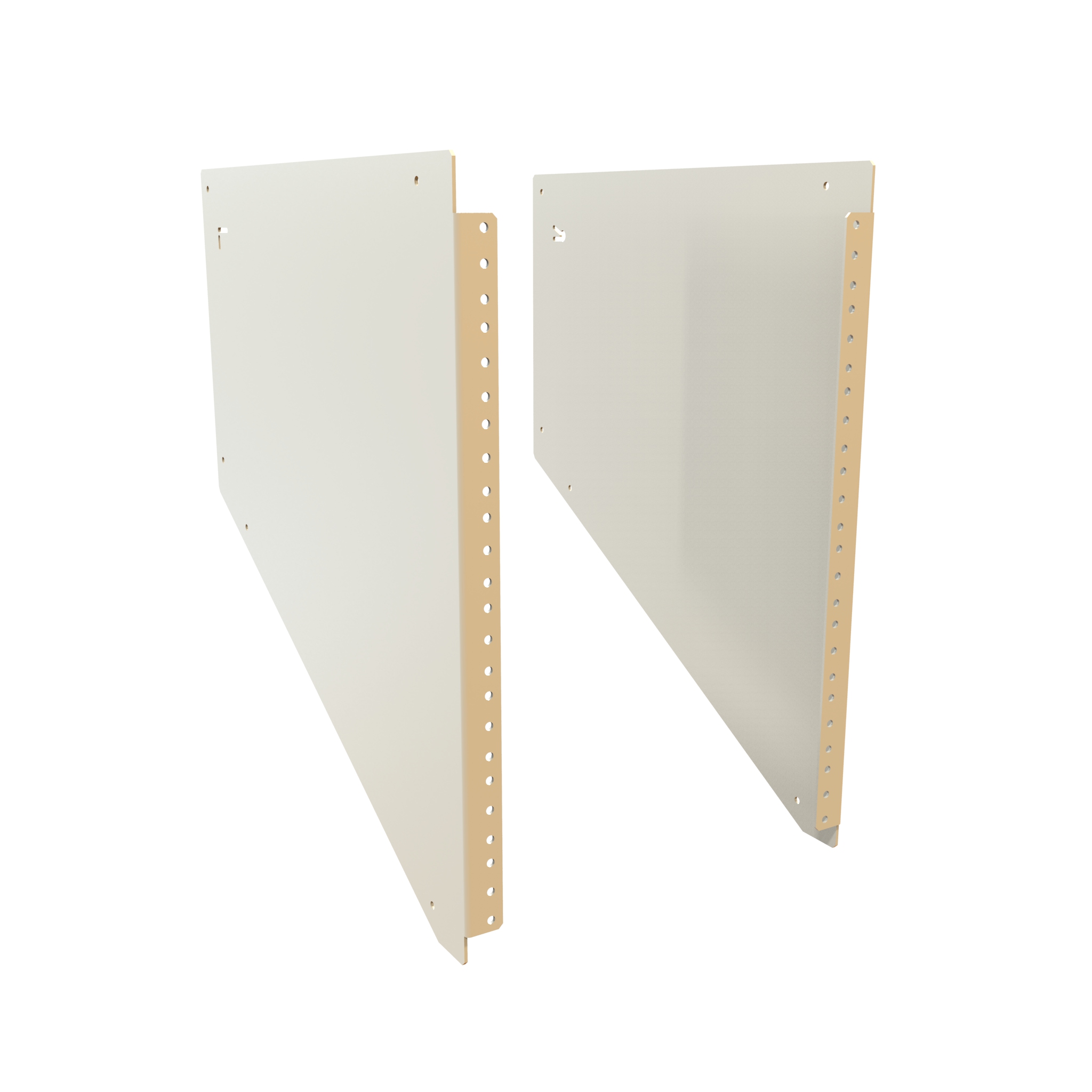

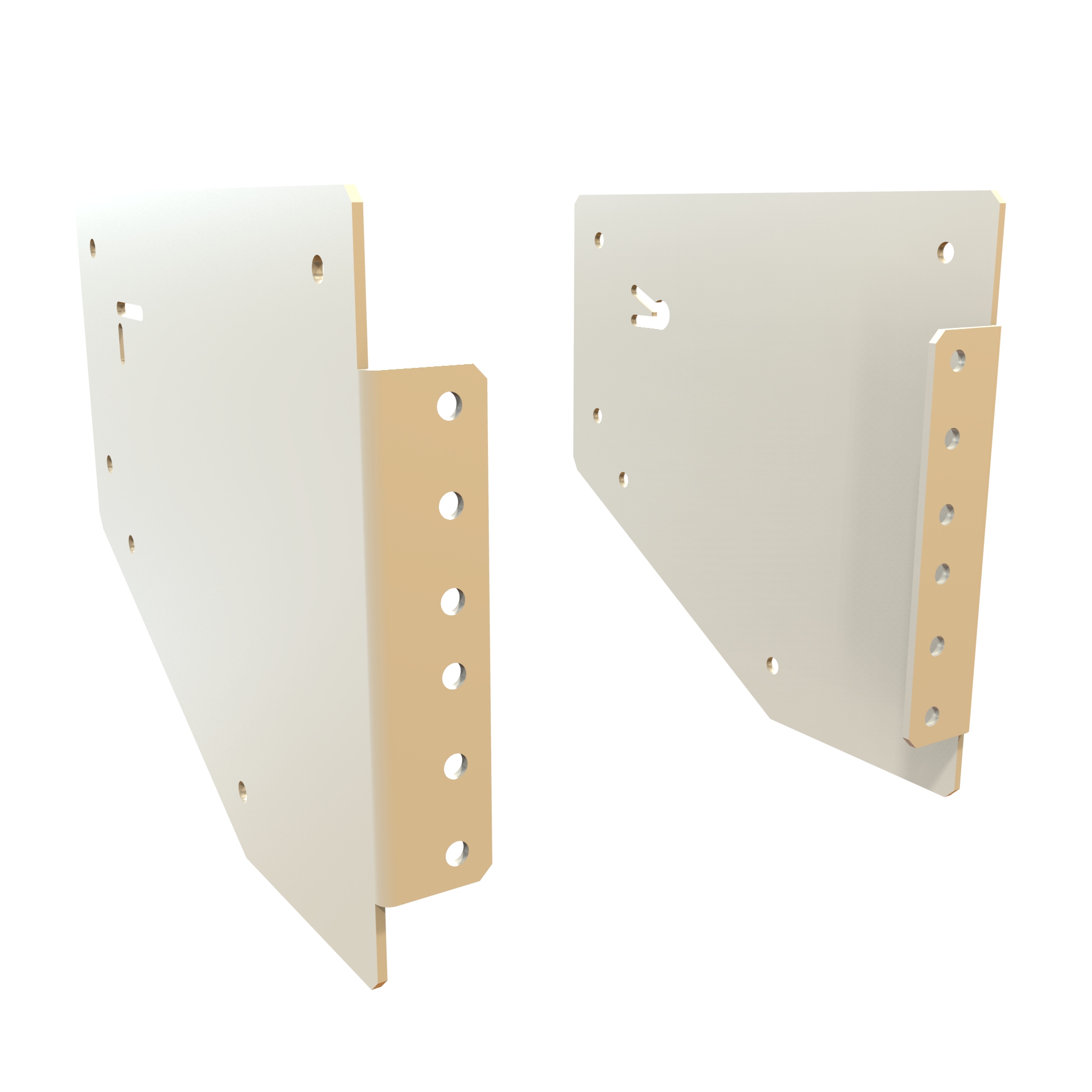

• ■Fixed rail models can be installed in five different positions, making it easy to angle equipment toward the door, mount it vertically, or position it for improved cable management.
• ■Available in 2U, 4U, 6U, and 8U rack heights to accommodate a wide variety of equipment and enclosure sizes.
• ■Precision 1U rack unit markings simplify equipment installation and future expansion.
• ■Offered with either 10-32 threaded or EIA round-hole mounting styles, depending on the rail configuration selected.
• ■Finished in a durable smooth powder coat to provide long-lasting corrosion resistance.
• ■Manufactured in North America for dependable quality and availability.
• ■TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
• ■RoHS compliant.
