Hammond HLP2UFR 2U Fixed Mounting Rail Kit, 19-Inch 10-32 Thread

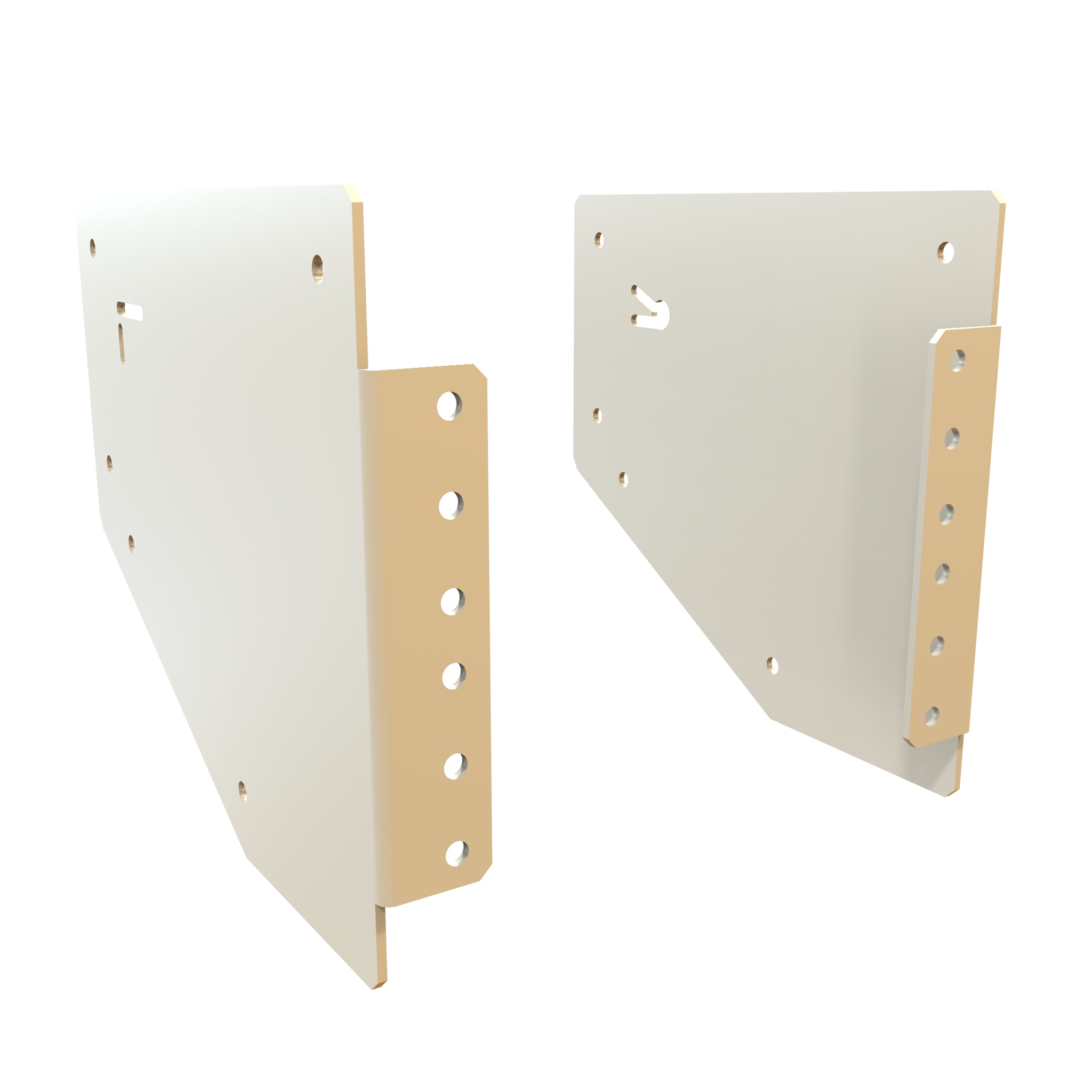

The HLP2UFR is a 2U fixed mounting rail kit for Hammond HLP Series low-profile wall-mount racks. Sold as a pair with mounting hardware included, it serves IT and telecom installers who need to add or replace the main mounting rails in a 19-inch open-frame wall-mount rack used for switches, patch panels and other structured cabling equipment.

The rails are built from mild steel and carry a smooth white paint finish. Mounting dimensions are 19.00 in (483 mm) wide by 3.50 in (89 mm) high, giving 2U of EIA-310 compliant rack space with threaded 10-32 EIA mounting holes, so equipment can be secured directly without clip nuts. The drawing identifies the part as the HLP fixed 90/30 degree rail (2U), with left and right rail indicators for correct orientation during assembly.

Unlike the rotating rail kits in the series, HLP2UFR is a fixed design offering five (5) set positions, letting the installer choose a defined equipment orientation and then lock it in for a repeatable, stable build. Within the HLP Series, a 2U rail assembly is listed as the HLP2UR replacement item in the 4U, 6U and 8U rack boxes, and fixed rail kits are offered in 2U, 4U, 6U and 8U heights so the rail can be matched to the rack size and the equipment being installed.

The part is RoHS and REACH compliant, USMCA compliant and TAA-compliant, is made in Canada, and falls under UL file E474597 with cULus and PCI listed standards. ECCN is EAR99 and the tariff code is 7326.90.8688. HLP2UFR ships with 25 10-32 mounting screws only when supplied inside a complete HLP rack; as an individual kit it includes mounting hardware as noted on the drawing.
