Cable Ladder Rack Elevation Kit Multi-Tier Ladder Support · CLEK Series
Brand: Hammond Manufacturing · 4 part numbers
Elevation kit designed to create multi-tier ladder rack systems for increased cable capacity and structured routing.
- ■12-gauge steel construction provides heavy-duty structural support for multi-tier ladder rack installations.
- ■Enables stacking of ladder rack systems to create two or three levels of cable routing, increasing system capacity.
- ■Supports up to three (3) tiers of ladder rack for high-density cable environments.
- ■Universal design fits many ladder rack brands and supports all ladder widths.
- ■Includes one (1) set of brackets and all required mounting hardware for installation.
- ■Adjustable height ranges allow flexible spacing between ladder rack levels.
from $51.92
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CLEK Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Maximum · Ladder Qty | First Level · Min | First Level · Max | Second Level · Min | Second Level · Max | Third Level · Min | Third Level · Max | Overall · Height | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|

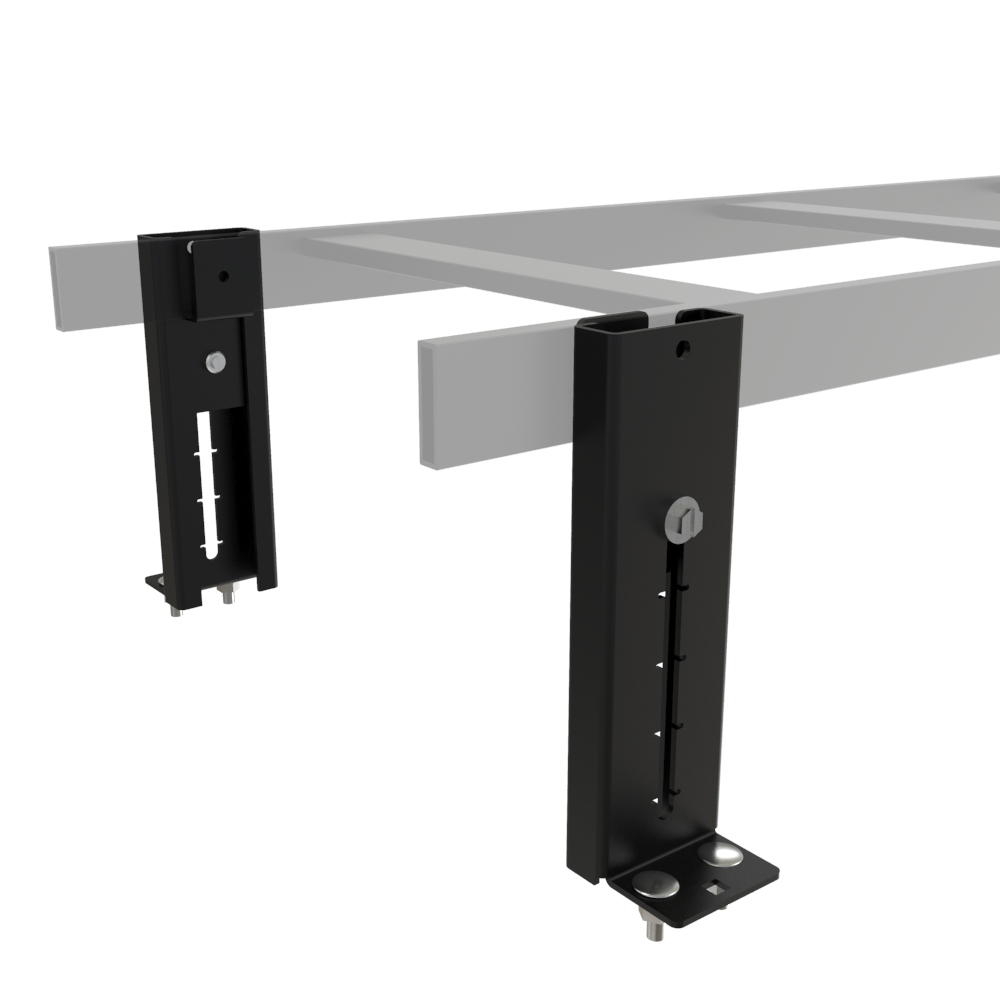

| CLEK0BK | 1 | 2.00 | 6.00 | n/a | n/a | n/a | n/a | 7.50 | $51.92In stock | Buy now |

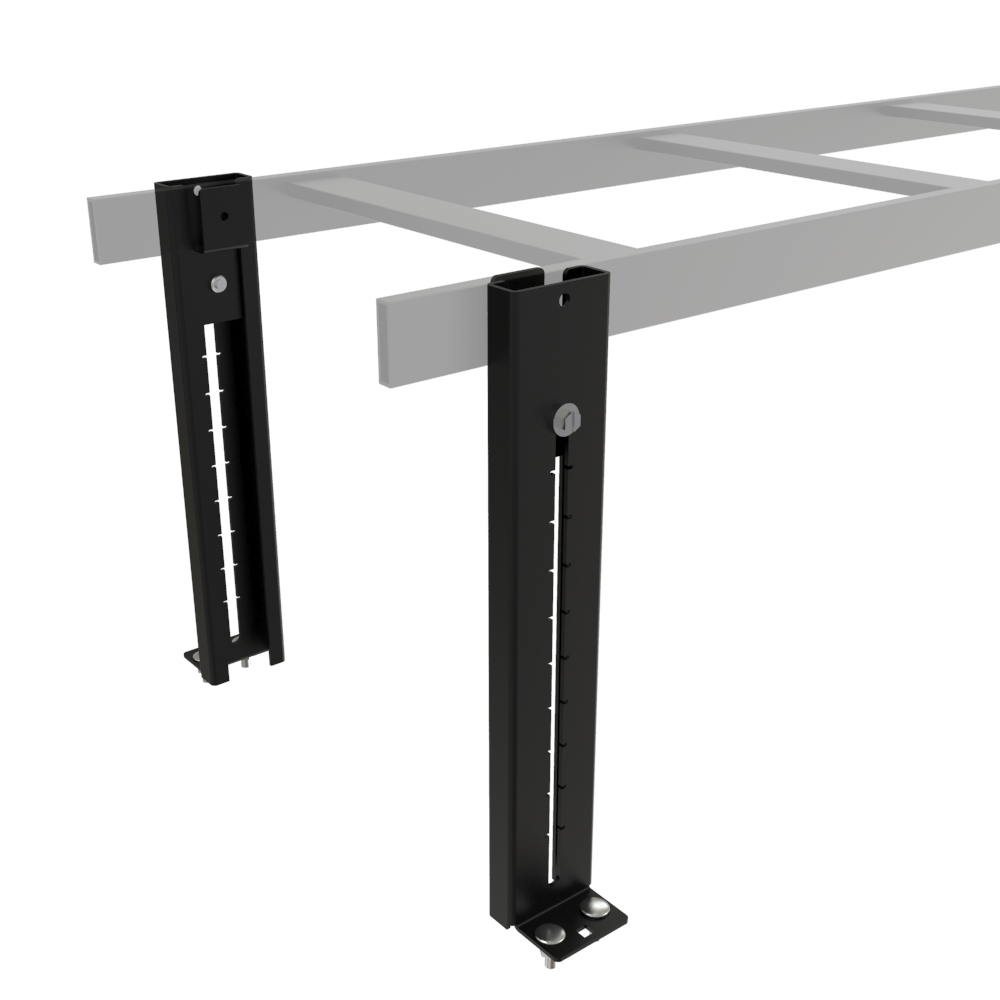

| CLEK1BK | 1 | 2.00 | 12.00 | n/a | n/a | n/a | n/a | 13.50 | $71.39In stock | Buy now |

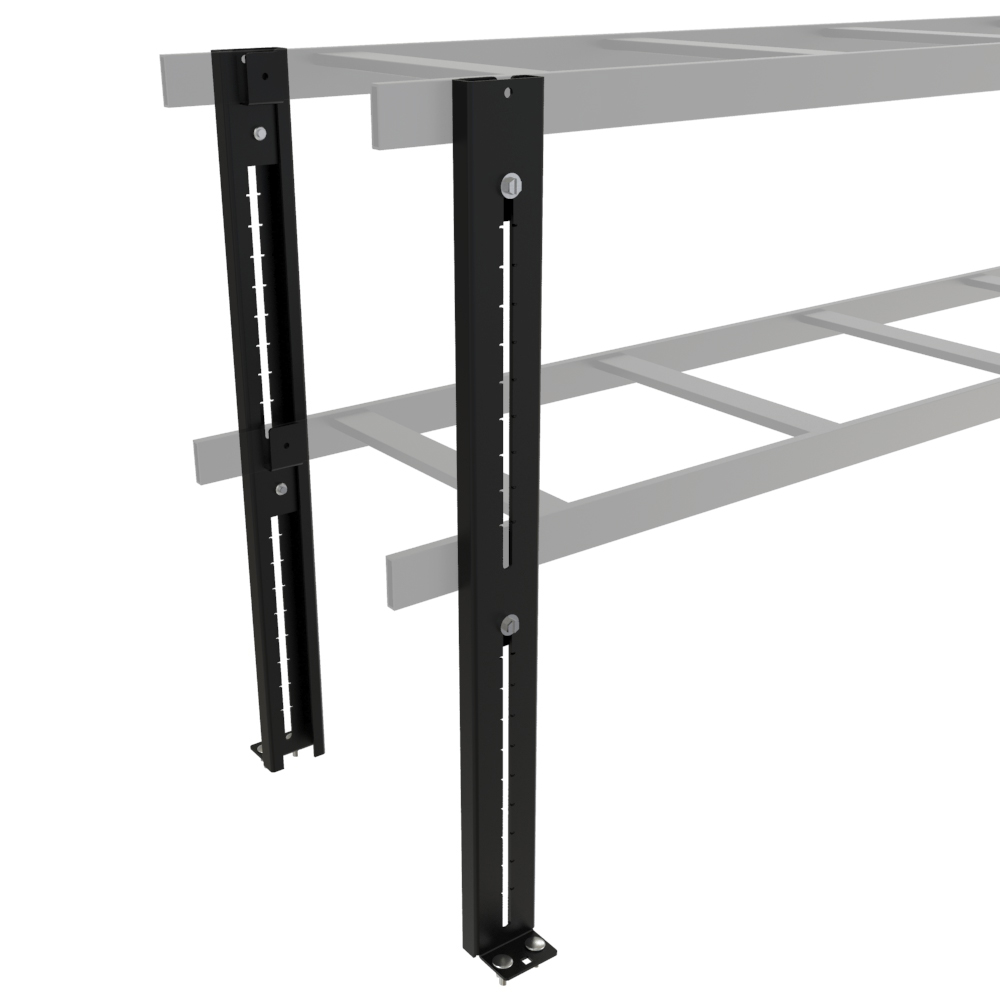

| CLEK2BK | 2 | 2.00 | 12.00 | 14.00 | 24.00 | n/a | n/a | 25.50 | $97.35In stock | Buy now |

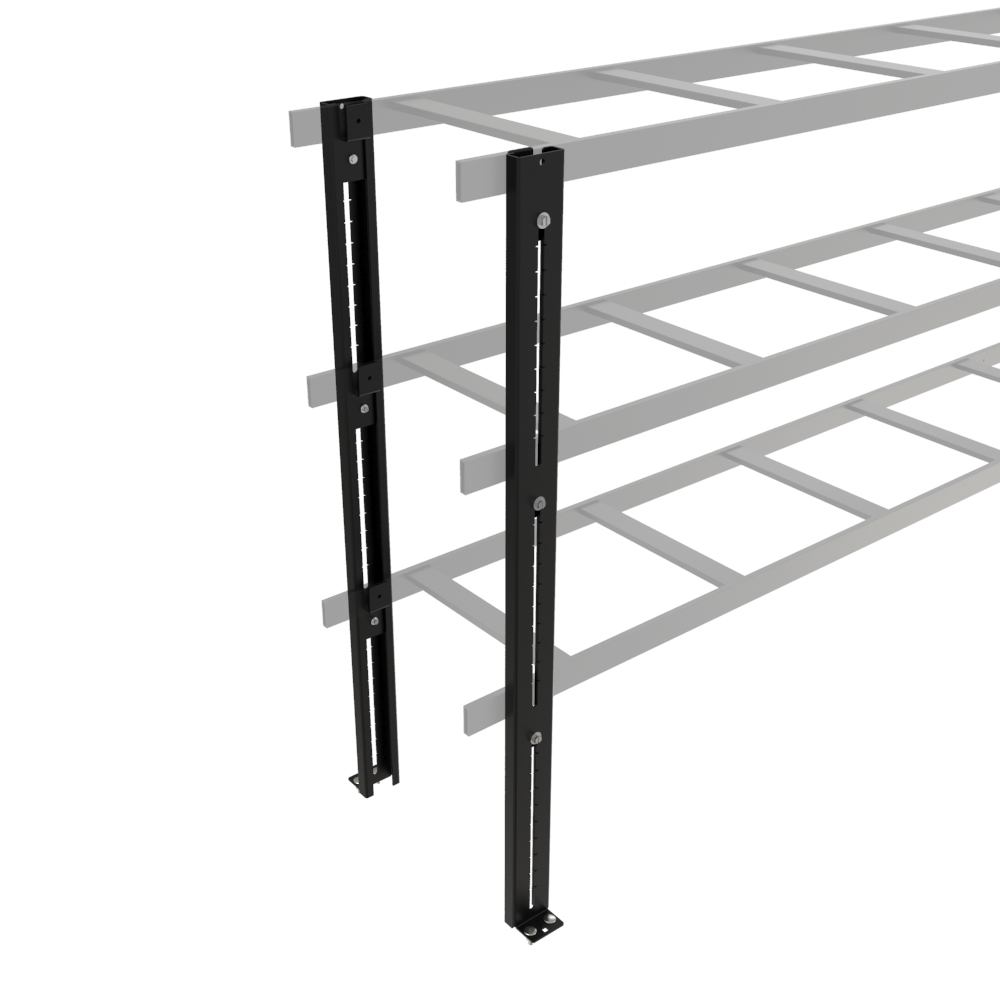

| CLEK3BK | 3 | 2.00 | 12.00 | 14.00 | 24.00 | 26.00 | 36.00 | 37.50 | $155.76In stock | Buy now |
Key Features and Benefits
The CLEK Series ladder rack elevation kits provide a scalable solution for increasing cable routing capacity in overhead ladder rack systems. By enabling multi-tier configurations, they allow installers to expand cable pathways vertically without requiring additional floor space.
Constructed from heavy-duty steel, the CLEK Series supports structured, high-density cable routing in data centers, telecom rooms, and network environments.
- ■12-gauge steel construction provides heavy-duty structural support for multi-tier ladder rack installations.
- ■Enables stacking of ladder rack systems to create two or three levels of cable routing, increasing system capacity.
- ■Supports up to three (3) tiers of ladder rack for high-density cable environments.
- ■Universal design fits many ladder rack brands and supports all ladder widths.
- ■Includes one (1) set of brackets and all required mounting hardware for installation.
- ■Adjustable height ranges allow flexible spacing between ladder rack levels.
- ■Ideal for maximizing cable routing capacity without increasing floor space.
- ■Designed for structured cable separation and organization in complex installations.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
Documents
Additional information
Where the CLEK Series Works Best
- ■Data centers and server rooms
- ■Telecom and network installations
- ■High-density structured cabling environments
- ■Facilities with limited floor space
- ■Multi-tier ladder rack deployments
- ■Creating multi-tier ladder rack systems
- ■Increasing cable routing capacity without expanding footprint
- ■Separating cable types across different ladder levels
- ■Supporting high-density backbone cabling
- ■Scaling existing ladder rack infrastructure
