Hammond CLEK0BK 2-6 in Single-Tier Cable Ladder Elevation Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Elevates one (1) tier of ladder rack with an adjustable first-level range of 2.00-6.00 in (51-152 mm)
- Overall height 7.50 in (191 mm); nominal part size 6 in x 1.5 in x 1.5 in (152 x 38 x 38 mm)
- 12-gauge mild steel construction for heavy-duty structural support
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- Sold in pairs with assembly and mounting hardware included
- Universal design fits many ladder rack brands and supports all ladder widths
- TAA compliant and manufactured in North America for government procurement
- Adds cable routing height without increasing floor space

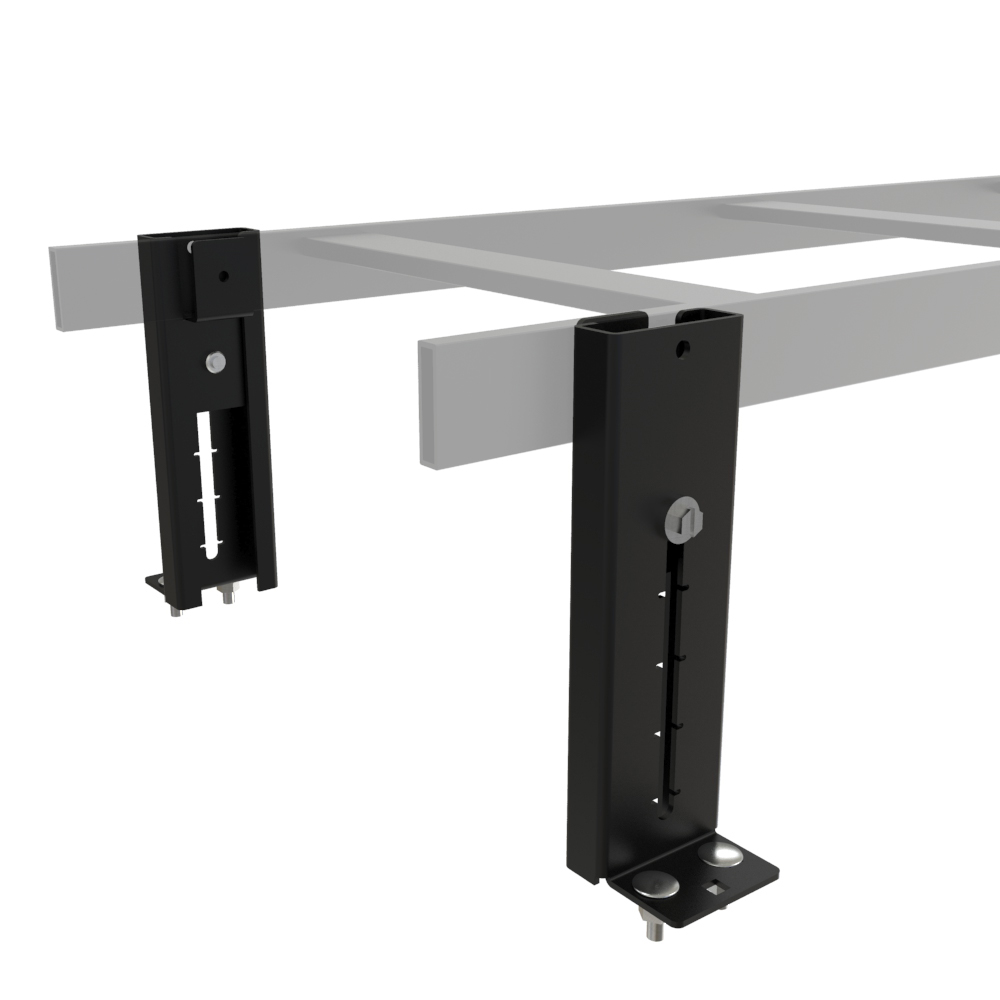

The CLEK0BK is a cable ladder rack elevation kit that raises a single run of ladder rack above its mounting surface, giving installers a clean, adjustable standoff for overhead or wall-supported cable pathways. It suits data center, telecom and structured cabling crews who need to lift a cable runway off a surface or set the starting height of a tiered pathway system without adding floor footprint.
Each kit is built from 12-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The CLEK0BK is sold in pairs, and both assembly hardware and mounting hardware are included: elevation post brackets, mounting clamps, 1/4-20 x 3/4 carriage bolts, 1/4-20 KEP nuts, 1/4-20 x 1 hex bolts and 1/4-20 neoprene/steel sealing washers.
This version of the kit supports a maximum of one (1) ladder tier, with a first-level adjustment range of 2.00 in to 6.00 in (51 mm to 152 mm) and an overall height of 7.50 in (191 mm). Nominal part size is 6 in x 1.5 in x 1.5 in (152 mm x 38 mm x 38 mm). The universal bracket design fits many ladder rack brands and supports all ladder widths.
For procurement teams, CLEK0BK is TAA compliant and manufactured in North America, is USMCA, RoHS and REACH compliant, carries ECCN EAR99 and ships under tariff code 7326.90.8688 with country of origin Canada. If more levels of cable routing are required, other kits in the CLEK series cover two- and three-tier configurations.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density structured cabling environments
- Scaling existing ladder rack infrastructure
- Increasing cable routing capacity without expanding footprint
Overview
| Series | CLEK Series Cable Ladder Rack Elevation Kit |
| Sold As | Sold in pairs (one set of brackets) |
| Description | 6IN LADDER ELEVATION KIT |
| Part Number | CLEK0BK |
| Included Hardware | Assembly hardware and mounting hardware included |
| Maximum Ladder Quantity | 1 tier |
Dimensions
| Overall Height | 7.50 in (191 mm) |
| Top View Footprint | 2.62 in (66 mm) x 2.03 in (52 mm) |
| Third Level Adjustment | n/a |
| Second Level Adjustment | n/a |
| Nominal Size (H X W X D) | 6 in x 1.5 in x 1.5 in (152 mm x 38 mm x 38 mm) |
| Bracket Width (Side View) | 2.32 in (59 mm) |
| First Level Adjustment - Max | 6.00 in (152 mm) |
| First Level Adjustment - Min | 2.00 in (51 mm) |
Identifiers
| UPC | 623980018751 |
| ECCN | EAR99 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980018751 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398001875 |
Included Components
| Item 1 | CLEK elevation post bracket (2X) |
| Item 2 | 1/4-20 x 3/4 stainless steel carriage bolt (2X) |
| Item 3 | 1/4-20 KEP nut (4X) |
| Item 4 | CLEK mounting clamp (2X) |
| Item 5 | 1/4-20 x 1 hex bolt |
| Item 6 | 1/4-20 sealing washer, neoprene/steel (2X) |
Construction & Finish
| Gauge | 12-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
| Compatibility | Universal design fits many ladder rack brands and supports all ladder widths |
Compliance & Certifications
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant black powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many ladder rack tiers does CLEK0BK support?▾
CLEK0BK supports a maximum of one (1) ladder tier. It provides a first-level adjustment range of 2.00 in to 6.00 in (51 mm to 152 mm). For two- or three-tier configurations, see CLEK2BK and CLEK3BK in the same series.
Is hardware included with CLEK0BK?▾
Yes. The kit includes one set of brackets with all required mounting hardware, plus assembly hardware: elevation post brackets, mounting clamps, 1/4-20 x 3/4 stainless carriage bolts, 1/4-20 KEP nuts, 1/4-20 x 1 hex bolts and 1/4-20 neoprene/steel sealing washers.
Is CLEK0BK sold individually or in pairs?▾
Per the drawing notes, CLEK0BK is sold in pairs as one set of brackets.
Will it work with ladder rack from other manufacturers?▾
The CLEK design is universal and fits many ladder rack brands, supporting all ladder widths.
What is the overall height of CLEK0BK?▾
The overall height is 7.50 in (191 mm), with the ladder-level setting adjustable between 2.00 in and 6.00 in.
Does CLEK0BK meet government procurement requirements?▾
CLEK0BK is TAA compliant and manufactured in North America, with country of origin CA. It is also USMCA, RoHS and REACH compliant and classified ECCN EAR99.
