Hammond CLEK1BK 1 ft Single-Tier Ladder Rack Elevation Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Raises one (1) tier of ladder rack; first-level height adjustable from 2.00 in (51 mm) to 12.00 in (305 mm)
- Overall post height 13.50 in (343 mm); nominal kit size 12 in x 1.5 in x 1.5 in (305 mm x 38 mm x 38 mm)
- 12-gauge mild steel construction for heavy-duty structural support
- Universal design fits many ladder rack brands and supports all ladder widths
- Sold in pairs with one set of brackets plus all assembly and mounting hardware included
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
- Increases cable routing capacity without expanding floor space

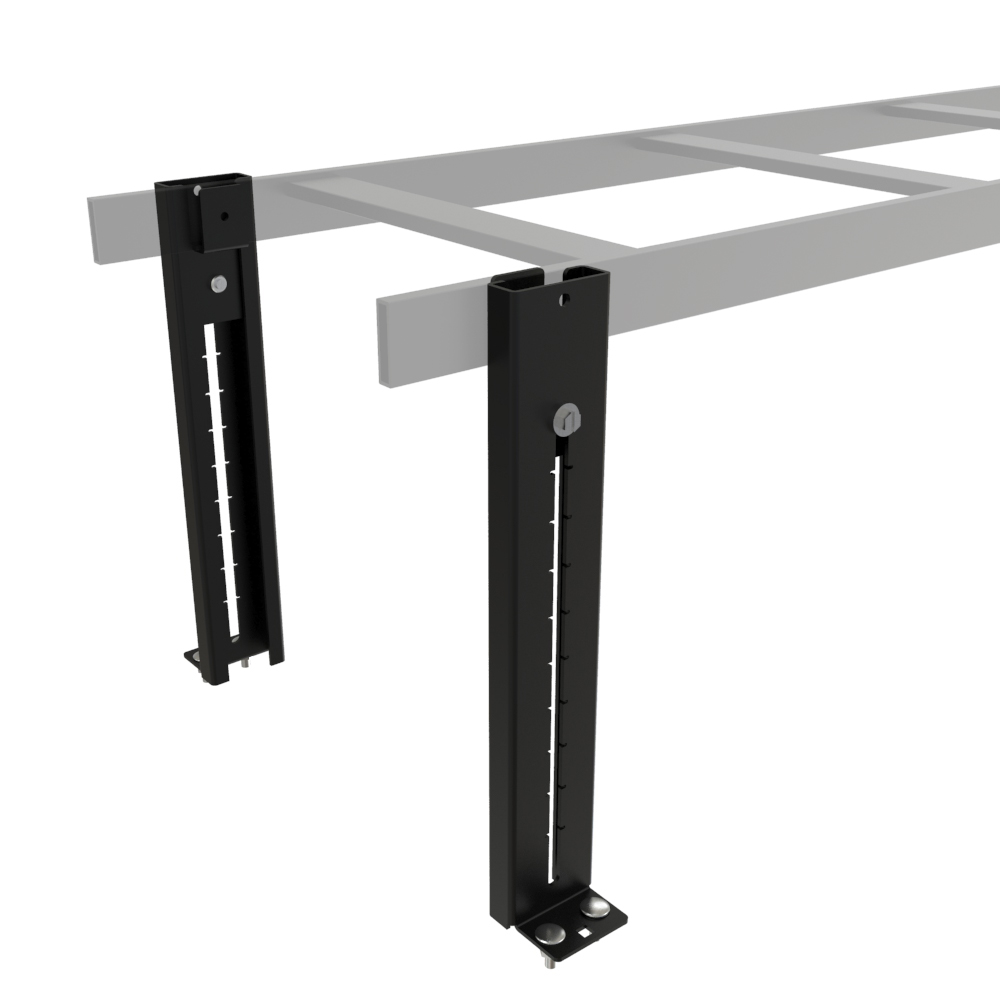

The CLEK1BK is a cable ladder rack elevation kit that raises a single tier of ladder rack above an existing pathway, letting installers add cable capacity vertically instead of consuming more floor or wall space. It suits data centers, telecom and network rooms, and high-density structured cabling environments where routing needs grow but the footprint cannot.
Each kit is built from 12-gauge mild steel for heavy-duty structural support and is finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. The design is universal, fitting many ladder rack brands and all ladder widths, so it can be used to scale existing ladder rack infrastructure rather than replacing it.
CLEK1BK supports a maximum of one (1) ladder, with first-level height adjustable from 2.00 in (51 mm) to 12.00 in (305 mm) and an overall post height of 13.50 in (343 mm). The nominal shipping size of the kit is 12 in x 1.5 in x 1.5 in (305 mm x 38 mm x 38 mm). Adjustable height ranges let you set the spacing between the mounting surface and the ladder level to suit the installation.
The kit is sold in pairs and includes one (1) set of brackets with all required assembly and mounting hardware: elevation post brackets, CLEK mounting clamps, 1/4-20 x 3/4 stainless carriage bolts, 1/4-20 KEP nuts, 1/4-20 x 1 hex bolts and 1/4-20 neoprene/steel sealing washers. CLEK1BK is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance for government and enterprise procurement requirements.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density structured cabling and backbone pathways
- Facilities with limited floor space
- Scaling or elevating existing ladder rack infrastructure
Overview
| Series | CLEK Series Cable Ladder Rack Elevation Kit |
| Sold As | Sold in pairs; one (1) set of brackets per kit |
| Part Number | CLEK1BK |
| Product Type | Ladder rack elevation kit / multi-tier ladder support |
| Short Description | 1FT LADDER ELEVATION KIT |
| Maximum Ladder Quantity | 1 |
Dimensions
| Overall Height | 13.50 in (343 mm) |
| Bracket Side Width | 2.32 in (59 mm) |
| Nominal Size (H X W X D) | 12 in x 1.5 in x 1.5 in (305 mm x 38 mm x 38 mm) |
| Third Level Height Range | n/a |
| Second Level Height Range | n/a |
| Bracket Top View Dimensions | 2.03 in (52 mm) and 2.62 in (66 mm) |
| First Level Height - Maximum | 12.00 in (305 mm) |
| First Level Height - Minimum | 2.00 in (51 mm) |
| Adjustment Range (Front View) | 2.00 in - 12.00 in |
Identifiers
| UPC | 623980018768 |
| ECCN | EAR99 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980018768 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398001876 |
Included Hardware
| Brackets | CLEK elevation post bracket (2X); CLEK mounting clamp (4X) |
| Hardware Included | Assembly hardware and mounting hardware included |
Construction & Finish
| Gauge | 12-gauge steel |
| Colour | Painted Black |
| Finish | Black powder coat |
| Material | Mild Steel |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many ladder rack tiers does CLEK1BK support?▾
CLEK1BK supports a maximum of one (1) ladder. Its first-level height is adjustable from 2.00 in (51 mm) to 12.00 in (305 mm). Other CLEK Series kits support two or three tiers.
What is the overall height of CLEK1BK?▾
The overall height is 13.50 in (343 mm). The nominal kit size listed is 12 in x 1.5 in x 1.5 in (305 mm x 38 mm x 38 mm).
Is mounting hardware included?▾
Yes. The kit includes one (1) set of brackets and all required mounting hardware. The drawing lists elevation post brackets, mounting clamps, 1/4-20 x 3/4 stainless carriage bolts, 1/4-20 KEP nuts, 1/4-20 x 1 hex bolts and 1/4-20 neoprene/steel sealing washers. Assembly hardware is also included.
Will it work with my existing ladder rack?▾
The CLEK design is universal, fitting many ladder rack brands and supporting all ladder widths, so it can be used to scale existing ladder rack infrastructure.
Is CLEK1BK sold individually or in pairs?▾
The part drawing notes that it is sold in pairs.
Does CLEK1BK meet government procurement requirements?▾
It is TAA-compliant and manufactured in North America, with country of origin CA, and is USMCA, RoHS and REACH compliant (ECCN EAR99).
