Hammond CLEK3BK 3-Tier 37.5 in Ladder Rack Elevation Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Supports up to three (3) tiers of ladder rack for high-density cable environments; maximum ladder quantity 3
- Overall height 37.50 in (952 mm); nominal size 36 in x 1.5 in x 1.5 in (914 mm x 38 mm x 38 mm)
- Adjustable levels: 2.00-12.00 in first, 14.00-24.00 in second, 26.00-36.00 in third
- 12-gauge mild steel construction for heavy-duty structural support of stacked ladder rack
- Universal design fits many ladder rack brands and supports all ladder widths
- Sold in pairs with one set of brackets, assembly hardware and mounting hardware included
- Black powder coat finish stated as GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant

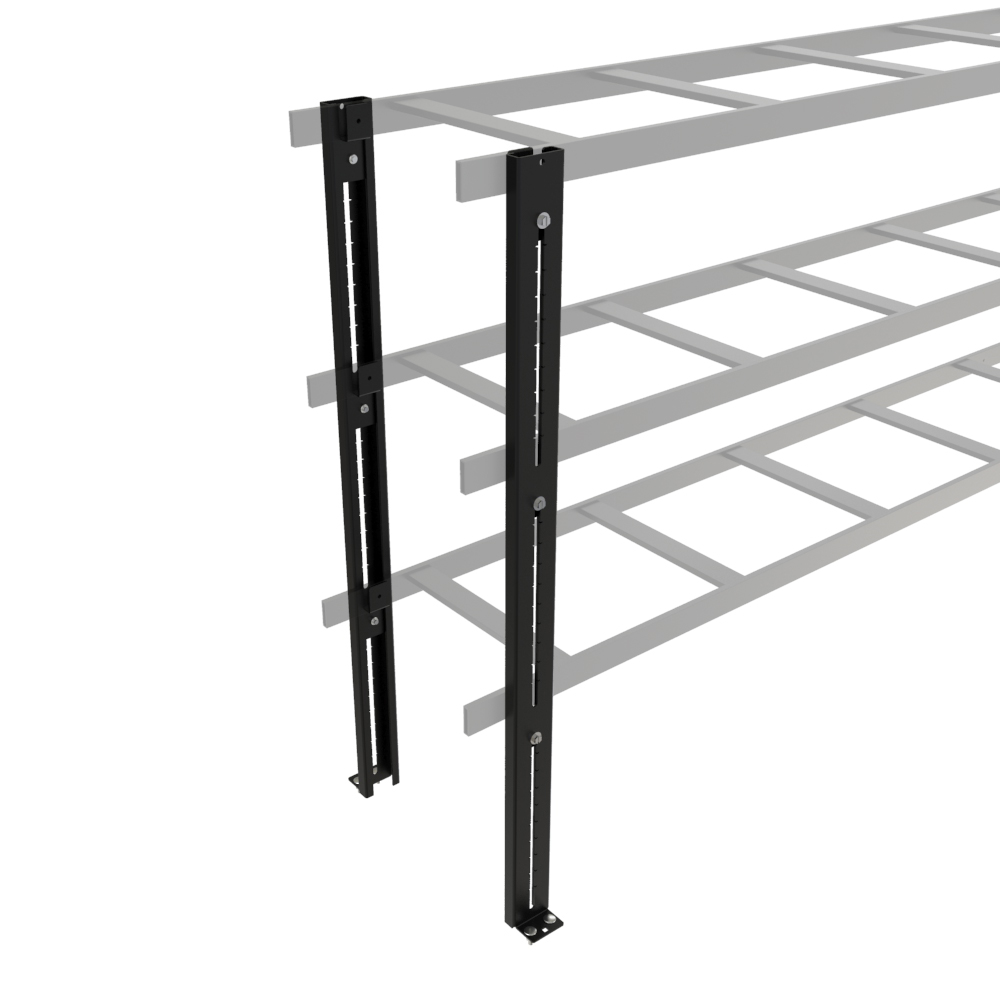

The CLEK3BK is a cable ladder rack elevation kit that lets installers stack overhead ladder rack into a multi-tier pathway system. It is the three-tier member of the CLEK Series, supporting a maximum ladder quantity of three, and is aimed at data center, telecom and structured cabling teams who need more cable capacity from the same floor footprint.
Construction is 12-gauge mild steel with a black powder coat finish that is described as GREENGUARD, TSCA and RoHS compliant. The kit is built from CLEK elevation post brackets and CLEK mounting clamps, secured with 1/4-20 carriage bolts, 1/4-20 hex bolts, 1/4-20 KEP nuts and 1/4-20 neoprene/steel sealing washers. Per the drawing, CLEK3BK is sold in pairs, and both assembly hardware and mounting hardware are included.
Each post has an overall height of 37.50 in (952 mm) and a nominal listed size of 36 in x 1.5 in x 1.5 in (914 mm x 38 mm x 38 mm). Ladder mounting positions are adjustable: the first level ranges from 2.00 in (51 mm) to 12.00 in (305 mm), the second level from 14.00 in (356 mm) to 24.00 in (610 mm), and the third level from 26.00 in (660 mm) to 36.00 in (914 mm), so spacing between tiers can be set to suit cable bundle depth and separation requirements.
The universal bracket design is stated to fit many ladder rack brands and to support all ladder widths, making CLEK3BK suitable for scaling existing runway infrastructure as well as new builds. The part is TAA-compliant and manufactured in North America (country of origin CA), with USMCA, RoHS and REACH compliance noted for procurement documentation.
Ideal For
- Creating multi-tier ladder rack systems in data centers and server rooms
- Telecom and network installations with high-density structured cabling
- Increasing cable routing capacity without expanding floor footprint
- Separating cable types across different ladder levels
- Scaling existing ladder rack infrastructure for backbone cabling
Overview
| Series | CLEK Series - Cable Ladder Rack Elevation Kit, Multi-Tier Ladder Support |
| Sold As | Sold in pairs |
| Description | 3FT Ladder Elevation Kit |
| Part Number | CLEK3BK |
| Included Hardware | One (1) set of brackets; assembly hardware included; mounting hardware included |
| Maximum Ladder Quantity | 3 |
Dimensions
| Overall Height | 37.50 in (952 mm) |
| Nominal Size (H X W X D) | 36 in x 1.5 in x 1.5 in (914 mm x 38 mm x 38 mm) |
| First Level Range (Min - Max) | 2.00 in (51 mm) - 12.00 in (305 mm) |
| Third Level Range (Min - Max) | 26.00 in (660 mm) - 36.00 in (914 mm) |
| Second Level Range (Min - Max) | 14.00 in (356 mm) - 24.00 in (610 mm) |
Identifiers
| UPC | 623980018782 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980018782 |
| UPC W/o Check Digit | 62398001878 |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 7326.90.8688 |
| Weight (Lbs) | 0 |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 12-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
| Components | CLEK elevation post bracket (2X), CLEK mounting clamp (6X), 1/4-20 x 3/4 carriage bolt SS, 1/4-20 KEP nut, 1/4-20 x 1 hex bolt, 1/4-20 neoprene/steel sealing washer (6X) |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant black powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many tiers of ladder rack does CLEK3BK support?▾
CLEK3BK has a maximum ladder quantity of three, so it supports up to three (3) tiers of ladder rack.
What are the adjustable mounting heights for each tier?▾
The first level adjusts from 2.00 in (51 mm) to 12.00 in (305 mm), the second level from 14.00 in (356 mm) to 24.00 in (610 mm), and the third level from 26.00 in (660 mm) to 36.00 in (914 mm).
How tall is the kit overall?▾
Overall height is 37.50 in (952 mm). The listed nominal size is 36 in x 1.5 in x 1.5 in (914 mm x 38 mm x 38 mm).
Is mounting hardware included, and how is it sold?▾
Yes. CLEK3BK is sold in pairs and includes one (1) set of brackets with assembly hardware and mounting hardware. Fasteners include 1/4-20 carriage bolts, 1/4-20 hex bolts, 1/4-20 KEP nuts and 1/4-20 neoprene/steel sealing washers.
Will it work with ladder rack from other manufacturers?▾
The CLEK design is stated to be universal, fitting many ladder rack brands and supporting all ladder widths.
Is CLEK3BK suitable for government projects?▾
It is TAA-compliant and manufactured in North America, with country of origin CA, USMCA, RoHS and REACH compliance, and ECCN EAR99.
